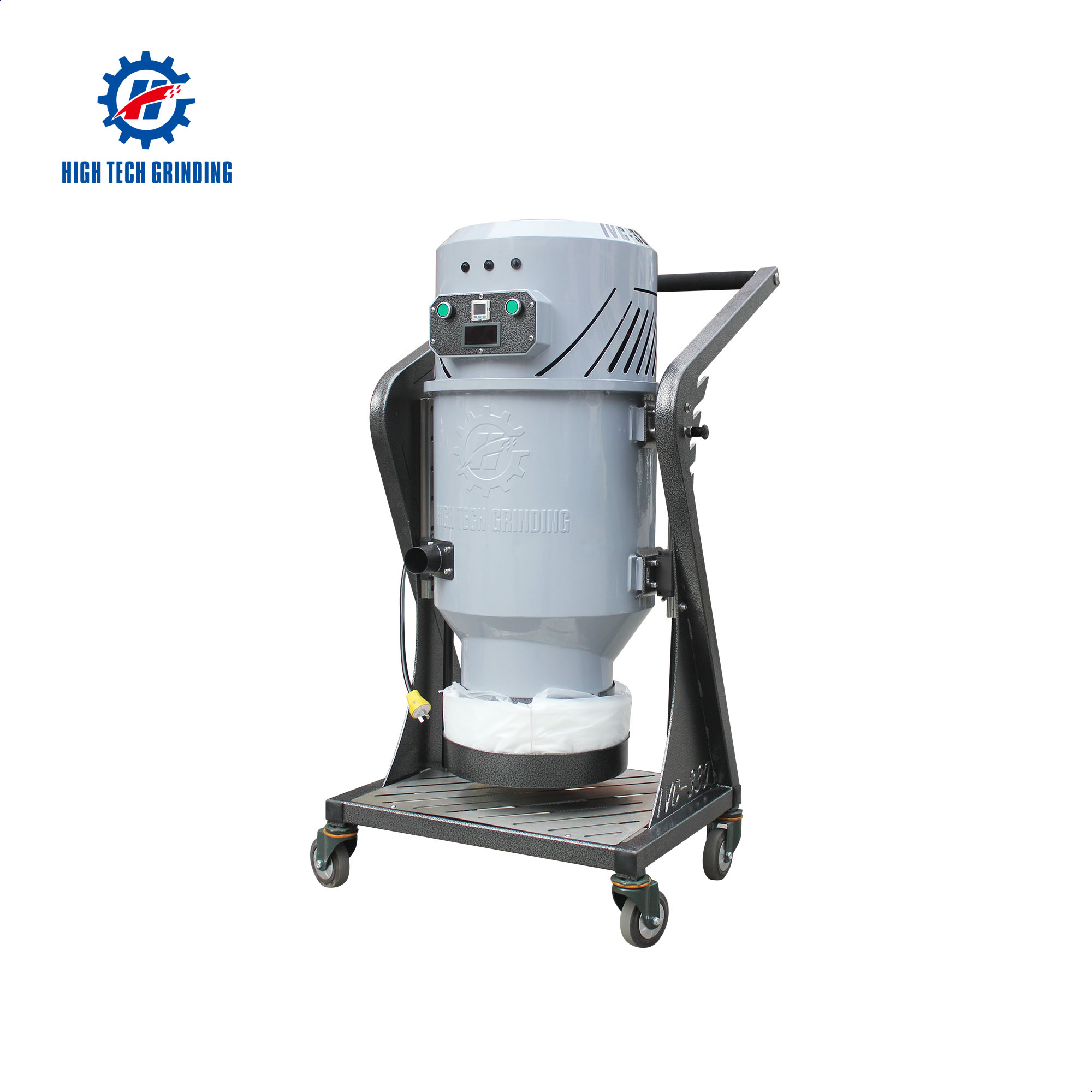

Xingyi industrial dust collector vacuum cleaner IVC-33L

Xingyi  industrial dust collector vacuum cleaner IVC-33L is the new one invented by our enginners,the small body ,strong vacuum suction will be give  you best.

  • Brand:

    High Tech Grinding
  • Item NO.:

    IVC-33L
  • Product Origin:

    Fujian, China
  • Color:

    Black and grey
  • Shipping Port:

    Xiamen,China
  • Lead Time:

    Within 7days after receiving the full pa
Product Detail

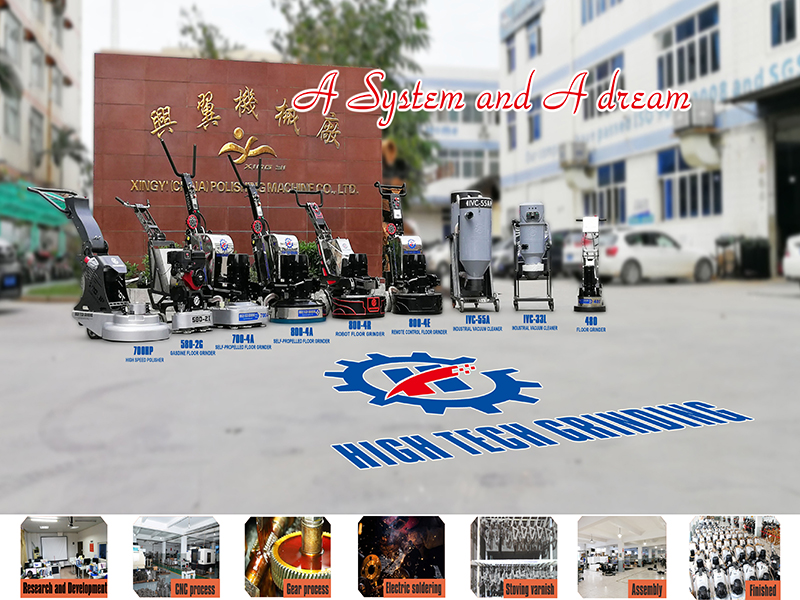

Manufacturing Center


Xingyi Factory had developed for 19 years,Awarded 123 patents for inventions.Helping our clients finished many kinds of floor  maintance grinding  polishing projects.

Production Description


Features

The dust that is generated by the floor grinding machine enters the first chamber, it is cyclonically separated.

the heavy dust goes down and the finer travel up. ( most of the dust can be collected in the first chamber)

then airstream goes into the second chamber, where remaining dust is filtered.


Technical Specification

Motor     3.3KW
Power    220V /110V
Phase  Single
Suction Diameter 50mm
Weight  90KG
Noise  70
Air Flow Rate 480m3/h

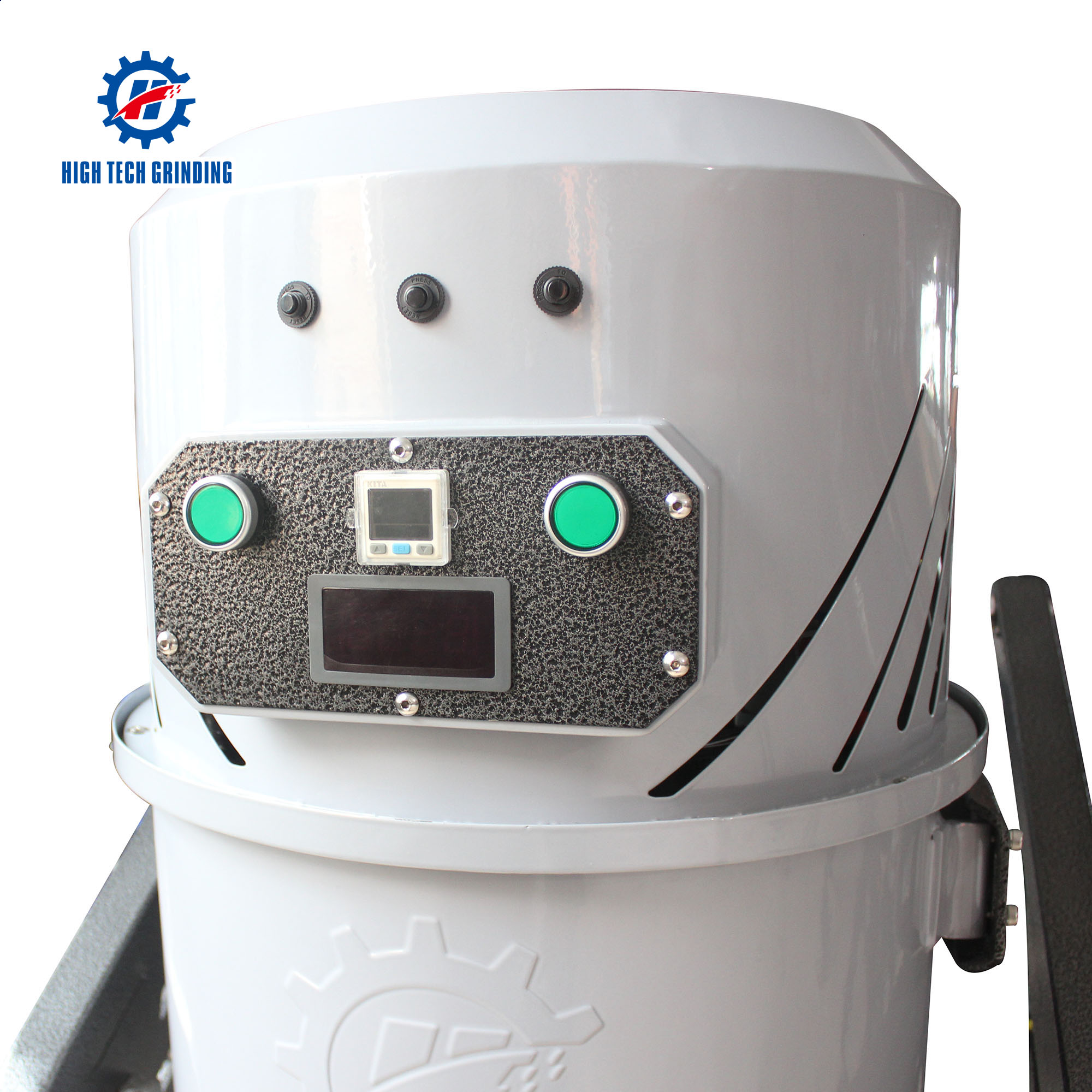

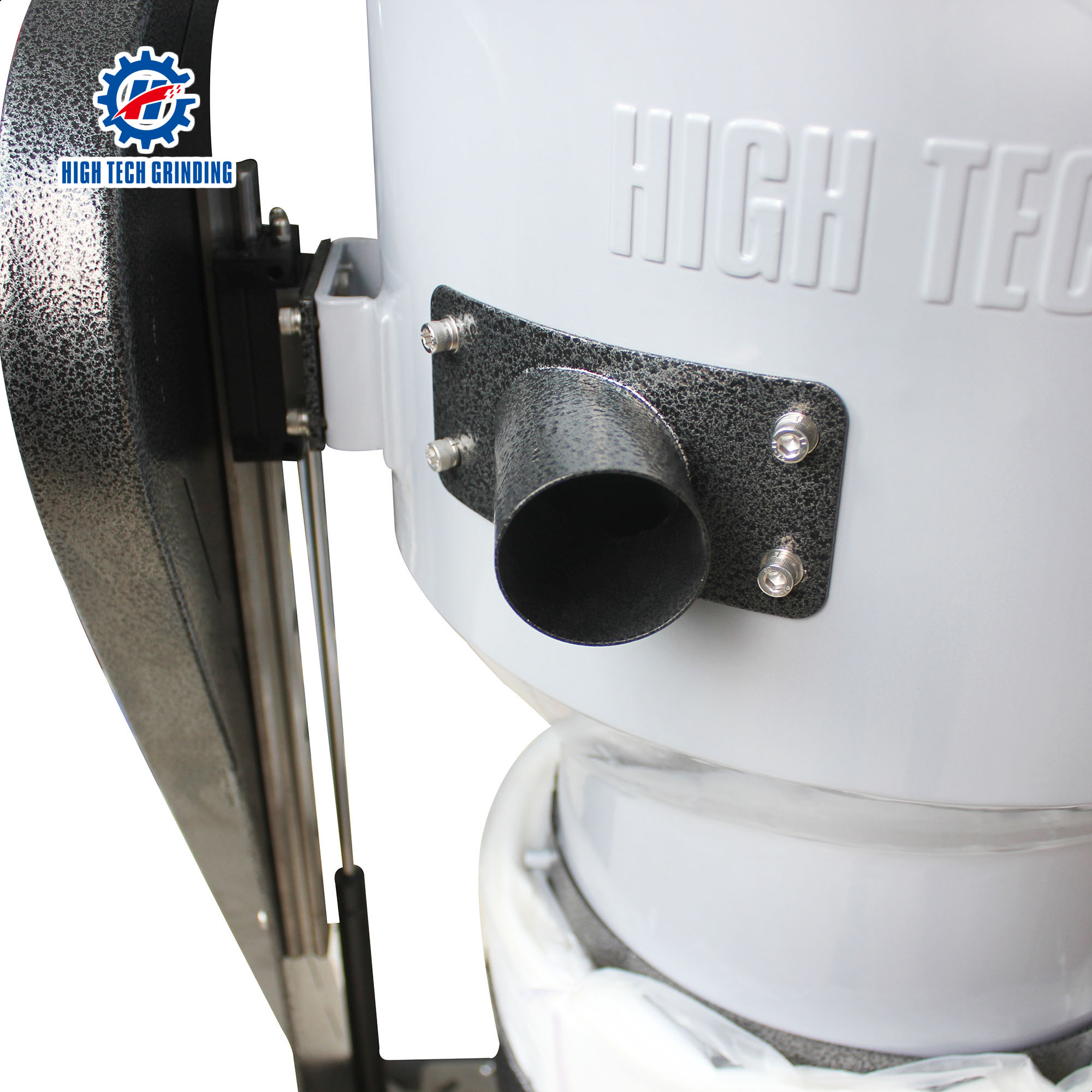

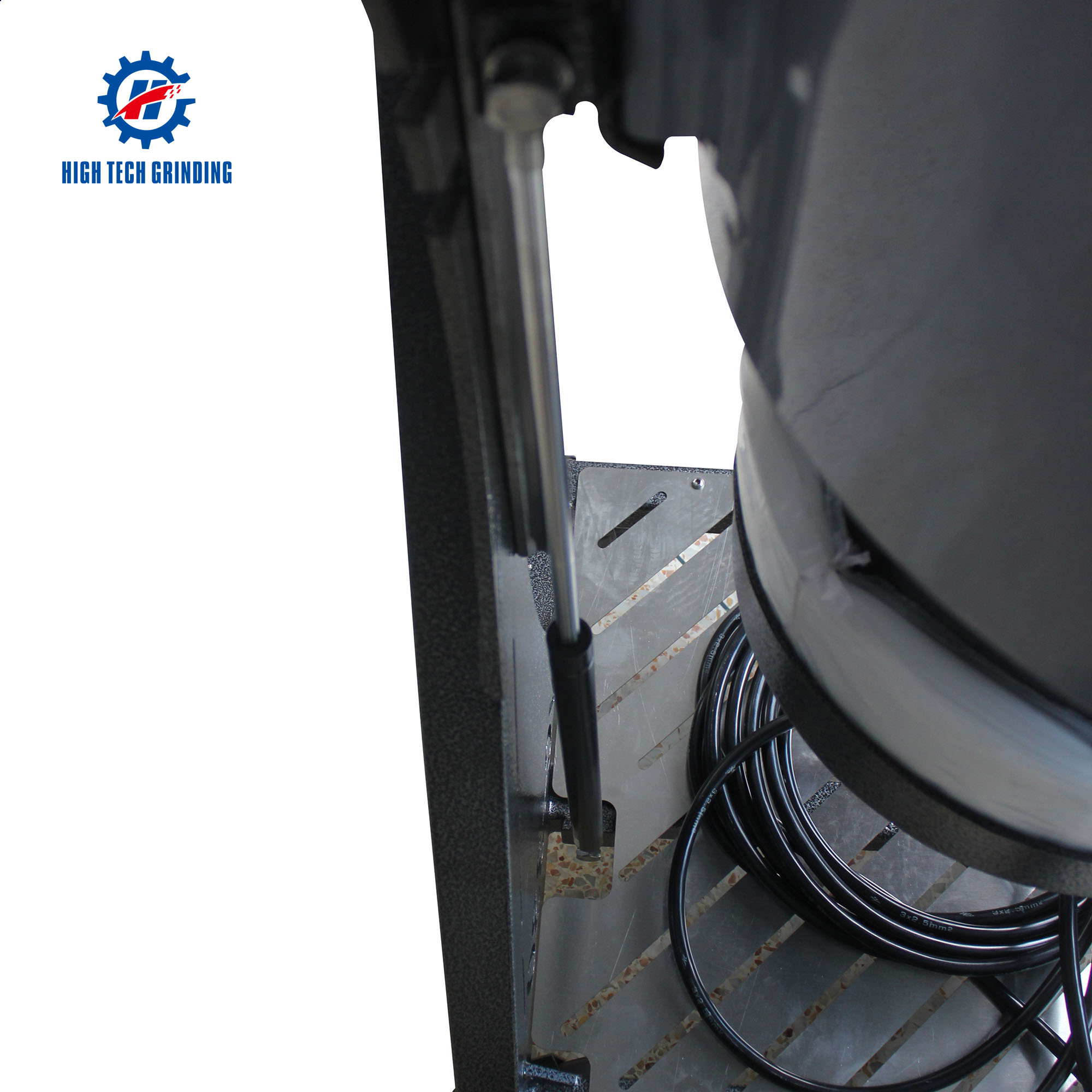

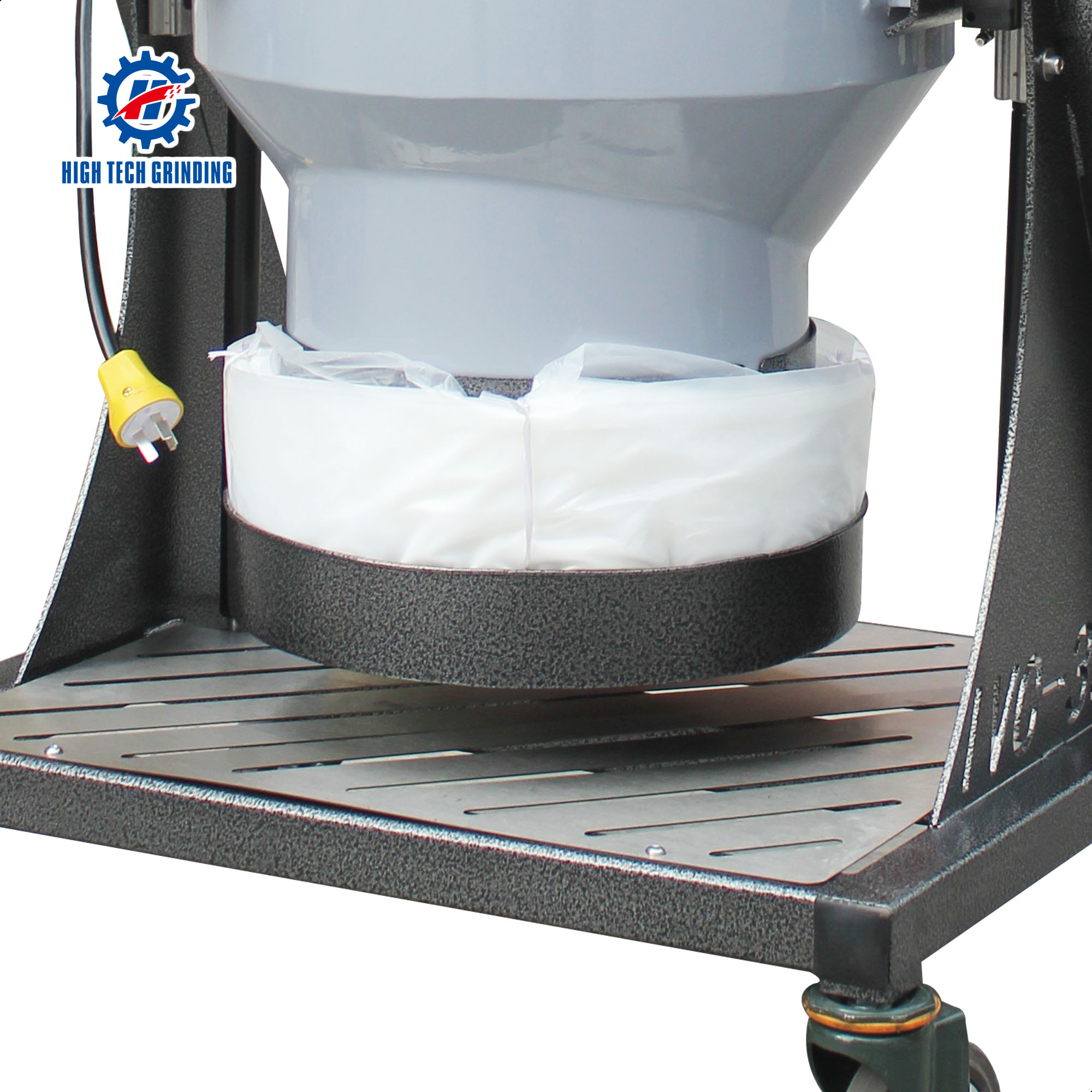

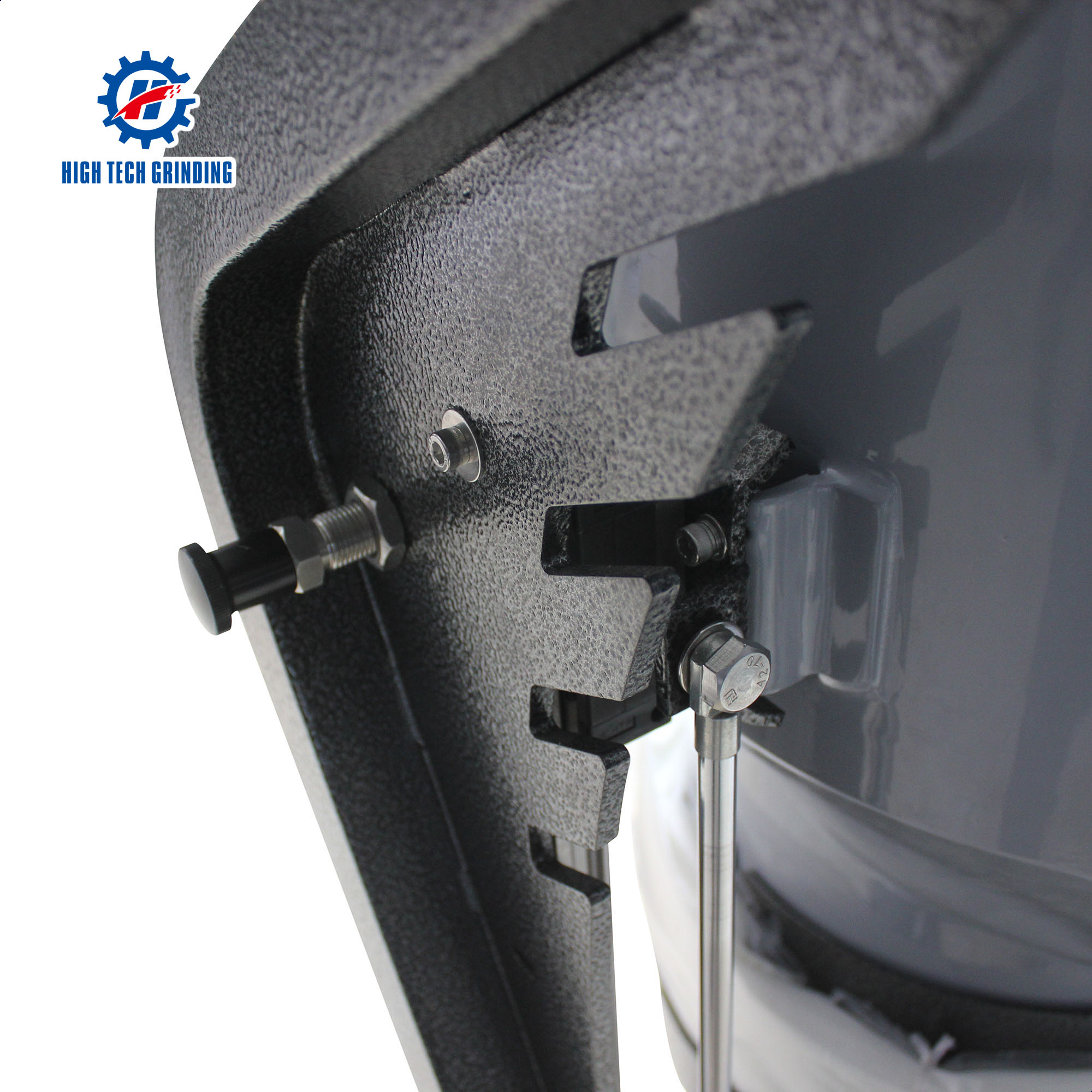

Machine Shows








Advantages

IVC-33L is the ideal dust collector for all those who have to vacuum big quantities of dust and who have to carry

the machine from a place to another.

It has been specifically designed to be connected to floor sanders, to grinders, to scarifiers or to shot blasting machines.

More Questions contact Jane Ling 0086-15960788816(wechat/whatsapp)

A free consultation

Enable the global floor labors to work with health, Easy and happiness
