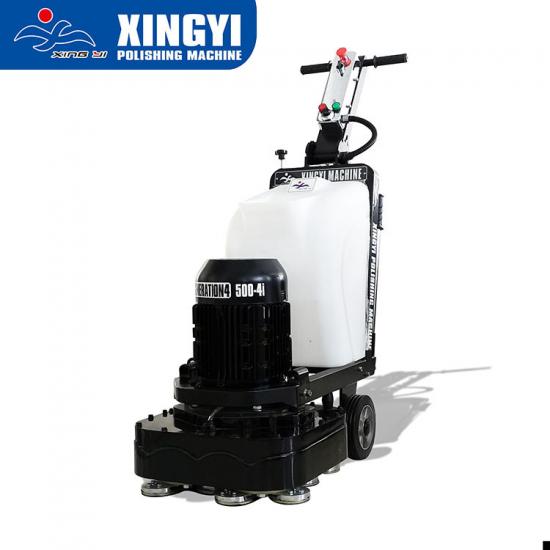

500-4i Squared Floor Surface Grinder And Concrete Floor Grinding Machine

The 500-4i is a squared floor surface grinder.  It's grinding plate and gearbox are made of aluminum-alloy.
Equipped with a heavy-duty aluminum-alloy motor that ensures lightweight but strong power, it can greatly increase work efficiency for the floor.


  • Brand:

    Xingyi
  • Item NO.:

    500-4i
  • Product Origin:

    Fujian, China
  • Color:

    Black And White
  • Shipping Port:

    Xiamen
  • Lead Time:

    7-20 Days
Product Detail

500-4i Squared Floor Surface Grinder And Concrete Floor Grinding Machine


Specifications

Model

500-4i

Voltage

380-440V 3P

220-240V 3P/1P

Operating width

500mm

Grinding disc

270mm*4

Rotating speed

350-1460rpm

Motor HP

5.5KW/7.5HP

Inverter HP

7.5KW/10HP

Weight

175kg

Water tank

28L

Packing size

140*88*120cm

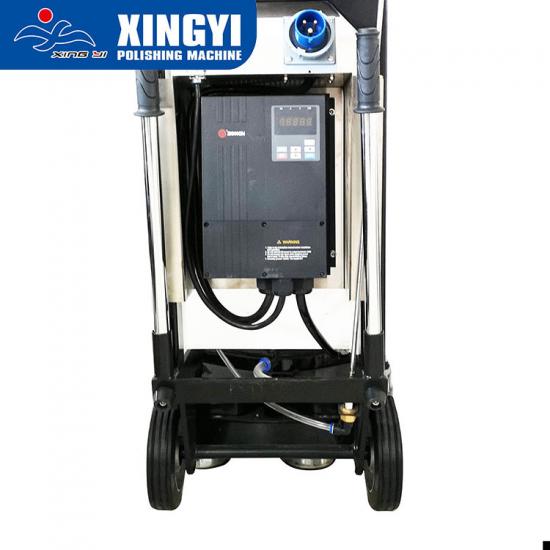

Configuration

WEG motor + Veichi inverter

WEG motor + Delta inverter

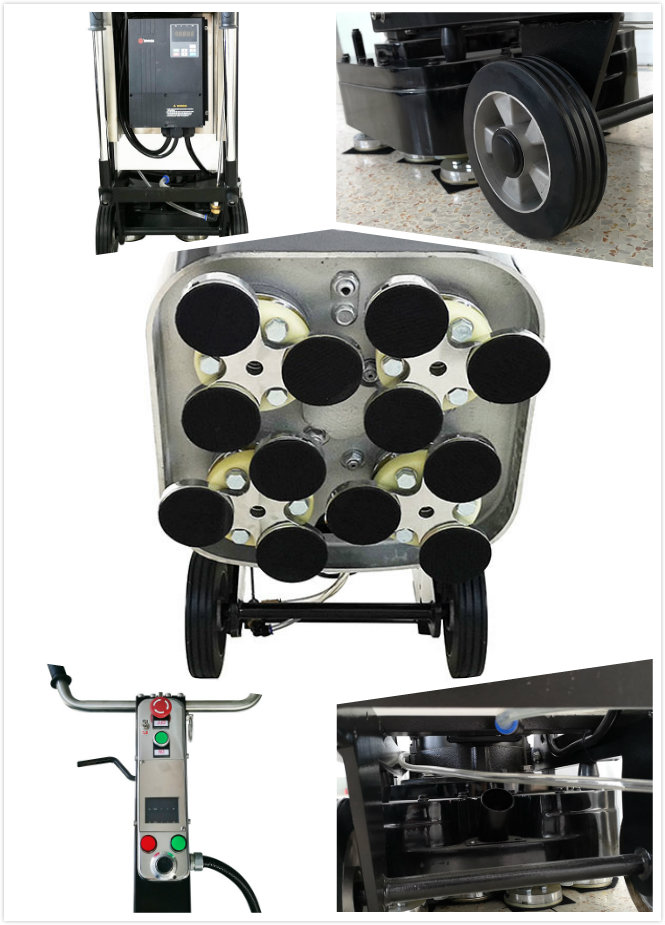

Poduct display

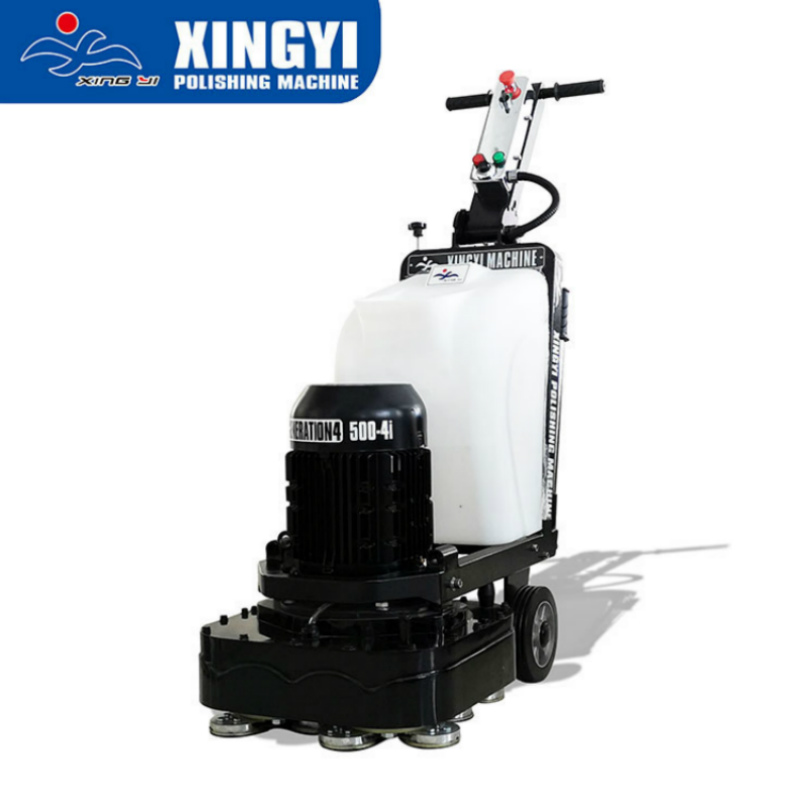

500-4i Useful floor grinder

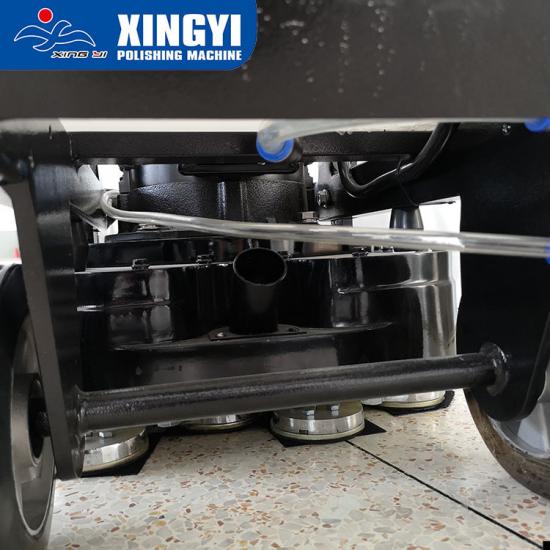

•1.The grinding plate and gearbox are made of aluminum-alloy. Equipped with a heavy-duty aluminum-alloy motor that ensures lightweight but strong power, it can greatly increase work efficiency for the floor.

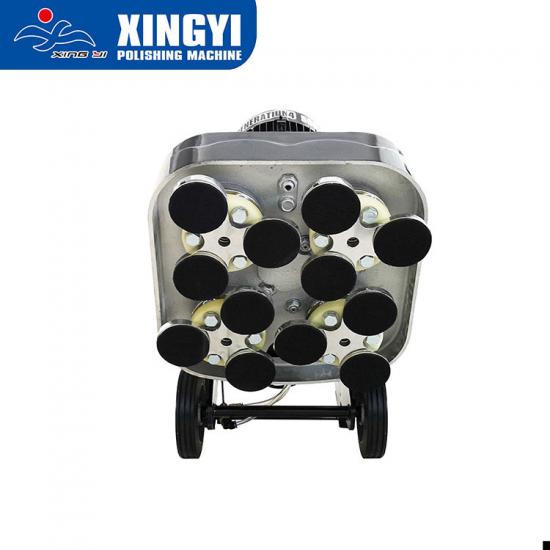

•2.The machine is available for 12 pcs of abrasive pads and it is multifunctional plates that can install different kinds of pads.

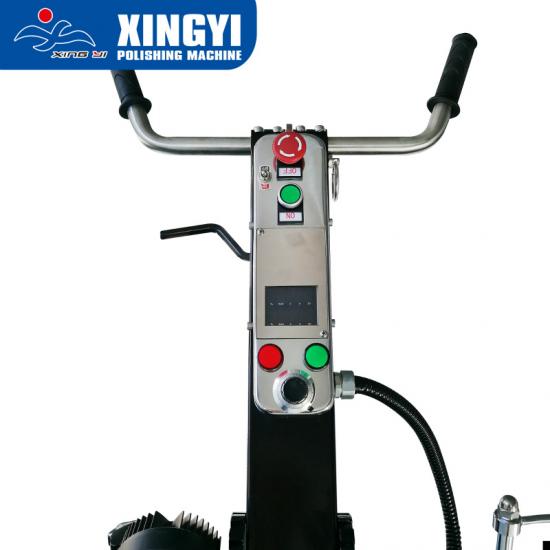

•3.With a squared gearbox, collapsible handgrip, and separable design, it is convenient to handle.

•4.It can be equipped with vacuum equipment to achieve a dry and wet working.




Multifunctional concrete and terrazzo floor grinder

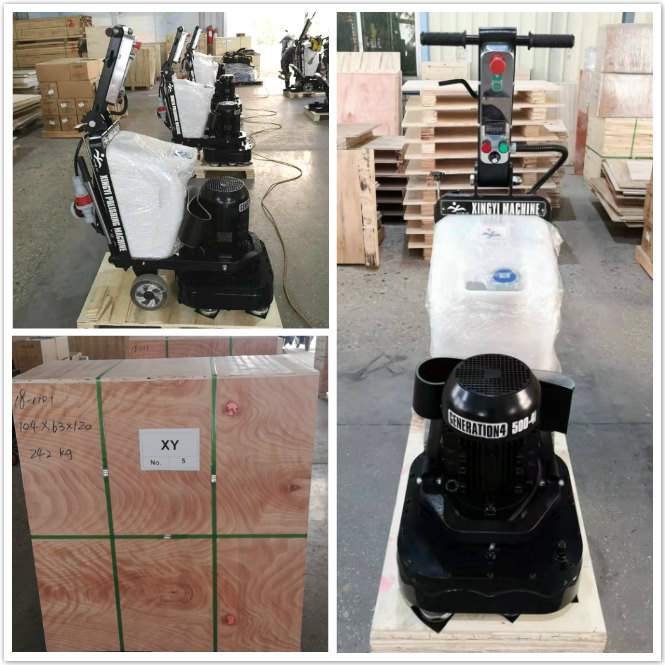

Package


Cost effective floor polish machine


FAQ

Q1:

How do you dye concrete?

A1:

Step1: Check the surface condition: make sure the surface on which the stain will be applied is clean, free from unwanted defected defects, holes, hollows and glues ready for condition.

Step2: Grind the surface with 500-4i floor grinding machine and metal pads HTG-2Y-30#60#

Step3: Harden the surface with densifier HTG-EC-N01 and wait it dry for 12 hours.

Step4: Dry polishing with resin pads HTG-C310-50#100#200# and HTG-XZ-400#

Step5: Dying the concrete with colors HTG-EC-CD01

Step6:  Buffing with high speed polisher HP27 and buffing pads HTG-DIP-S004 400# to clear the dust on the surface.

Step7: Spritzing the color hardener on the surface and open with dust pusher evenly.

Step8:Buffing with high speed polisher HP27and buffing pads HTG-DIP-S004 800#150# until the surface is glossy.


Q2:

Can all concrete be stained?

A2:

Low concrete strength, uneven surface, humid ground, improper polished concrete with markings will lead to a bad stainning,
