With stable performance and super grinding efficiency, the 550-3D concrete floor grinder and polisher manufactured by Fujian Xingyi Polishing Machine Co., Ltd is a brilliant floor preparation equipment.
Brand:
XingyiItem NO.:
550-3DProduct Origin:
Fujian, ChinaColor:
Black And WhiteShipping Port:
XiamenLead Time:
7-20 Days550-3D Professional Diamond Floor Grinding Machine And Best Polishing Machine

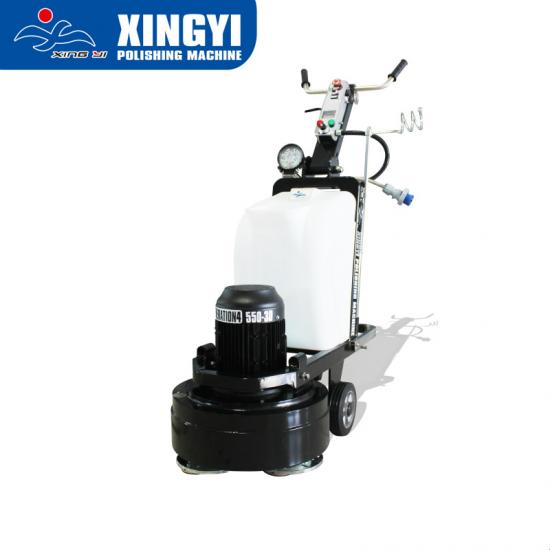

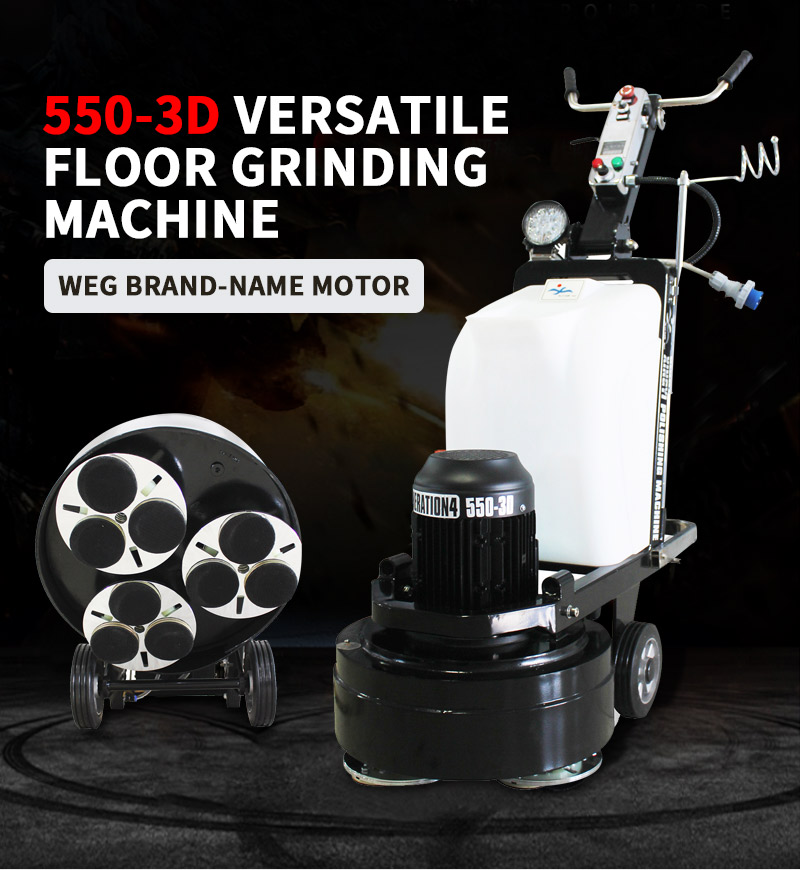

With stable performance and super grinding efficiency, the 550-3D concrete floor grinder and polisher manufactured by Fujian Xingyi Polishing Machine Co., Ltd is a brilliant floor preparation equipment. With 550mm working width, multifunctional planetary grinding discs, 350-1460rpm rotating speed and 5.5 HP imported WEG motor, available for both 220V and 380V power supply, it is specially designed for medium size areas for both industrial and home use. Equipped with an integrated control panel and detachable machine rack and main electric cabinet, it is of excellent flexibility to both operate, transport and maintain the machine.
Specifications
Model |
550-3D High-efficiencyfloor surface grinder polisher |
|
Operating width |
550mm |
|
Grinding disc |
230mm*3 (3heads) |
|
Rotating speed |
360-1260rpm |
|
Motor HP |
4KW/5.5HP |
|
Inverter HP |
5.5KW/7.5HP |
|
Amperage |
8.3A |
14.4A |
Voltage |
380-440V 3P |
220-240V 3P/1 phase |
Weight |
165kg |
|
Extra weight |
30kg*1 |
|
Water tank |
28L |
|
Packing size |
104*63*120cm |
|
Configuration |
WEG motor + Delta inverter |

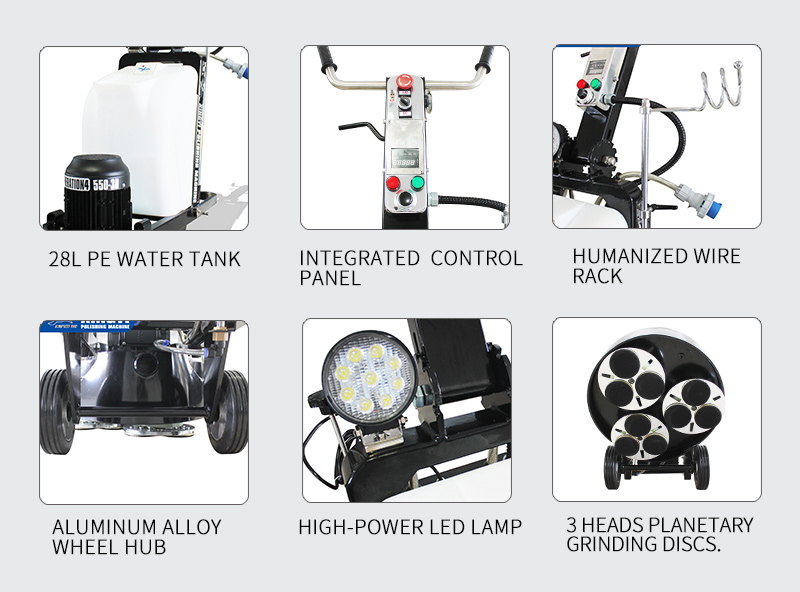

Product display

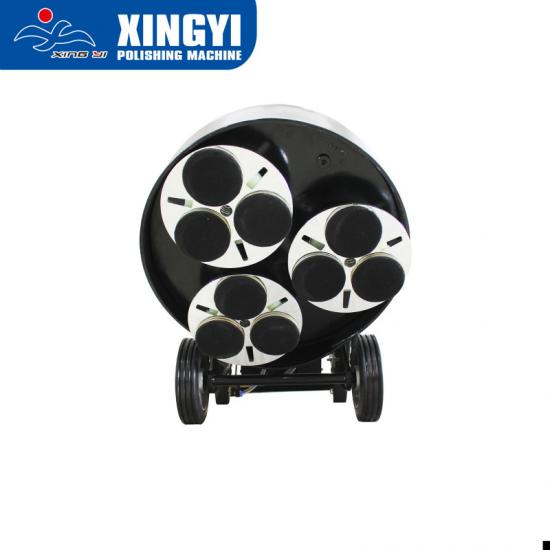

✔Multifunctional grinding discs
✔High precision gearbox
✔WEG brand-name motor
✔28L PE Water tank✔

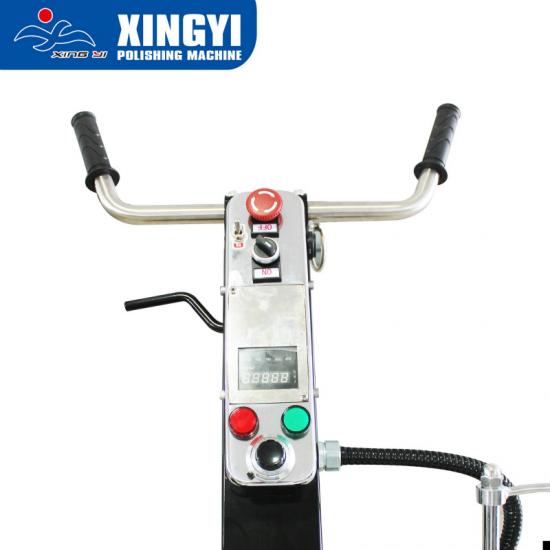

✔Integrated control panel

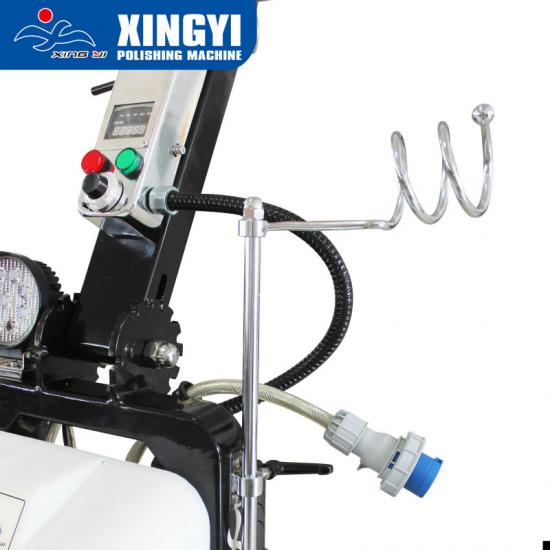

✔Humanized wire rack

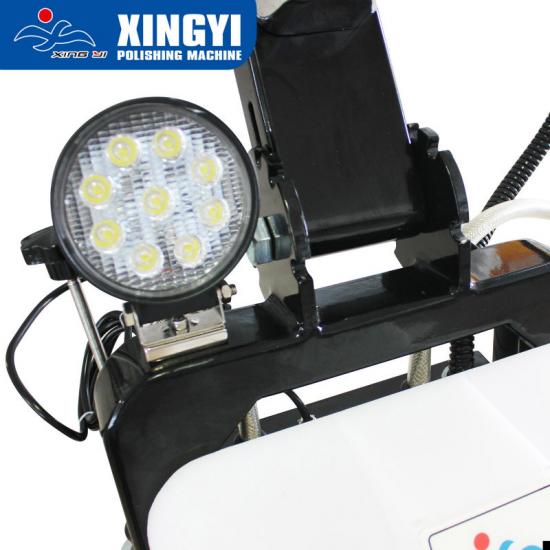

✔High-power LED lamp

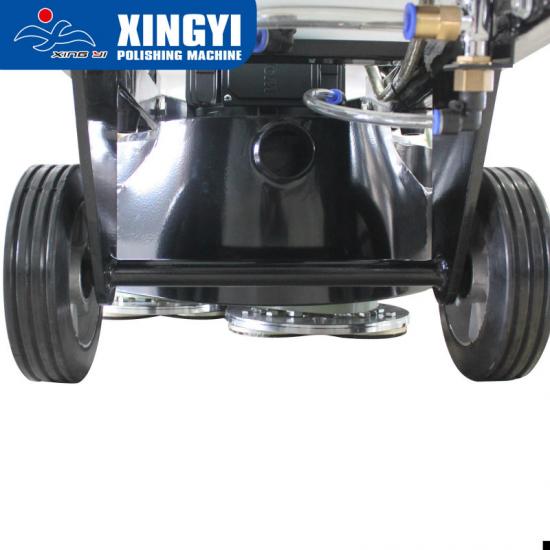

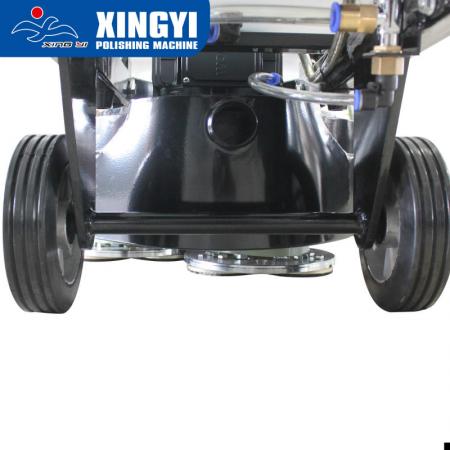

✔Aluminum alloy wheel hub
Q1:How do you use a diamond floor grinder?
A1:
Q2:How do you grind concrete floors yourself?
A2:
Step 1: Check the floor surface condition.
Step 2: Grinding with 550-3Dfloor grinderand metal pads HTG-2Y 30# 60#.
Step 3: Clean the floor surface.
Step 4: Repair the hole and cracks with HTG-EC-1008 and diamond pads 120#.
Step 5: Polish with resin pads HTG-C310-50# 100#.
Step 6: Harden the floor with densifier HTG-EC-L01.
Step 7: Polish with resin pads C310-200# 400# 800# 1500#.
Step 8: Apply sealer HTG-EC-S01 on the floor.
Step 9: Buff with high-speed burnisher 700HP and buffing pads
