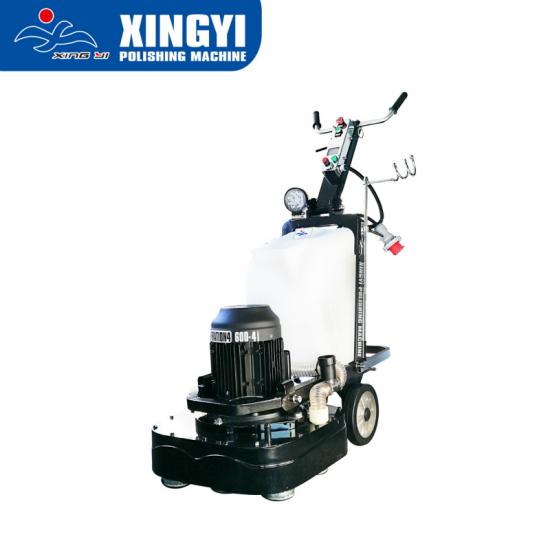

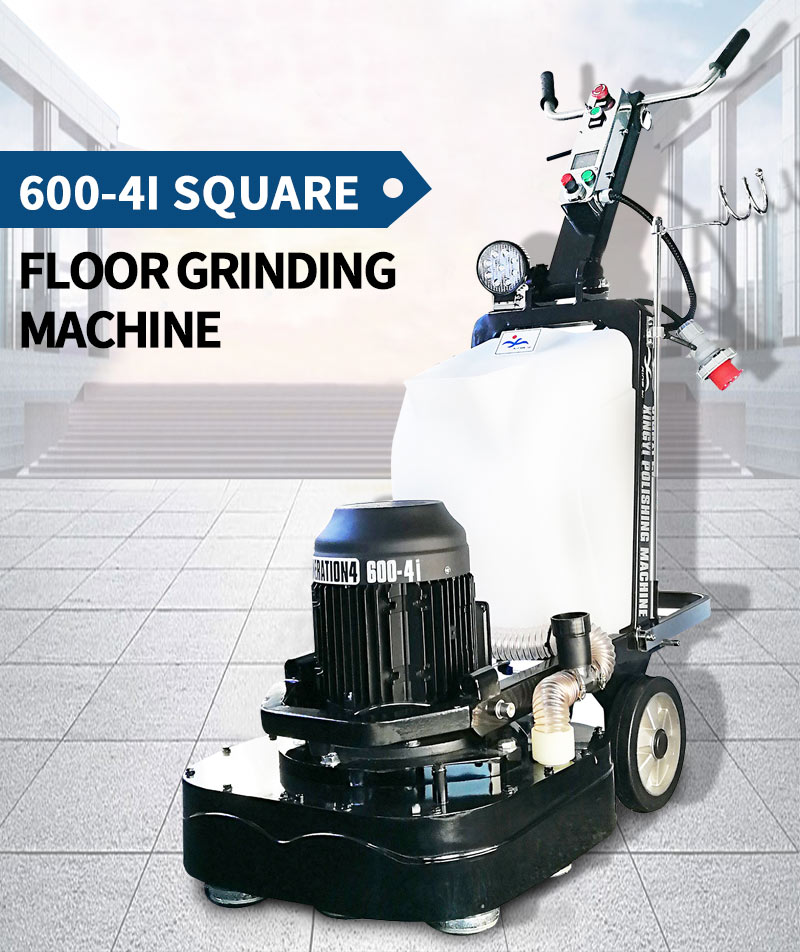

The 600-4i high quality floor surface grinding machine is classical square grinder manufactured by Xingyi. Equipped with 10HP high-quality motor, distinguished Delta inverter, 4 heads counter rotating grinding plates and high-precision gearbox, it is of stable grinding performance and super working efficiency.
Brand:
XingyiItem NO.:
600-4iProduct Origin:
Fujian, ChinaColor:
Black And WhiteShipping Port:
XiamenLead Time:
7-20 Days600-4i Square Diamond Cement And Concrete Grinder And Polisher
The 600-4i high quality floor surface grind machine is classical square grinder manufactured by Xingyi. Equipped with 10HP high-quality motor, distinguished Delta inverter, 4 heads counter rotating grinding plates and high-precision gearbox, it is of stable grinding performance and super working efficiency. With 600mm working width and 1680rpm, 30L large capacity of water tank, it is can be used in different polishing conditions like concrete, epoxy, terrazzo, marble, and stone applications in large-sized or medium-sized commercial or residential projects.
Specifications
Model |
600-4i High quality floor surface grind machine |
|
Operating width |
600mm |
|
Grinding disc |
320mm*4 (4heads) |
|
Rotating speed |
350-1680rpm |
|
Motor HP |
7.5KW/10HP |
|
Inverter HP |
7.5KW/10HP |
|
Voltage |
380V-440V three phase |
220V-240Vthree phase |
Current |
17.05A |
29.3A |
Weight |
235kg |
|
Water tank |
28L |
|
Packing size |
112*64*120cm |
|
Configuration |
WEG motor + Veichi inverter |

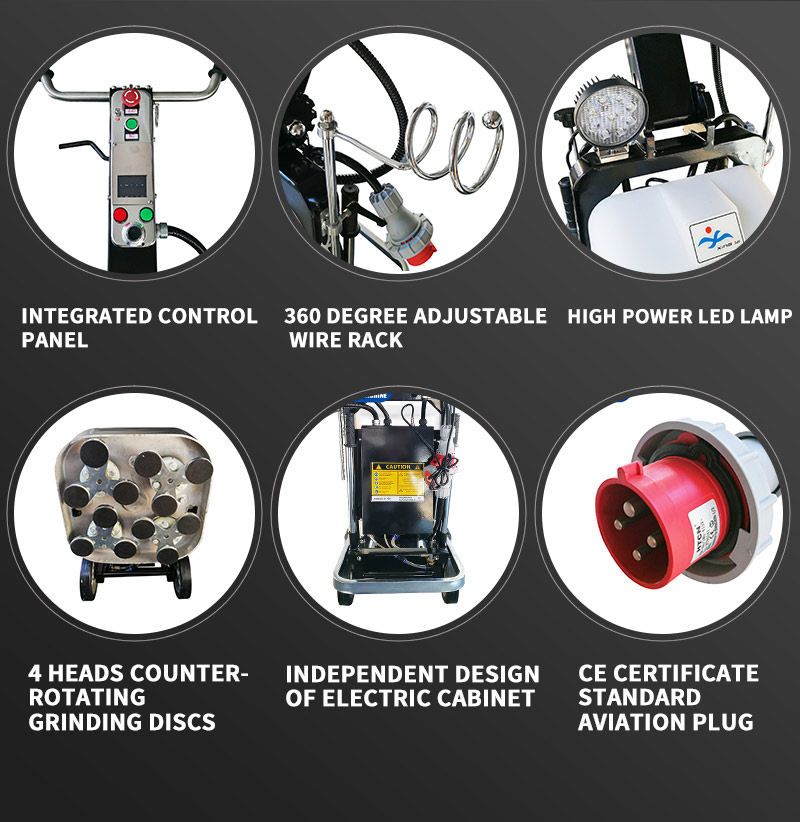

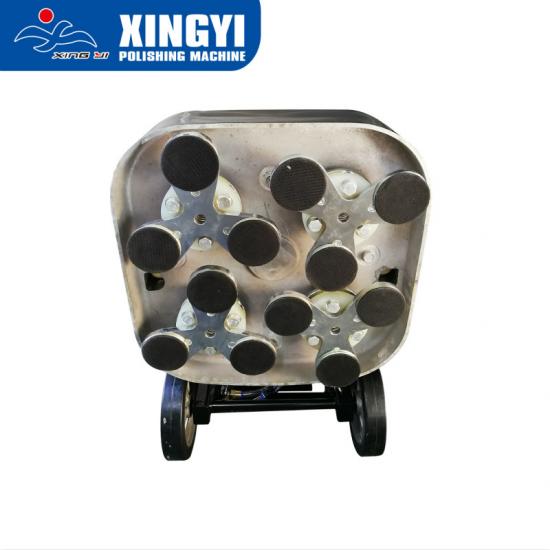

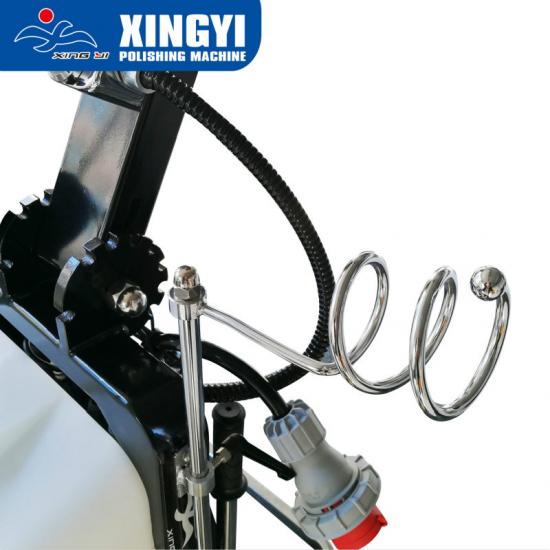

Product display
FAQ
Q1: How do you grind concrete floors yourself?
A1:
Step 1: Check the floor surface condition.
Step 2: Grinding with the 600-4i floor grinding machine and metal pads HTG-2Y 30# 60#.
Step 3: Clean the floor surface.
Step 4: Repair surface with the 600-4i floor prep machine and HTG-EC-1008 and metal pads 120#.
Step 5: Polishing with resin pads HTG-C310-50# 100#.
Step 6: Harden the surface with densifier HTG-EC-L01.
Step 7: Polishing with resin pads C310-200# 400# 800# 1500#.
Step 8: Apply sealer HTG-EC-S01 on the surface.
Step 9: Buffing with high speed polisher and buffing pads.
Q2:How do you use a floor grinder like the 600-4i?
A2:
