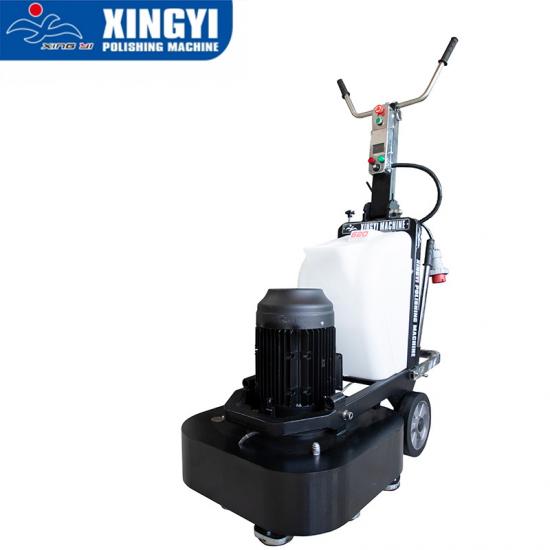

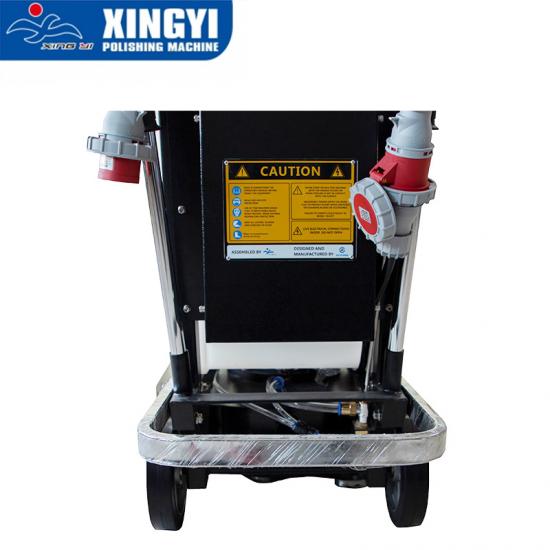

620 Concrete Floor Grinding Machine And Diamond Polishing Machine

The 620 is a classical squared concrete floor grinding machine. With an integrated gearbox, it of stable operation performance and a uniform grinding effect. Equipped with a detachable motor and machine frame, it can be packed and transported conveniently.

  • Brand:

    Xingyi
  • Item NO.:

    620
  • Product Origin:

    Fujian, China
  • Color:

    Black And Gray
  • Shipping Port:

    Xiamen
  • Lead Time:

    7-20 Days
Product Detail

620 Concrete Floor Grinding Machine And Diamond Polishing Machine

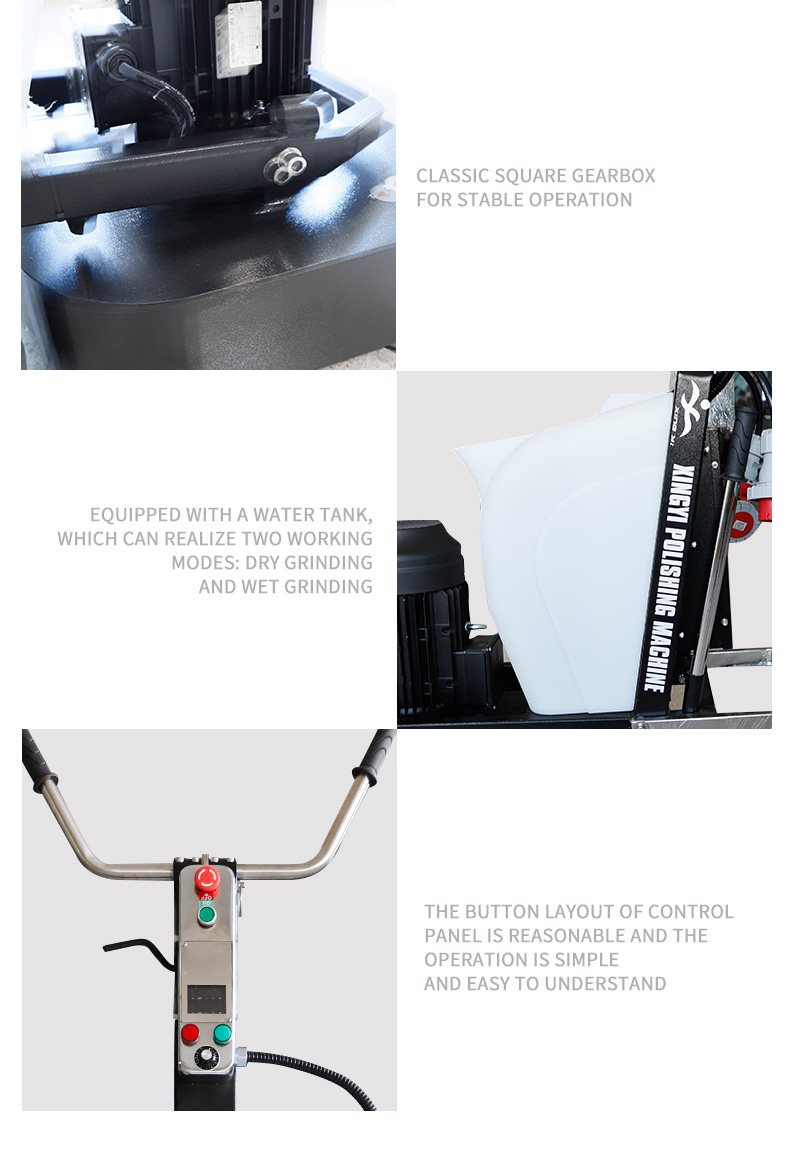

The design of the operating handle and swing lever of the 620 is ergonomic and can be adjusted flexibly for easy packing and transportation. The rack and electric cabinet can be quickly disassembled, which is convenient for daily maintenance and repair. The gearbox is processed by imported CNC machine tools and the accuracy is as high as IT6, 0.01mm, which is sturdy and durable.

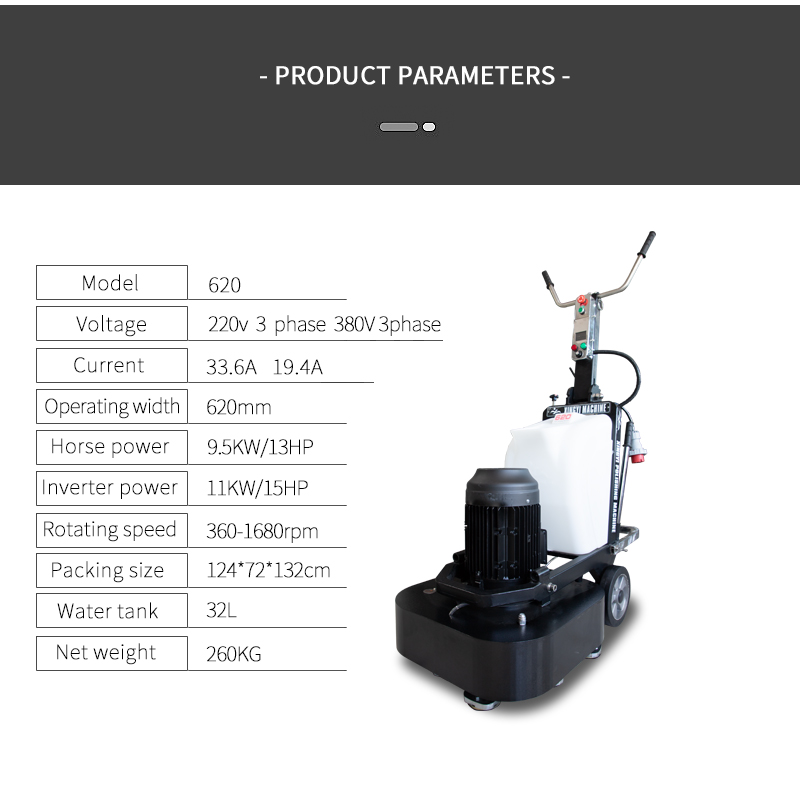

Specification

Model

620 Walk-behind floorgrinding andpolishing machine

Voltage

220v  3  phase

380V 3phase

Current

19.4*1.732A

19.4A

Operating width

620mm

Horse power

9.5KW/13HP

Inverter power

11KW/15HP

Rotating speed

360-1680rpm

Packing size

124*72*132cm

Water tank

32L

Net weight

260KG


Product display

Hand-push floor grinder equipment

600-4i 600mm Terrazzo floor grinder and polisher

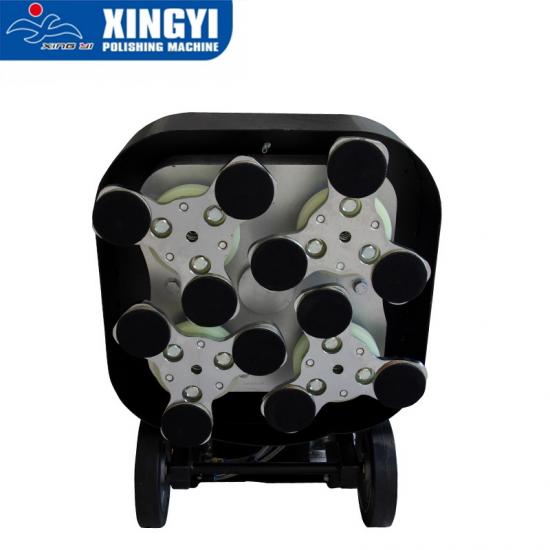

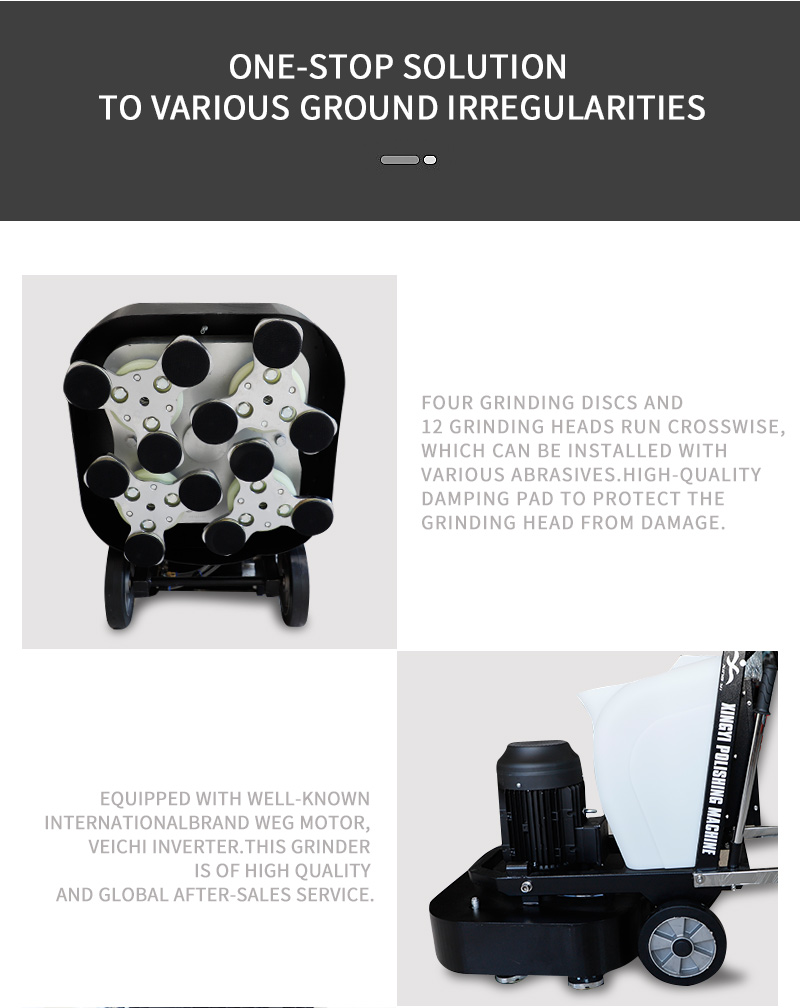

1. Four grinding discs and 12 grinding heads are cross-rotating, and the grinding discs are electroplated through multiple processes, which is not easy to get rusty.
2. One-piece aluminum alloy gearbox ensures stable operation and excellent heat dissipation.
3. The wheels are equipped with aluminum alloy wheels and high-quality bearings, which are flexible and not easy to be damaged.
4. With a vacuum cleaner connection port, the operator can connect it to a vacuum cleaner to achieve a dust-free construction environment.
5. Equipped with a water tank and a water switch, which can realize wet grinding easily.

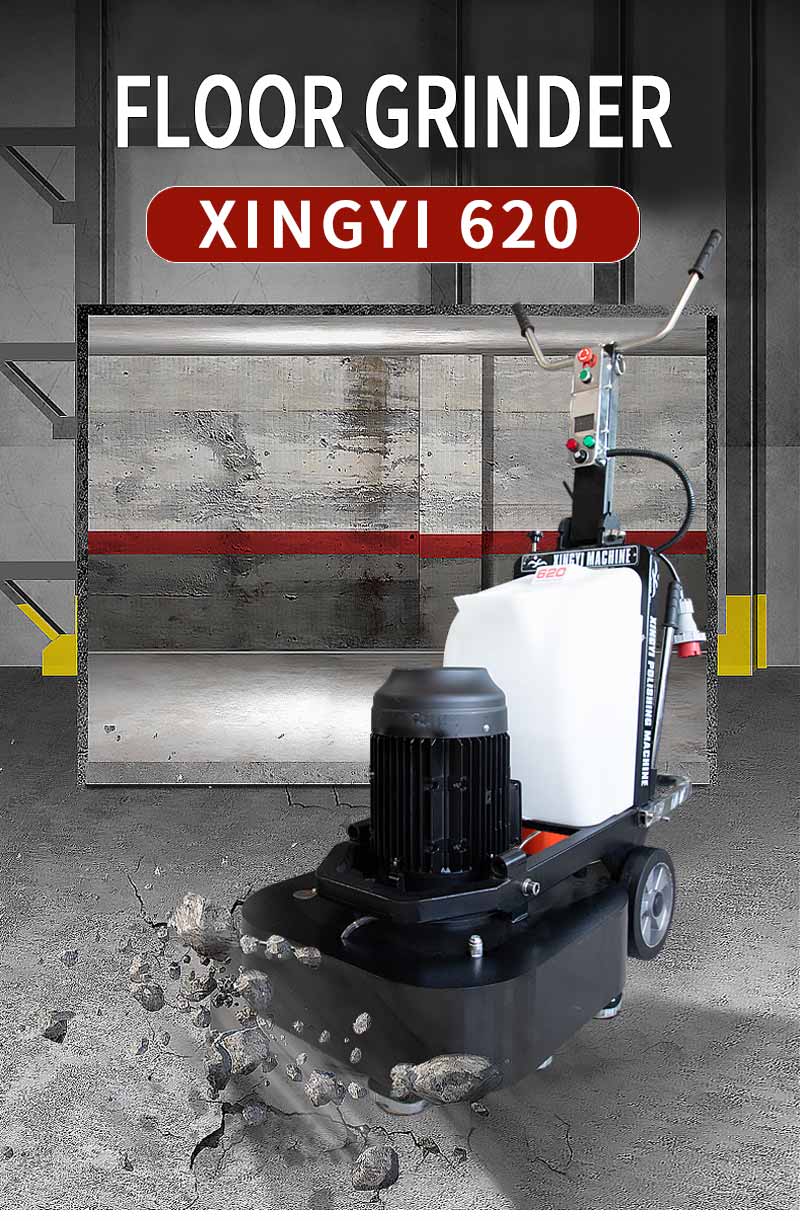

620 Floor grinder with high work efficiency

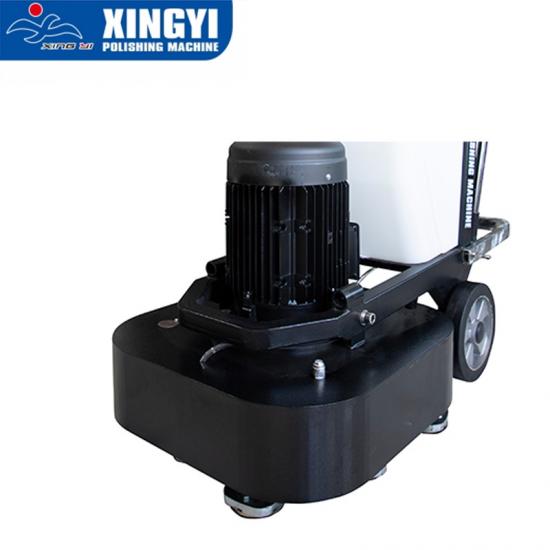

Detachable Floor polishing machine

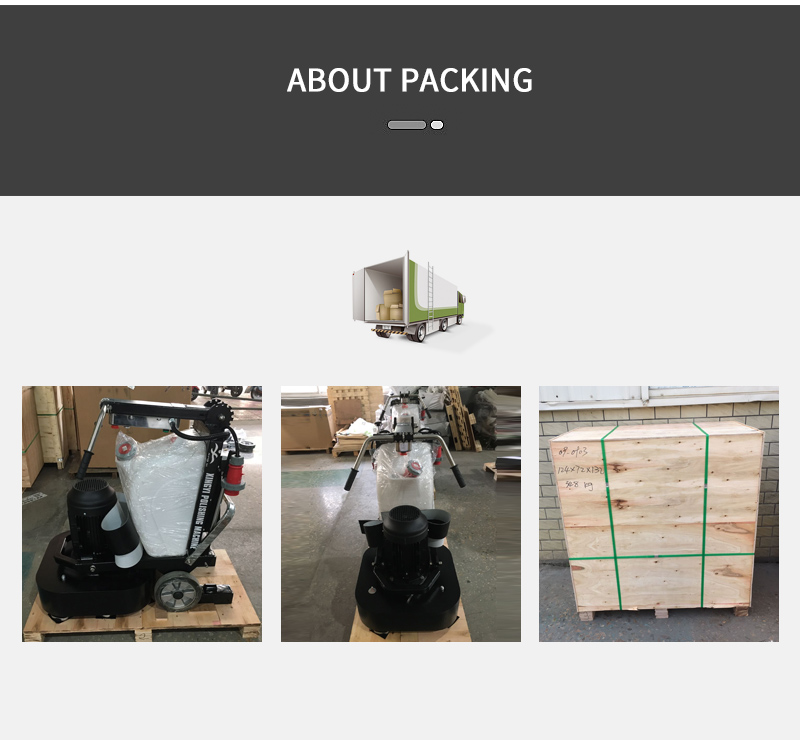

Package

13HP Industrial floor grinding equipment


FAQ

Q1:How do you fix holes and cracks on the floor with a grinding machine?
A1Grinding repairing is suitable for the hole less than 10mm and cracks less than 1mm.
①Tools: The 620 floor grinding machine, a dustless cutting machine, diamond pads, EC-1008, fast-drying cement, bucket watering can.
②Clean all the sundries on the floor with a vacuum cleaner.
③Apply a sufficient EC-1008 repair agent when there is no obvious waterlogging.
④Grind directly with the 620 grinding and polishing equipment with the diamond pad(120#) until all holes and cracks are filled(speed should be 800-1000rpm)
⑤Check whether the repair is completed, protect the ground with water 3-5 times.


Q2: How long is the warranty period in the 620 squared floor grinder and polisher?

A2: The warranty period of motor and inverter is three years, and gear two years.  If it is beyond the warranty period, the parts are broken because of a long time using, then the customer should bear the expense of freightage and the charge of new parts. Besides, we will send you steps or videos to help you to make machine maintenance and repair.
