Home Concrete Floor Grinder Concrete polishing machinery

New Products

  • User-friendly floor grinding and polishing machine

    800LE+ Self-propelled Concrete Floor Grinder With Gear-driven 800LE+ Self-propelled floor grinder and versatile polisher are used to grind (rough grind, fine grind, and polish) concrete, natural stone and terrazzo floors or other materials. With a self-propelled function, it realizes higher grinding efficiency with lower labor costs. The design of the planetary rotating system makes the grinding effect uniform and stable. More

  • Classic square epoxy floor grinding machine

    GX550 Concrete Floor Grinder GX550 Concrete Planetary Grinding machine has 3 planetary heads with very low maintenance. The stronger welded machine body with friendly operation handle and 2 positions weight iron to adjust the pressure when you are working. All motor and inverter are from the newest technology special for XINGYI grinding machine. More

  • Heavy-Duty Concrete Grinding Machine

    Heavy-Duty Remote Control Planetary Concrete Grinding Machine XINGYI GX858 GX858 Concrete Grinder is a remote control heavy-duty equipment for your polishing project, the machine has 4 planetary heads with very low maintenance. The stronger welded machine body with friendly operation handle and 2 positions weight iron to adjust the pressure when you are working. All motor and inverter are from the newest technology special for XINGYI grinding machine. More

  • large terrazzo floor grinder

    Ride on floor grinder Tank1500 is a very suitable for industrial applications, low-maintenance, smooth-running on-board grinding and polishing machine, gearbox, completely sealed and dustproof. More

  • Heavy-Duty Concrete Grinding Machine

    GX750 Heavy-Duty Concrete Grinding Machine GX 750 Planetary Concrete GRINDING MACHINE GX750 is a heavy-duty equipment for your polishing project, Thanks to XINGYI dual Alloy gearbox casting technology, the machine has 3 planetary heads with very low maintenance. The stronger welded machine body with friendly operation handle and 2 positions weight iron to adjust the pressure when you are working. All motor and inverter are from the newest technology special for XINGYI grinding machine. More

  • epoxy floor grinding machine

    GX650 Concrete Grinding and Polish machine GX 650 / GX 65 ROTARY Concrete GRINDING MACHINE The GX650 has 4-heads which works in counter rotary direction and provide smooth of operation and handling. Collapsible hand grip for easier transport and adjustable to your perfect working position. Dual-purpose additional weight makes your construction easier.Its versatile function from floor preparation to fine polishing, suitable for concrete, stone, epoxy coating, terrazzo and other floors. The 17 years of classic design with worry-free quality.*GX65 is equipped with fixed handle. More

  • Planetary floor grinding machine

    GX550 Concrete Floor Grinder GX550 Planetary concrete grinder,Same with other GX series machine,  the machine has 3 planetary heads with very low maintenance. The stronger welded machine body with friendly operation handle and 2 positions weight iron to adjust the pressure when you are working. All motor and inverter are from the newest technology special for XINGYI grinding machine. More

  • polishing floor grinding machine

    955LE large polishing floor grinding machine Features and Advantages 1.Intelligent remote control, millisecond response. 2. S-type grinding greatly improves the grinding force. 3. The equipment comes with a spray system:The spray system can quickly reduce the temperature of the abrasive to improve the grinding efficiency. Using the spray function can also reduce dust. 4. Dual clutch design:The drive system is firmer and more suitable for rotten ground. More

Concrete polishing machinery

Xingyi enginnerings found that effiency of most grinders is not high as they use belt-driving system.And tension between belts waste a lot of power in practices.In Addition ,belt-driving system cannot control grinding presion very well in that belts will slip when friction with floor is big.

This will lead to unstable speed of grinding heads or belts tension can slow down spinning of grinding heads significantly.The good news is that gear driving system can solve this problem for you.this gear driving planetary rotating systemn has been through 13000hours of testing successfully.

  • Brand:

    High Tech Grinding
  • Item NO.:

    800-4E
  • Product Origin:

    FuJian,China
  • Color:

    Black and Sliver
  • Shipping Port:

    Xiamen Port
  • Lead Time:

    7 days
Product Detail

High Efficiency Energy-Saving Professional Concrete Grinding Machine

product description

Motor  Efficient15KW(20HP) motor
Inverter  Delta18.5KW(25HP)
Working width 800mm
Grinding disc  256mm*4
Motor rotating speed  450rpm-1950rpm
Machine net weight  555kg(Including additional weight 20kg*2)
Voltage   220v/380v Three phase
Grinding pressure 245kg-265kg-285kg

 Water tank

yes



Question:

 1.What’s the weight of the machine?

The machine's own weight of 555kg, can be suitable for a variety of floor construction requirements. Flip weight iron design, can transform a suitable for a variety of floor with the characteristics of the implementation of double the efficiency than traditional grinding machine, and the construction effect is remarkable.



2.What’s the work area of the concrete grinder?

800MM polished width, can effectively ensure the smoothness of the floor to reduce the operator's labor intensity, greatly improving the construction efficiency.



3.What’s the material of the machine’s gear box?

Gear box and work area with aluminum one-piece structure, super-durable construction.



4.How the machine reduce the dust?

Original telescopic compensation structure and top seal design, to ensure that the construction process at all times close to the ground, reducing dust.



5.What’s the strength and durability of wheels?

With ultra-tough rubber wheels, strength and durability, can better improve the effectiveness of machine operation and service life.

Henghua High Quality Concrete Grinding Machines For Sale Machine In China - Buy Concrete Trowel Machine For Sale,Concrete Block Machines For Sale,Grinding Machine For Shaft Product on 1118.com

Grinding machine features:

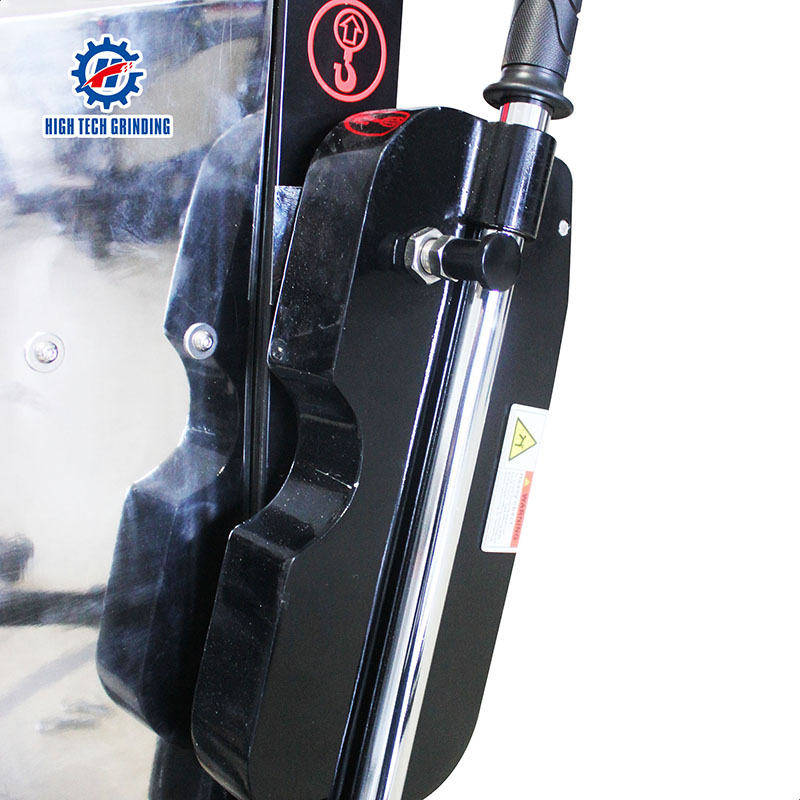

1.   Weight of Iron

Our floor grinding machine itself with two heavy irons, In the face of poor ground grinding conditions, we can adjust the heavy irons to increase the machine's weight, and avoid the manual handling of heavy irons.


2.Gear Box

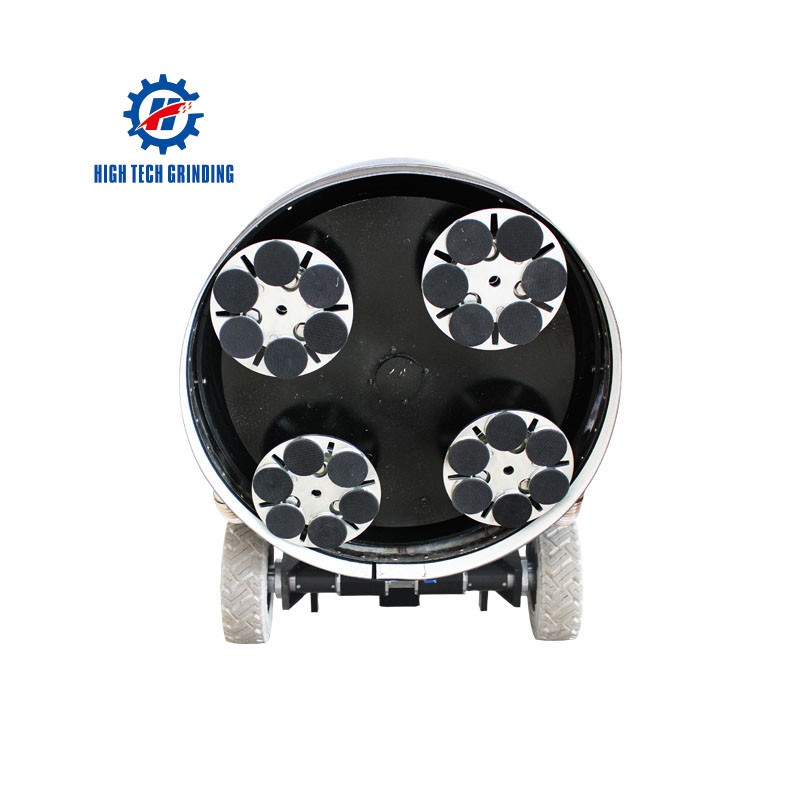

High Tech remote control floor grinding machine HTG-800-4E with unique and patented planetary four-heads driving system, which achieved the innovation of low maintenance gear driving planetary head rotation system. While

 HTG-800-4E with four heads counter grinding with 20HP strong driving force, which makes its working efficiency 30% higher than 750-3Dmachine.
