Cyclone design industrial Vacuum Cleaner IVC-55A

With Cyclone industrial Vacuum cleaner IVC-55A, you can make working environment more comfortable and be away of dust.

  • Brand:

    High Tech Grinding
  • Item NO.:

    IVC55A
  • Product Origin:

    Fujian, China
  • Shipping Port:

    Xiamen,China
  • Lead Time:

    Within 7days after receiving the full pa
Product Detail

Manufacturing Center



Xingyi Enterprise is one of the biggest system integrates who provides full-floor polishing products and service in China. We are not only a manufacturer,but also have our own engineering project team.Any questions about the machines or projects,we can give you a free technical guide.We hold the international floor treatment seminar every March,and this seminar is more and more popular in the world.We warmly welcome friend all over the world come to visit and join us.


Product Description

cyclone industrial vacuum cleaner price supplier in china

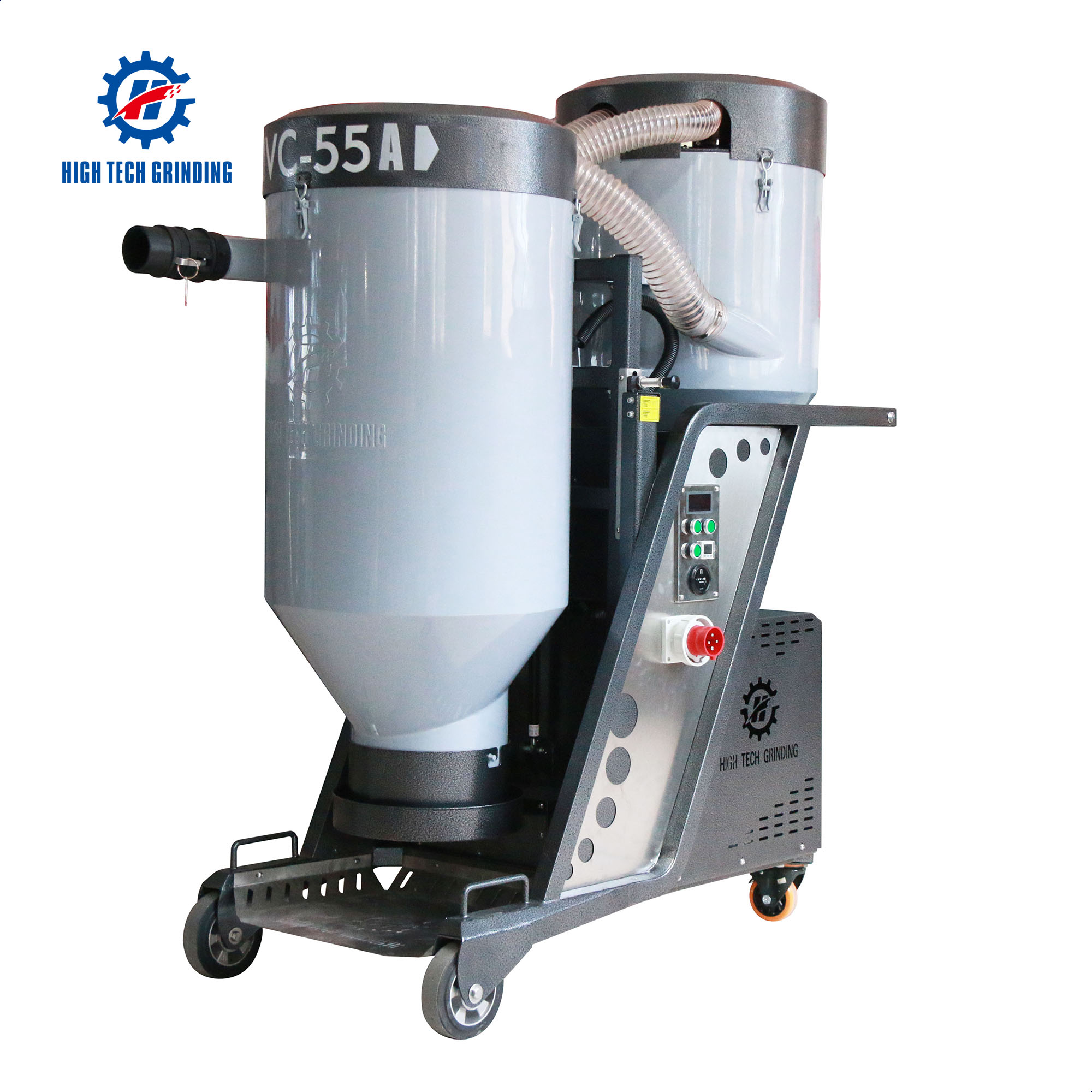

Cyclone design industrial Vacuum Cleaner IVC-55A

IVC-55A is an industrial vacuum cleaner specially used for grinding machine. It mainly uses the cyclone separator and HEPA14 as the filtering device.The cyclone separator is used for filtering most of the dust particles. A small part of the light weight of the dust is filtered by the HEPA14 filter,so its dust collection effect is particularly good.


Products Specification



 Model Name  IVC-55A industrial Vacuum Cleaner
 Power  5.5KW/7.5HP
 Weight  282.5KG
 Vacuum Connector  3inch
 Voltage  220V/380V 3P
Air Pressure  30Kpa
 Air Flow Rate  600m³/h


Products Advantage


1. Material of the filter is imported from Japan.

Patented filter design that won’t trap the dirt on the filter and allow the air passing through to release the clean air.

2. Patented turbe cyclone design to increase the air pressure.

1) Cyclone turbe sheel structure decrease the air pressure and drops the dust inertial .

2)Inner surface of the tank is round and smooth, providing a unobstructed road for the dust.

3)The dust dropping tank is arc-shaped and provides a wider road for the dust so that more dust will drop to the the first filtration bags.

4)Without angles obstruction in a smooth arc-shaped tank, the vacuum can save 60% of the energy and increase 50% of  the working efficiency, 30% of the dust clearing efficiency, and reduce 30% of the noise.

3. Low noise dba design.


Patented noise reducing design to keep the noise between 60-70dba.

4. With lifting fuction

5. Longopac dust collecting system allows fast disposal of dust and get a dust-free environment.

6.Consistant high air flow

7. Less dust left on the floor, contributing to time savings and a healthier working environment

8.Automatic dust cleaning,High Productivity

9. Low maintenance cost

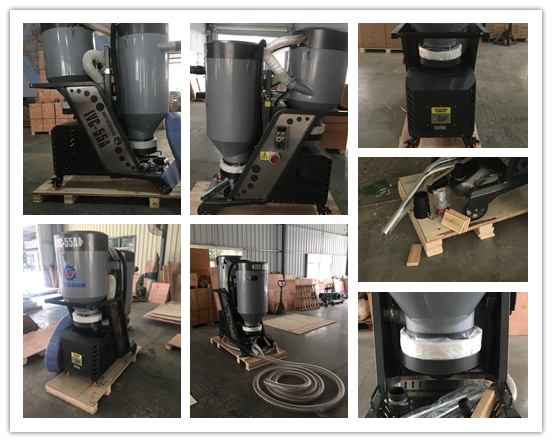

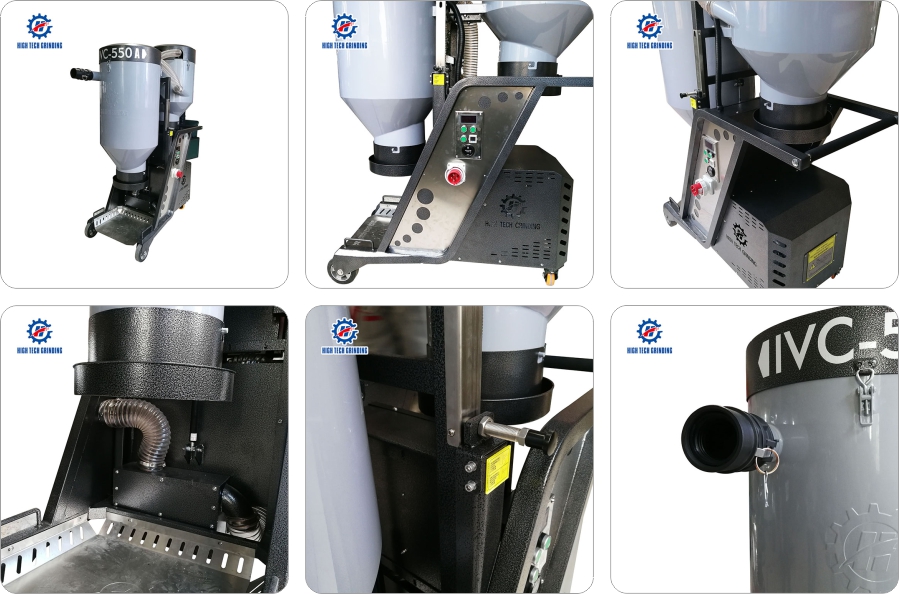

Products Detailed Pictures:

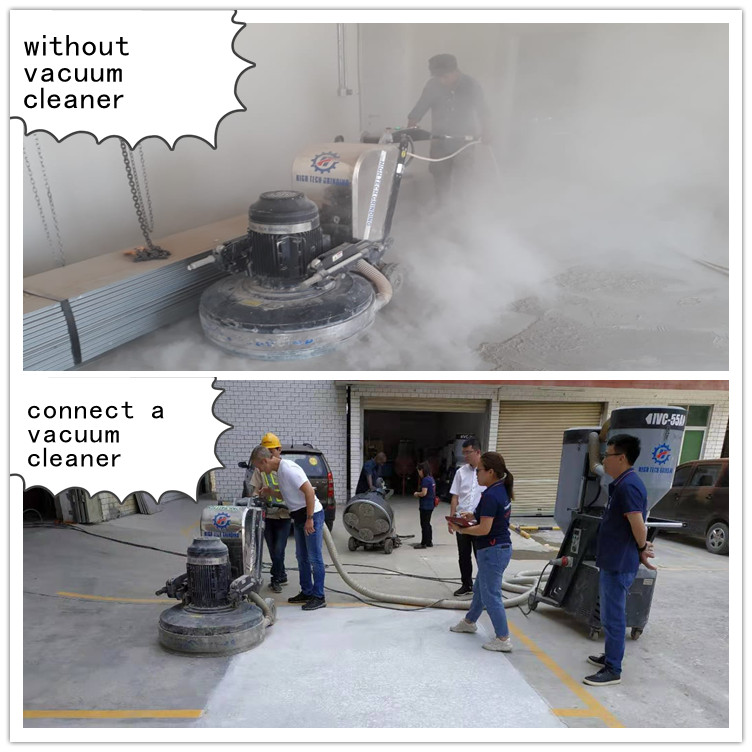

Better to Connect with a Vacuum Cleaner




Packing & Delivery

Package of industrial vacuum cleaner IVC-55A
