Home High Tech Grinding Floor Grinder High Efficiency Diamond Industrial Floor Grinding Machine

New Products

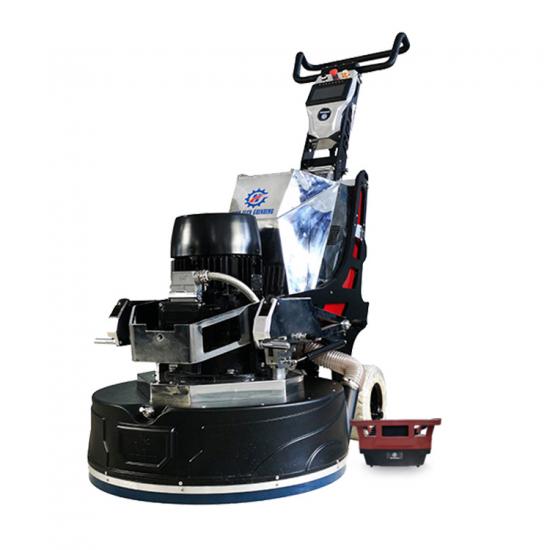

High Efficiency Diamond Industrial Floor Grinding Machine

RPG have digital control Human-Machine Interaction control panel and remote control function,can show all machine performance situation, parameters and accurateness. RPG new HMI function can makes it easier to control,adjust an use.It is a device that can be easily controlled and maintained by operators who with little experience.

  • Brand:

    High Tech Grinding
  • Item NO.:

    RPG-800
  • Product Origin:

    CHINA
  • Color:

    black and sliver
  • Shipping Port:

    xiamen
  • Lead Time:

    Shipped in 7-20 days after payment
Product Detail

High Efficiency Diamond Industrial Floor Grinding Machine


Product Description


AI Intelligent Diamond Floor Grinder for polishing concrete

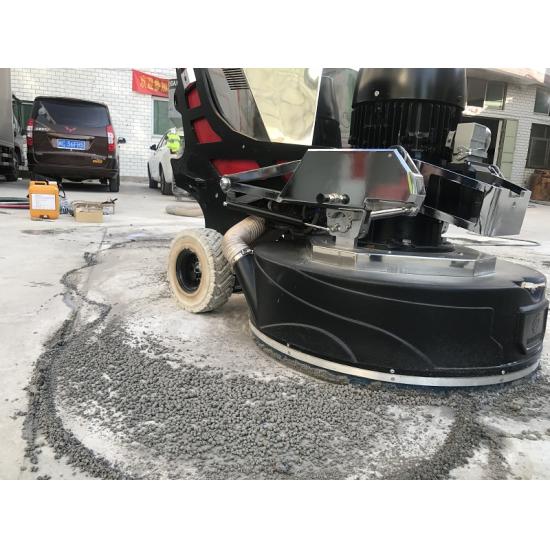

RPG is used to grind(level, grind and polish) concrete, natural stone and terrazzo floors or other materials specified in this manual or recommend by XINGYL. It can be used in a variety of applications from rough grinding to fine polishing. This machine is expected to be used in commercial applications such as hotels, schools, hospitals,factories, offices and other places.


planetary remote control floor grinding machine with GPS  Model Name  HTG RPG-800
 Power  15KW / 20HP
 Rotating Speed  350-1950rpm
 Voltage Amperage  220-240V  Three Phase / 380-440V Three Phase
 Working Width  800mm (256mm*4)
 Weight  580.5kgs / 1280lbs
 Inverter  380V 18.5KW / 25HP  or  220V 15KW / 20HP


Features


1.HMI function

RPG-800 floor grinding machine have digital control Human-Machine Interaction control panel and remote control function,can show all machine performance situation, parameters and accurateness. RPG new HMI function can makes it easier to control,adjust an use.It is a device that can be easily controlled and maintained by operators who with little experience.


2.Grinding track learning function.

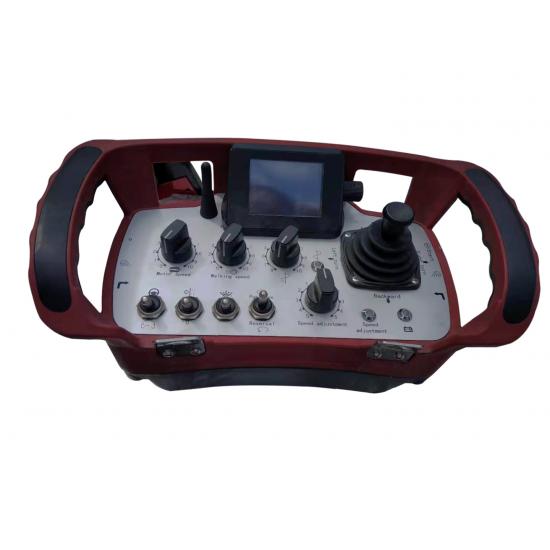

The automatic driving function provides remote control, which significantly reduces the operator's work intensity and improves production efficiency. Auto-driving is the target of the future grinding machine. The RPG series can realize the automatic driving function by setting the starting point and the ending point.


Industrial Diamond Planetary Concrete Floor Grinder

3.Oscillation grinding function
The oscillation grinding function is to set the grinder swing from side-to-side movements which normally are made manually by the operator.The unique feature eliminates the ridges created between passes of different grits, and delivers a flatter floor. At the same time, as you don't need to grind the surface again by cross hatching method, the working time is saved. At the same site when the machine operator changes, the surface can be identical as the swing will not be influenced by the habit change of operators, but controlled by the settings of the machine.


4.Global GPS positioning & monitoring

5.Make U-turn by one button

6.Fault information warning function

7.Personalized parameter setting function

8.U disc to Upgrading the system

9.Timed lock function (make Rental machine business more easier)


RPG can do all things other company's remote control machine can do, and we have more functions what others not have . The 3-inch high-resolution colorful display can show all machine information and settings. The battery can be charged on RPG directly.

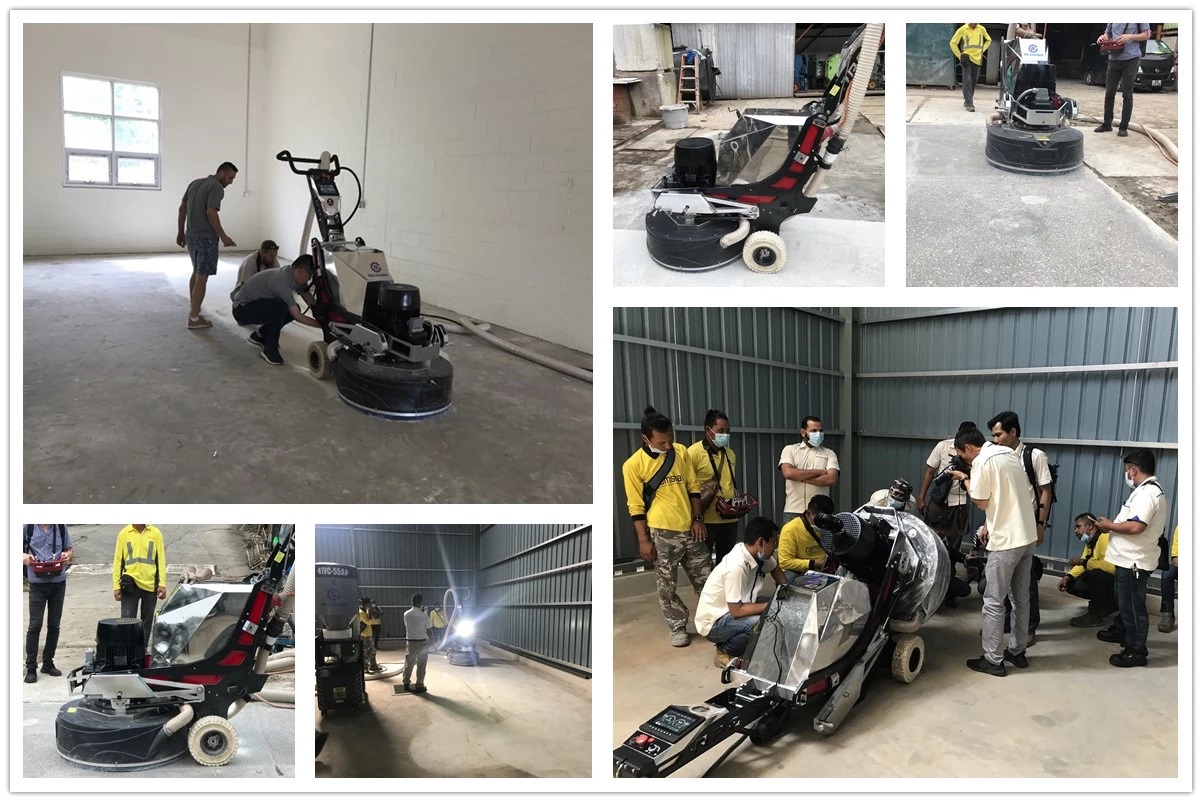

Customer Demo


Four Heads Dustless Planetary Concrete Grinder With Dust Port


Delivery&Related Products



Packing Details : Each floor grinding machine packed in standard wooden case.

Packing Size:163*91*133cm

Delivery Time :Shipped in 7 days after payment
