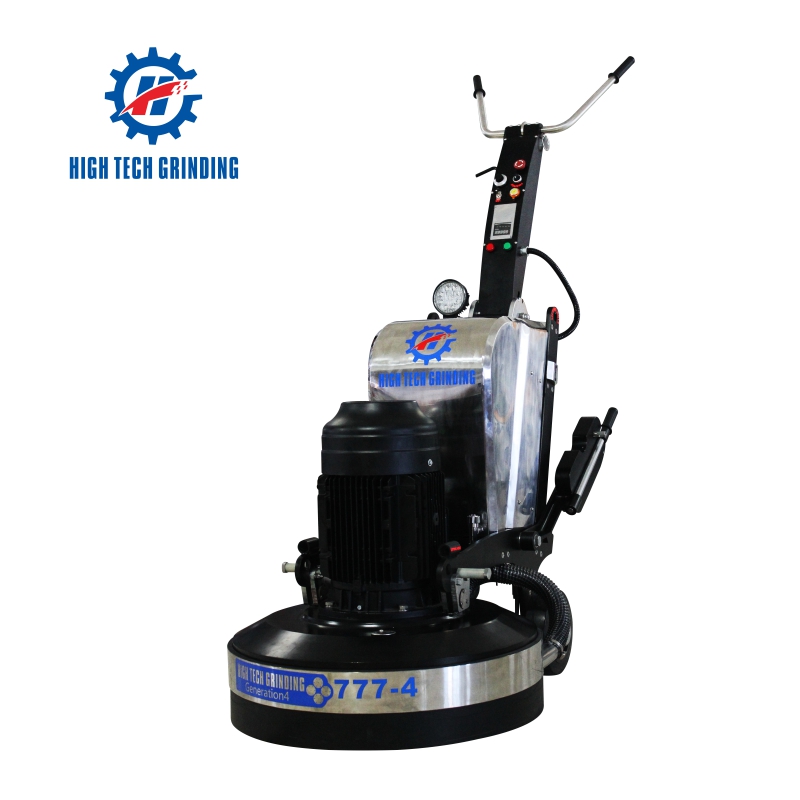

planetary concrete floor grinding machine

High Tech Grinding 800-4 is the best floor grinding machine for large concrete floor projects. It's unique technology for planetary four-haeds drivng system will greatly help to reduce much cost, time and labor for you.

  • Brand:

    Xingyi
  • Item NO.:

    800-4
  • Product Origin:

    China
  • Color:

    Black
  • Shipping Port:

    Xiamen
  • Lead Time:

    10 days after getting payment
Product Detail

High Tech Grinding 800-4 is the best floor grinding machine for large concrete floor projects. It's unique technology for planetary four-haeds drivng system will greatly help to reduce much cost, time and labor for you.

 Motor  High efficient IE2 Wonder 15KW motor
 Inverter   Veichi 15KW/Delta 18.5KW
 Working width  800mm
 Grinding disc  4*310mm
 Motor rotating speed  350-1950rpm
 Weight  515kg(including additional iron 2*20kg)
 Voltage  220V/380V three phase

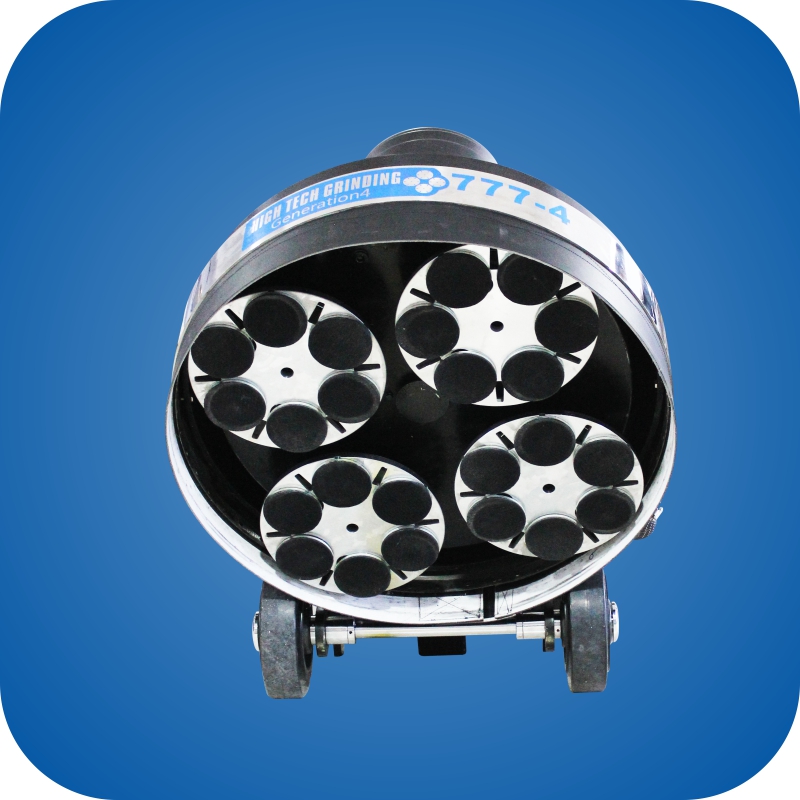

1.Unique and patented planetary four-heads driving system achieve the innovation of low maintenance gear driving planetary head rotation system

(1)Planetary counter rotation reduces the grinding machine's deviating force then it helps to lowering ghrinding strength and easy to grip the machine.

(2)Four heads counter grinding balanced the grinding presure and make the floor grinding flatness higher when comparing with similar machines.

(3)Four heads counter grinding with 20HP strong driving force, which makes its working efficiency 30% higher than XY-688 machine.

(4)Four heads grinder exerts stronger power to grinding head and operates more smooth and steady on wavy surface when comparing with three heads grinder. Four heads machine grind more evenly and easilier to level the floor surface, which enables the machine more stable and easier to control.


2.Three grades additional weight pressure adjustment guarantees the unprecedented control performance from pre-treatment, grinding and polishing of concrete flooring to stone repairing and polishing.


3.Unique and patented shaft height adjustment device, machine litchi-head conversion blocks which created the domestic first litchi-head available grinding machine


4.Machine with water tank and vacuum port which enable dry and wet grinding
