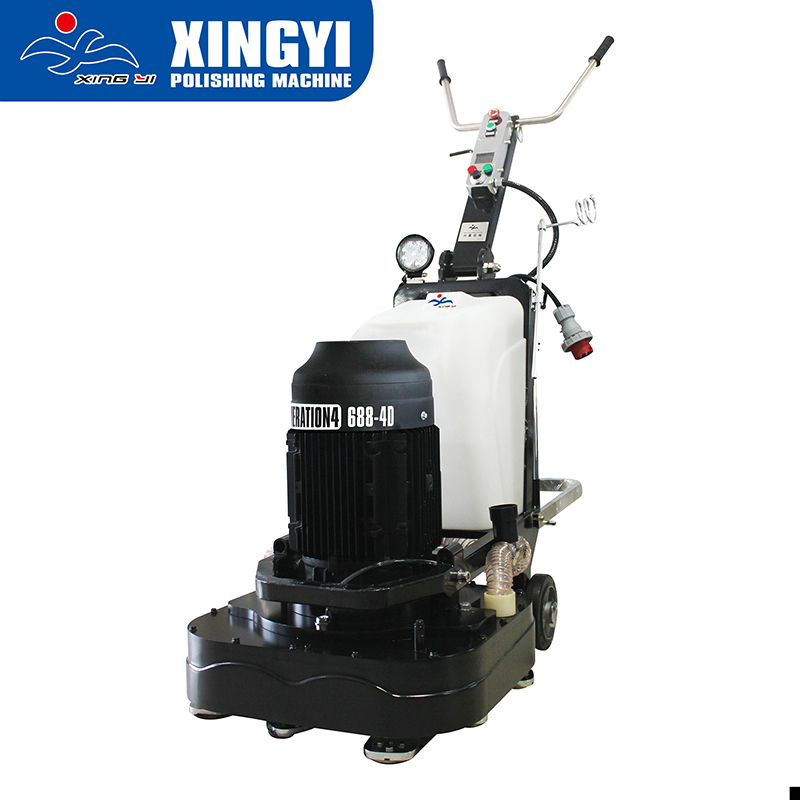

20HP high efficiency concrete floor grinder

20HP concrete floor grinder will make your floor to be a new age

  • Brand:

    Xingyi
  • Item NO.:

    688-4D
  • Product Origin:

    China
  • Color:

    as customer requirement
  • Shipping Port:

    Xiamen
  • Lead Time:

    within 7 days after receiving your payme
Product Detail

20HP high efficiency concrete floor grinder

Working width  680mm

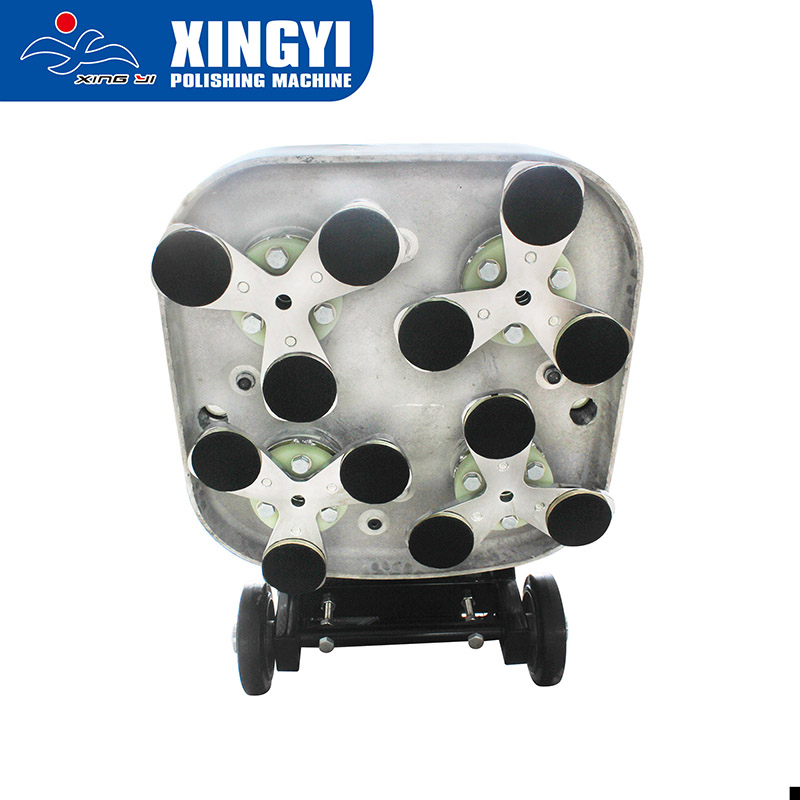

Diameter of grinding plate   334mm*4
cable  10m
colour  as customer's requirement
water tank   No
Machine weight   383kg

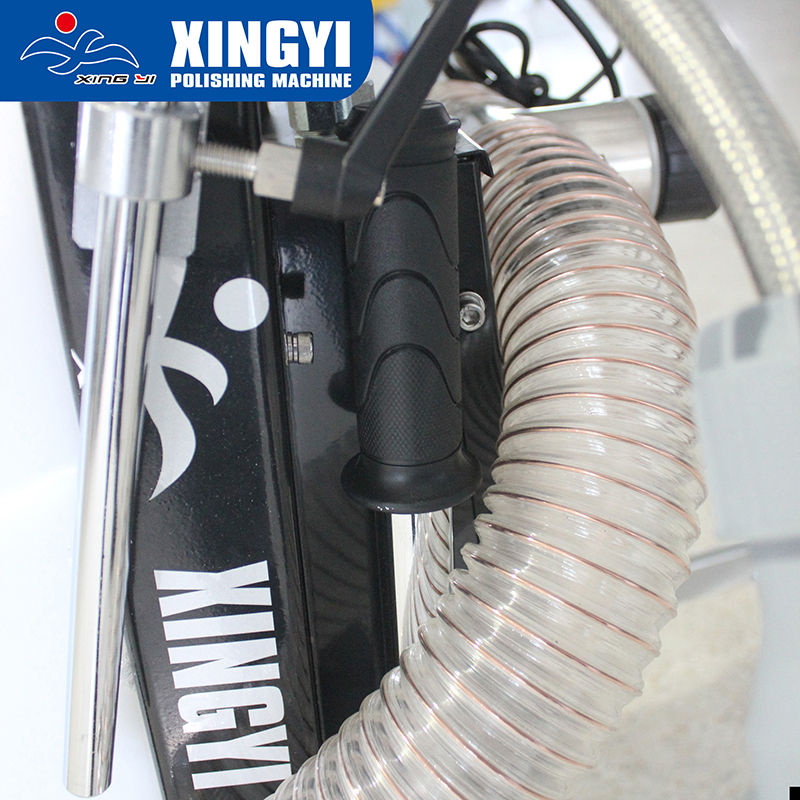

dust vacuum connector  yes
 rotating speed  450-1950rpm
 horse power  20HP

1. Latest design, enjoy popularity among customers.

2.The increased weight and horsepower are good for improving the work efficiency.

3.The motor connects the gearbox directly which can decrease the machine vibration,reducing the noise and increasing the evenness of the surface after grinding.





4.The increased output shaft and bilayer oil seal can solve the problems of oil leak and short lifetime of gearbox.

5.Used diamond concrete floor grinder Q1C equipped with automatic configuration, it is capable of different construction

process demands and reduces the abrasives'consumption.

6.It could equipped with vacuum cleaners to achieve dry and wet  application.
