User-friendly floor grinding and polishing machine

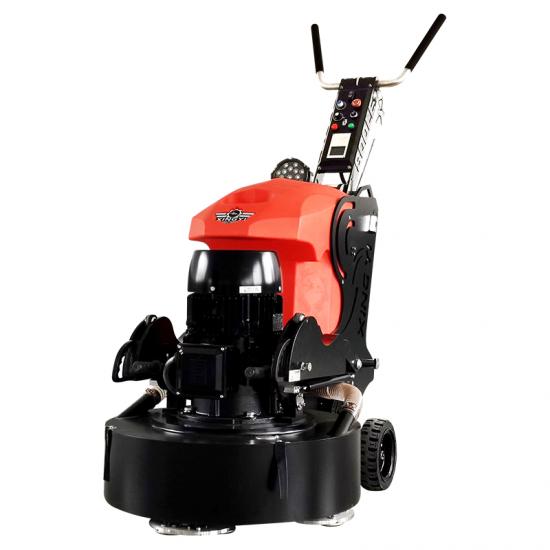

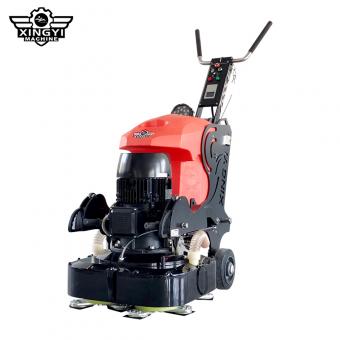

800LE+ Self-propelled Concrete Floor Grinder With Gear-driven

800LE+ Self-propelled floor grinder and versatile polisher are used to grind (rough grind, fine grind, and polish) concrete, natural stone and terrazzo floors or other materials. With a self-propelled function, it realizes higher grinding efficiency with lower labor costs. The design of the planetary rotating system makes the grinding effect uniform and stable.

Brand:
Xingyi
Item NO.:
800LE+
Product Origin:
Fujian, China
Color:
Black And Red
Shipping Port:
Xiamen
Lead Time：
7-20 Days

Product Detail

800LE Plus Self-propelled Concrete Floor Grinder With Gear-driven

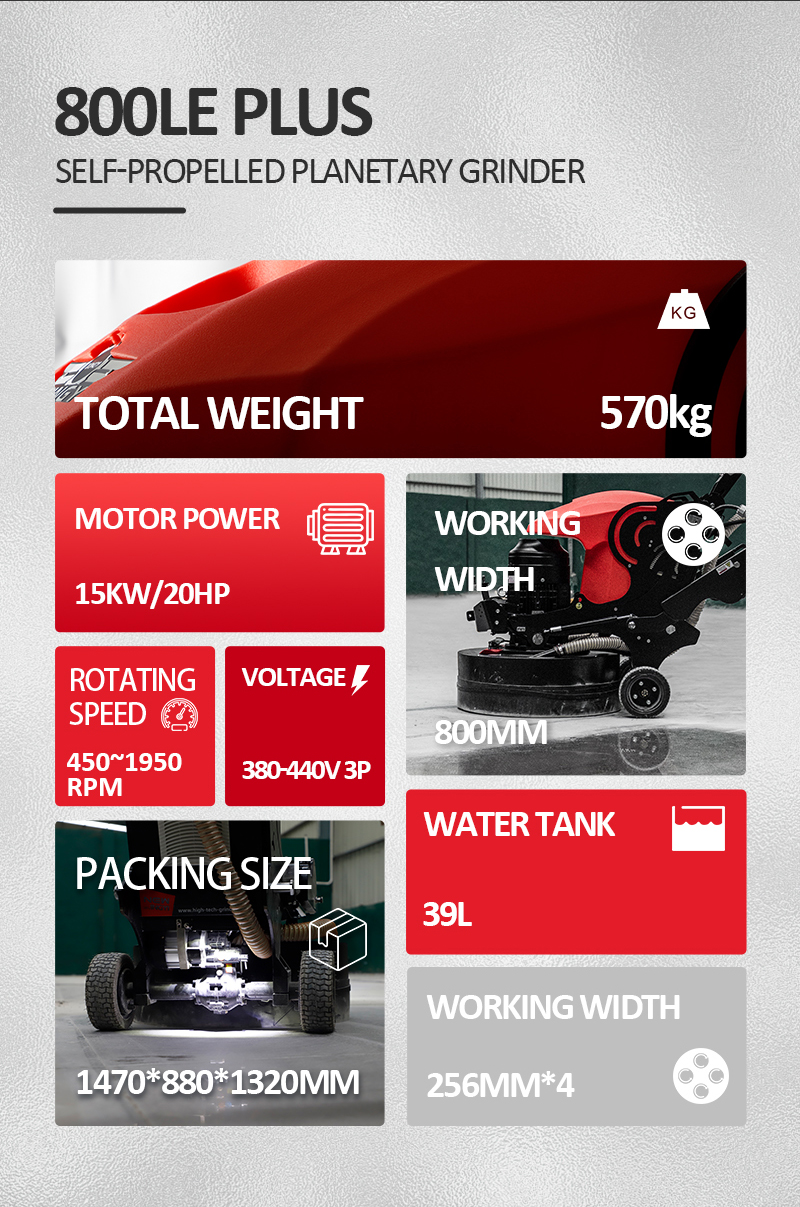

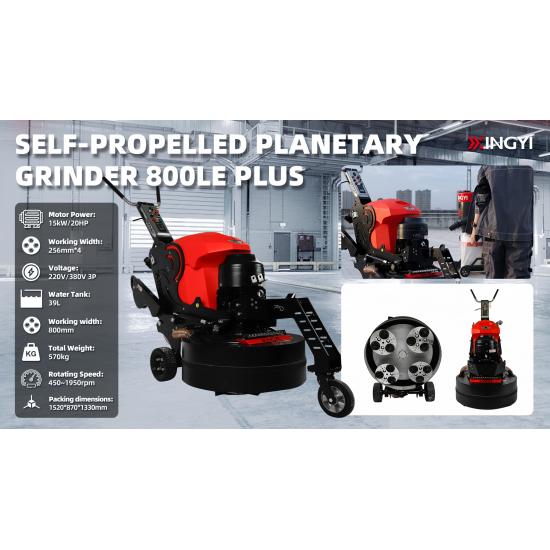

Specifications

Model	800LE+ Multifunctional Self-propelled Concrete Floor Grinder
Voltage	220V3 phase	380V 3 phase
Current	55.55A	32.23A
Working width	800mm
Grinding disc	256mm*4
Rotating speed	450-1950rpm
Frequency	50/60Hz
Motor power	15KW/20HP
Inverter power	15KW/20HP
Configuration	WEG motor+ Delta/Veichi inverter
Weight	556kg
Extra weight	30kg x 2
Water tank	39L
Packing size	14788132cm

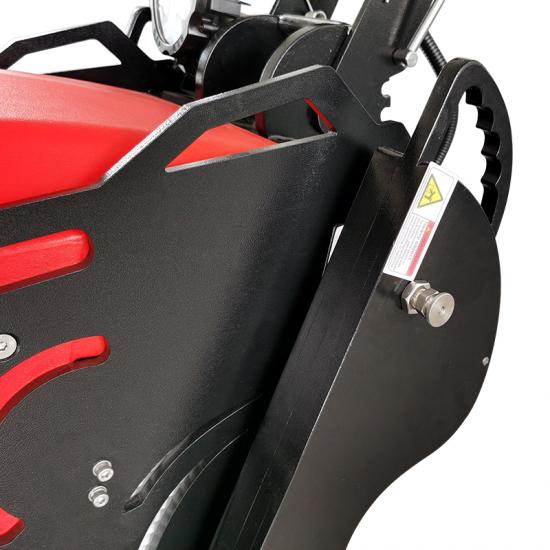

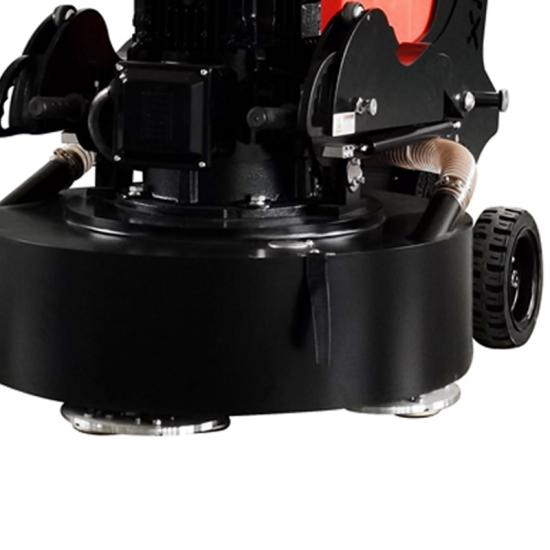

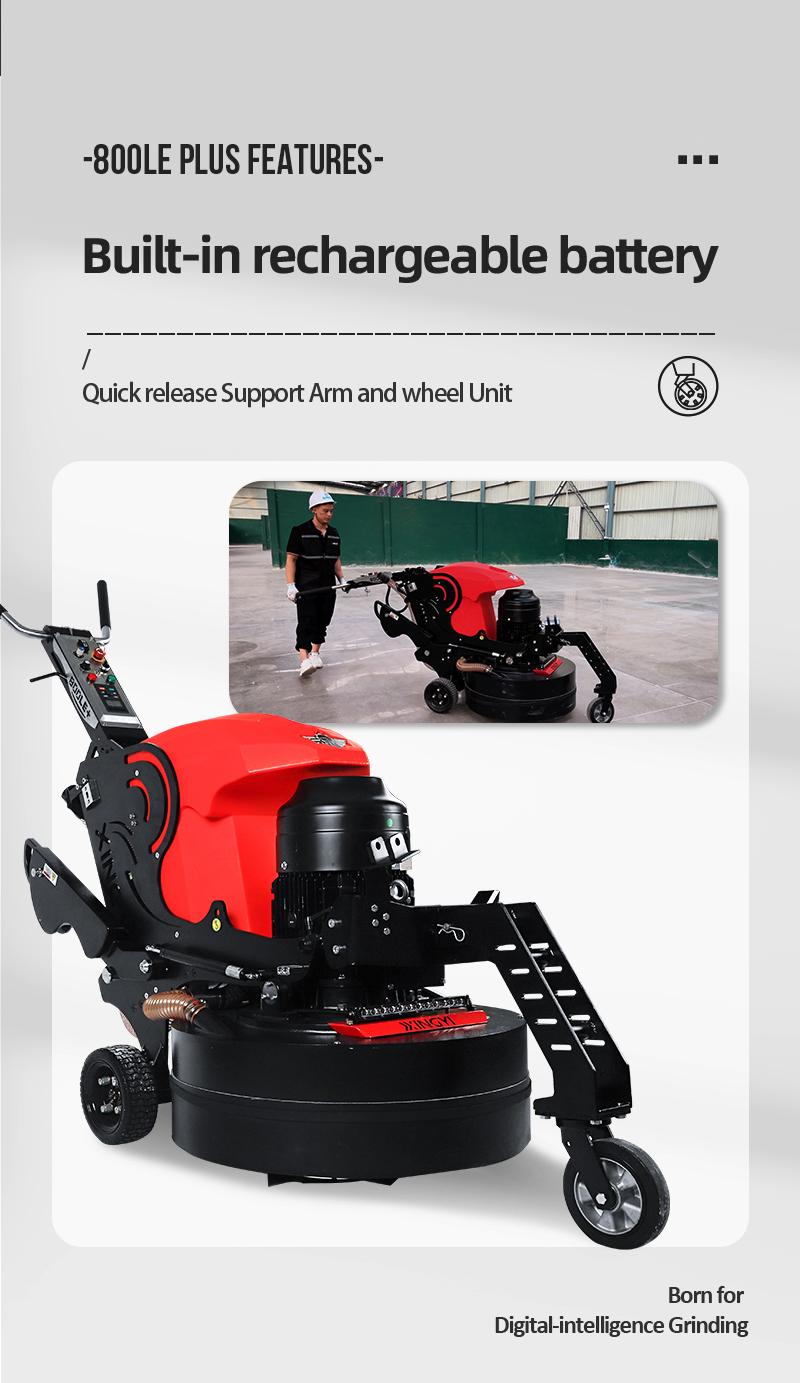

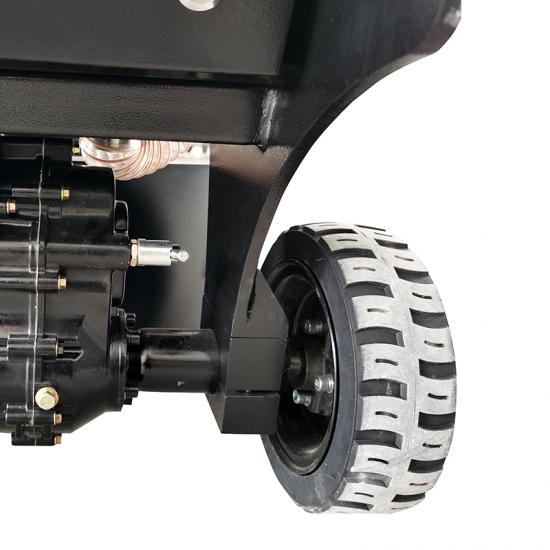

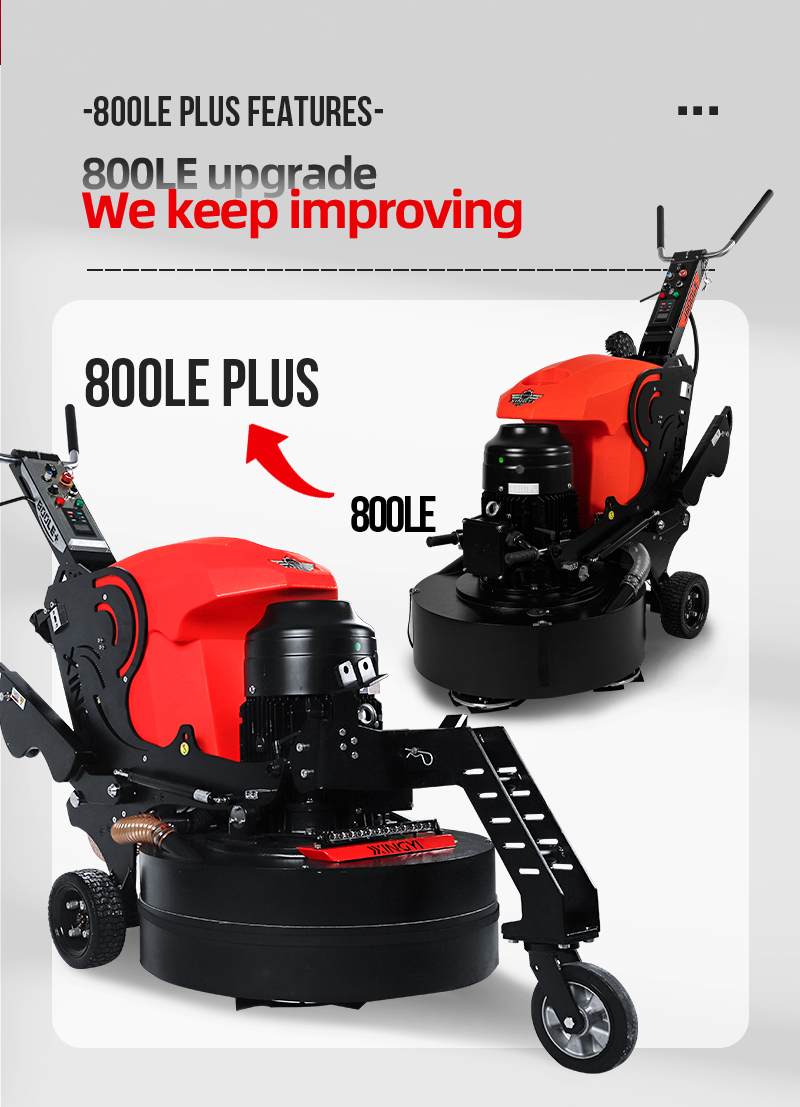

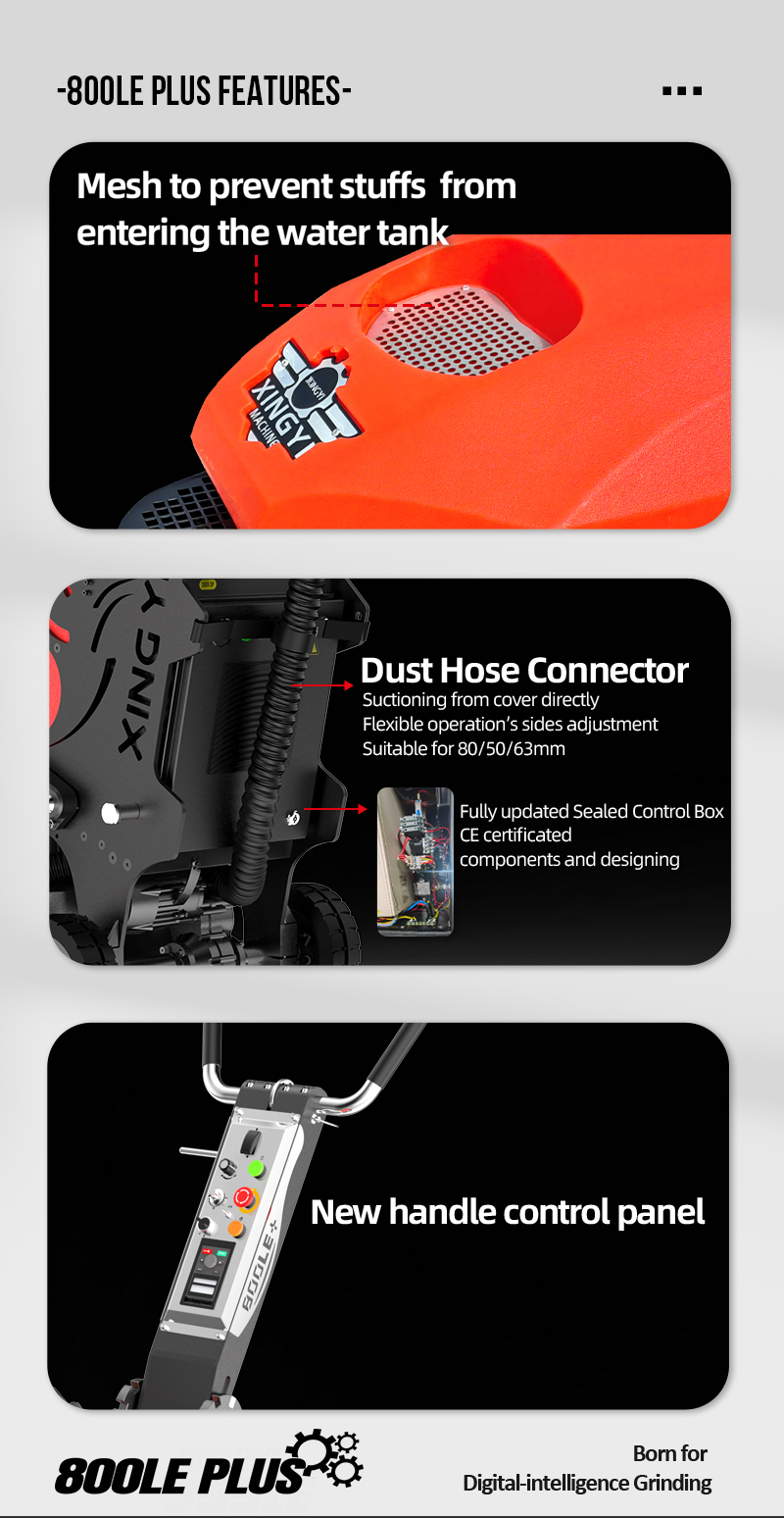

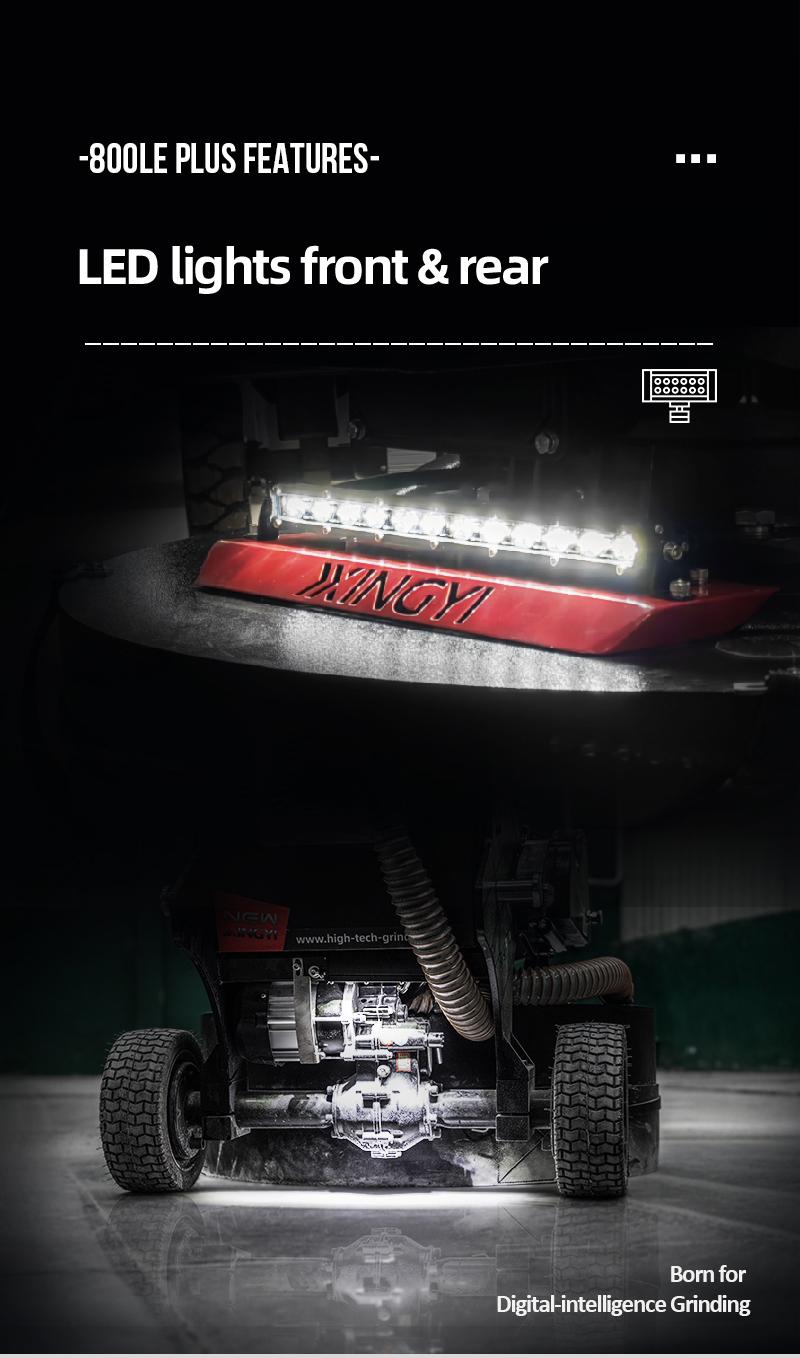

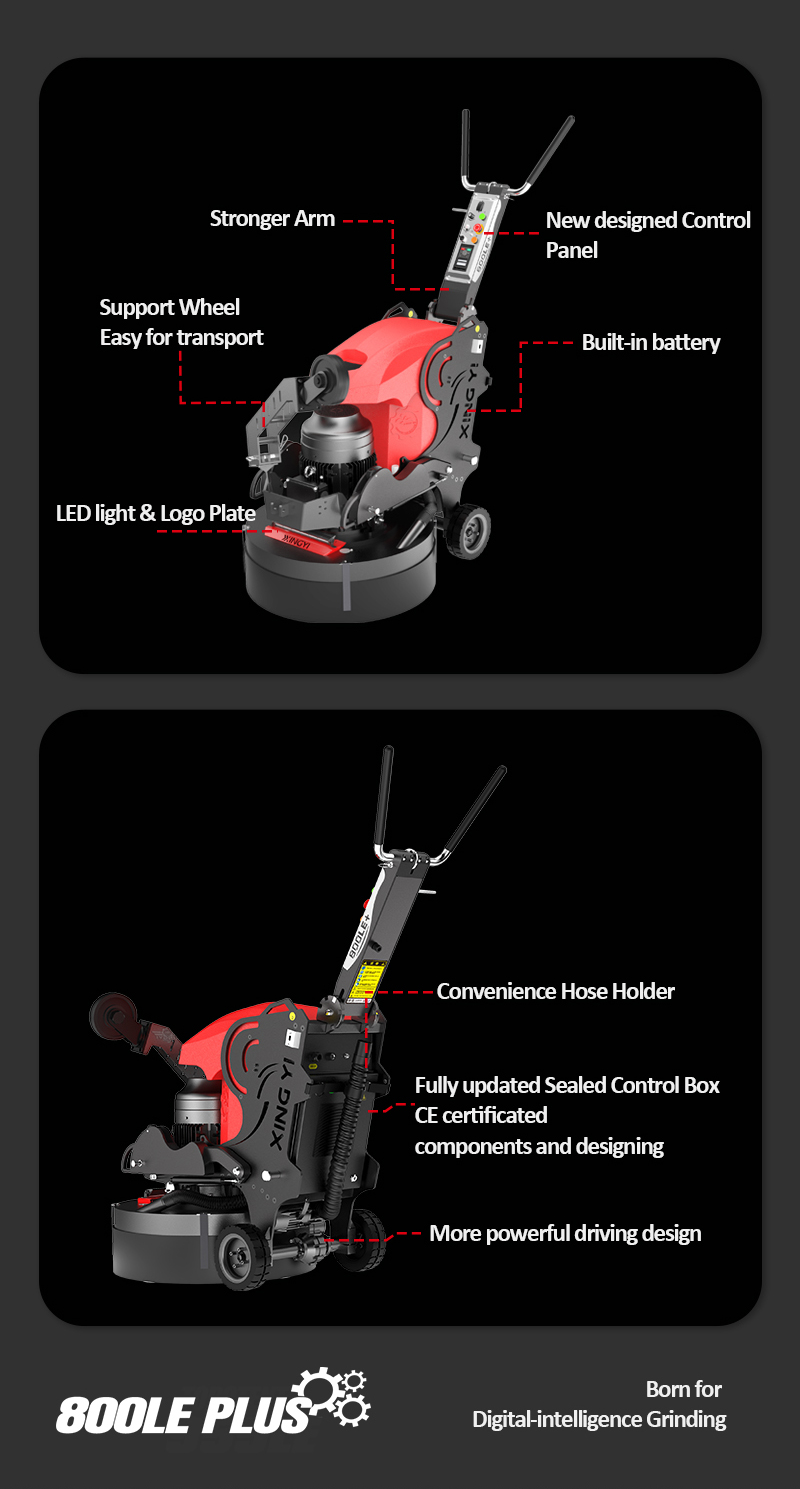

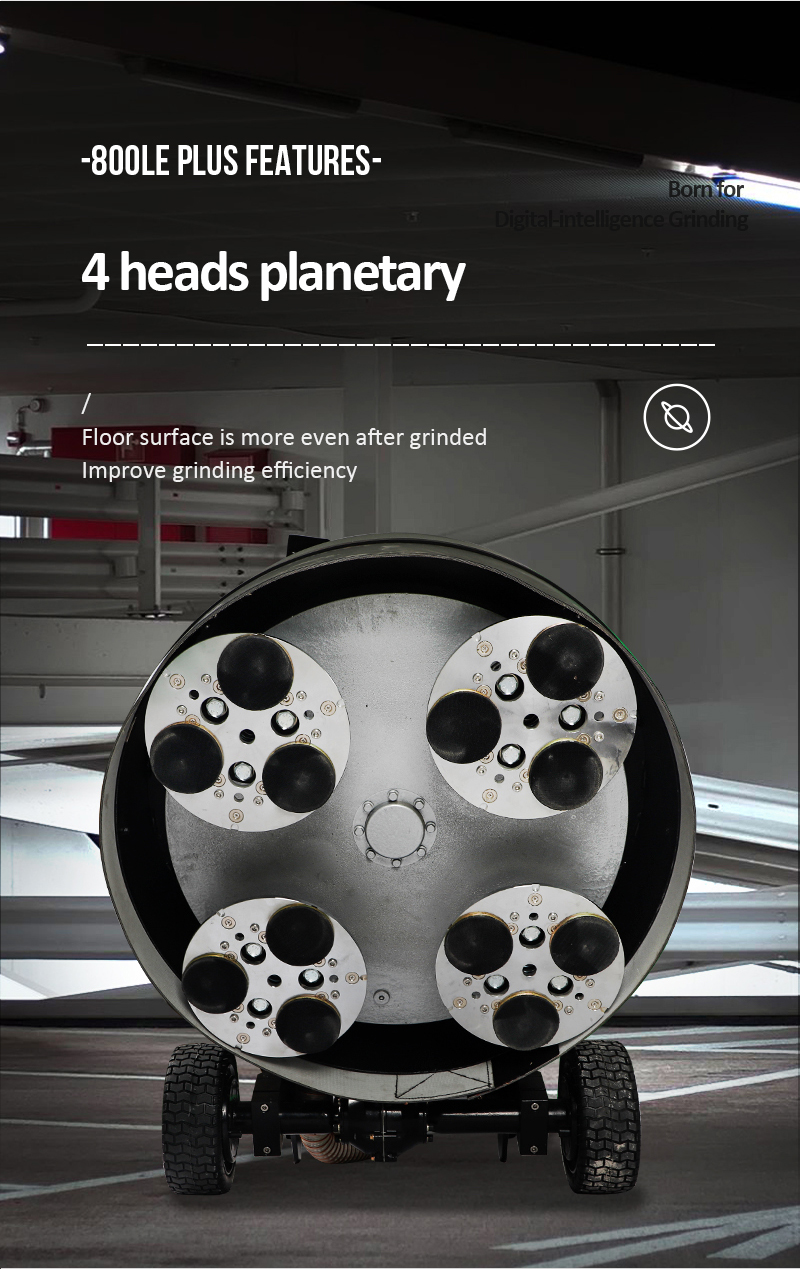

Product display

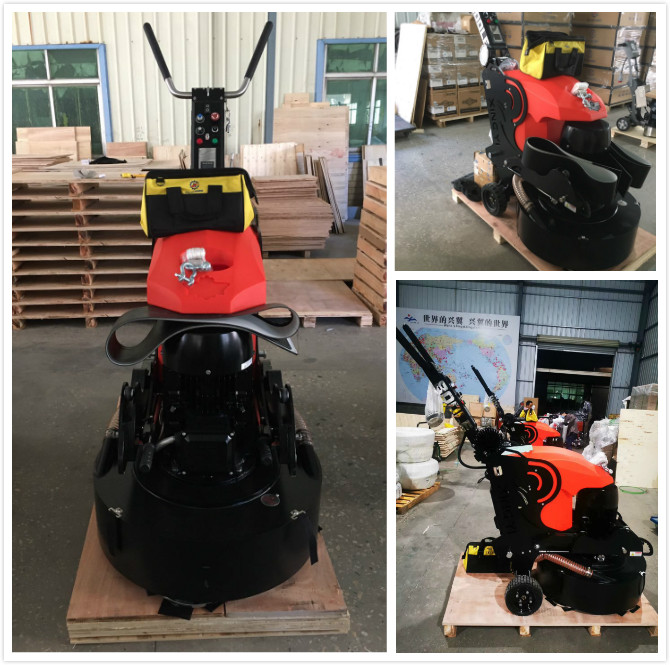

Package

Multifunctional floor grinder for concrete and terrazzo

FAQ

Q1:How do you grind concrete floors yourself?

A1:

Step 1: Check the floor surface condition.

Step 2: Grinding with 800LE floor grinding machine and diamond pads HTG-2Y 30# 60#.

Step 3: Clean the floor surface.

Step 4: Repair the hole and cracks with HTG-EC-1008 and diamond pads 120#.

Step 5: Polish with resin pads HTG-C310-50# 100#.

Step 6: Harden the floor with densifier HTG-EC-L01.

Step 7: Polish with resin pads C310-200# 400# 800# 1500#.

Step 8: Apply sealer HTG-EC-S01 on the floor.

Step 9: Buff with high speed burnisher and buffing pads

Q2: What arethe main products of Xingyi?

A2:

① The XY and High Tech Grinding Brand Polishing Machines which enable the Planetary or Rotatory direction.
② The High Tech Grinding Diamond abrasives from metal to resin for polishing.
③ The High Tech Grinding Chemicals for repairing, hardening, sealing and stone crystallization.

Email: xingyi15@polishingmachine.cc
Skype: xingyistone15
Whatsapp: 008615960788815

Related Tags :

Productive floor preparation grinder 20HP Concrete grinder machine Floor grinder machine with WEG motor 800LE concrete floor grinder equipment Best 220V/380V Floor polisher Heavy-duty floor grinding machine

Next:
GX720-A Epoxy Concrete Floor Grinder

A free consultation

Enable the global floor labors to work with health, Easy and happiness

Subject : 800LE+ Self-propelled Concrete Floor Grinder With Gear-driven

If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

Related Products

800-4A Self-Driven Efficient Concrete Floor Grinding Machine Equipment

The 800-4A is a powerful self-driven floor grinding machine, which subverts the traditional grinding method. This traditional grinding machine can only be driven by manpower, and only the motor speed can be adjusted. The 800-4A is driven to advance independently, and the walking speed of the machine can be adjusted according to the grinding requirements, which greatly reduces the labor intensity of the workers. Working on a construction site in a day is as easy as sitting in an office!

800LE Self-propelled Diamond Concrete Floor Grinder And Polisher

The 800LE is a distinguished floor grinding machine for its perfect appearance and super grinding efficiency. With a 20HP uprated WEG motor, 556 kg heavy net weight and 60kg adjustable additional weight iron, it possess strong grinding force and stable performance.

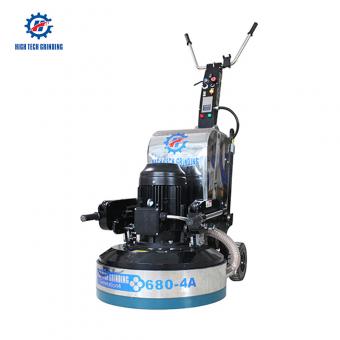

680-4A Unparalleled Self-propelled Concrete Floor Grinder And Polisher Machine
