460-3D Three Heads Walk-behind Diamond Floor Grinding Machine Equipment

As one of the most hotselling floor grinding polishing equipment, the 460-3D floor grinder is equipped with planetary rotating system and 28L large capacity of water tank, which reduce the deviating force during grinding process and make the grinding flatness higher when comparing with similar grinding machine.

  • Brand:

    Xingyi
  • Item NO.:

    460-3D
  • Product Origin:

    Fujian, China
  • Color:

    Black And White
  • Shipping Port:

    Xiamen
  • Lead Time:

    7-20 Days
Product Detail

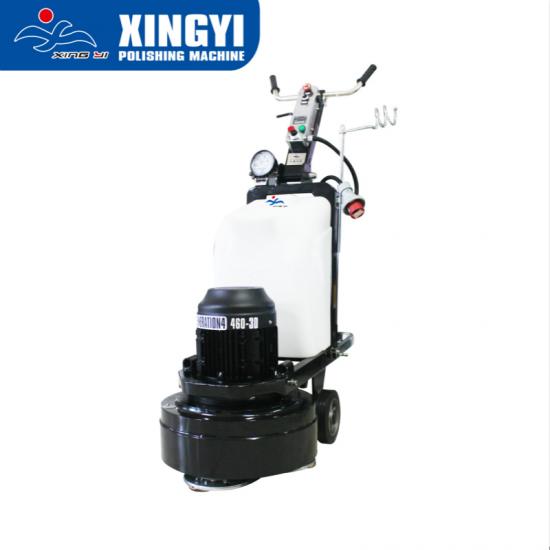

460-3D Three Heads Walk-behind Diamond Floor Grinding Machine Equipment

As one of the most hotselling floor grinding polishing equipment, the 460-3Ddiamond floor grinderis equipped with planetary rotating system and 28L large capacity of water tank, which reduce the deviating force during grinding process and make the grinding flatness higher when comparing with similar grinding machine.  It can be used for not only dry grinding but also wet grinding. For water grinding, after rotating the water switch, it can sprinkle water on the grinding plate, cooling abrasive to make higher working efficiency. With a compact dimension and 460mm working width, it can be used, packed and transported easily in daily floor work with less labor cost.


Specifications

Model

460-3D Electric floor grinding machine

Operating width

460mm

Grinding disc

200mm*3 ( 3 heads )

Rotating speed

360-1260rpm

Motor HP

3KW/4HP

Inverter HP

3.7KW/5HP

Amperage

10.8A

Voltage

220-240V single phase

Weight

150kg

EXtra weight

30kg*1

Water tank

28L

Packing size

104*63*120cm

Configuration

WEG motor + Delta inverter

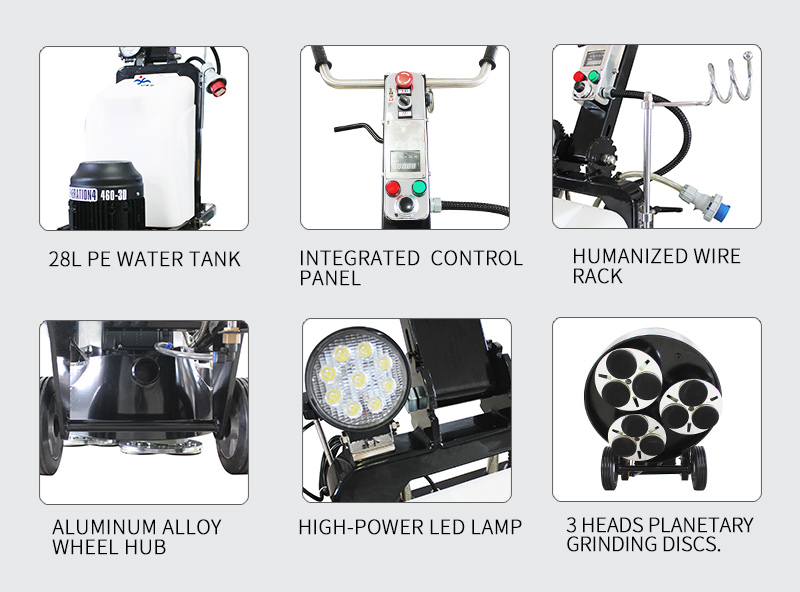

Product display

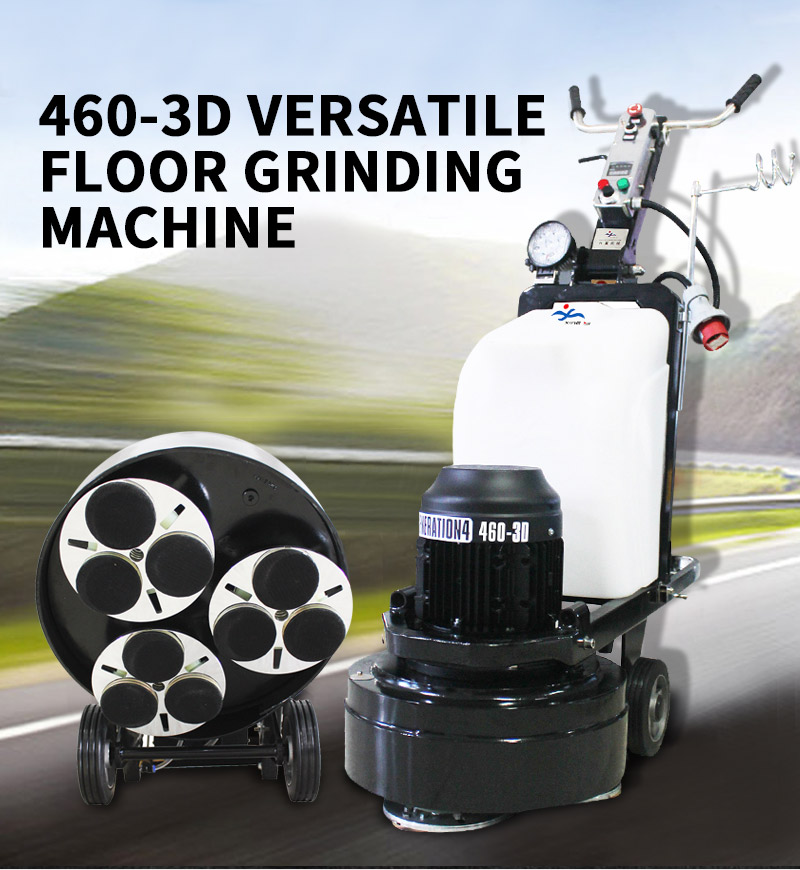

4 HP concrete floor grinding polishing machine

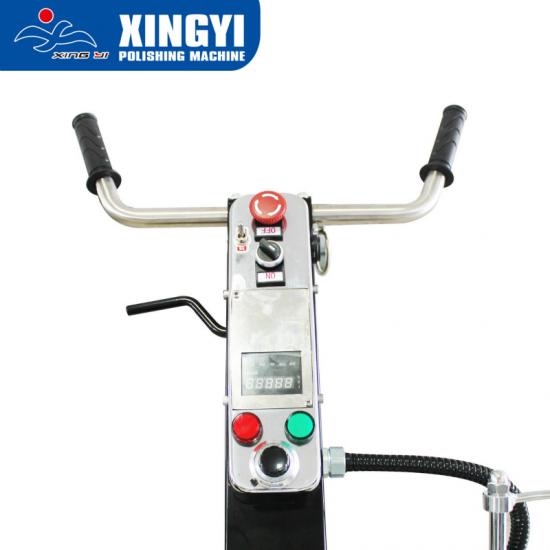

●Integrated control panel

●28L large capacity of water tank

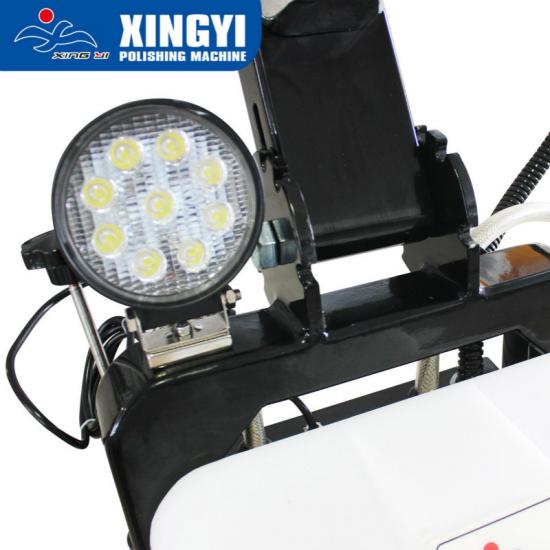

●High power LED lamp for work at night

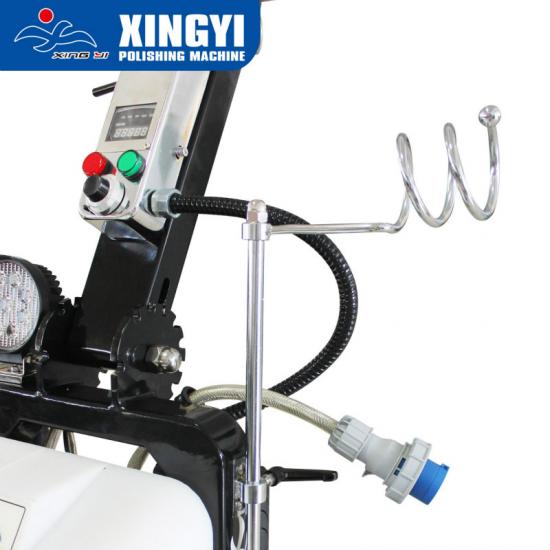

●360 Degree rotatable wire rack

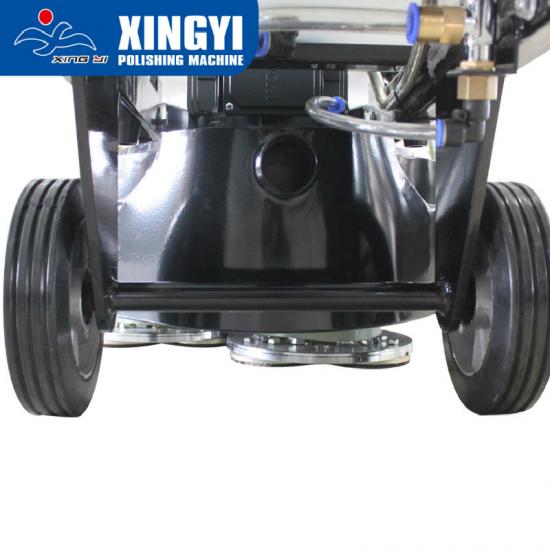

●Rubber wheel with superior aluminium alloy hub

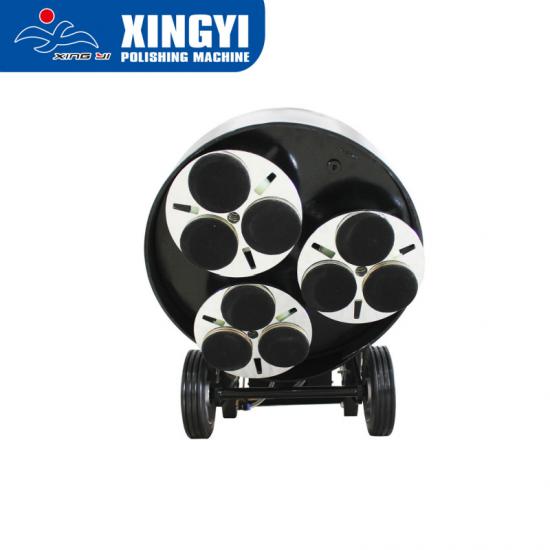

●3 Heads planetary rotating grinding disc

●USB interface for mobile phone charging

●CE Standard aviation plug


220v and 380v Floor grind and polish equipment


FAQ

Q1:How long can the machine use per day?
A1:
① It is recommended that the normal working time is 8-10 hours, but it can also be operated for 24 hours if your project is urgent.
② The machine is the same as the car. We need to maintain it according to the maintenance regulations every month every week so that the machine can last longer.
③ During construction, it is recommended to have a good construction environment, the machine is fully equipped, check the working condition of the machine in real-time, pay attention to maintenance, and replace the maintenance of gear oil for half a year.
④ Construction workers regularly attend training and maintain the machine, the service life and construction effect of the machine will be much better.


Q2: What are the main products of Xingyi?

A2:


Contact us

Email: xingyi19@polishingmachine.cc

Whatsapp: 008615960731060


A free consultation

Enable the global floor labors to work with health, Easy and happiness
