Combining the heavy-duty pressure, operational reliability and flexible operation, the 800-4A self-propelled floor grinding and polishing machine is one of the top-selling floor preparation equipment from Xingyi.
Brand:
High Tech GrindingItem NO.:
800-4AProduct Origin:
Fujian, ChinaColor:
Black And GrayShipping Port:
XiamenLead Time:

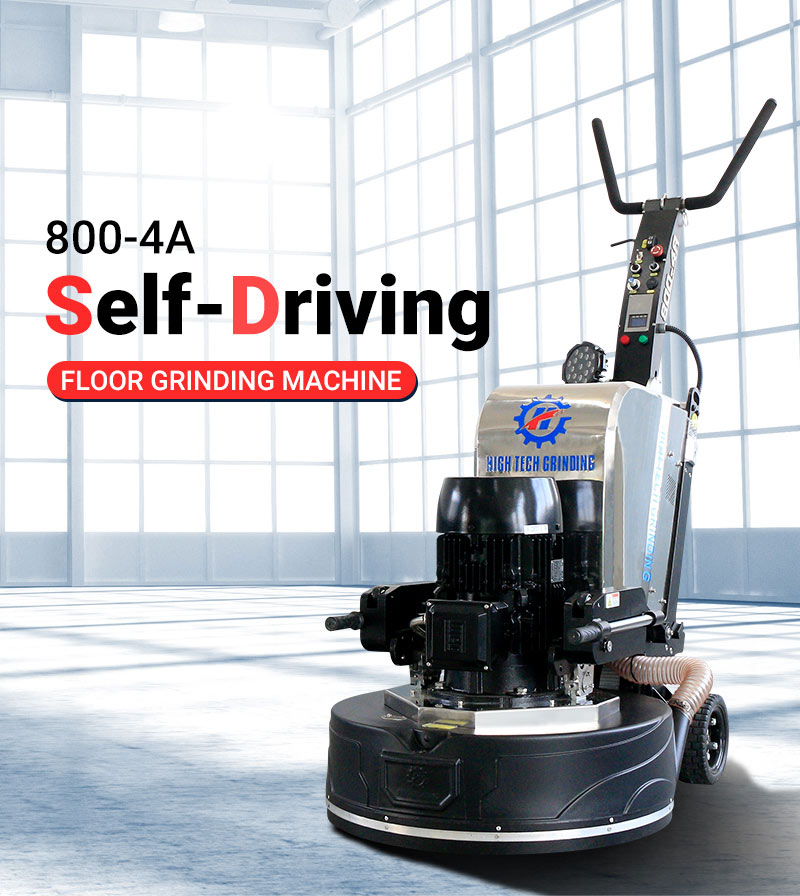

7-20 Days800-4A Professional Self-driven Concrete Floor Grinding Polishing Machine Equipment

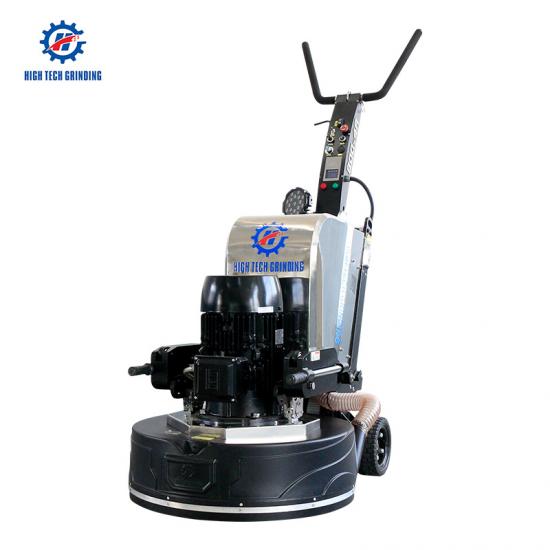

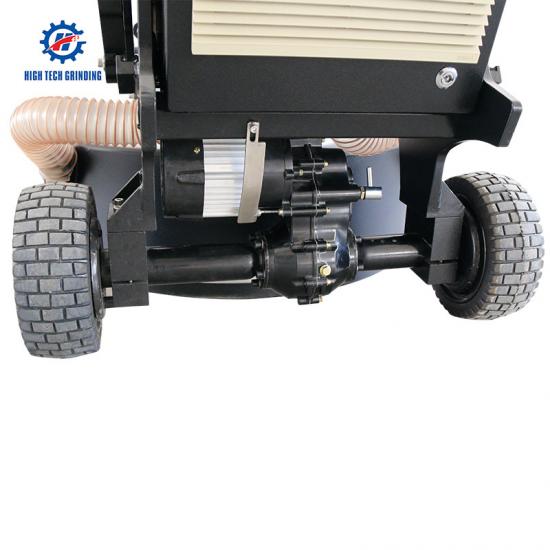

Combining the heavy-duty pressure, operational reliability and flexible operation, the 800-4A self-propelled floorgrinding and polishing machine is one of the top-sellingfloor preparation equipmentfromXingyi. Thegrinding machinecan work easily on a Max. 25 angle slope, which is suitable for the parking lot. Its self-propelled system is friendly to workers and a certain speed make a better effect. The machine can walk 30min without power, it is a good design for transportation. We can charge it by the extra power supply(220v), or it will charge by himself when working. Equipped with 3 gears additional weight iron, it can be used to maximize the grinding pressure when working and minimize the pressure when lifting the machine.
Specifications
Model |
800-4ASelf-propelledfloor grinding polishing equipment |
|
Voltage |
220V3 phase |
380V 3 phase |
Current |
53A |
30.7A |
Working width |
800mm |
|
Grinding disc |
256mm*4 |
|
Motor Rotating speed |
450-1950rpm |
|
Motor HP |
15KW/20HP |
|
Inverter |
18.5KW/25HP |
|
Configuration |
WEG motor + Delta inverter |
|
Weight |
540kg |
|
Extra weight |
20kg x 2 |
|
Water tank |
20L |
|
Packing size |
146*87*132 |

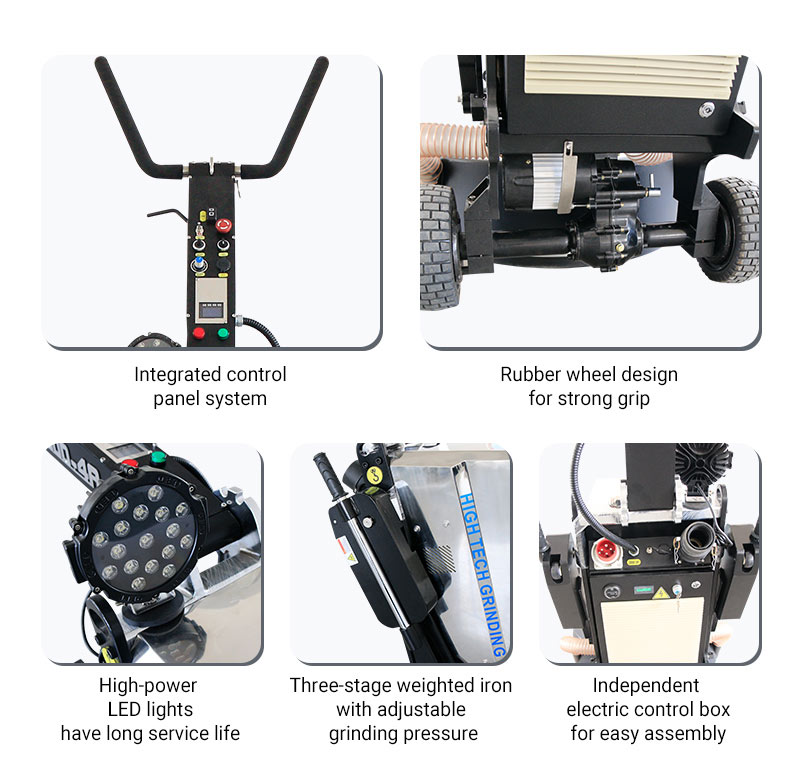

Product display
1. Equipped with a cruise control system. By setting the standardgrindingand walking speed, the grinding effect will be stable and consistent.
2. The floating PE dust shroud provides longer service life and shortens the time of replacing abrasives with a good dustproof effect.
3. With a world-classWEG motorand Delta inverter, it is of superior performance and global after-sales service.

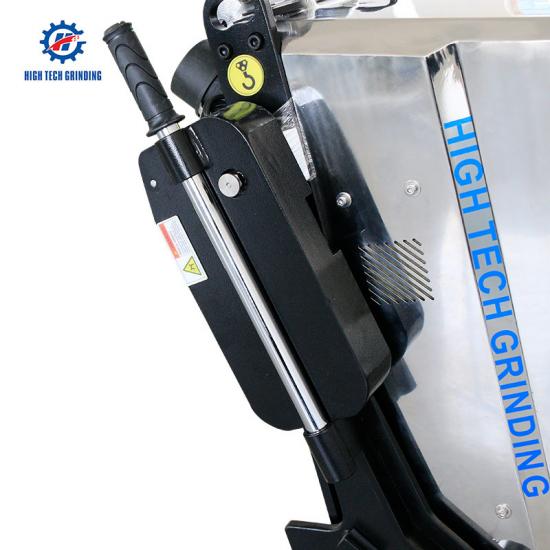

4. Three-gears additional weight iron can be flexibly adjusted to a suitable position according to the actual surface condition.
5. 540kg heavy net weight makes larger grinding pressure and stronger cutting force.

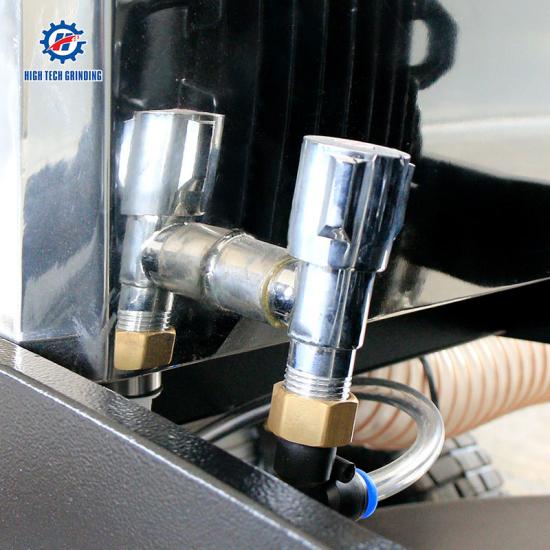

6. With a 20L stainless steel water tank, this machine can be applied to bothwater grindingand dry grinding.

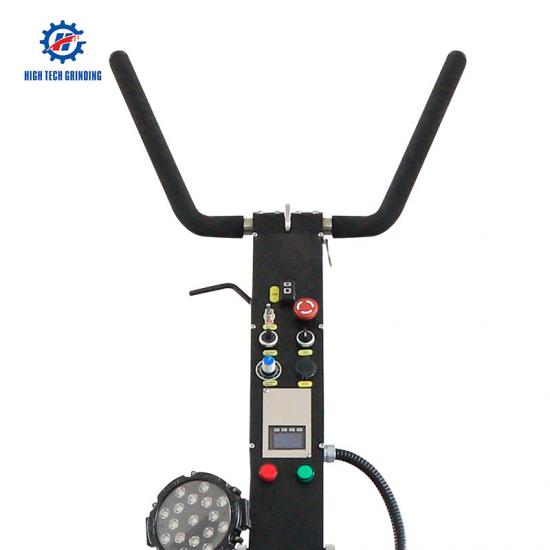

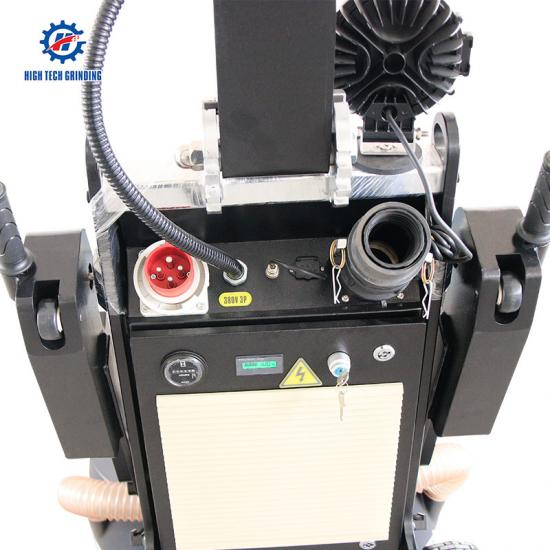

7. Logical control panel for easier operation.
8. Available for a 25-degree slope climbing function, it is convenient for transportation.

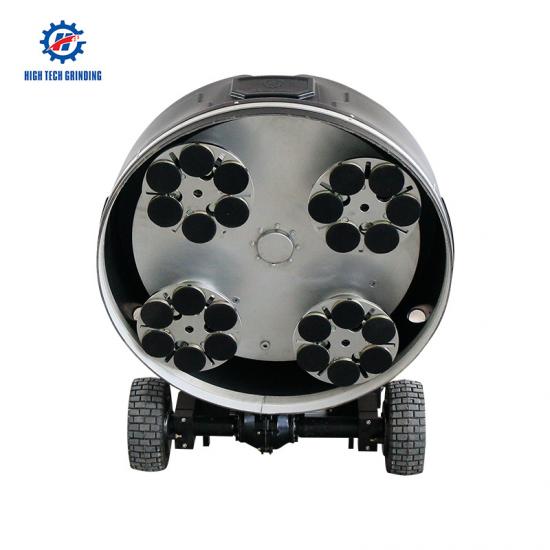

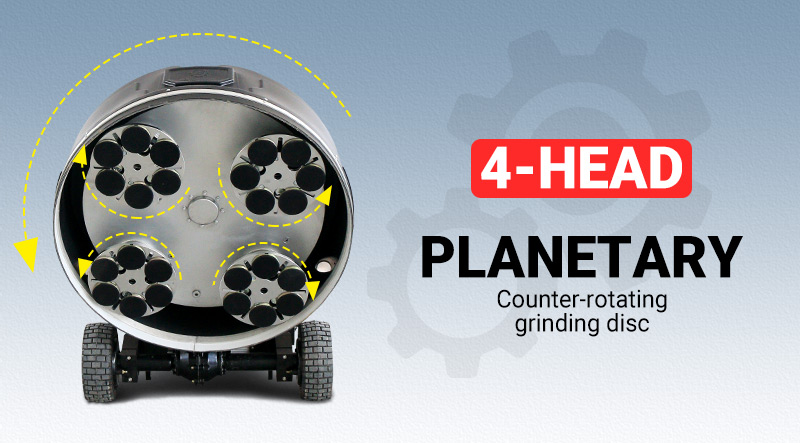

9. Four-headplanetary rotatinggear-box for high-precision gringing and polishing work.
FAQ
Q1:How is the quality of Xinyi gearbox assembly?
A1:Xingyi's gearboxes are made of aluminum alloy, cast with high-precision aluminum abrasives, with thick walls and excellent heat dissipation. The flange seat made of thick steel is built-in to ensure excellent heat dissipation and sufficient rigidity. It is processed by imported CNC machine tools with a machining accuracy of 0.005mm, and the machine's repeated positioning accuracy is 0.001mm.
Q2:How do you use a self-driven floor grinder?
A2:
