500-4i Versatile diamond floor grinding machine

500-4i Square Concrete Surface Floor Grinding Machine And Polisher Equipment

Brand:
Xingyi
Item NO.:
500-4i
Product Origin:
Fujian, China
Color:
Black And White
Shipping Port:
Xiamen
Lead Time：
7-20 Days

Product Detail

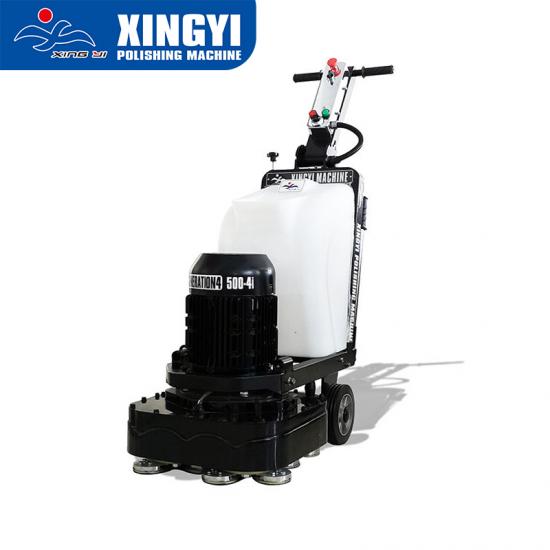

500-4i Square Concrete Surface Floor Grinding Machine And Polisher Equipment

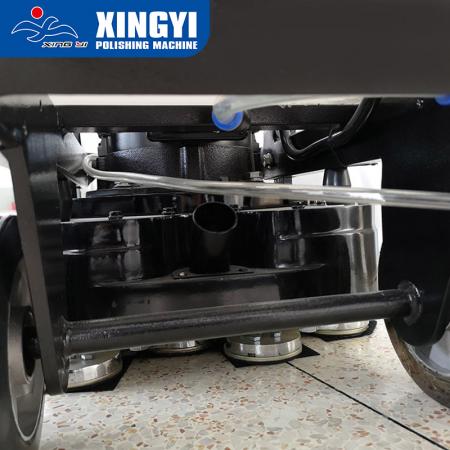

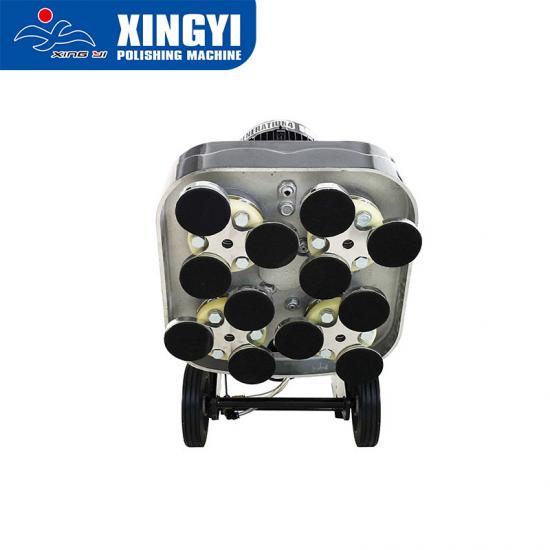

The 500-4i is a versatile square floor grinding machine manufactured by XINGYI company. It is a perfect floor surface preparation equipment for many applications, such as coating removal, repair damaged and dusting the concrete floor, flatten the floor surface. With a 500mm standard operating width, the 500-4i is ideal for both small hard to get to areas, as well as larger spaces. Equipped 4 head counter-rotating grinding plates, it can be operated steadily with lower maintenance and higher grinding efficiency. Equipped with a 28L large capacity of water tank and standard 50mm dust suction port, it can be used for both wet grinding and dry grinding.

Specifications

Model	500-4i Square floor grinding polishing machine
Voltage	380-440V 3P	220-240V 3P/1P
Operating width	500mm
Grinding disc	270mm*4
Rotating speed	350-1460rpm
Motor HP	5.5KW/7.5HP
Inverter HP	7.5KW/10HP
Weight	175kg
Water tank	28L
Packing size	14088120cm
Configuration	WEG motor + Veichi inverter	WEG motor + Delta inverter

Product display

220v and 380v floor grinding equipment

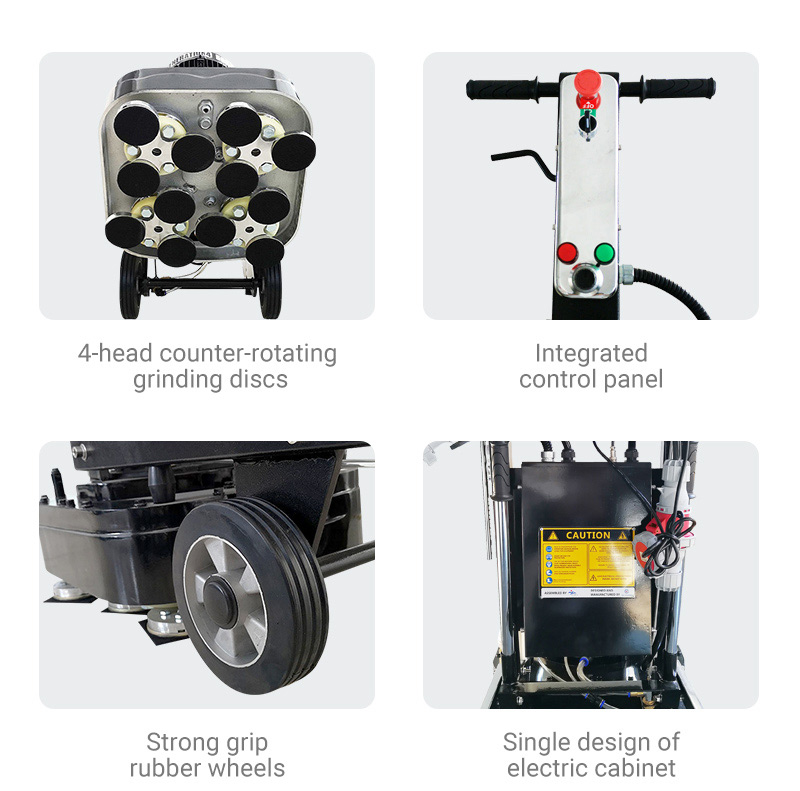

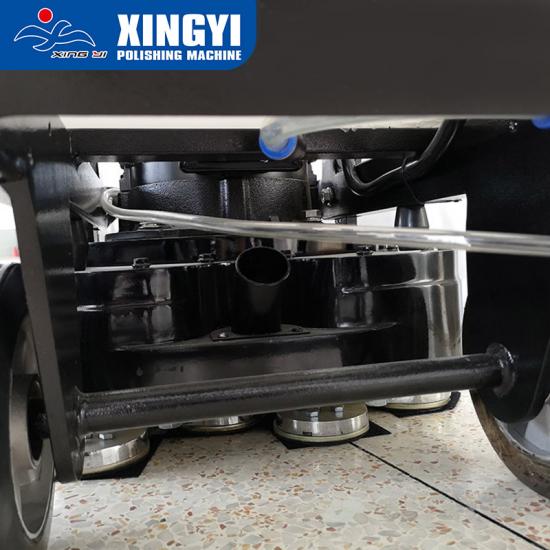

☛Aluminum-alloy gearbox with higher strength

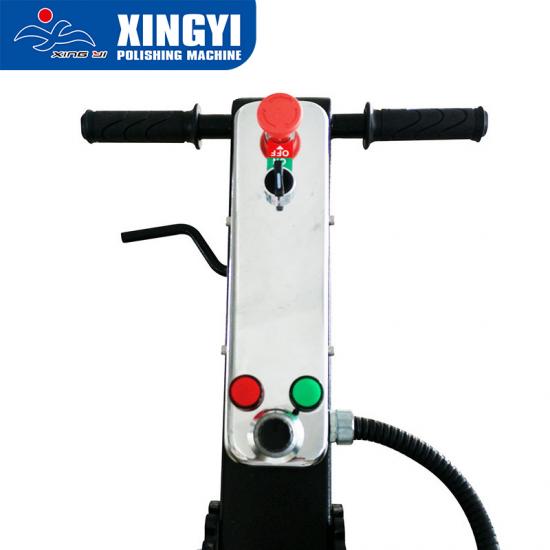

☛Foldable handle and adjustable operating lever with ergonomic design

☛28L large water tank for wet grinding

☛World-famous WEG motor with strong power

☛High power LED for dark job sites

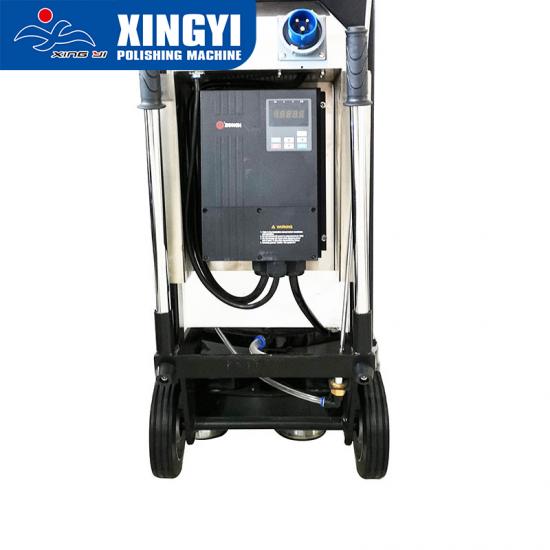

☛Single design of electric cabinet convenient for easier maintenance.

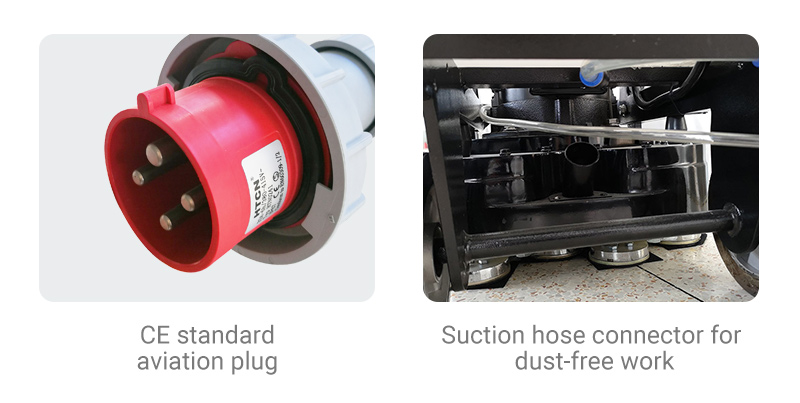

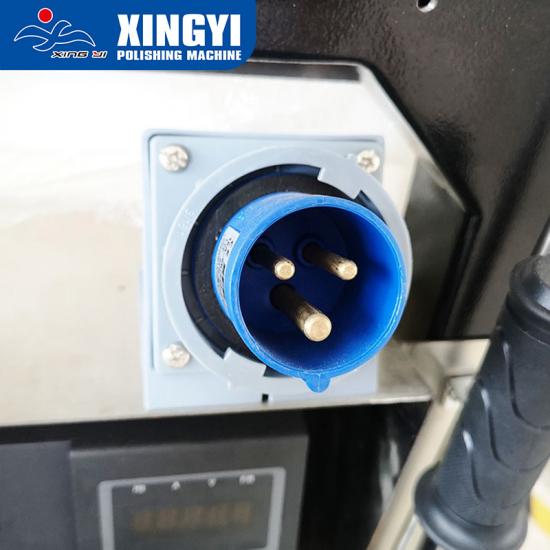

☛CE standard aviation plug with longer service life

China best square plates floor grinder

FAQ

Q1:How do you smooth a rough concrete floor?

A1:

Q2:how do you maintain a floor grinder?
A2：
1.Clean the grinder every day after work, especially the dust on dust skirt and grinding plates.
2.Clean the water tank every week to prevent the dust blocks the filter.
3.After finishing each job site, all bolts and grinding plates need to be checked and fasten.
4.If the machine is often used in dry grinding, then the cooling fan of inverter need to be cleared every 20-30days.
5.Replace the gear oil termly. Usually, a new floor grinder needs to replace the gear oil after six months of use. Later, the gear oil needs to be replaced once a year.
6.Ask professional technician to do the machine maintenance and record the content of maintenance.
