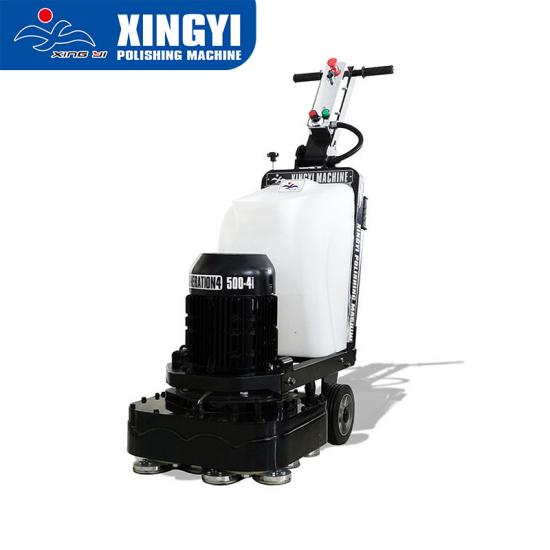

500-4i square high efficiency concrete floor grinder

500-4i is a square concrete floor grinder. It is one of the best-selling grinders produced by Xingyi Company. It has a large grinding width of 500mm and a rotation speed of 350-1460rpm, which is very suitable for commercial and industrial ground conditions. Applications such as concrete, terrazzo, cement, epoxy natural stone, etc.

  • Brand:

    Xingyi
  • Item NO.:

    500-4i
  • Product Origin:

    Fujian, China
  • Color:

    Black and white
  • Shipping Port:

    Xiamen
  • Lead Time:

    7-20 Days
Product Detail

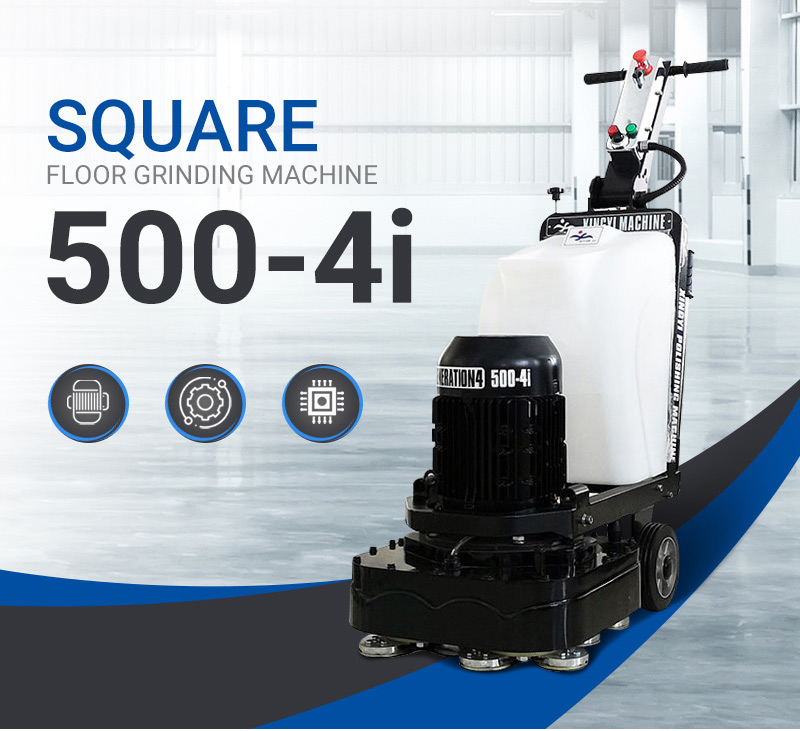

500-4i square high efficiency concrete floor grinder

500-4i is a square concrete floor grinder. It is one of the best-selling grinders produced by Xingyi Company. It has a large grinding width of 500mm and a rotation speed of 350-1460rpm, which is very suitable for commercial and industrial ground conditions. Applications such as concrete, terrazzo, cement, epoxy natural stone, etc. The 500-4i concrete grinder is equipped with a 7.5HP WEG motor and a 10HP high-quality frequency converter. It has large torque and stable performance. It provides high power to protect your grinding. The grinding efficiency is extremely high and can be used for a long time. The grinder is equipped with a vacuum cleaner connection tube, you only need to connect it to the port of the vacuum cleaner to achieve the effect of vacuuming and grinding, and the realization of dust-free construction is beneficial to the health of workers.

concrete floor grinder


Specification Table

Model Name

500-4I

Working Width

500mm

Voltage

380-440V three phase

Motor HP

WEG motor         5.5KW

AC Motor driver

 Veichi inverter    5.5KW

Rotating Speed

350-1460rpm

Grinding disc

270mm*4

Water tank

20L

Packing size

140*88*120cm

Weight

175kg



grind and seal concrete floor

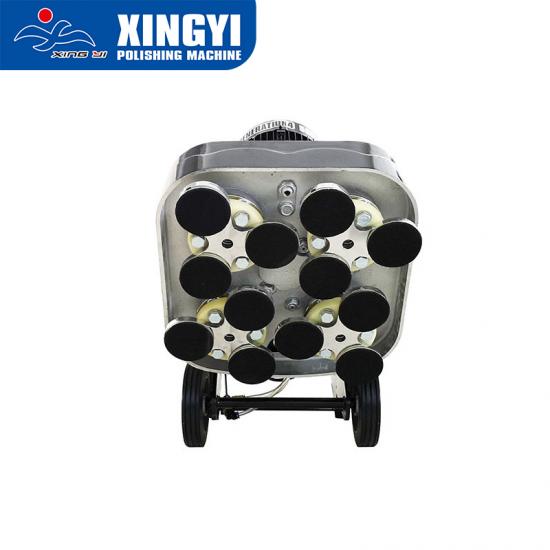

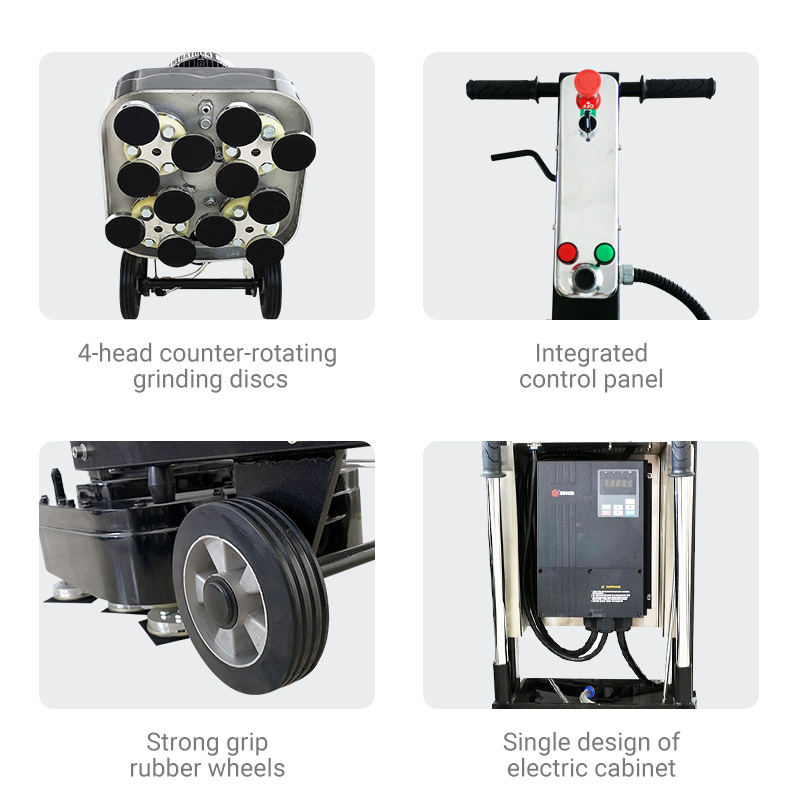

◆Four unique planetary contra-rotating system

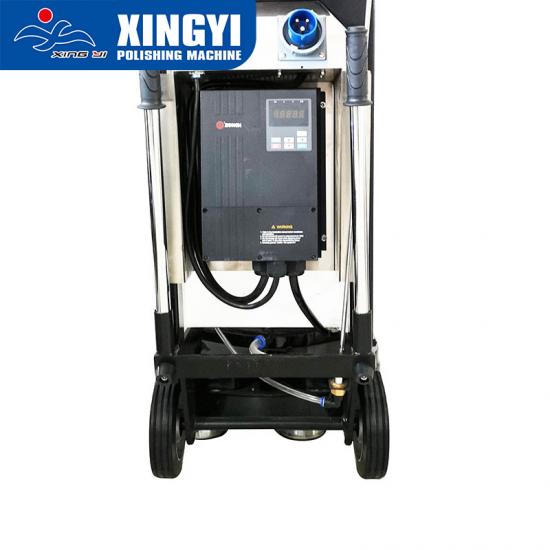

◆Independent integrated electric control box

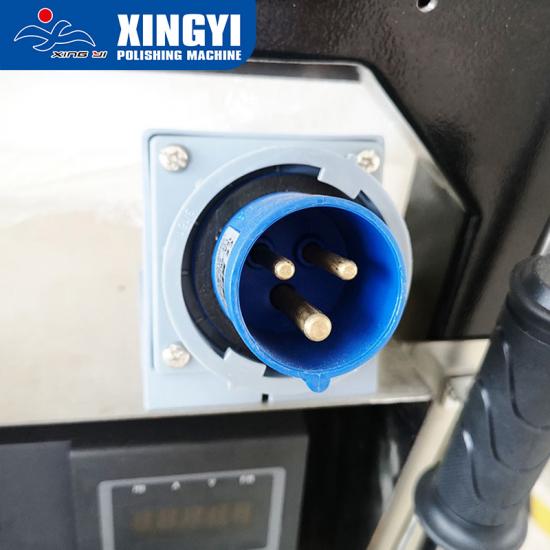

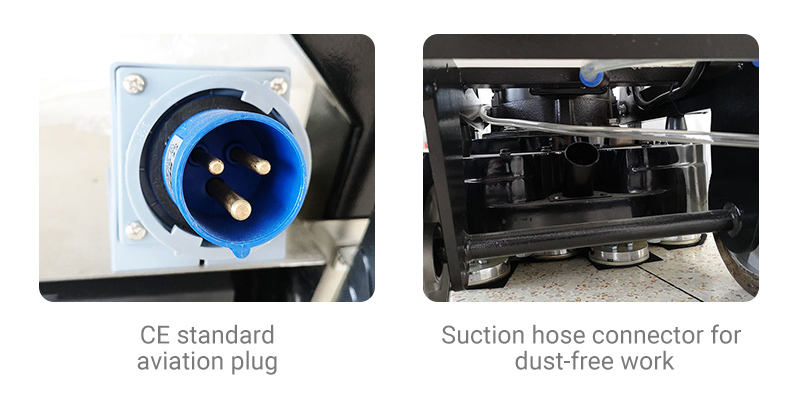

◆CE standard aviation plug
◆Internationally renowned WEG motors and Veichi inverters
◆Foldable stainless steel handle

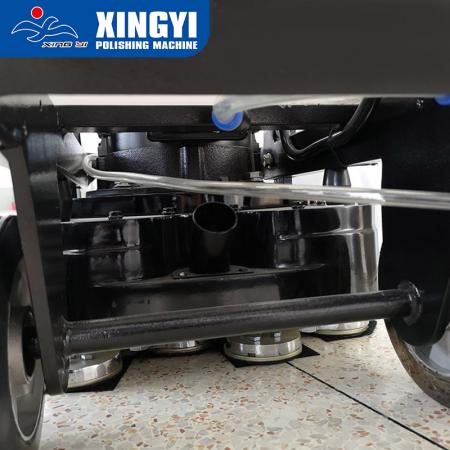

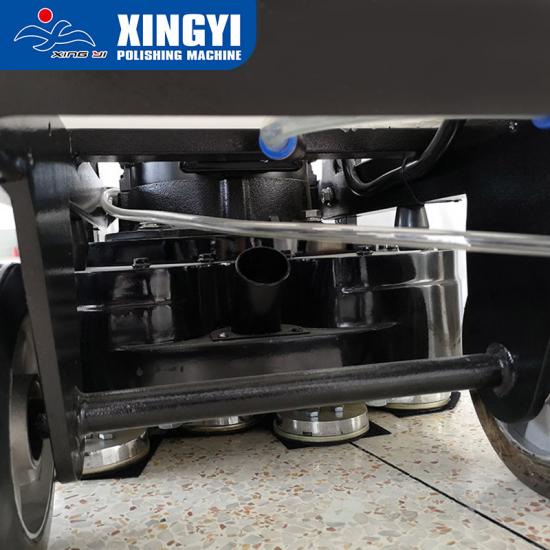

◆Vacuum cleaner connection port prevents dust

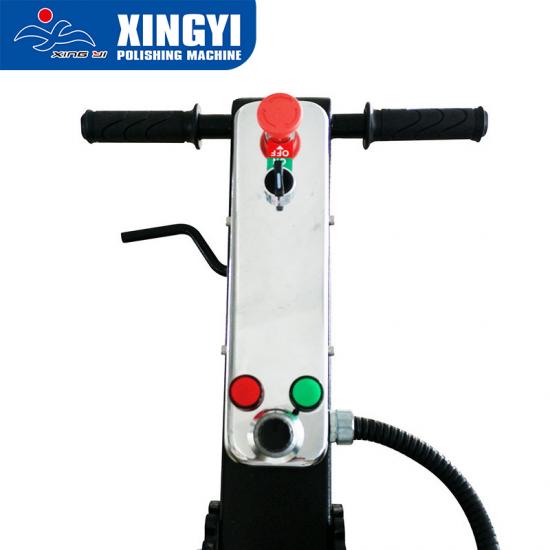

◆Integrator control panel for easy operation
◆Beautiful appearance, advanced atmosphere

grinding concrete floor with hand grinder

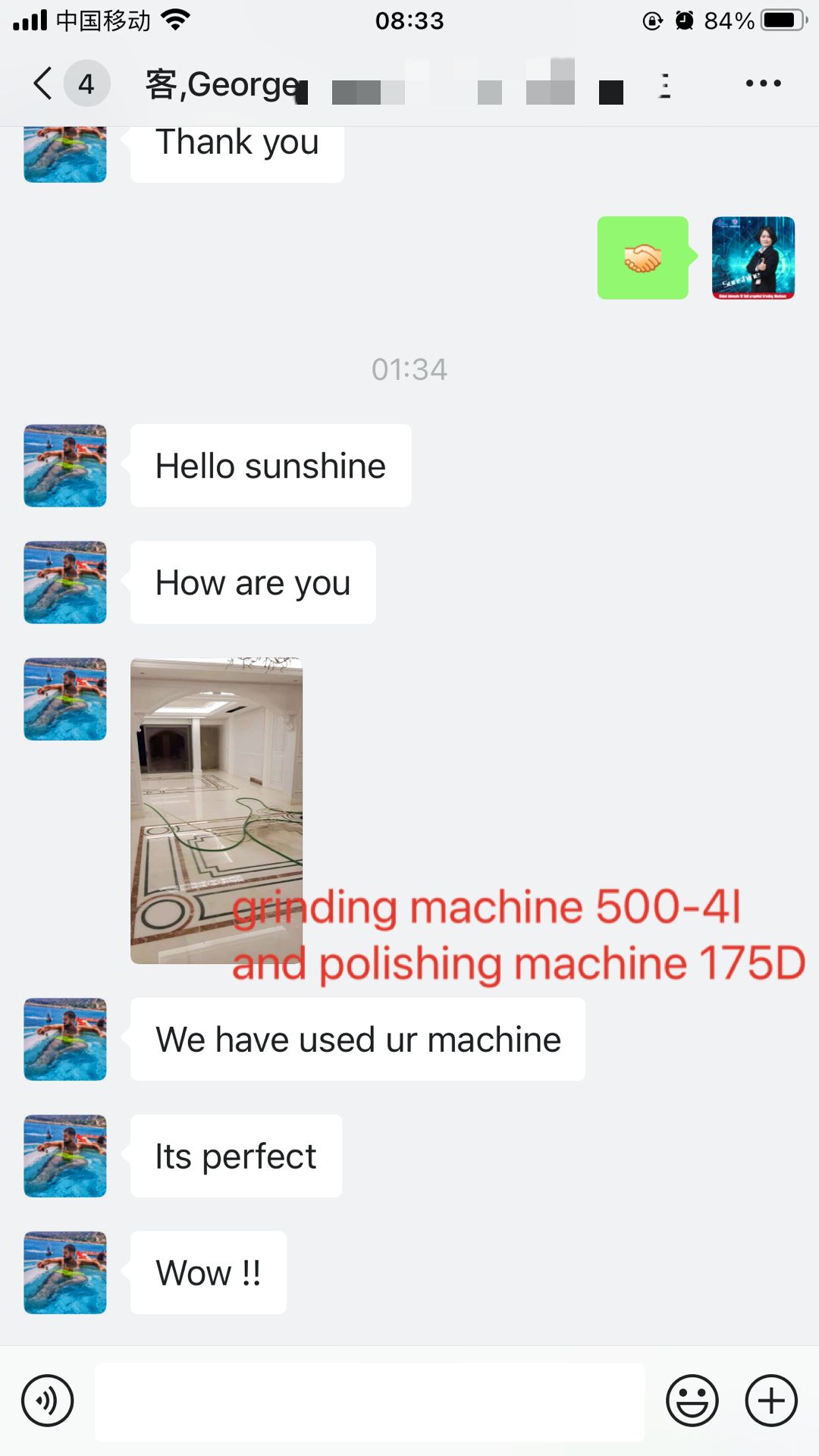

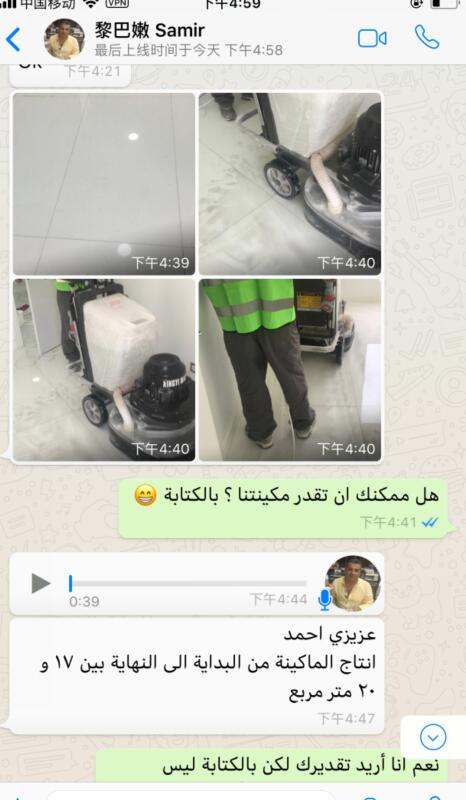

Customer praise

concrete floor sander hire

concrete grinding contractors


FAQ

Q1:

How to choose a concrete floor grinder?
A1:

1. Stability of operation. Stable operation is the prerequisite to ensure the stable operation of the machine, which can reduce the failure rate of the machine;
2. Grinding speed, which determines the work efficiency. The working speed of a floor grinder will directly affect the construction cost and profit of the enterprise.
3. Reliability of operation. To understand the failure rate of machinery, safety is always the most important.
4. The result of ground grinding, observe its flatness, smoothness, gloss, etc. after grinding the ground.
Xingyi 500-4iconcrete floor grinder has great advantages not only in grinding speed but also in efficiency. Its 500mm working width and 350-1460 speed greatly improve the working efficiency of the grinder. The grinding disc enhances the stability of the operation and makes the ground after grinding smoother. It is a rare and good machine.

Q2:

How to use 500-4i concrete grinder to grind and polish the ground?

A2:

A free consultation
