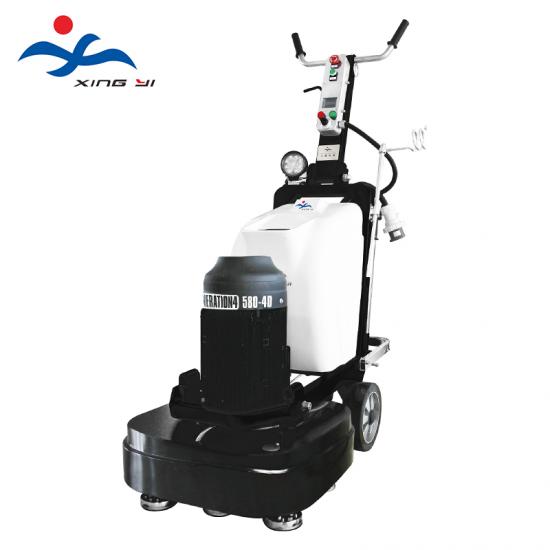

The 580-4D is a square plate floor grinding polishing machine with counter-rotating grinding discs.
Brand:
XingyiItem NO.:
580-4DProduct Origin:
Fujian, ChinaColor:
Black And WhiteShipping Port:
XiamenLead Time:
7-20 Days580-4D Square Plate Marble Terrazzo Concrete Floor Grinding Polishing Machine

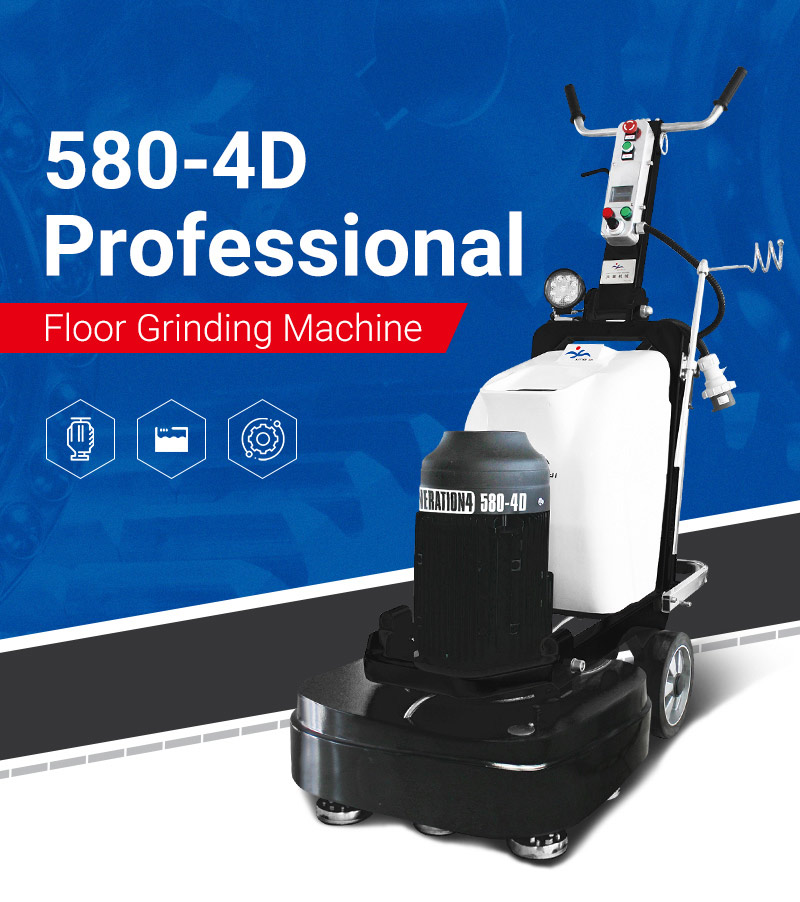

The 580-4D is a square plate floor grinding polishing machine with counter-rotating grinding discs. With a 580mm perfect grinding width and 350-1460rpm of rotating speed, it is ideal for medium-sized commercial and industrial applications for a wide range of floor conditions such as concrete, terrazzo, cement, epoxy natural stone and so on. 28L durable PE water tank makes it easy to switch from dry grinding to water grinding as needed.
Specifications
Model
580-4D Square floor grinding polishing machine
Voltage
220-240V 3P
380-440V 3P
Current
15.5A
11.6A
Operating width
580mm
Grinding disc
300mm*2
Rotating speed
450-1680rpm
Motor HP
7.5KW/10HP
Inverter HP
7.5KW/10HP
Water tank
28L
Weight
235kg/518lbs
Packing size
122*80*120cm

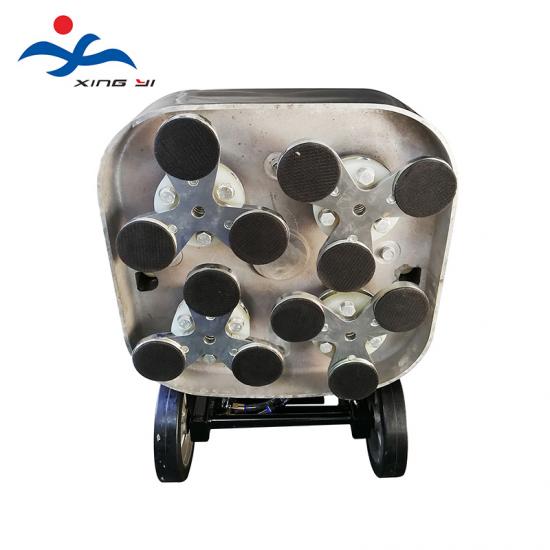

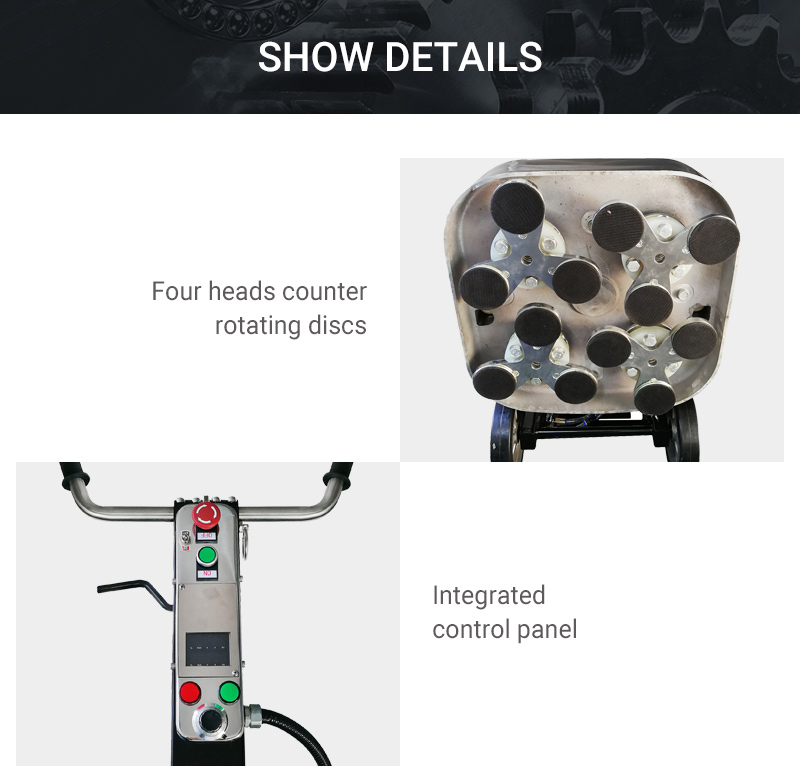

★Four heads counter rotating discs for stable control

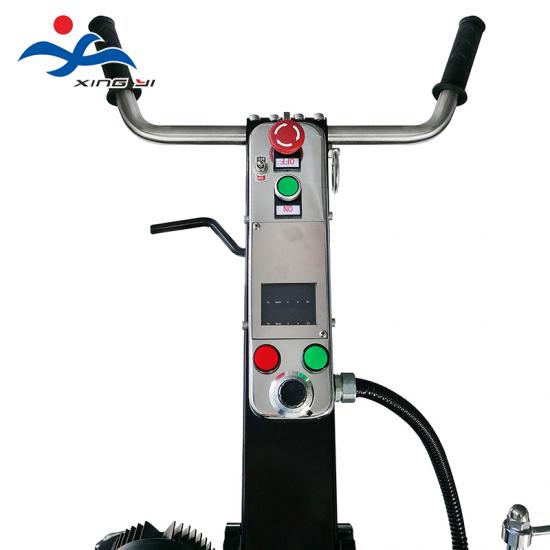

★Integrated control panel for easy operation

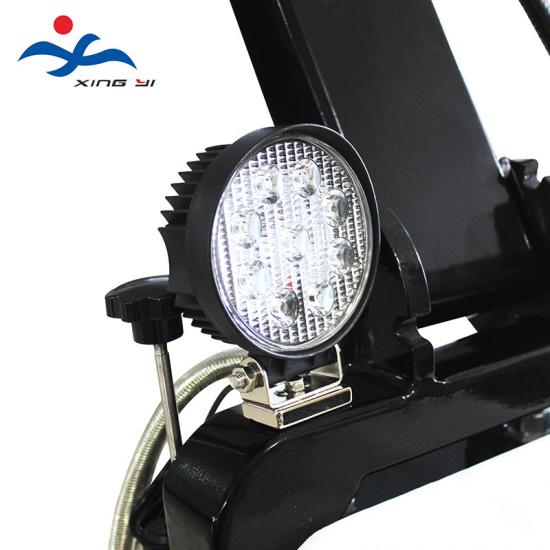

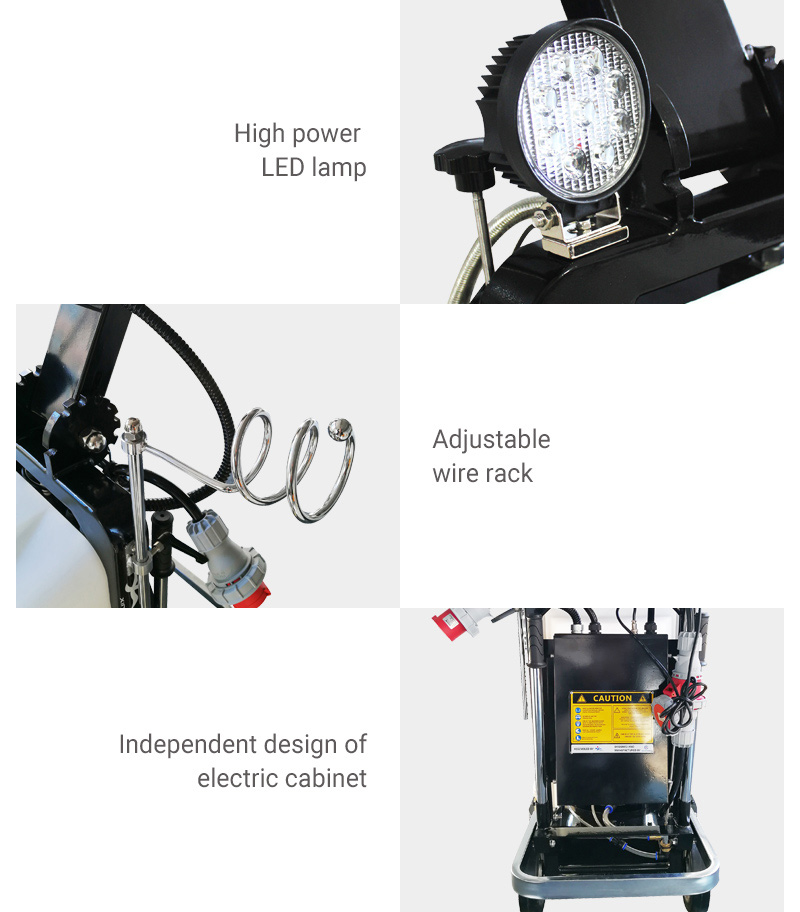

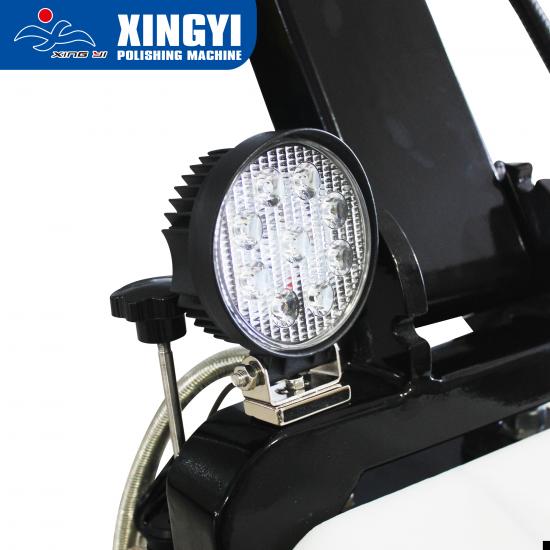

★High power LED lamp for dark place

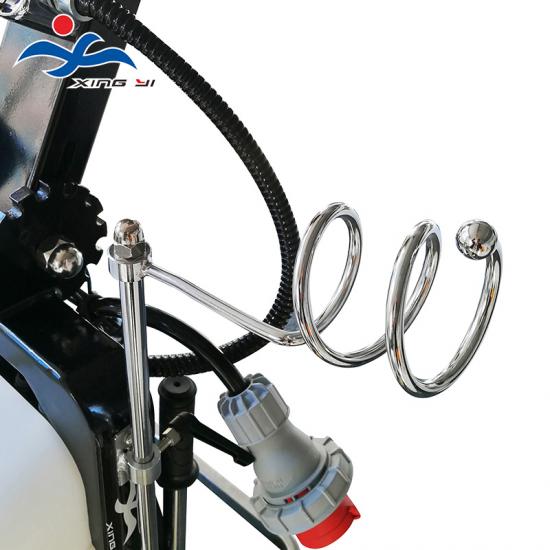

★Adjustable wire rack for safer working

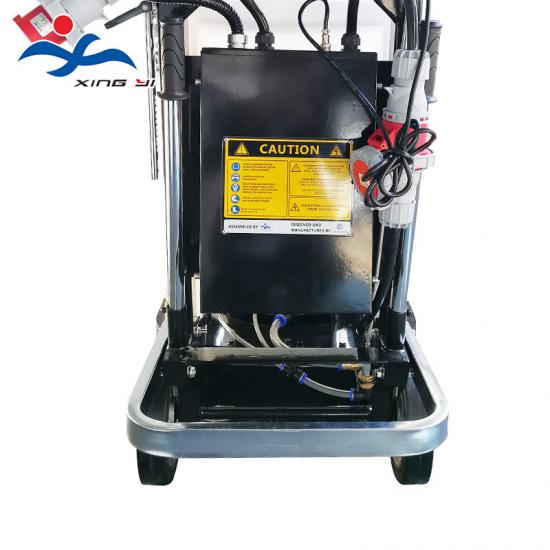

★Independent design of electric cabinet with better heat dissipation
★High precision gear with good rigidity
FAQ
Q1:
Who makes the best concrete floor grinder?
A1:
Q2:
how do you maintain a floor grinder?
A2:
1.Clean the grinder every day after work, especially the dust on dust skirt and grinding plates.
2.Clean the water tank every week to prevent the dust blocks the filter.
3.After finishing each job site, all bolts and grinding plates need to be checked and fasten.
4.If the machine is often used in dry grinding, then the cooling fan of inverter need to be cleared every 20-30days.
5.Replace the gear oil termly. Usually, a new floor grinder needs to replace the gear oil after six months of use. Later, the gear oil needs to be replaced once a year.
6.Ask professional technician to do the machine maintenance and record the content of maintenance.
