580-4V High Quality Square Concrete Floor Grinding Machine

Brand:
Xingyi
Item NO.:
580-4V
Product Origin:
Fujian, China
Color:
Black and white
Shipping Port:
Xiamen
Lead Time：
7-20 Days

Product Detail

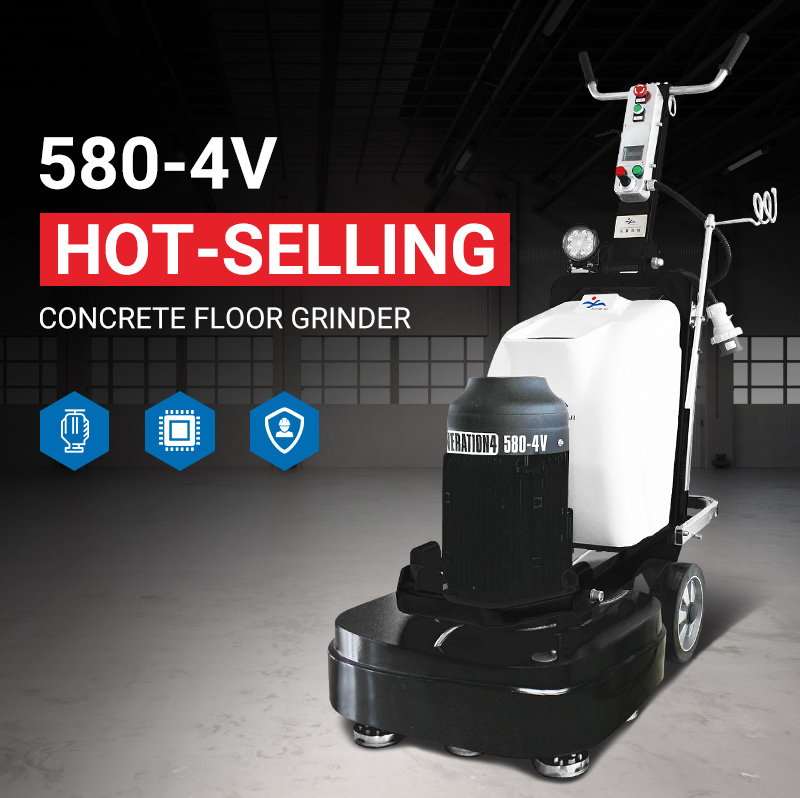

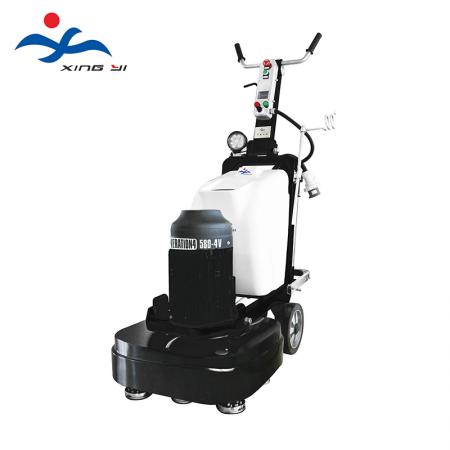

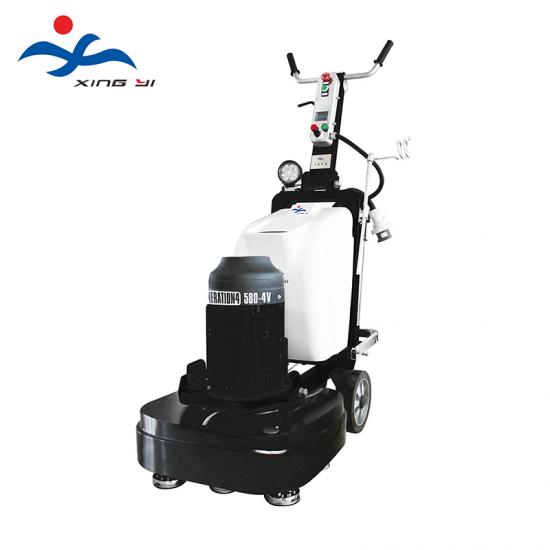

580-4V High Quality Square Concrete Floor Grinding Machine

580-4V is a high-quality best-selling concrete floor grinder. It belongs to the classic square machine design. The machine runs more smoothly. The integrated gearbox has relatively small centrifugal force and better control. You only need a little effort. It can perform machine operation and grinding construction. The reason why this grinding machine can become a best-selling model is that it has a working width of 580mm and a higher grinding efficiency. WEG motor and Veichi inverter escort it, providing greater power and more stable grinding performance. , In short, this is a superior grinding machine worth starting with.

cost to grind concrete floor

Specifications

Model Name	580-4V
Working Width	580mm
Voltage	220-240V/380-440V
Motor HP	WEG motor 7.5KW
AC Motor driver	Veichi inverter 7.5KW
Rotating Speed	350-1680rpm
Grinding disc	320mm*4
Weight	214kg

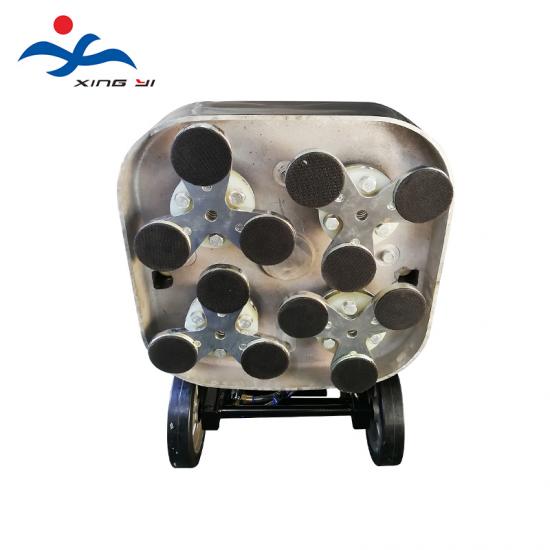

✔Four-head multi-function reversible grinding disc

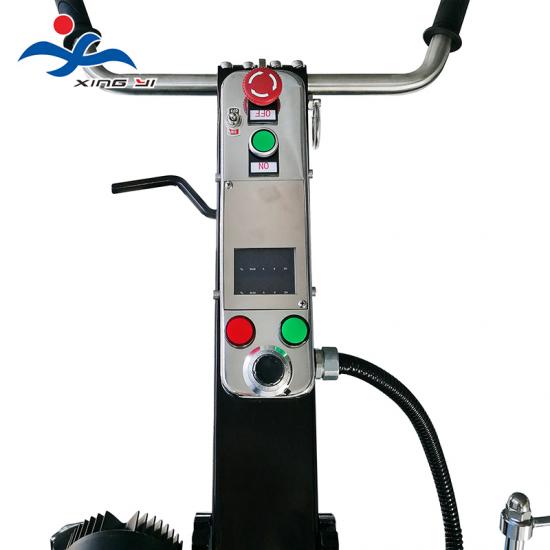

✔Integrated control panel is easy to operate

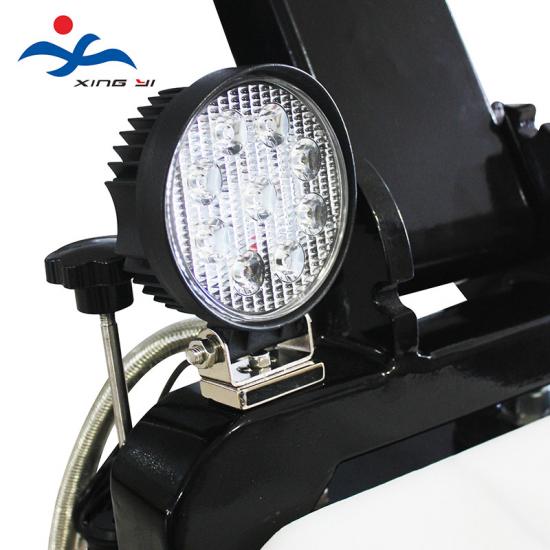

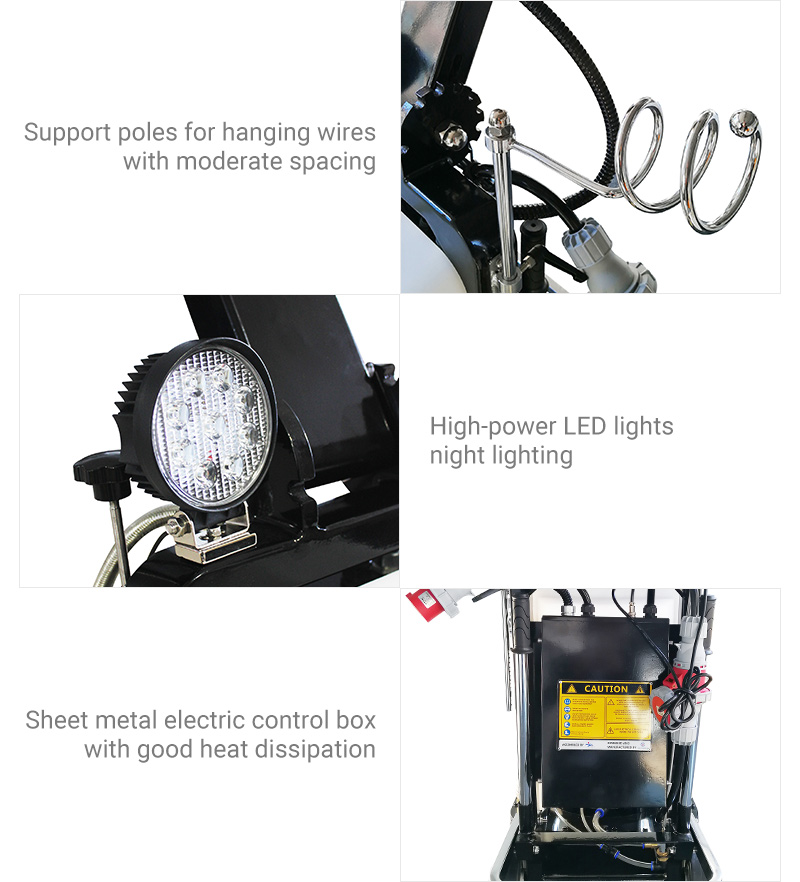

✔High-power LED lights have sufficient brightness

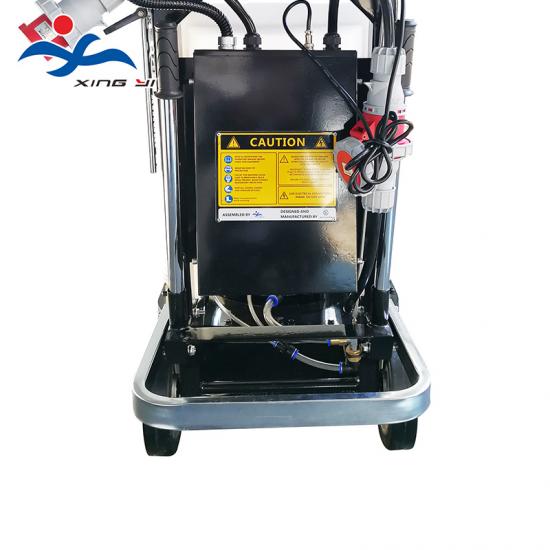

✔Aluminum alloy electric control box has good heat dissipation
✔Gear box can be quickly disassembled and repaired
✔PE floating dust cover is good for human health

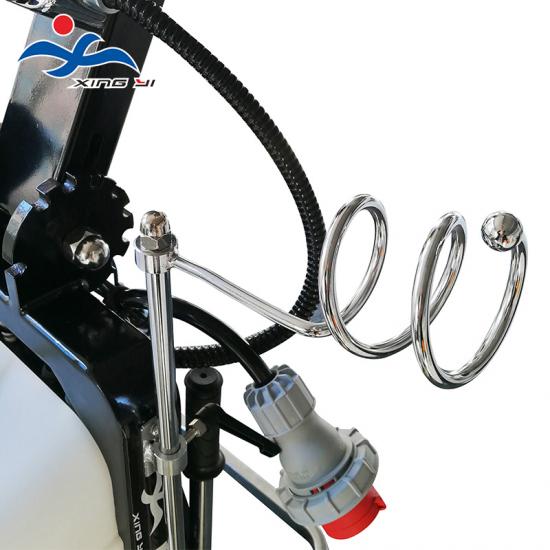

✔360-degree adjustable stainless steel wire support rod
✔Reasonable layout of components and electrical design standards

concrete floor sander hire

FAQ

Q1:

How to renovate the floor to make the traditional terrazzo glow beautiful?
A1:

1. Grind the surface of the old terrazzo with a 580-4V floor grinder and install 50# rough grinding pads until the inner layer of fresh terrazzo is ground.
2. Use repair materials to repair surface holes, large cracks and other problems; before repairing, you must first clean up the gaps;
3. Curing and hardening treatment, apply the curing agent to saturation, so that the terrazzo can fully absorb the reaction and harden; (this step can be based on needs)
4. Grind, use a 580-4V floor grinder to sequentially grind to the polishing pad 100#--3000#, and then brush the crystal surface curing agent;
5. For polishing, use a polishing pad or steel wool with a polishing machine for polishing.

Q2:

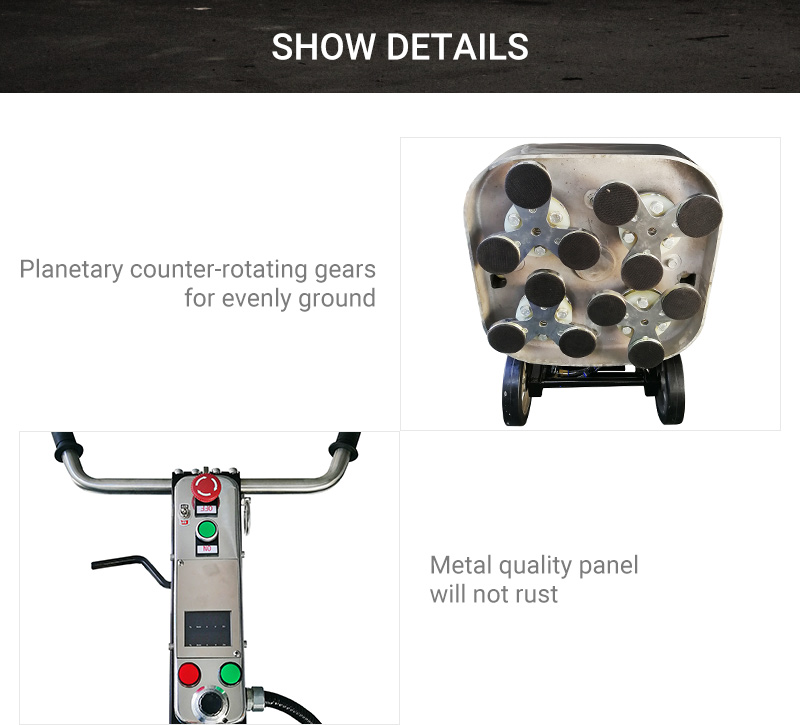

What are the advantages of the planetary counter-rotating floor grinder?
A2:

Compared with other machines, the four-head planetary floor grinder has better stability. Xingyi's four-head planetary floor grinder is a four-head planetary grinding method, that is, the gear drive drives the four grinding heads to rotate and drive the four grinding heads to revolve at the same time. The rotation direction of one group (two) of the diagonal grinding head is the same as the revolution direction, and the other group is opposite to the revolution direction. This grinding method makes the machine more powerful on the ground:
(1) The planetary counter-rotation can reduce the deflection force generated by the floor grinder during grinding and help to control the machine.
(2) Compared with the three-head machine, the four-head floor grinder can exert more power on the grinding head, and the operation on the wavy surface is more stable than the three-head machine. The grinding is more uniform, and the effect of leveling the ground can be achieved more. There will be no tripping and poor control of the machine.
