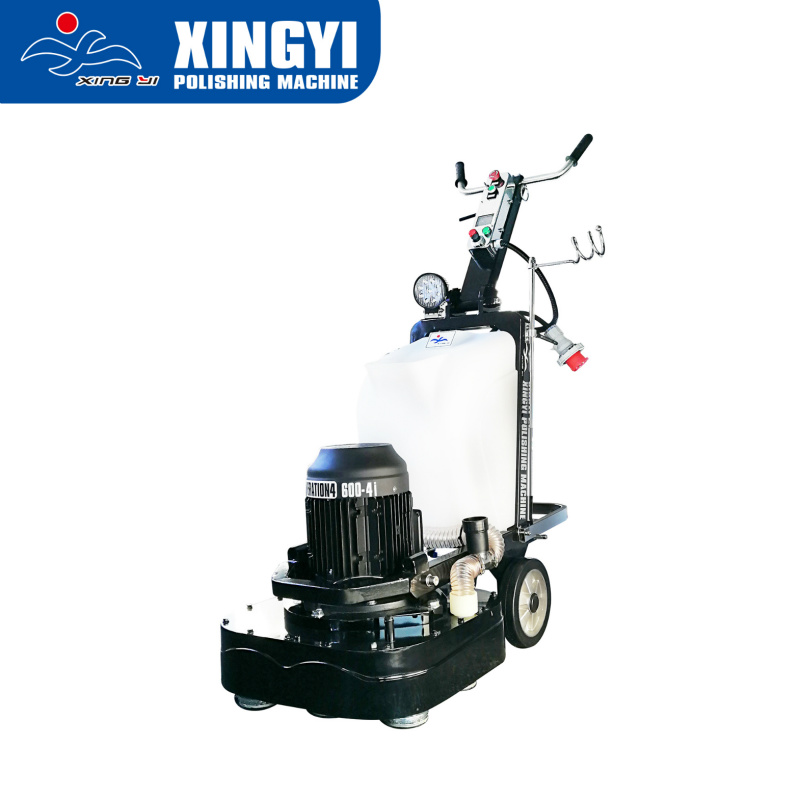

The 600-4i is a hand-held concrete floor grinder and polisher which is equipped with classic squared gearbox and 4 high-quality grinding plates with strong power. Loaded with well-known international brand WEG motor, this grinder is of high quality and satisfactory after-sales service.
Brand:
XingyiItem NO.:
600-4iProduct Origin:
Fujian, ChinaColor:
Black And WhiteShipping Port:
Xiamen600-4i Hand-held Concrete Floor Grinder And Polisher With WEG Motor
The 600-4i is a hand-held concrete floor grinder and polisher which is equipped with classic squared gearbox and 4 high-quality grinding plates with strong power. Loaded with well-known international brand WEG motor, this grinder is of high quality and satisfactory after-sales service.
Specifications
Model |
600-4i 600mm Terrazzo floor grinder and polisher |
|
Brand | XINGYI | |
Operating width |
600mm |
|
Grinding disc |
320mm*4 (4heads) |
|
Rotating speed |
350-1680rpm |
|
Motor HP |
7.5KW/10HP |
|
Inverter HP |
7.5KW/10HP |
|
Voltage |
380V-440V three phase |
220V-240Vthree phase |
Current |
17.05A |
29.3A |
Weight |
235kg |
|
Water tank |
28L |
|
Packing size |
112*64*120cm |
|
Configuration |
WEG motor + Veichi inverter |

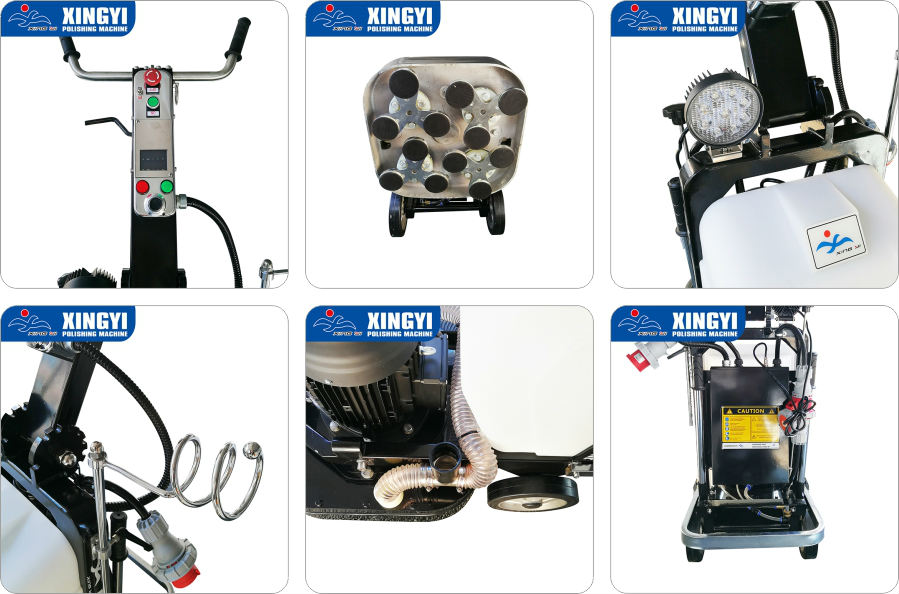

Product display

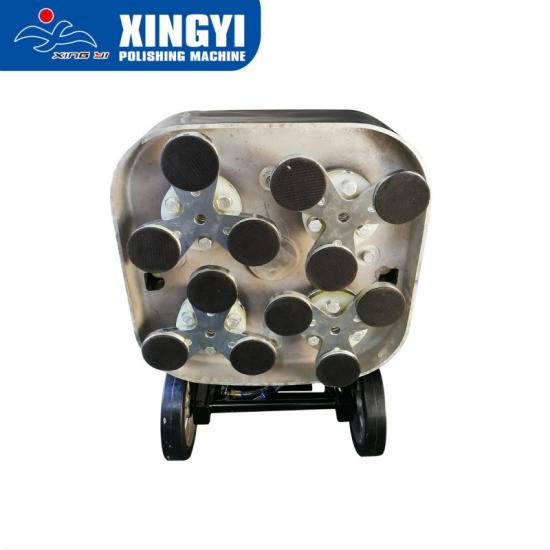

1. Four grinding discs and 12 grinding heads run crosswise, which can install various abrasives
2. High-quality damping pad to protect the grinding head from damage

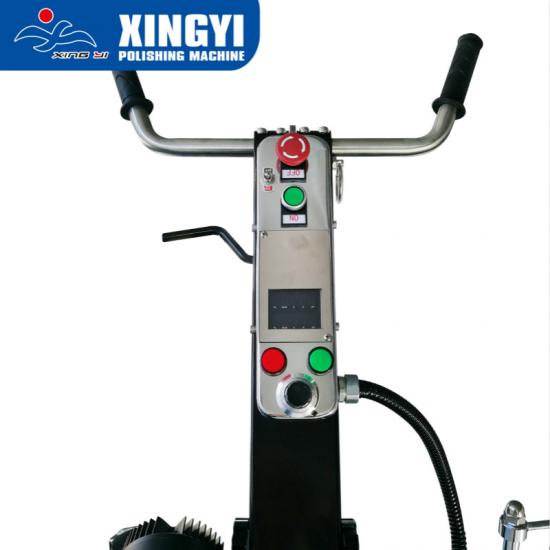

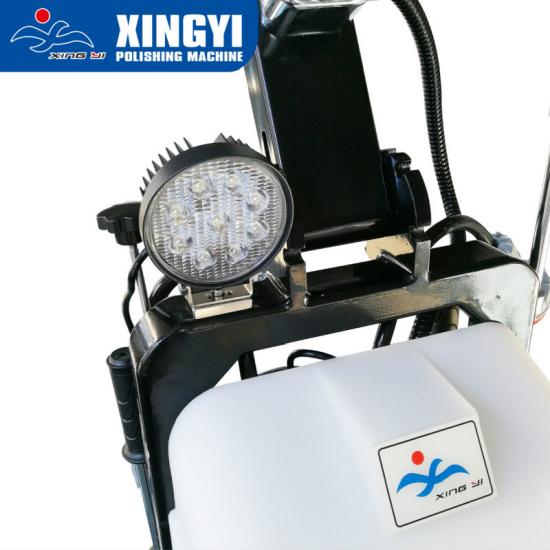

3. Folding handle and integrated central control panel design for convenient operation

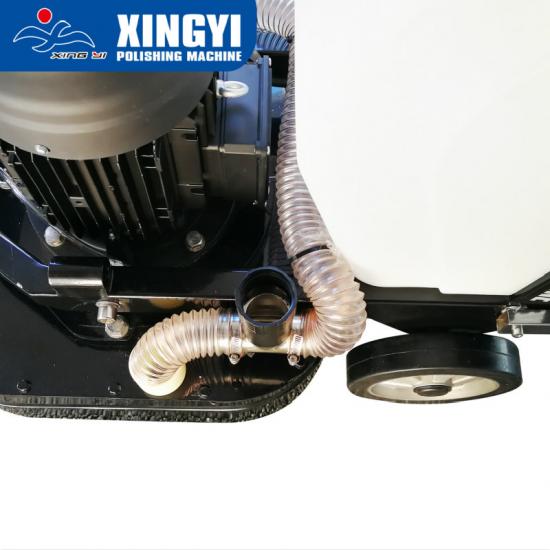

4. With a vacuum cleaner connection port, which can be connected to a vacuum cleaner for dust-free construction
5. Classic square gearbox for stable operation
6. Equipped with a water tank, which can realize two working modes: dry and wet.

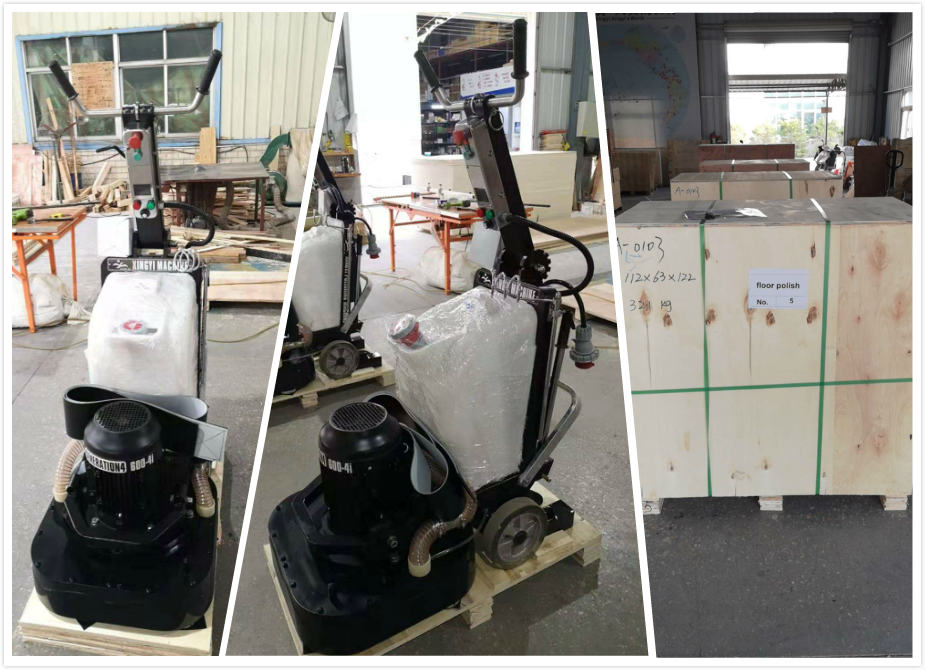

Package
FAQ
Q1:How do you use a floor grinder like the 600-4i?
A1:
Q2: How do you grind concrete floors yourself?
A2:
Step 1: Check the floor surface condition.
Step 2: Grinding with grinder 600-4i metal pads HTG-2Y 30# 60#.
Step 3: Clean the floor surface.
Step 4: Repair surface with HTG-EC-1008 and metal pads 120#.
Step 5: Polishing with resin pads HTG-C310-50# 100#.
Step 6: Harden the surface with densifier HTG-EC-L01.
Step 7: Polishing with resin pads C310-200# 400# 800# 1500#.
Step 8: Apply sealer HTG-EC-S01 on the surface.
Step 9: Buffing with high-speed polisher and buffing pads.
