The 640-3D is a professional floor grind and polish machine. Equipped with a 10HP powerful motor and high-quality inverter, it is doubtlessly a perfect grinding and polishing machine for concrete marble granite and terrazzo.
Brand:
XingyiItem NO.:
640-3DProduct Origin:
Fujian, ChinaColor:
Black And WhiteShipping Port:

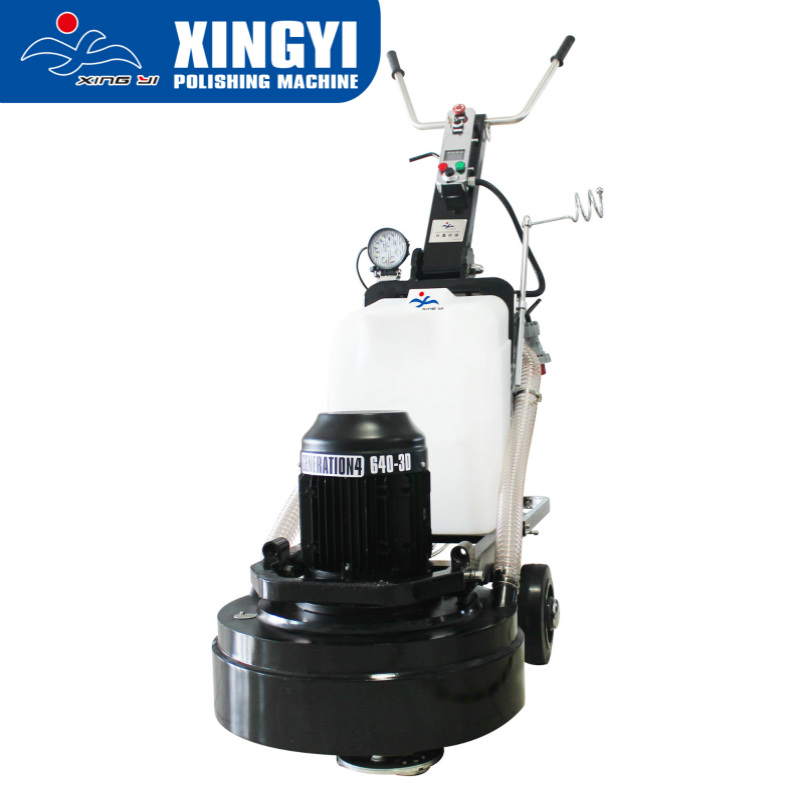

Xiamen640-3D Three Phase Concrete Floor Grinder And Best Polisher Equipment
The 640-3D is a professional floor grind and polishing machine. Equipped with a 10HP powerful motor and high-quality inverter, it is doubtlessly a perfect grinding and polishing machine for concrete marble granite and terrazzo. It can not only be used for dry grinding but also wet grinding, For wet grinding, after rotating the water switch, it can sprinkle water on the grinding plate, cooling abrasive to make higher working efficiency.
Specifications
Model |
640-3D High quality dry and wet floor grinding machine |
|
Brand | XINGYI | |
Operating width |
640mm |
|
Grinding disc |

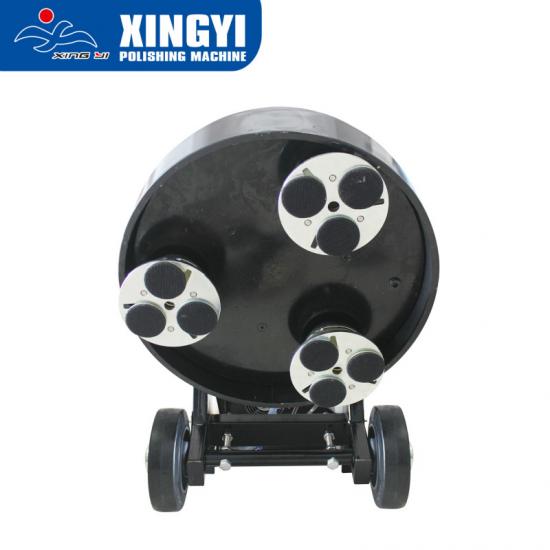

200mm*3 (3heads) |
|
Rotating speed |
350-1680rpm |
|
Motor HP |
7.5KW/10HP |
|
Inverter HP |
11KW/15HP |
|
Amperage |
15.6A |
27.0A |
Voltage |
380-440V three phase |
220-240V three phase |
Weight |
267kg |
|
Extra weight |
40kg*1 |
|
Water tank |
32L |
|
Packing size |
122*72*124cm |
|
Configuration |
WEG motor + Delta inverter |

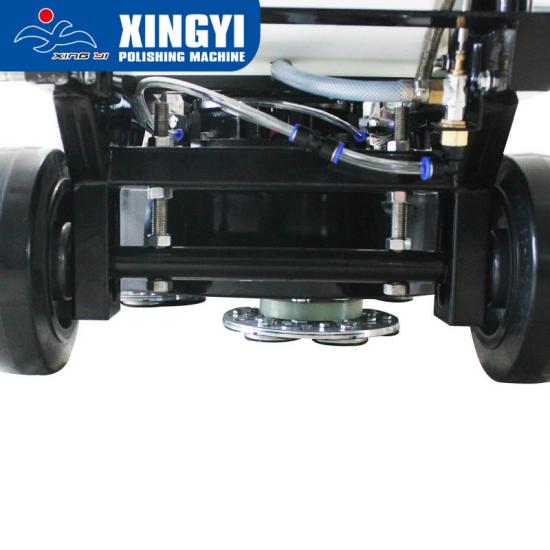

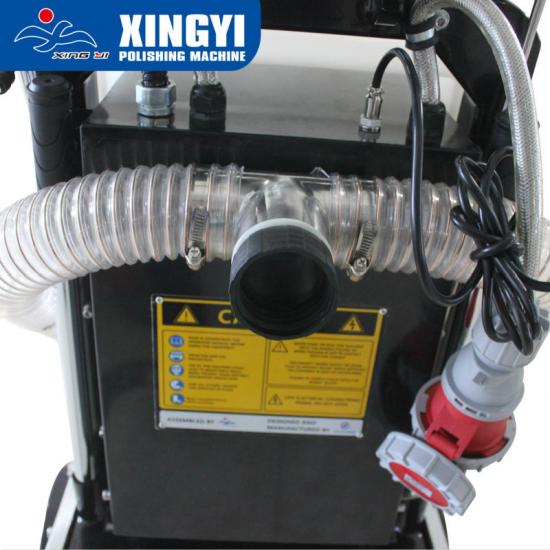

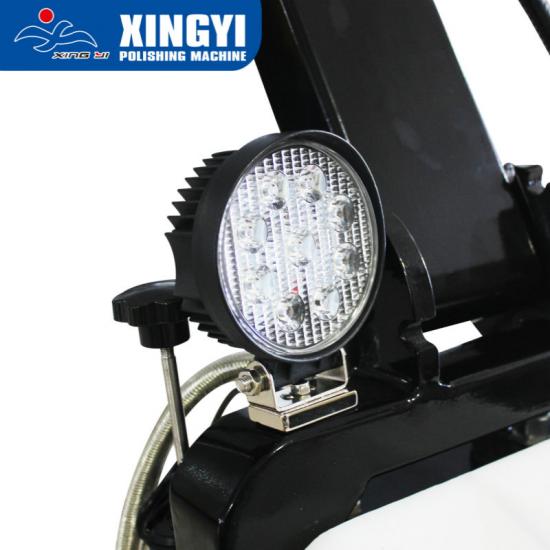

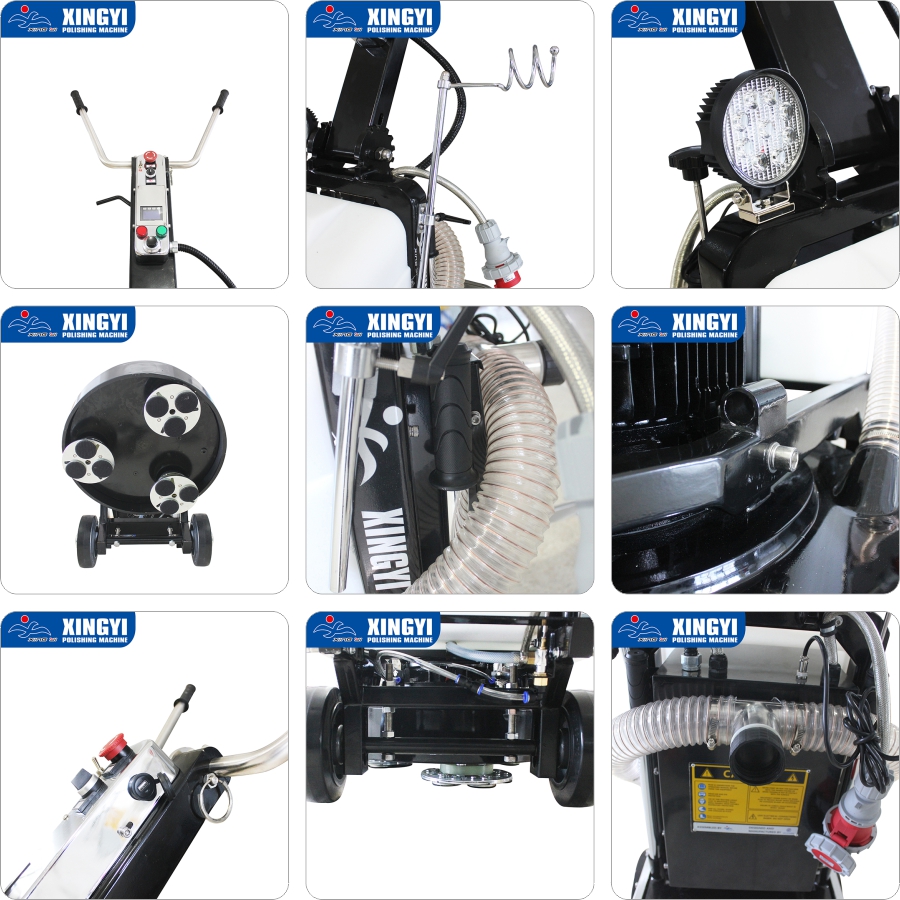

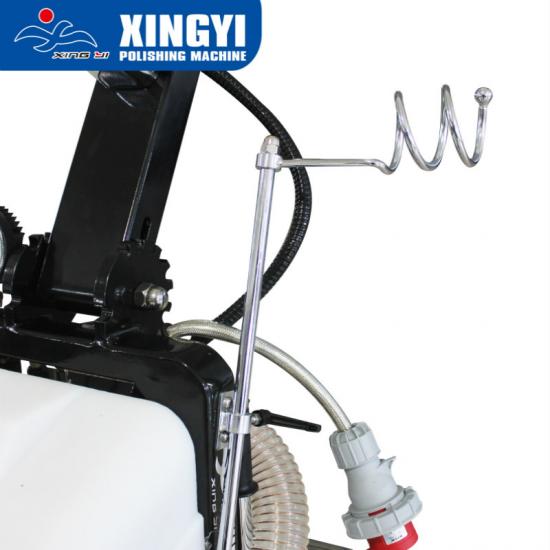

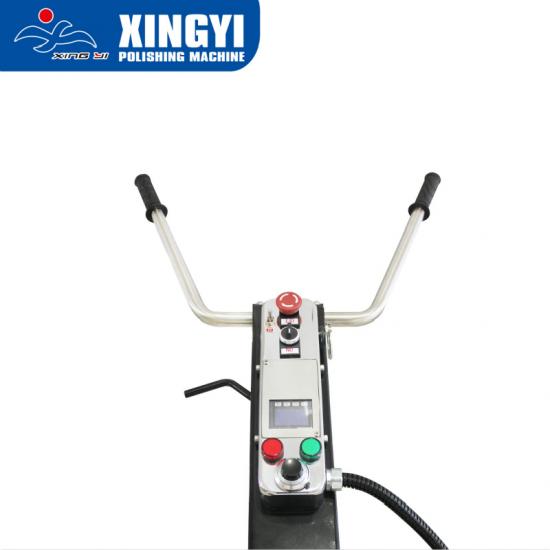

Product display

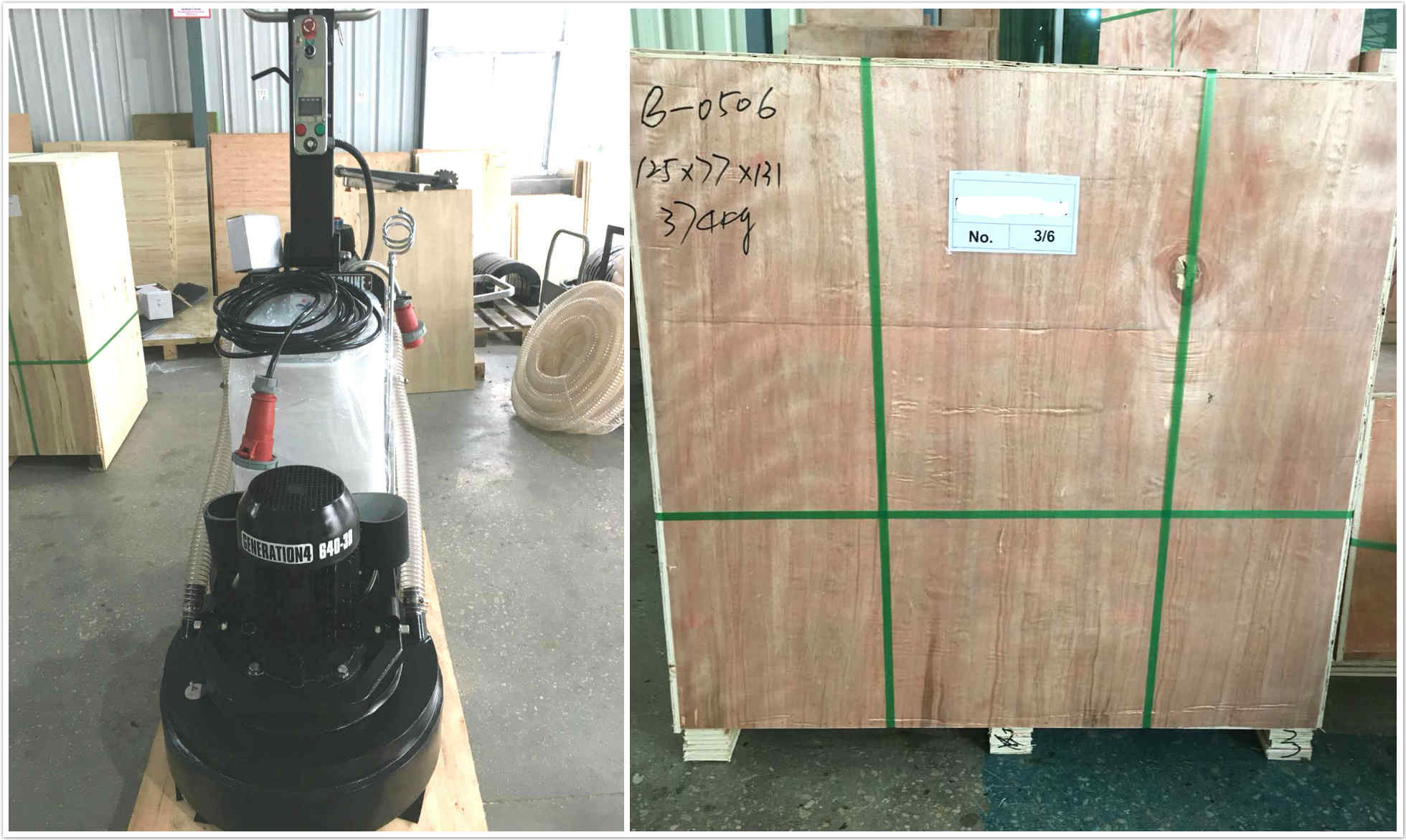

Package
FAQ
Q1:How to use a grinding machine with planetary grinding plate?
A1:
Q2: How do you fix holes and cracks on floor with grinding machine?
A2:
Grinding repairing is suitable for the hole less than 10mm and cracks less than 1mm.
①Tools: 640-3D floor grinder,dustless cutting machine, diamond pads, EC-1008, fast drying cement, bucket watering can.
②Clean all the sundries on floor with a acuum cleaner.
③Apply a sufficient EC-1008 repair agent when there is no obvious water logging.
④Grind directly with a 640-3D planetary grinding machine with the diamond pad(120#) until all holes and cracks are filled(speed should be 800-1000rpm)
⑤Check whether the repair is completed, protect the ground with water 3-5 times.
