The 680-4A is a self-propelled floor grinding machine for large working area. It is a powerful planetary machine with 4 multifunctional grinding plates and high-precision gearbox that ensure stable performance and excellecnt grinding effecting.
Brand:
High Tech GrindingItem NO.:
680-4AProduct Origin:
Fujian, ChinaColor:
Black And GrayShipping Port:
XiamenLead Time:

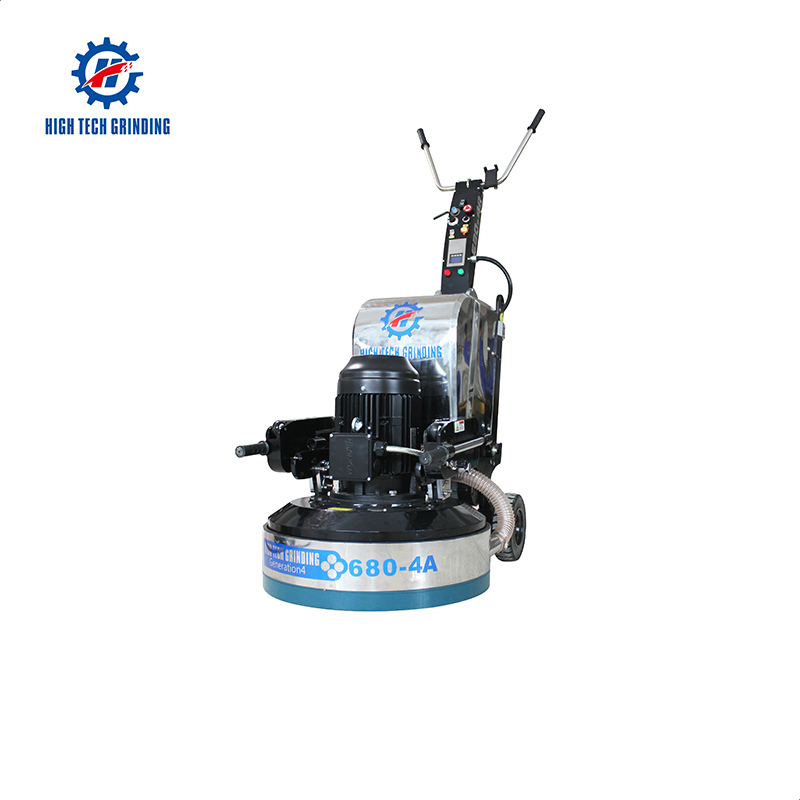

7-20 Days680-4A Self-propelled Concrete Floor Grinding Machine With Planetary Heads
The 680-4A is a self-propelled floor grinding machine for a large working area. It is a powerful planetary machine with 4 multifunctional grinding plates and a high-precision gearbox that ensure stable performance and excellent grinding effecting. The 680-4A shows its significant advantages in the self-propelled system, which provides a labor-saving and high-efficiency working mode for floor labors.
Specification
Model |
680-4A Floor preparing grinding and polishing machine |
|
Voltage |
380V-440V 3 phase |
220V-240V 3 phase |
Ampere |
20A |
34.6A |
Working width |
680mm |
|
Grinding disc |
230mm*4 |
|
Motor Rotating speed |
350-1680rpm |
|
Motor HP |
11KW/15HP |
|
Inverter |
15KW/20HP |
|
Configuration |
WEG motor + Delta inverter |
|
Weight |
425kg/937lbs |
|
Extra weight |
20kg x 2 |
|
Water tank |
15L |

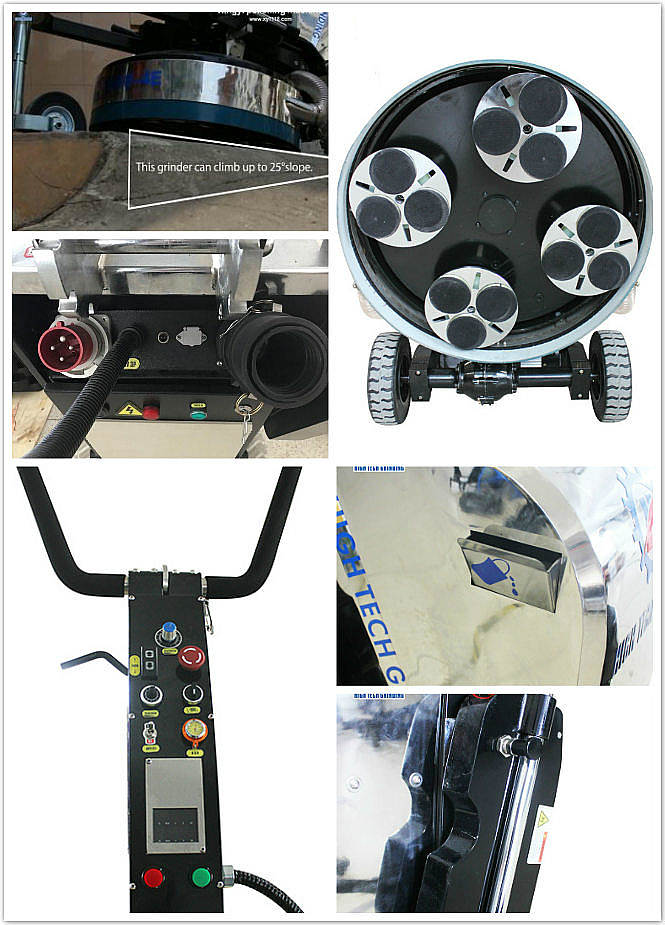

Product display

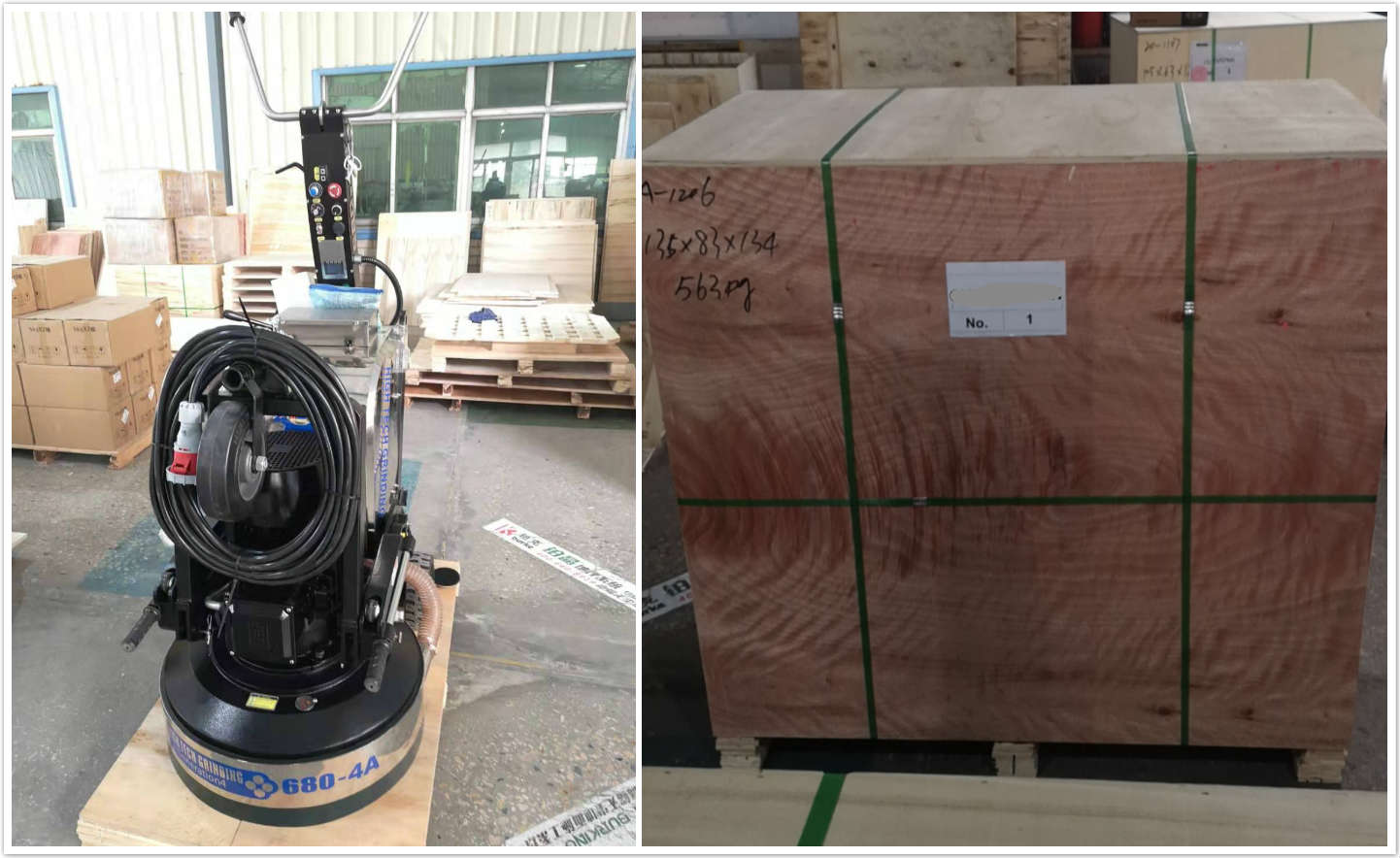

Package
FAQ
Q1:How to operate a self-propelled floor grinding machine like the 680-4A?
A1:
Q2: What are the main products of Xingyi?
A2:
① The XY and High Tech Grinding Brand Polishing Machines which enable the Planetary or Rotatory direction.
② The High Tech Grinding Diamond abrasives from metal to resin for polishing.
③ The High Tech Grinding Chemicals for repairing, hardening, sealing and stone crystallization.
