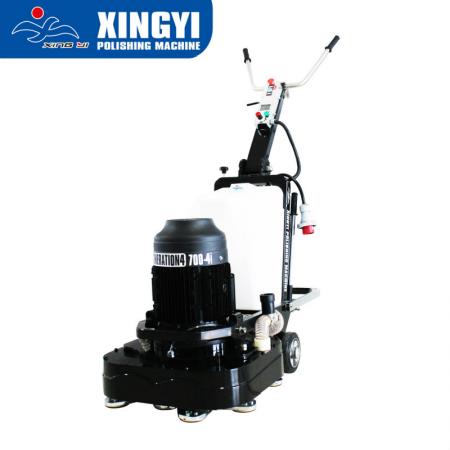

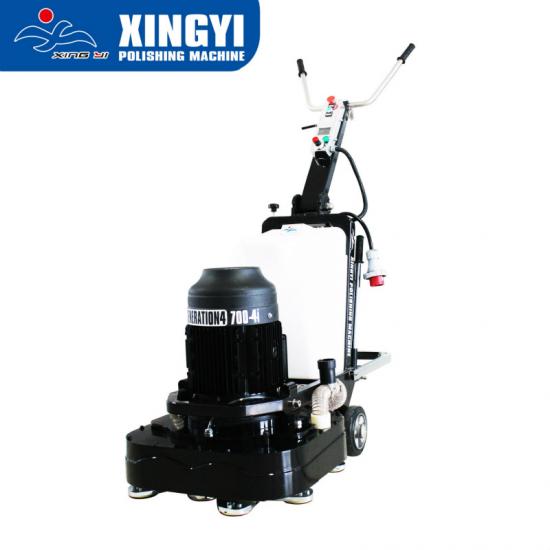

The 700-4i is one of the most efficient and stable floor grinders manufactured by Xingyi Company. With its 4 heads grinding chassis, square shape gearbox and superior rotating running system, the floor laborers can hold the machine steadily and easily with better grinding effect and less scratch.
Brand:
XingyiItem NO.:
700-4iProduct Origin:
Fujian, ChinaColor:
Black And WhiteShipping Port:
XiamenLead Time:

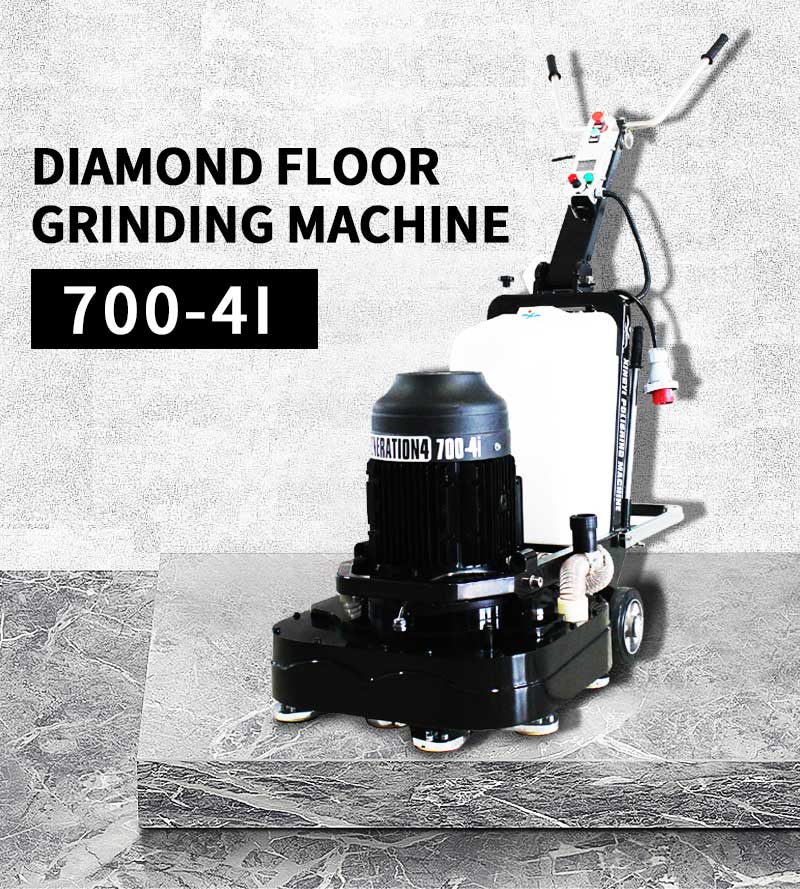

7-20 Days700-4i Diamond Square Plate Floor Grinder And Polisher Machine
The 700-4i is one of the most efficient and stable floor grinders manufactured by Xingyi Company. With its 4 heads grinding chassis, square shape gearbox and superior rotating running system, the floor laborers can hold the machine steadily and easily with better grinding effect and less scratch. With700mmlarge grinding width and 450-1950rpm, it is perfect for commercial and industrial applications for a wide range of floor conditions such as concrete, terrazzo, cement, epoxy natural stone and so on.
Specifications
Model |
700-4I Hand push square floor grinding machine |
|
Operating width |
700mm |
|
Grinding disc |
348mm*4 |
|
Rotating speed |
450-1950rpm |
|
Motor HP |
11KW/15HP |
|
Inverter HP |
11KW/15HP |
|
Voltage |
220V three phase |
380V three phase |
Current |
53A |
30.7A |
Weight |
340kg |
|
Water tank |
32L |
|
Packing size |
112*64*120cm |
|
Configuration |
WEG motor + Veichi inverter |

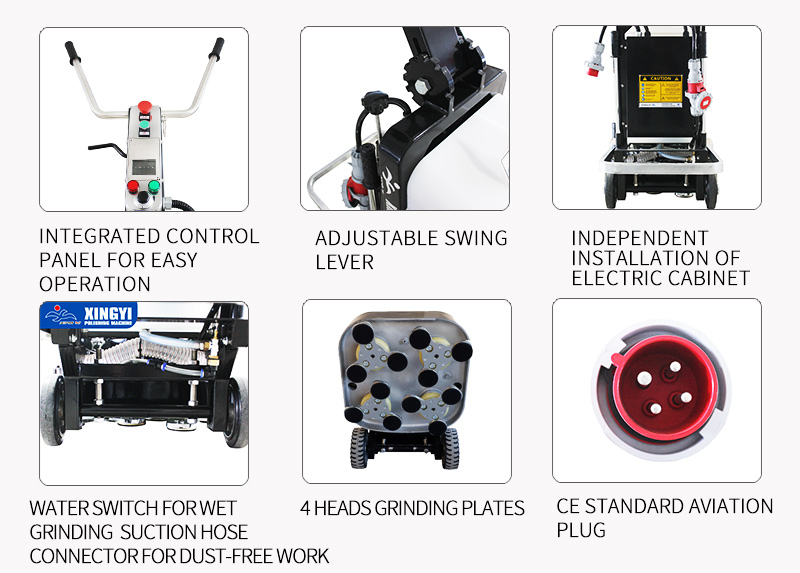

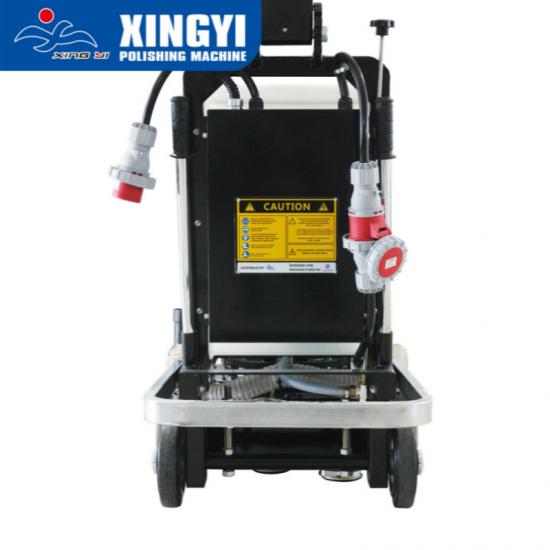

Product display

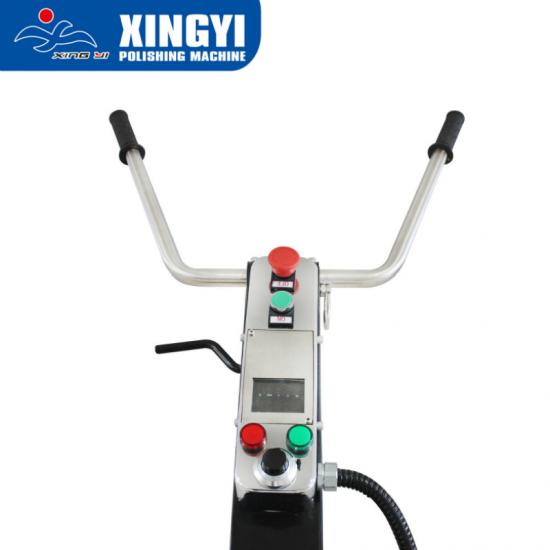

▶Integrated control panel for easy operation

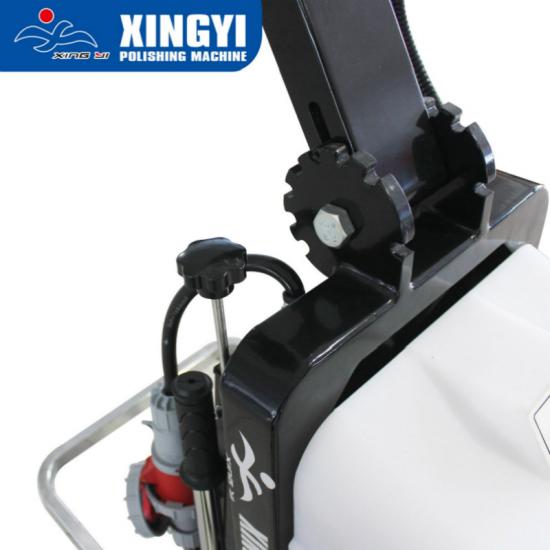

▶Adjustable and ergonomic swing lever
▶Independent installation of electric cabinet

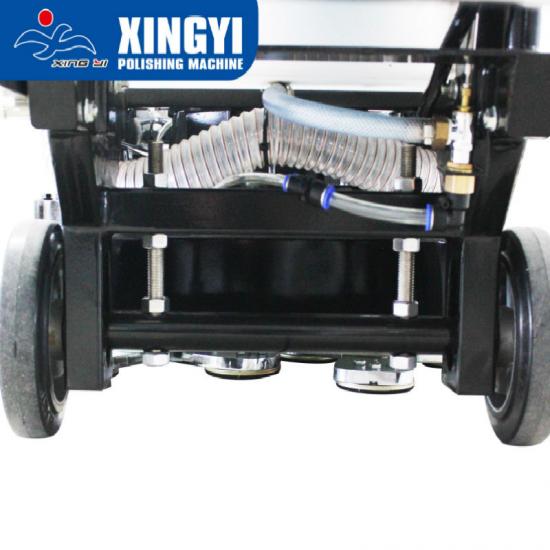

▶Logical Water switch for wet grinding
▶Suction hose connector for dust-free work

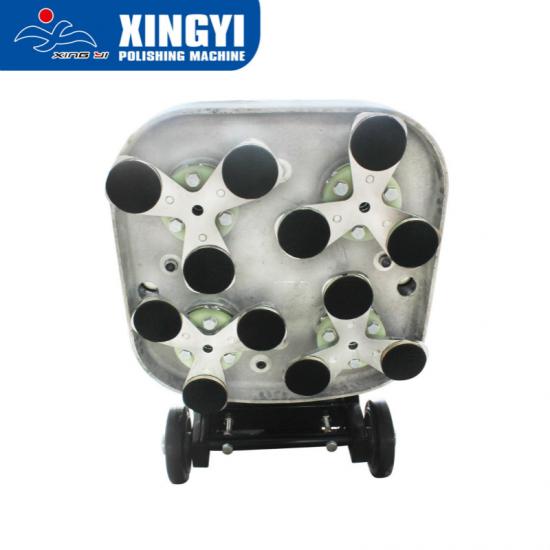

▶User-friendly 4 Heads grinding dics
▶CE standard aviation plug
FAQ
Q1:How is the quality of Xinyi gearbox assembly?
A1:Xingyi's gearboxes are made of aluminum alloy, casted with high-precision aluminum abrasives, with thick walls and excellent heat dissipation. The flange seat made of thick steel is built-in to ensure excellent heat dissipation and sufficient rigidity. It is processed by imported CNC machine tools with a machining accuracy of 0.005mm, and the machine's repeated positioning accuracy is 0.001mm.
Q2:How do you use a square floor grinder?
A2:
