750-3V Professional Electric Diamond Grinder Floor Repairing And Removal Machine

The 750-3V is widely regarded as one of the most effective floor grinding removal equipment manufactured by Xingyi. With its 750mm large working width and 3 heads planetary rotating grinding plates, it is excellent for the medium and large-sized area.

  • Brand:

    Xingyi
  • Item NO.:

    750-3V
  • Product Origin:

    Fujian, China
  • Color:

    Black And White
  • Shipping Port:

    Xiamen
  • Lead Time:

    7-20 Days
Product Detail

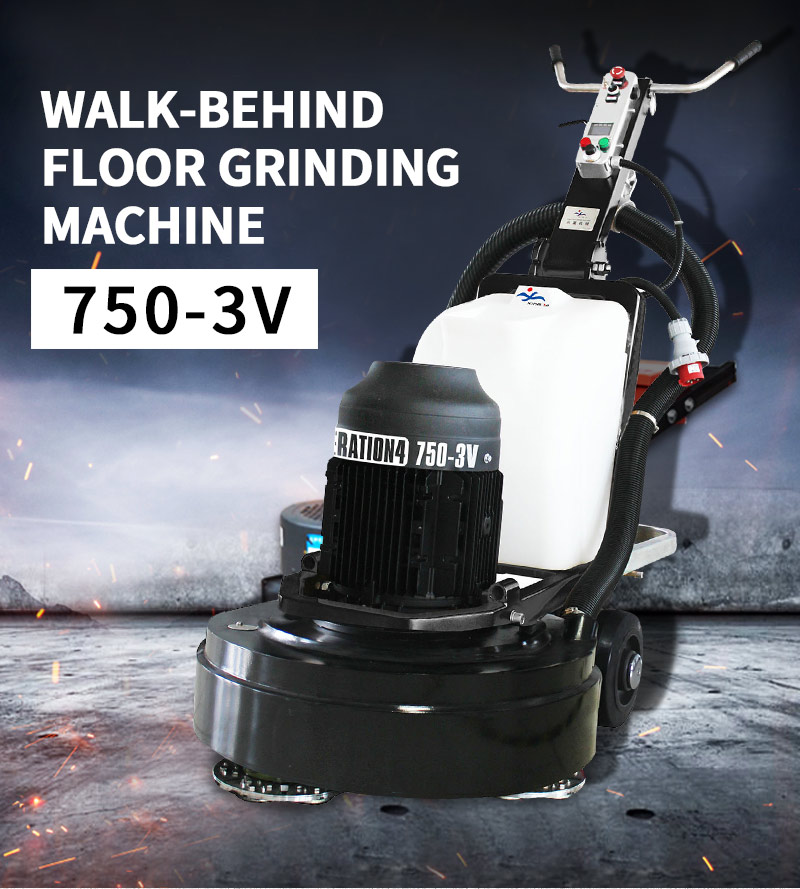

750-3V Professional Electric Diamond Grinder Floor Repairing And Removal Machine

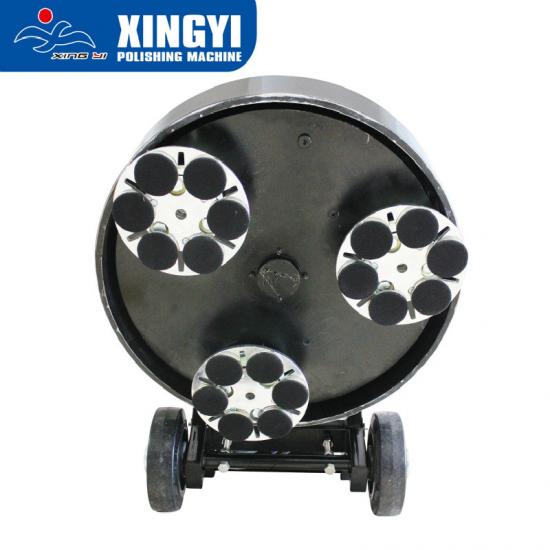

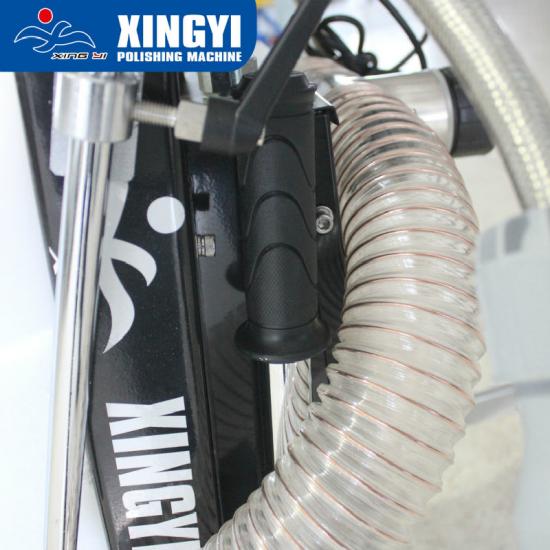

The 750-3V is widely regarded as one of the most effective floor grinding removal equipment manufactured by Xingyi. With its 750mm large working width and 3 heads planetary rotating grinding plates, it is excellent for the medium and large-sized area. Equipped with a detachable operating handle and independent electric cabinet, it can be folded and separated conveniently for packaging and transport.  With 15 HP well-known WEG motor, 15HP high-quality inverter, 350-1950rpm of rotating speed and 32L large volume of the water tank, it can provide operators with powerful grinding efficiency and flatter floor surface in both wet grinding and dry grinding.


Specifications

Model

750-3V Walk-behind floor grinding machine

Brand

XINGYI

Operating width

750mm

Grinding disc

256mm*3 (3heads)

Rotating speed

350-1950rpm

Motor HP

11KW/15HP

Inverter HP

11KW/15HP

Amperage

24.09A

41.55A

Voltage

380-440V three phase

220-240V three phase

Weight

340kg

Extra weight

40kg*1

Water tank

32L

Packing size

132*82*133cm

Configuration

WEG motor + Veichi inverter

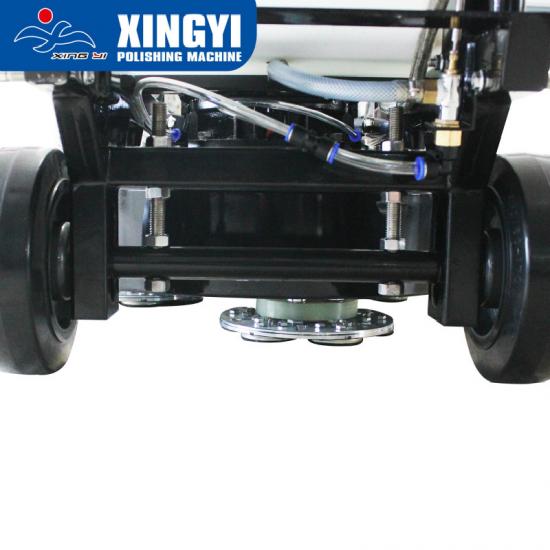

Product display

Best electric diamond grinder for concrete floor

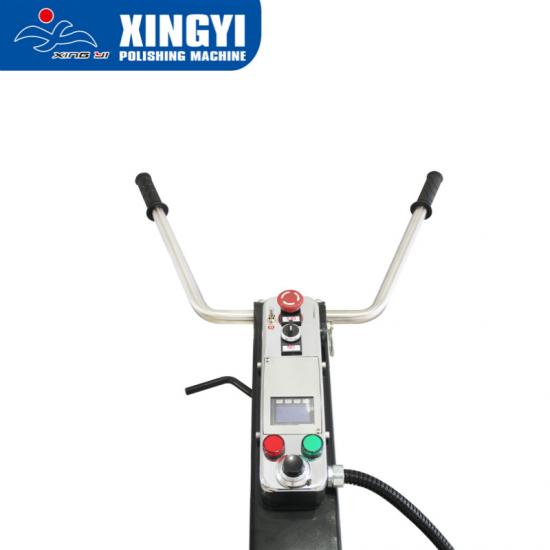

✔Logical and Integrated control for easy operation

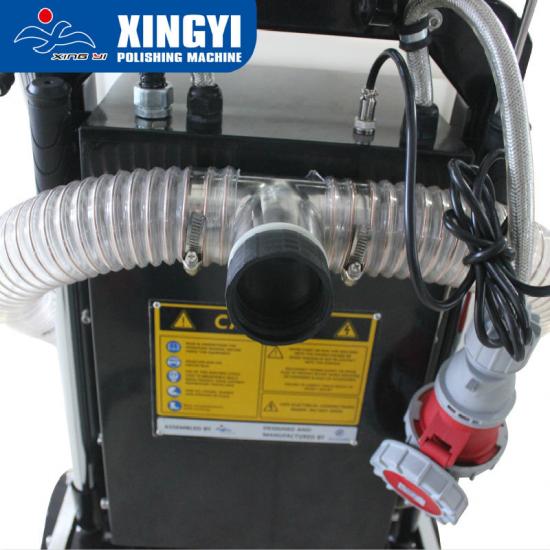

✔50mm standard suction port for vacuum cleaner

✔Exquisite baking varnish craft

✔High-class CE Standard aviation plug

✔Reasonable water way system for wet grinding

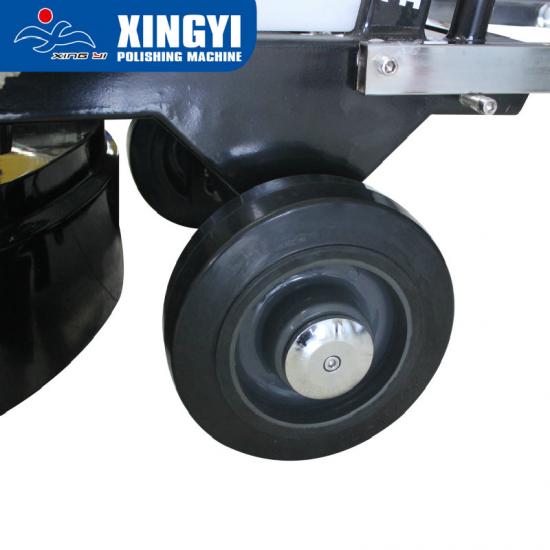

✔Rubber wheel with superior aluminium alloy hub

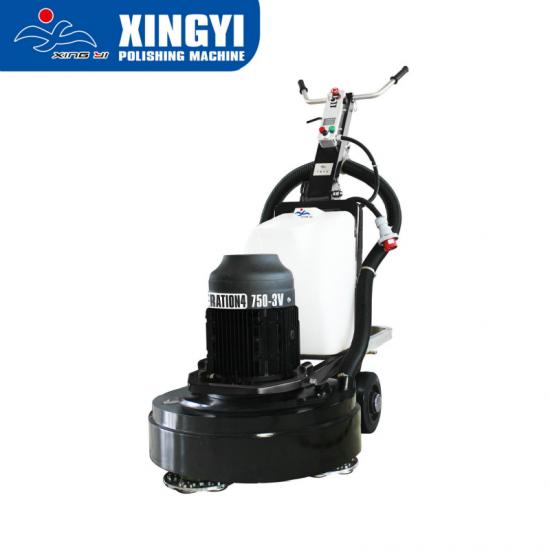

750-3V Floor repairing and removal machine


FAQ

Q1:What is the best concrete floor grinder?

A1:Generally speaking, you can distinguish a grinder by listening to the sound of the gearbox. And you can check machine main parts like the motor and inverter are what brand, world-famous or bad quality one. And how about machine work efficiency, when use it are you feel tired. Last but not least, machine warranty and factory service also very important.


Q2:How long can the machine use per day?
A2:
① It is recommended that the normal working time is 8-10 hours, but it can also be operated for 24 hours if your project is urgent.
② The machine is the same as the car. We need to maintain it according to the maintenance regulations every month every week so that the machine can last longer.
③ During construction, it is recommended to have a good construction environment, the machine is fully equipped, check the working condition of the machine in real-time, pay attention to maintenance, and replace the maintenance of gear oil for half a year.
④ Construction workers regularly attend training and maintain the machine, the service life and construction effect of the machine will be much better.
