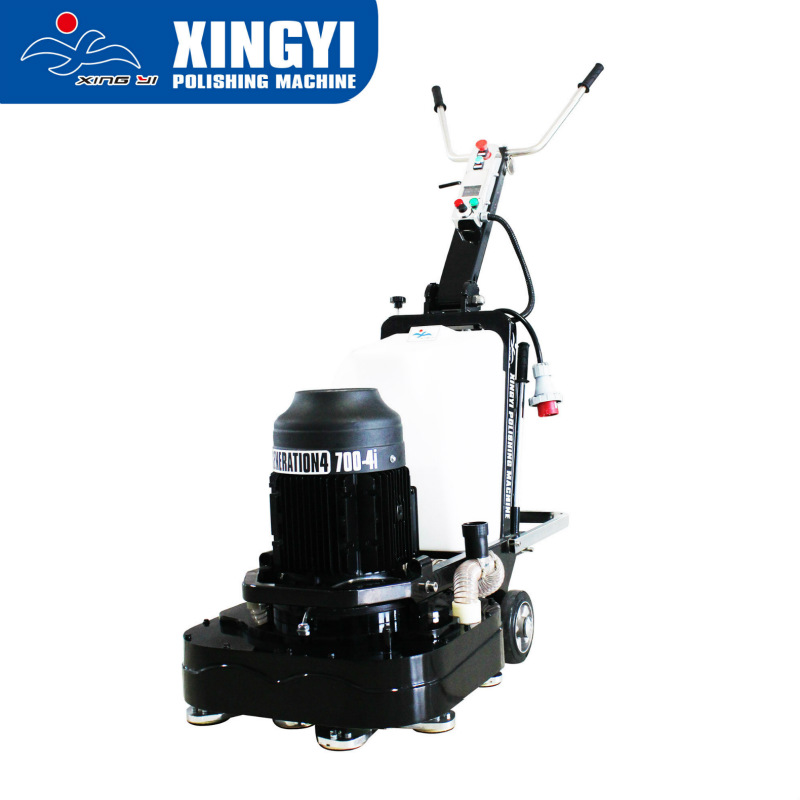

700-4i Walk-behind Floor Grinding Machine And Classcial Squared Concrete Grind

The 700-4i is a classical type squared floor grinder with high-precision gearbox and reliable performance. Equipped with a high-grade WEG motor, it ensure superior work efficiency in floor grinding and polishing.

  • Brand:

    Xingyi
  • Item NO.:

    700-4i
  • Product Origin:

    Fujian, China
  • Color:

    Black And White
  • Shipping Port:

    Xiamen
  • Lead Time:

    7-20 Days
Product Detail

700-4i Walk-behind Floor Grinding Machine And Classcial  Squared Concrete Grind


Specifications

Model

700-4I Squared Concrete Grinder

Operating width

700mm

Grinding disc

348mm*4

Rotating speed

450-1950rpm

Motor HP

11KW/15HP

Inverter HP

11KW/15HP

Voltage

220V three phase

380V three phase

Current

53A

30.7A

Weight

340kg

Water tank

30L

Packing size

112*64*120cm

Configuration

WEG motor + Veichi inverter

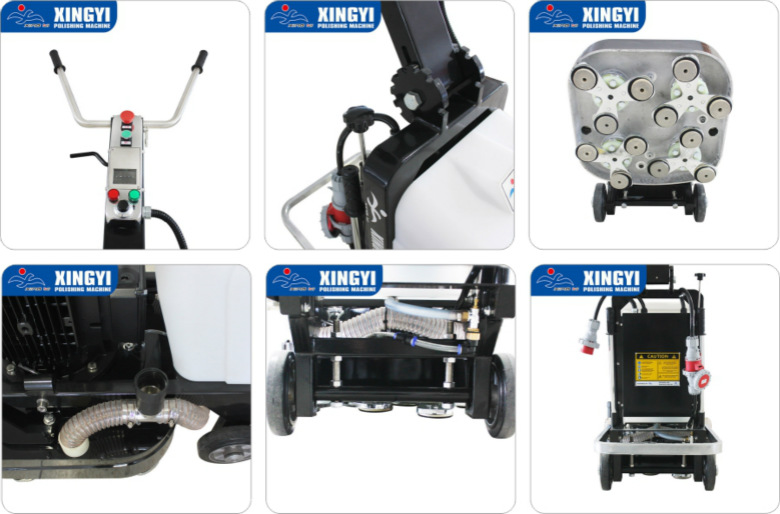

Product display


53A 30.7A Floor polish and grind machine

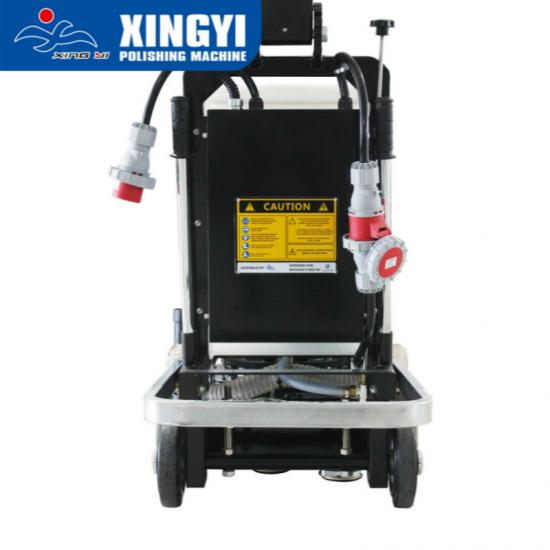

•1.Installed electronic control system, there is good heat dissipation and tight sealing in the 700-4i floor grinder.

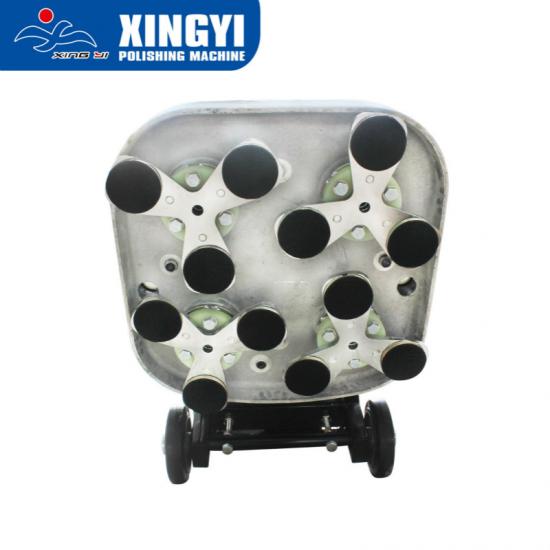

•2.The multifunctional grinding disc is available for different kinds of abrasive pads.

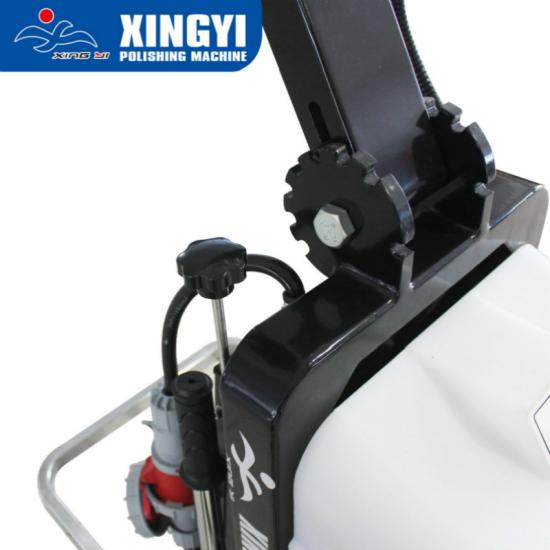

•3.With a high-precision squared gearbox, collapsible handle, and detachable design in machine rack , it is convenient for operator.

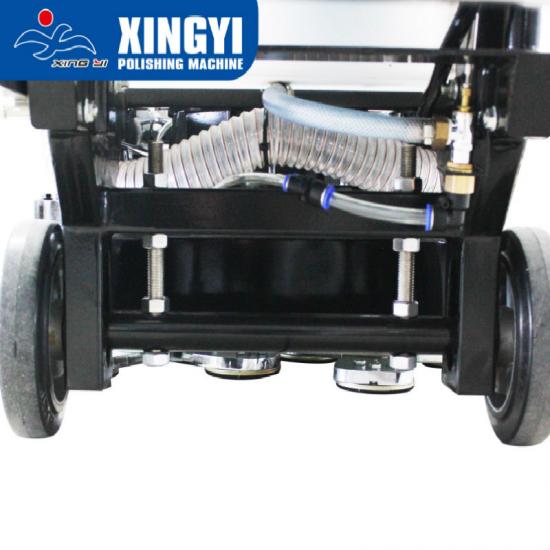

•4.It can be equipped with vacuum cleaner equipment to achieve both dry and wet working.

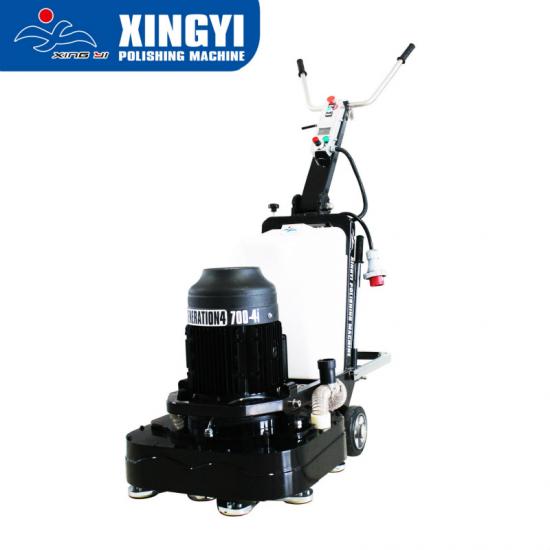

700-4i Multifunctional floor surface grinder equipment

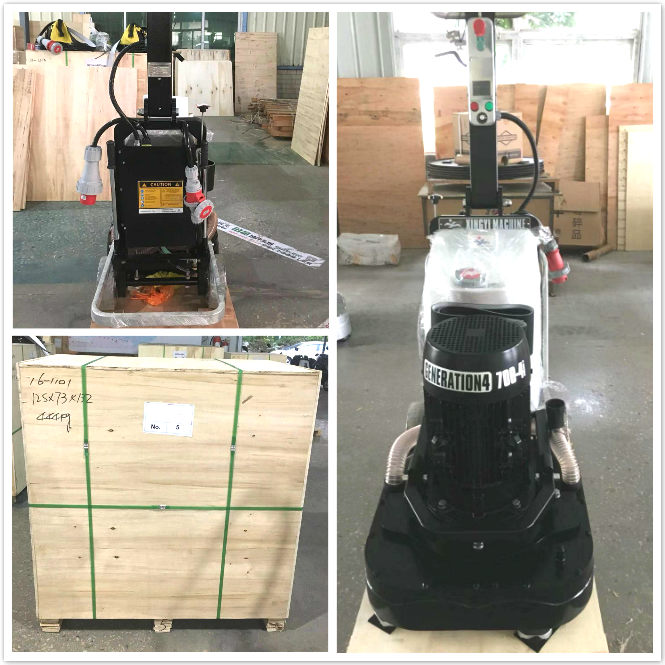

Package


Walk-behind floor grinding machine



FAQ

Q1:How is the quality of your gearbox assembly?

A1:Xingyi's gearboxes are made of aluminum alloy, casted with high-precision aluminum abrasives, with thick walls and excellent heat dissipation. The flange seat made of thick steel is built-in to ensure excellent heat dissipation and sufficient rigidity. It is processed by imported CNC machine tools with a machining accuracy of 0.005mm, and the machine's repeated positioning accuracy is 0.001mm.

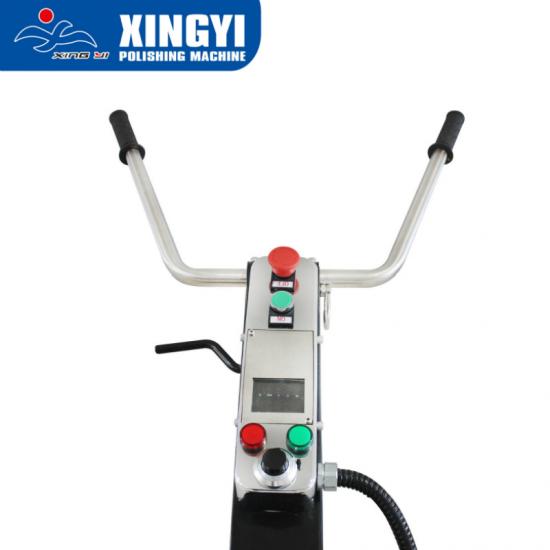

Q2:What are the advantages of the control panel in the 700-4i floor grinding machine?

A2:

① Centralized control panel with perfect control functions.

② Humanized electrical function design, including emergency stop, start, speed control, power indicator, and work indicator.

③ Each switch button has excellent electrical dustproof function and long service life.
