RPG-800 Remote Control Floor Grinder With High Efficiency

RPG-800 Automatic And Remote Control Floor Grinder With Human-machine Interaction Control Panel

The RPG is a remote control floor grinder with 7 inches HMI screen, which is easy to set the languages, measurement units, machine lock, operation mode. After connected to the net, it can be upgrated by remote control, mobile phone and USB device.

Brand:
High Tech Grinding
Item NO.:
RPG-800
Product Origin:
Fujian, China
Color:
Black And Red
Shipping Port:
Xiamen
Lead Time：
7-20 Days

Product Detail

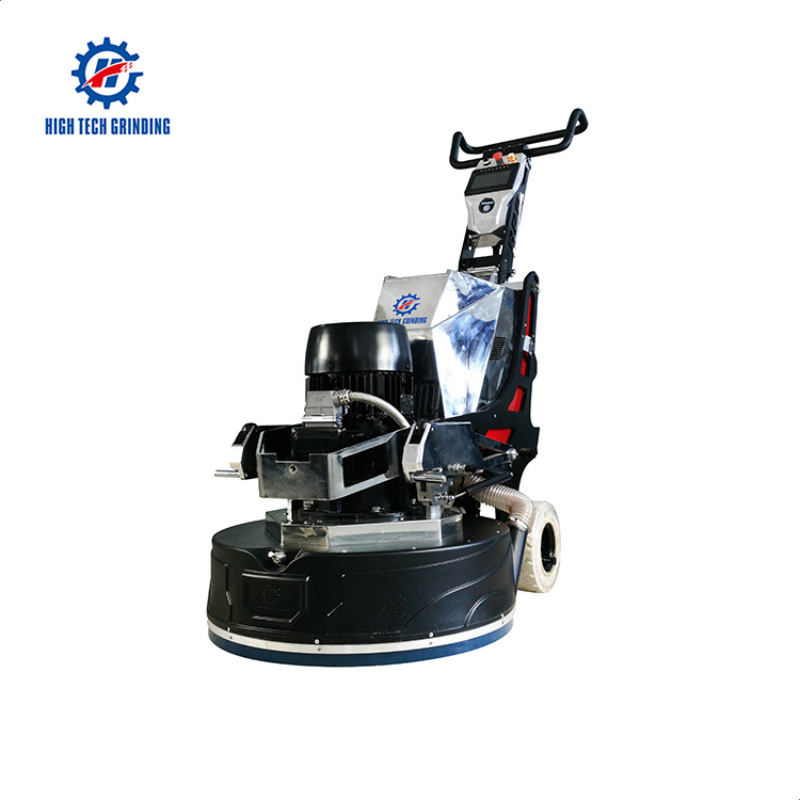

RPG-800 Automatic And Remote Control Floor Grinder With HMI Panel

Specifications

Model	RPG-800 Remote control floor grinder
Voltage	380V3 phase	220V 3 phase
Current	30.7A	53A
Working width	800mm / 31.5 inches
Grinding disc	256mm*4 / 10.07 inches
Rotating speed	350-1950rpm
Engine power	15KW/20HP
Inverter power	15KW/20HP

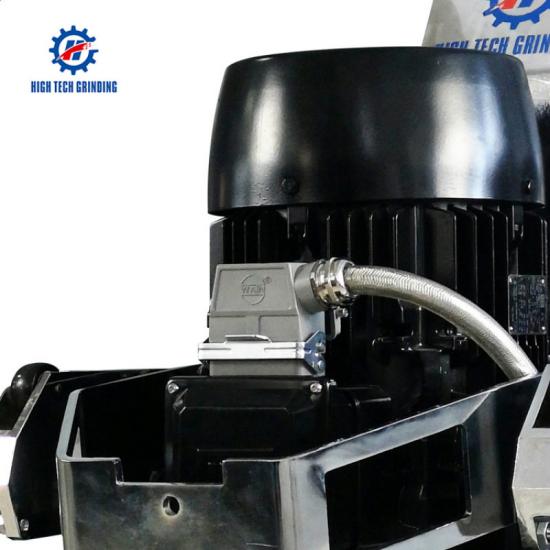

Configuration	WEG motor + Delta inverter
Weight	585kg/1289Ibs
Extra weight	20kg x 2
Water tank	20L
Packing size	17187114cm / 67.3234.2544.88 inches

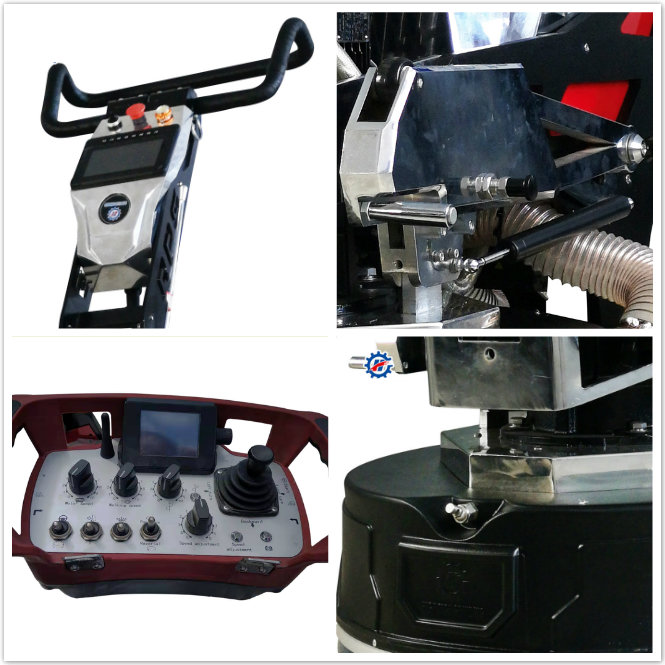

Product display

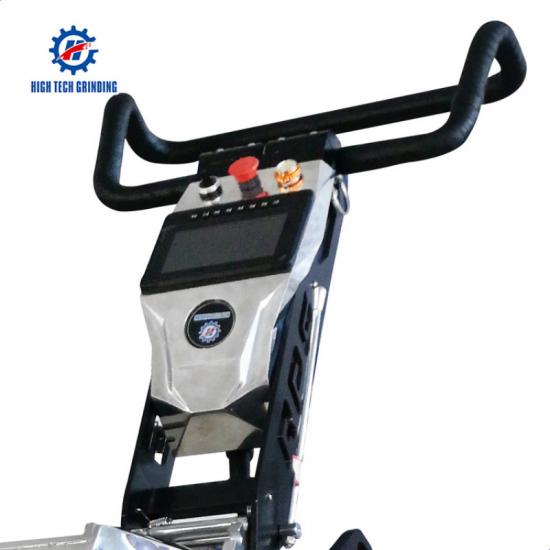

1.HMI function

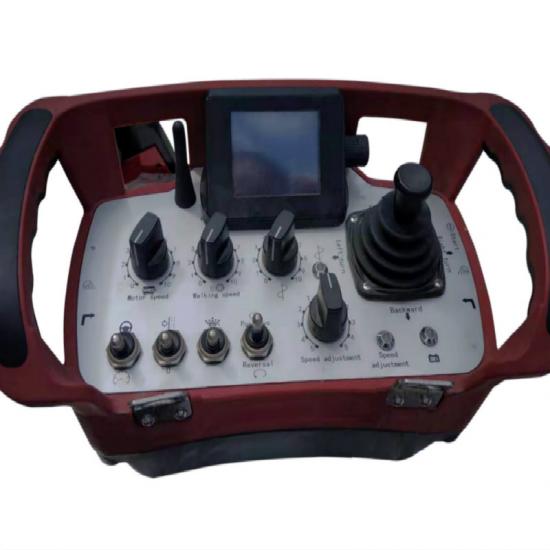

RPG-800 floor grinding machine has digital control Human-Machine Interaction control panel and remote control function can show all machine performance situations, parameters, and accurateness. RPG new HMI function can make it easier to control, adjust and use. It is a device that can be easily controlled and maintained by operators with little experience.

2.Grinding track learning function.

The automatic driving function provides remote control, which significantly reduces the operator's work intensity and improves production efficiency. Auto-driving is the target of the future grinding machine. The RPG series can realize the automatic driving function by setting the starting point and the ending point.

3.Oscillation grinding function

The oscillation grinding function is to set the grinder swing from side-to-side movements which normally are made manually by the operator. The unique feature eliminates the ridges created between passes of different grits and delivers a flatter floor. At the same time, as you don't need to grind the surface again by the cross-hatching method, the working time is saved. At the same site when the machine operator changes, the surface can be identified as the swing will not be influenced by the habit change of operators, but controlled by the settings of the machine.

4.Global GPS positioning & monitoring

5.Make U-turn by one button

6.Fault information warning function

7.Personalized parameter setting function

8.U disc to Upgrading the system

9.Timed lock function (make Rental machine business easier)

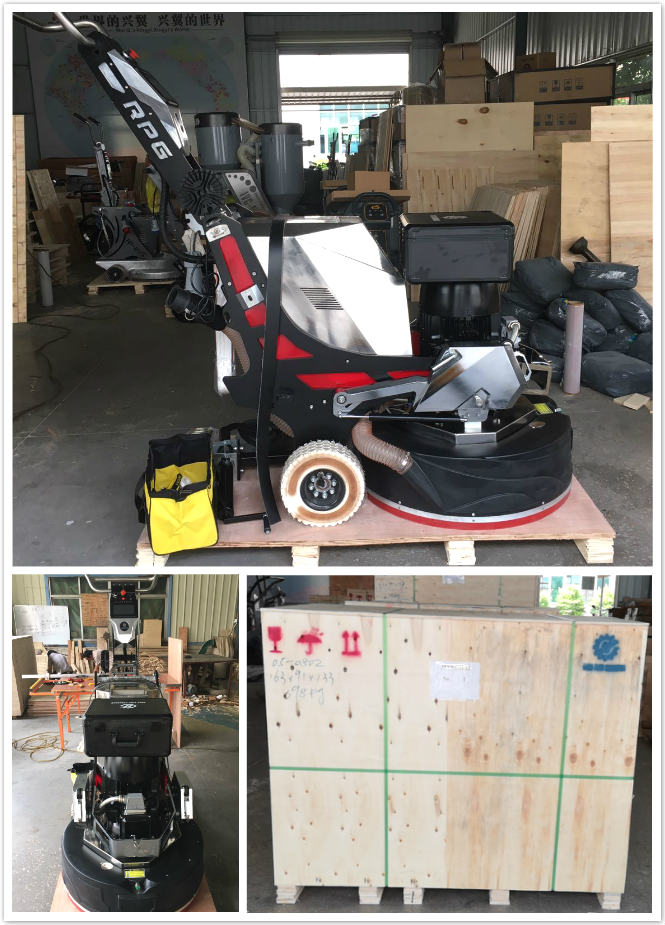

Package

FAQ

Q1:How long is the guarantee period in the RPG-800 floor grinder?

A1:The guarantee period of motor and inverter is ONE year, and gear TWO years. If it is beyond the guaranteed time, the spare parts are broken due to a long time using, then the charge of the new parts and express will be paid by the customer, and we will send you steps or videos to help you to repair.

Q2:What is the best concrete floor grinder?

A2:In a general way, you can distinguish a grinder by listening to the sound of the gearbox assembly. Check the machine main parts such as the brand of motor and inverter, if it is a world-famous or bad quality one. And check about machine work efficiency, when use it are you feel tired or not. Last but not least, machine warranty and factory service is also crucially important.
