750-3D Manual Concrete Floor Polishing Machine With Planetary Grinding Plate

The 750-3D is a multifunctional floor polishing and grinding machine, which can be used for not only dry grinding but also water grinding. With planetary grinding plate, it is of high grinding efficiency and stable performance.

  • Brand:

    Xingyi
  • Item NO.:

    750-3D
  • Product Origin:

    Fujian, China
  • Color:

    Black And White
  • Shipping Port:

    Xiamen
  • Lead Time:

    7-20 Days
Product Detail

750-3D Manual Concrete Floor Polishing Machine With Planetary Grinding Plate

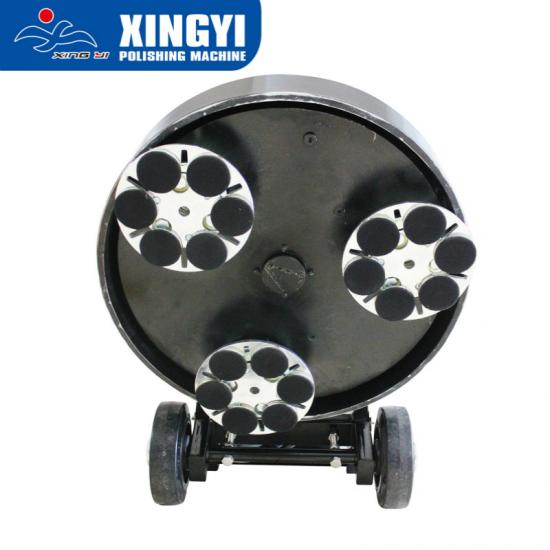

The 750-3D is a multifunctional floor polishing and grinding machine, which can be used for not only dry grinding but also water grinding. With planetary grinding plate, it is of high grinding efficiency and stable performance. 750mm large working width is especially suitable for the high precision requirement concrete surface grinding and construction work. Efficient 15HPmotor can offer enough power for grinding; 40kg additional weight iron increase the total weight of grinder  making the grinding process easier and faster.


Specifications :

Model

750-3D Walk-behind floor grinder

Category:
Global Xingyi Floor Grinder

Operating width

750mm

Grinding disc

256mm*3 (3heads)

Rotating speed

450-1950rpm

Motor HP

11KW/15HP

Inverter HP

15KW/20HP

Amperage

24.09A

41.55A

Voltage

380-440V three phase

220-240V three phase

Weight

340kg

Extra weight

40kg*1

Water tank

32L

Packing size

132*82*133cm

Configuration

WEG motor + Delta inverter

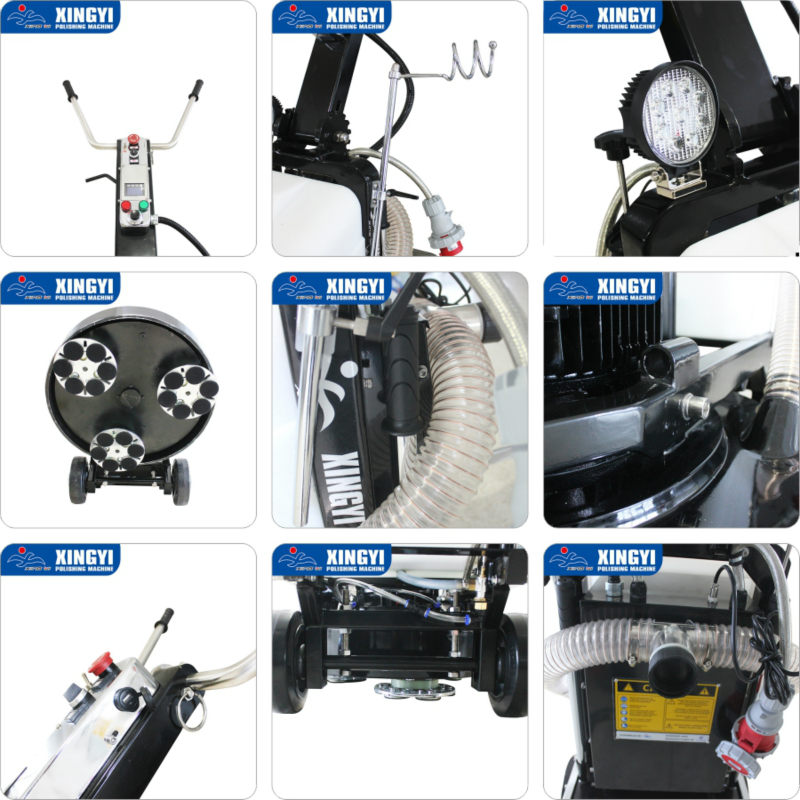

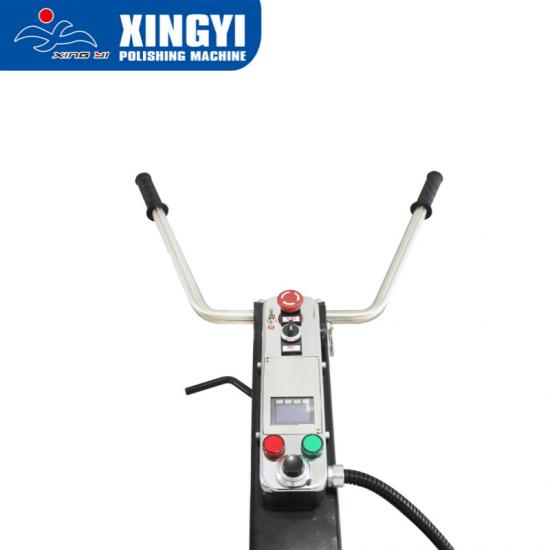

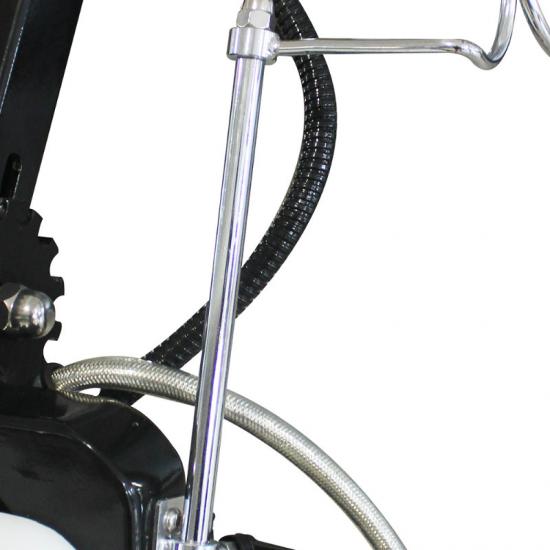

Product display:

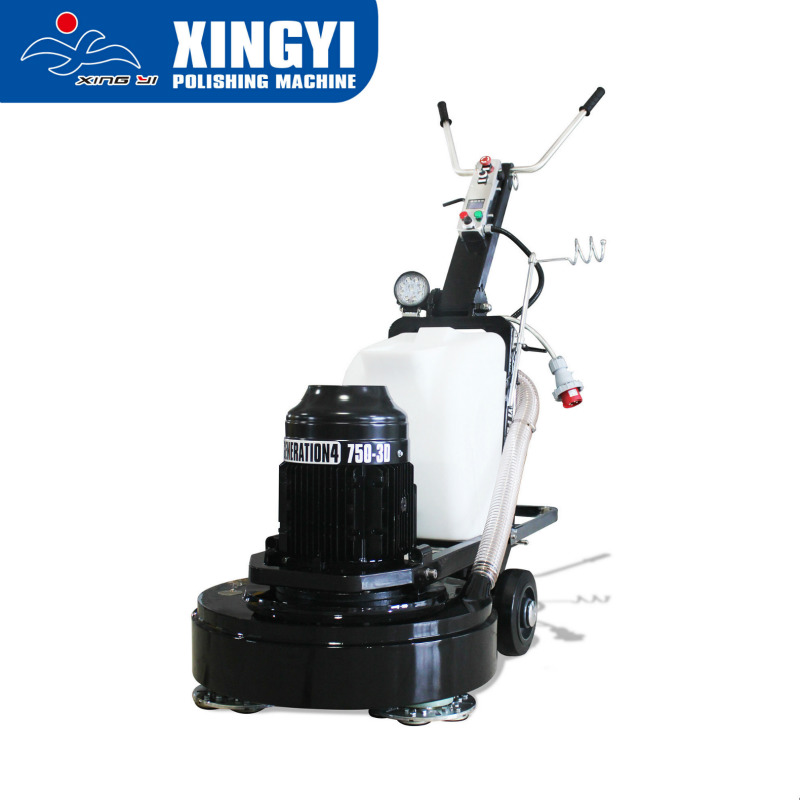

750-3D Walk-behind floor grinder

Bestselling floor with high-precision gearbox

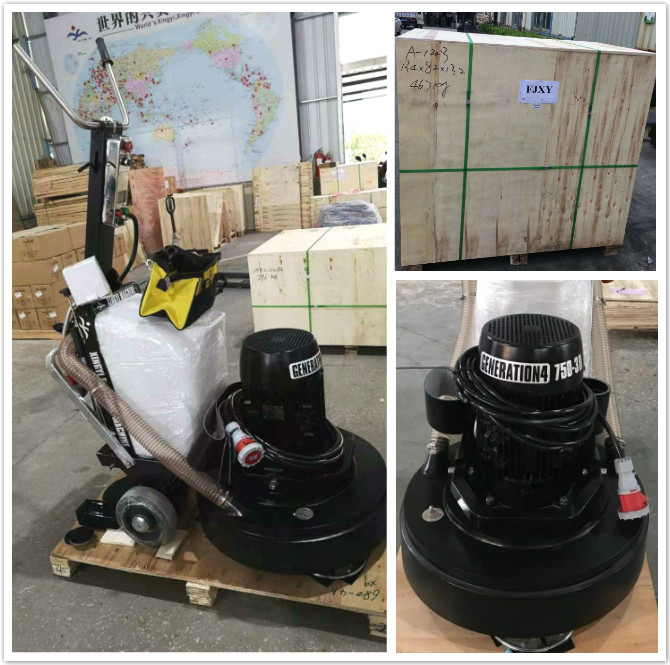

Package:

220V Commercial and industrial floor grinder


FAQ :

Q1:

How do you fix holes and cracks on floor with grinding machine?

A1:

Grinding repairing is suitable for the hole less than 10mm and cracks less than 1mm.

①Tools: 750-3D floor grinder,dustless cutting machine, diamond pads, EC-1008, fast drying cement, bucket watering can.

②Clean all the sundries on floor with a acuum cleaner.

③Apply a sufficient EC-1008 repair agent when there is no obvious water logging.

④Grind directly with a 750-3D planetary grinding machine with the diamond pad(120#) until all holes and cracks are filled(speed should be 800-1000rpm)

⑤Check whether the repair is completed, protect the ground with water 3-5 times.



Q2:

How do you grind concrete floors yourself?

Q2:
How do you grind concrete floors yourself?

Step 1: Check the floor surface condition.

Step 2: Grindwith 750-3D floor grinding machine and metal pads HTG-2Y 30# 60#.

Step 3: Clean the floor surface.

Step 4: Repair surface with HTG-EC-1008 and metal pads 120#.

Step 5: Polishing with resin pads HTG-C310-50# 100#.

Step 6: Harden the surface with densifier HTG-EC-L01.

Step 7: Polishing with resin pads C310-200# 400# 800# 1500#.

Step 8: Apply sealer HTG-EC-S01 on the surface.

Step 9: Buffing with high speed polisher and buffing pads.
