The 800-4D ride-on floor grinding machine is designed for both medium-sized areas and large-sized area projects. With 800mm large working width, 450-1950rpm motor rotating speed, 20HP powerful WEG motor, and 25HP superior Delta inverter, it can incredibly finish large areas of job sites with less time.
Brand:
High Tech GrindingItem NO.:
800-4DProduct Origin:
Fujian, ChinaColor:
Black And GrayShipping Port:
XiamenLead Time:
7-20 Days800-4D China Ride On Concrete Floor Surface Grinding And Polishing Machine

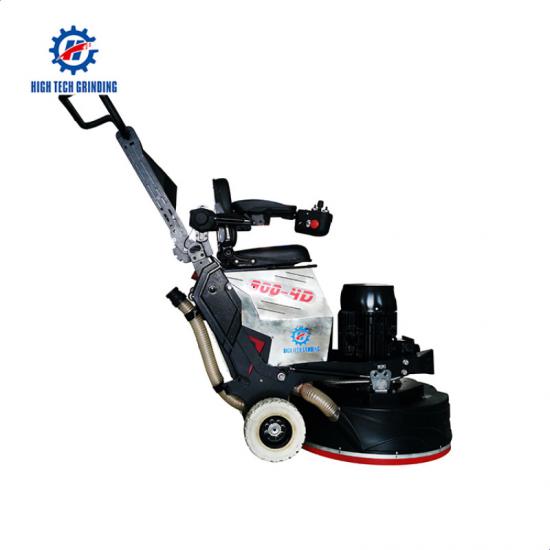

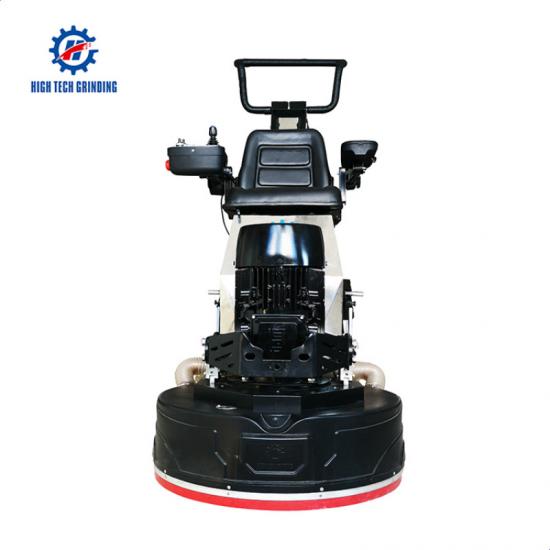

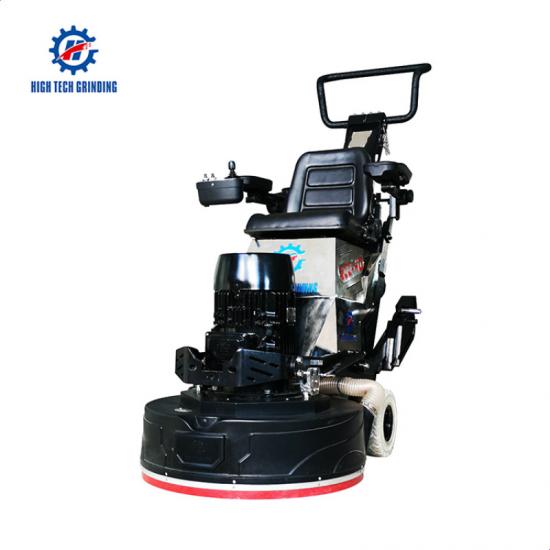

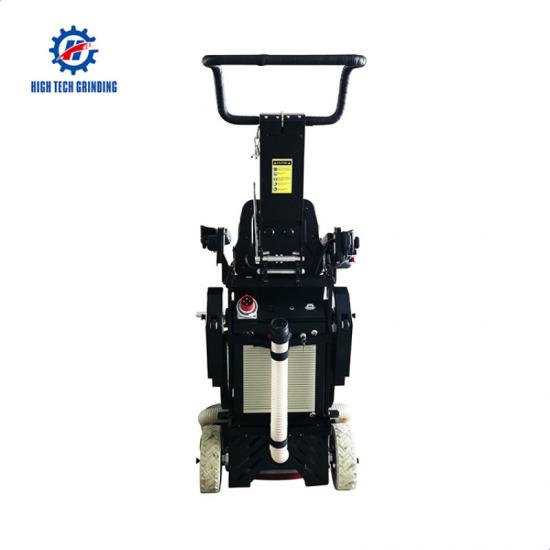

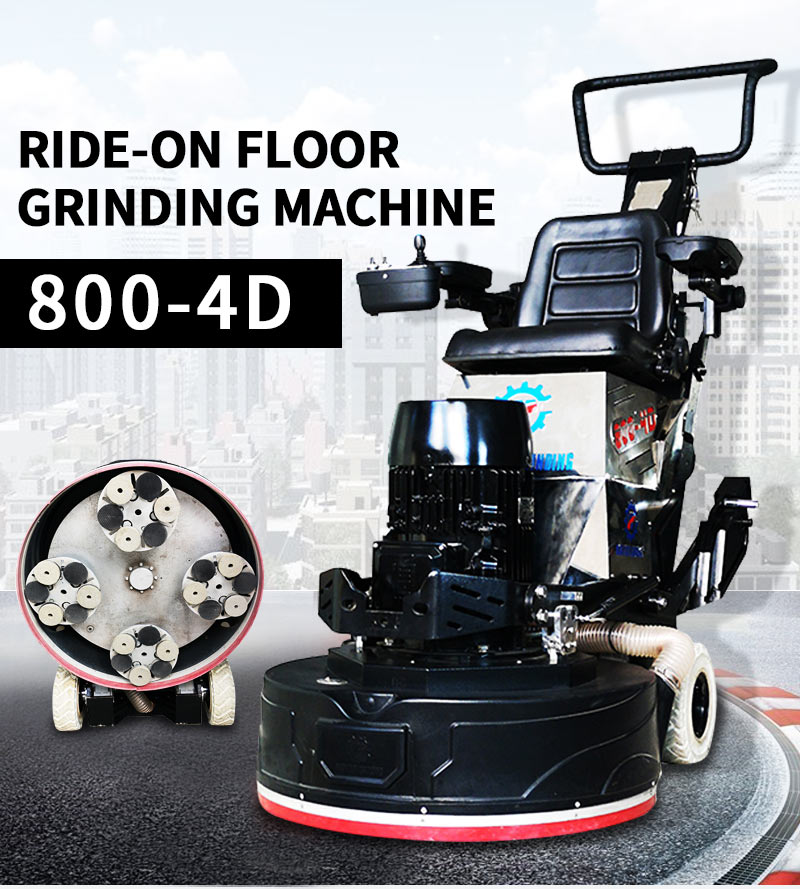

The 800-4D ride-on diamond floor grinder is designed for both medium-sized areas and large-sized area projects. With 800mm large working width, 450-1950rpm motor rotating speed, 20HP powerful WEG motor, and 25HP superior Delta inverter, it can incredibly finish large areas of job sites with less time. Equipped with a visible and integrated control panel and seat with ergonomic design, it is labor-saving and efficient from aggressive grinding to fine polishing in various floor conditions, such as concrete, cement, epoxy, terrazzo, natural stone, and so on.
If you are looking for a professional, handy and effective diamond floor grinding machine that is available for grinding, repairing and renewing for your all kinds of projects, then the HTG-800-4D manufactured by Xingyi is the right floor surface machine for you.
Specifications
|
Model |
800-4D Fully automaticgrinding machine |
|
|
Brand |
High Tech Grinding |
|
|
Voltage |
220V 3 phase |
380V 3phase |
|
Current |
53A |
30.7A |
|
Working width |
800mm |
|
|
Grinding disc |
256mm*4 |
|
|
Motor Rotating speed |
450-1950rpm |
|
|
Motor HP |
15KW/20HP |
|
|
Inverter |
18.5KW/25HP |
|
|
Configuration |
WEG motor + Delta inverter |
|
|
Weight |
610kg/1345Lbs |
|
|
Extra weight |
20kg x 2 |
|
|
Water Tank |
20L |
|
|
Packing Size |
162*90*151cm |
|

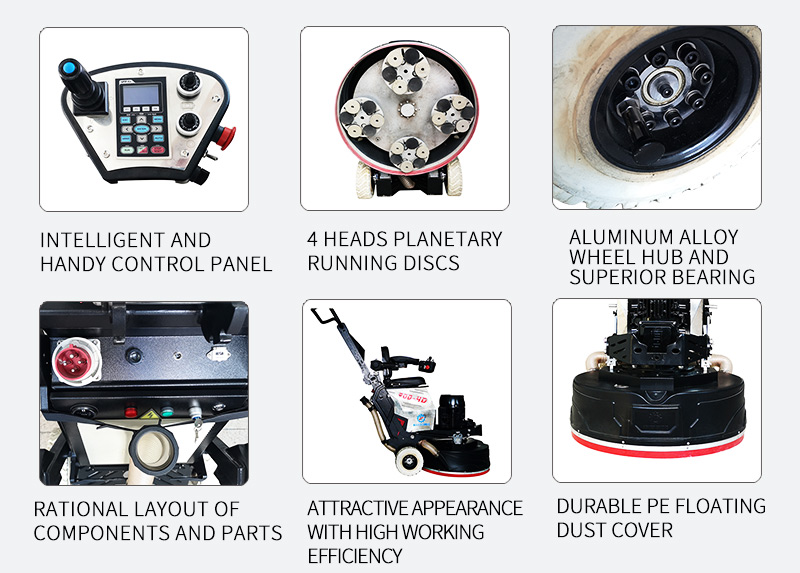

Product display

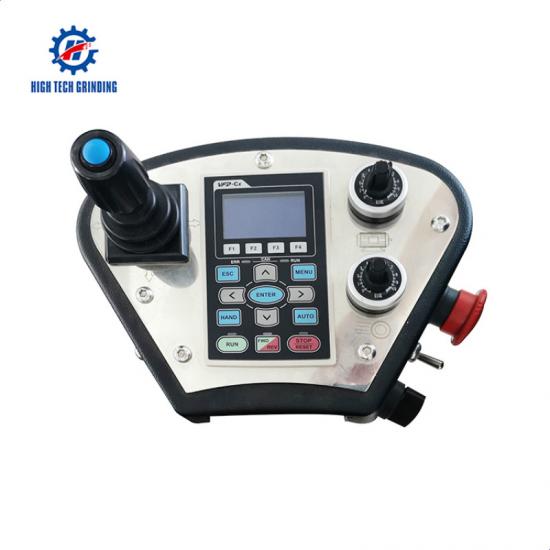

•Intelligent and handy control panel

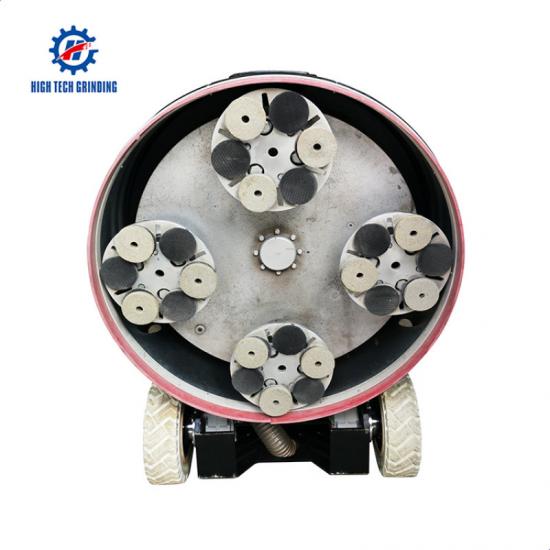

•4 Heads planetary running discs

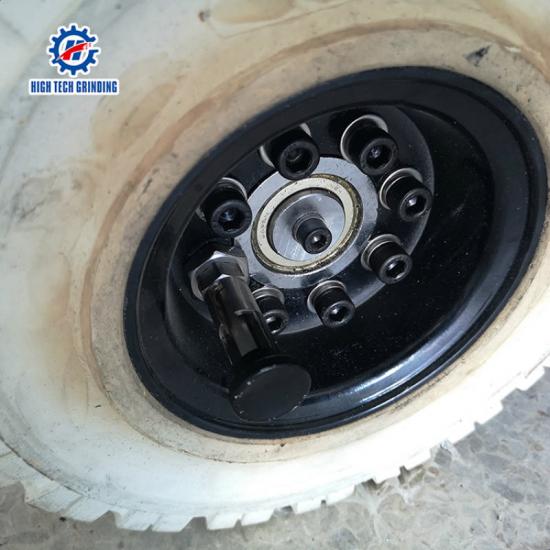

•Aluminum alloy wheel hub and superior bearing

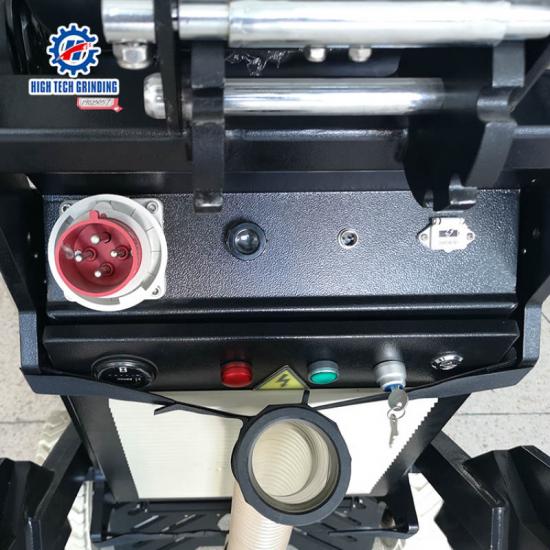

•Rational layout of components and parts
•Attractive appearance with high working efficiency
•Durable PE floating dust cover

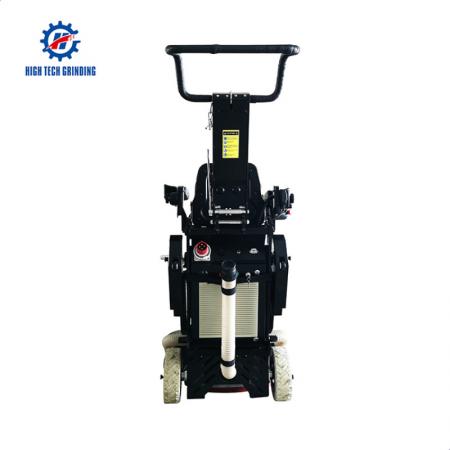

•Operation seat with ergonomic design
FAQ
Q1: How do you fix holes and cracks on floor with floor surface grinding machine?
A1:Grinding repairing is suitable for the hole less than 10mm and cracks less than 1mm.
①Tools: 800-4D ride-on floor grinder,dustless cutting machine, diamond pads, EC-1008, fast drying cement, bucketm watering can.
②Clean all the sundries on floor with a acuum cleaner.
③Apply a sufficient EC-1008 repair agent when there is no obvious water logging.
④Grind directly with a 800-4D planetary grinding machine with the diamond pad(120#) until all holes and cracks are filled(speed should be 800-1000rpm)
⑤Check whether the repair is completed, protect the ground with water 3-5 times.
