Integrated with both grinding and polishing function, the 800-4E is an intelligent remote-controlled floor grinding and polishing machine manufactured by Xingyi.
Brand:
High Tech GrindingItem NO.:
800-4EProduct Origin:
Fujian, ChinaColor:
Black And GrayShipping Port:
XiamenLead Time:

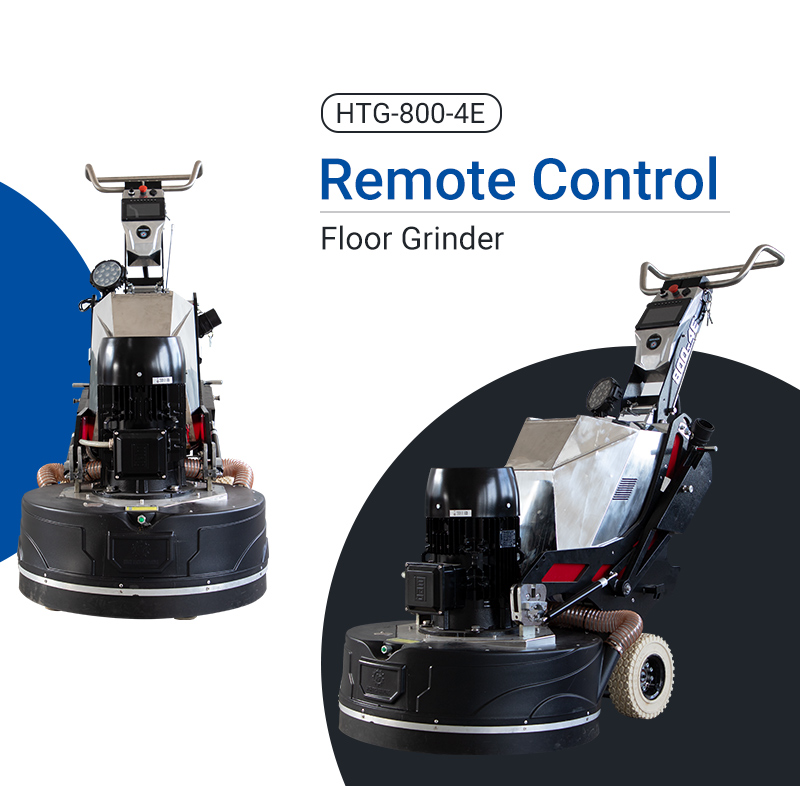

7-20 Days800-4E Smart Remote Control Electric Grinding Machine For Concrete Floor

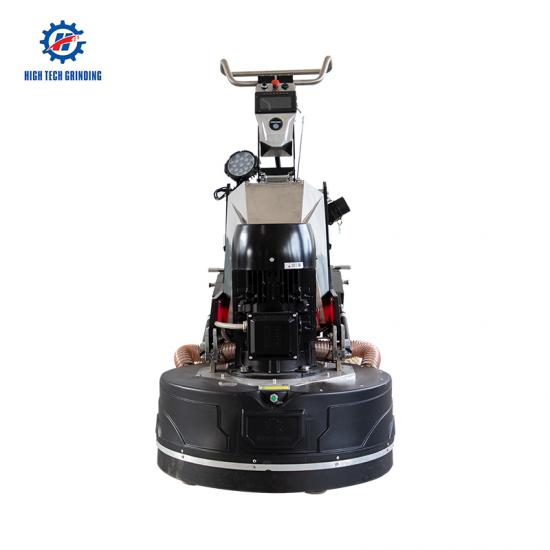

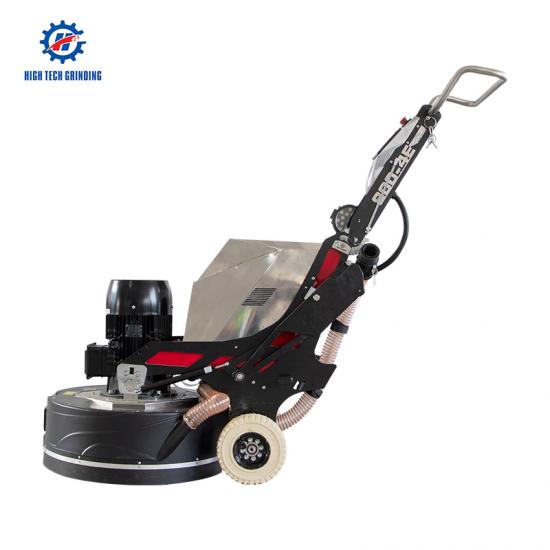

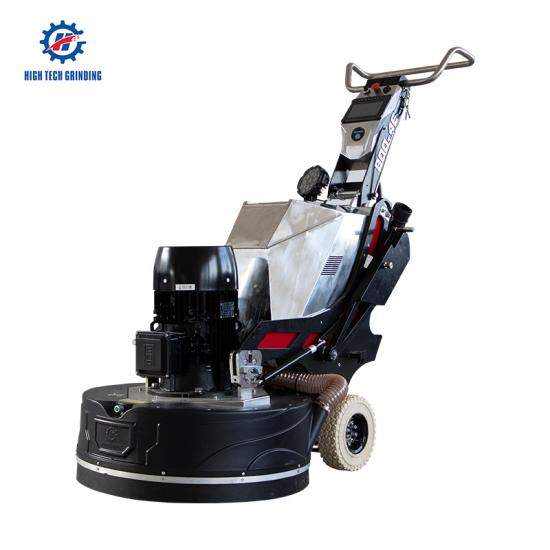

Integrated with both grinding and polishing function, the 800-4E is an intelligent remote-controlled floor grinding and polishing machine manufactured by Xingyi. With 20HP powerful WEG motor, high-precision remote-controlled system, superior gearbox processed by the imported CNC workshop, ergonomic dynamic balance device, Phoenix terminal blocks,well-known SKF bearings, and durable PE floating dust cover, it is perfect for the large and medium area of projects with super grinding polishing efficiency and stable performance.
In order to provide you with faster and better service, please use WhatsApp to contact us as a priority.Whatsapp: +86 15960771958
Specifications
Model |
800-4E |
|
Voltage |
220V 3 phase |
380V 3 phase |
Current |
53A |
30.7A |
Working width |
800mm |
|
Grinding disc |
256mm*4 |
|
Motor Rotating speed |
450-1950rpm |
|
Motor HP |
15KW/20HP |
|
Inverter |
18.5KW/25HP |
|
Configuration |
WEG motor + Delta inverter |
|
Weight |
555kg/1224Ibs |
|
Extra weight |
20kg x 2 |
|
Water Tank |
20L |
|
Packing Size |
162*90*133cm |
Product display

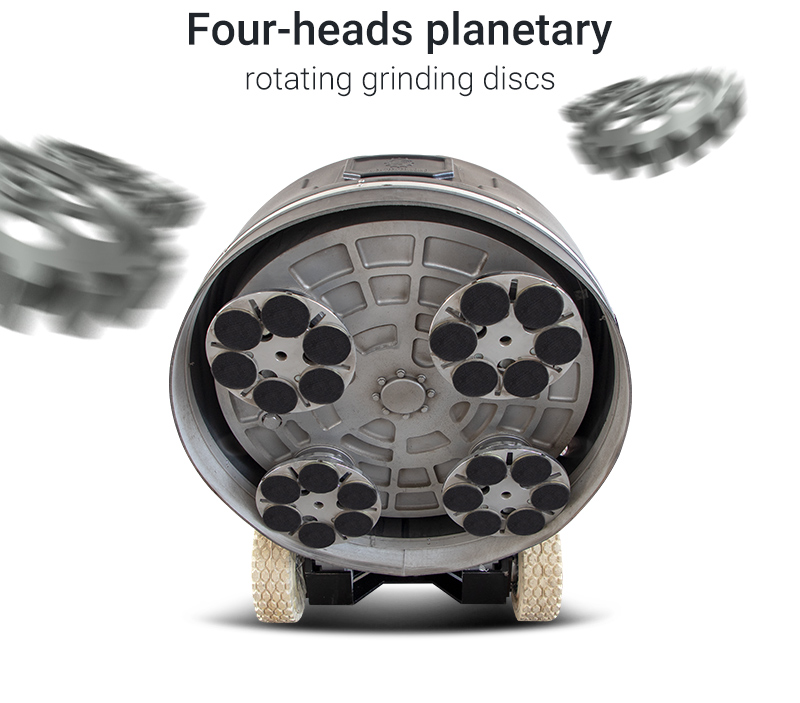

✔Four-heads planetary rotating grinding discs

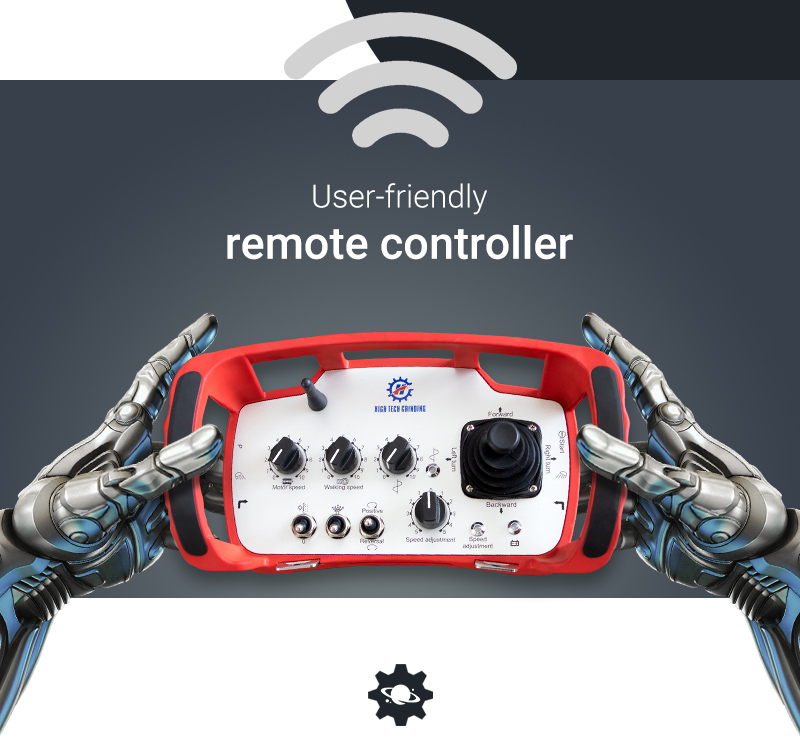

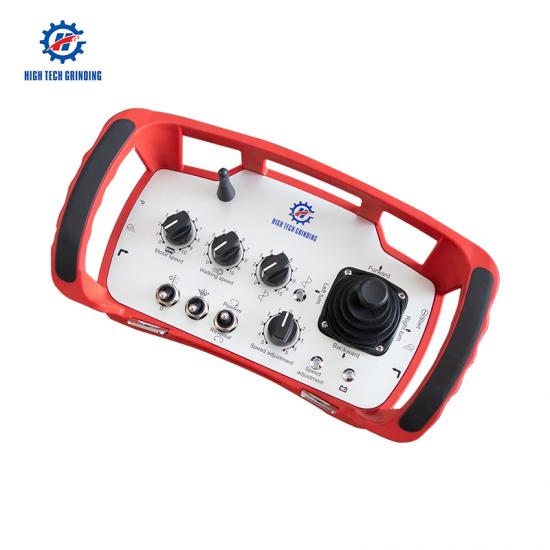

✔User-friendly remote controller

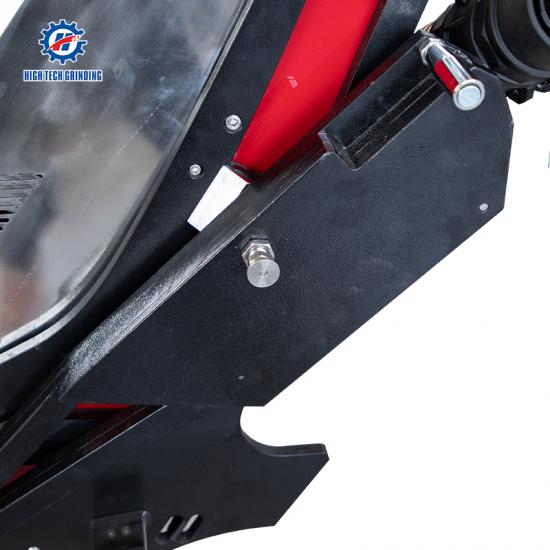

✔Ergonomic dynamic balance device

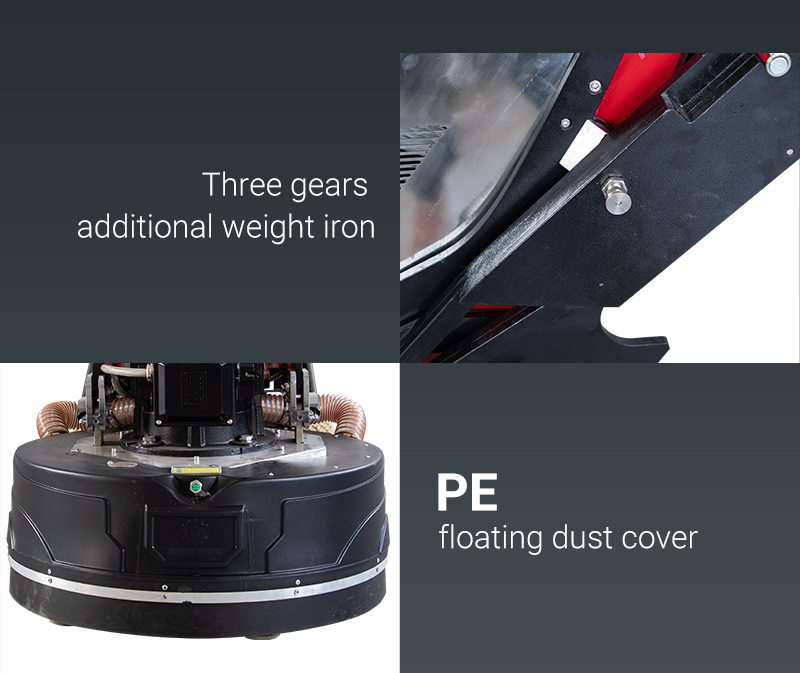

✔Three gears additional weight iron
✔PE floating dust cover

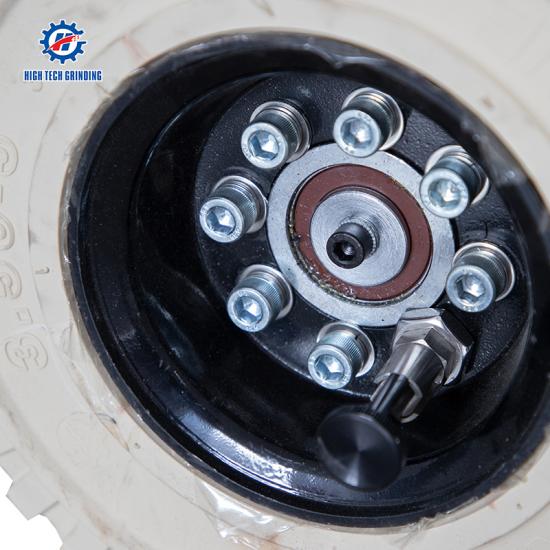

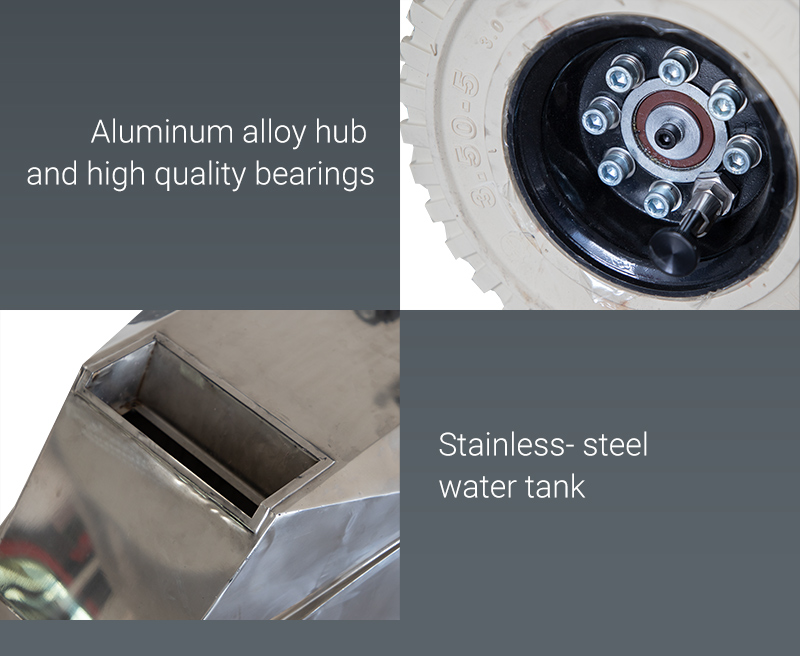

✔Aluminum alloy hub and high quality bearings

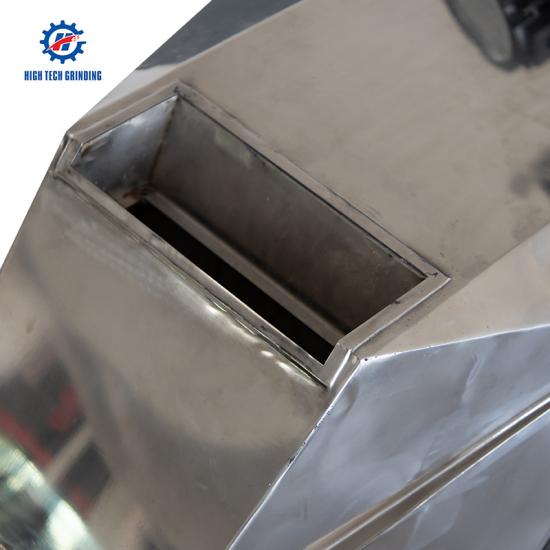

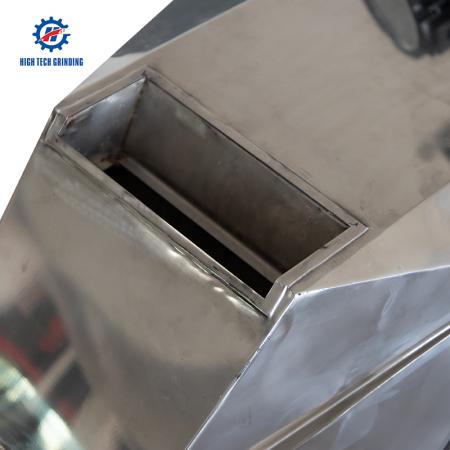

✔Stainless- steel water tank and water spray system

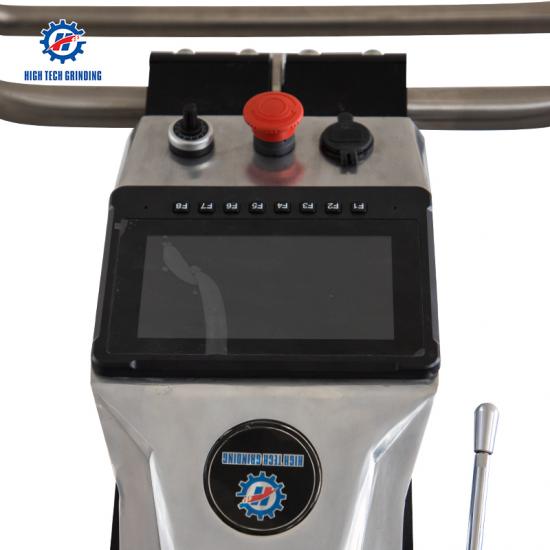

✔7 inch High-resolution display with HMI function design
FAQ
Q1: How do you fix holes and cracks on floor with grinding machine?
A1:
Grinding repairing is suitable for the hole less than 10mm and cracks less than 1mm.
①Tools: 800-4E floo grinder,dustless cutting machine, diamond pads, EC-1008, fast drying cement, bucketm watering can.
②Clean all the sundries on floor with a acuum cleaner.
③Apply a sufficient EC-1008 repair agent when there is no obvious water logging.
④Grind directly with a 800-4E distant controlled grinding machine with the diamond pad(120#) until all holes and cracks are filled(speed should be 800-1000rpm)
⑤Check whether the repair is completed, protect the ground with water 3-5 times.
Q2:how do you use remote control floor grinder?
A2:
Email: info@polishingmachine.cc
Whatsapp: 008615960771958
