800LE Concrete floor preparation machine equipment

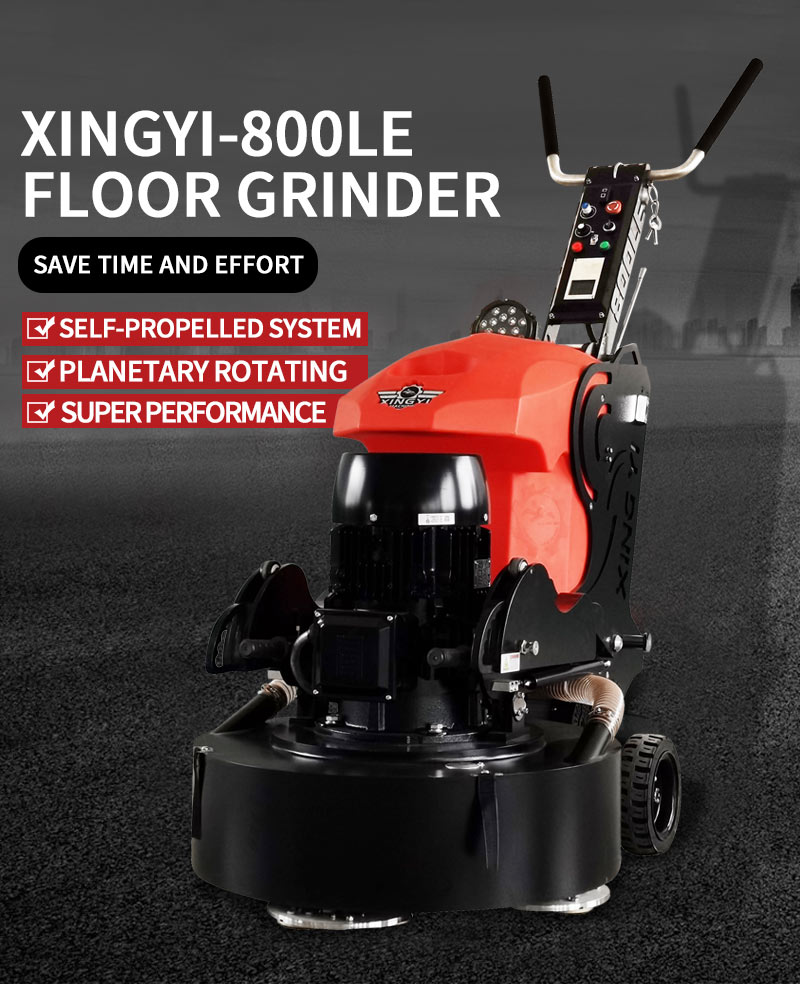

800LE Self-propelled Diamond Concrete Floor Grinder And Polisher

The 800LE is a distinguished floor grinding machine for its perfect appearance and super grinding efficiency. With a 20HP uprated WEG motor, 556 kg heavy net weight and 60kg adjustable additional weight iron, it possess strong grinding force and stable performance.

Brand:
Xingyi
Item NO.:
800LE
Product Origin:
Fujian, China
Color:
Black And Red
Shipping Port:
Xiamen
Lead Time：
7-20 Days

Product Detail

800LE Self-propelled Diamond Concrete Floor Grinder And Polisher

The 800LE is a distinguished floor grinding machine for its perfect appearance and super grinding efficiency. With a 20HP uprated WEG motor, 556 kg heavy net weight and 60kg adjustable additional weight iron, it possess strong grinding force and stable performance. With the self-drived system and four-head planetary rotation discs, the 800LE is one of the most bestselling floor surface grinders from Xingyi, which ensures the floor labors to finish work with high efficiency and and easiness.

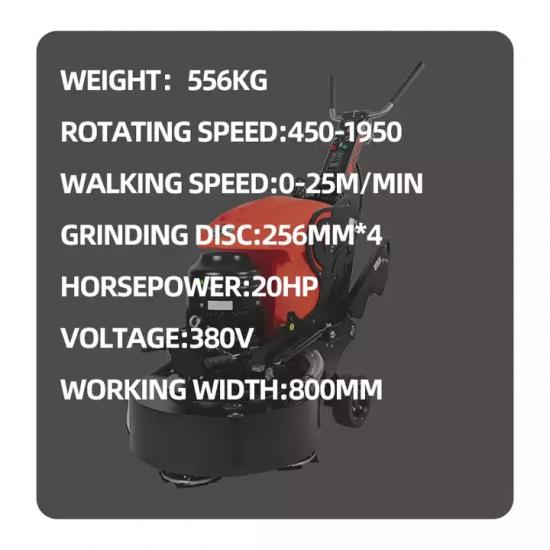

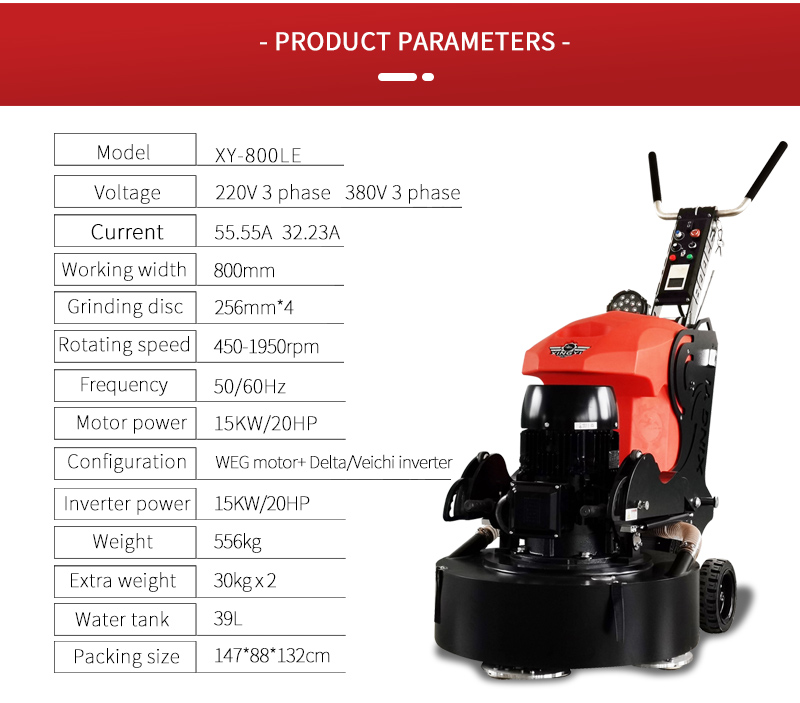

Specifications

Planetary floor grinding machine grinder

Model	China Floor Grinding Machine
Voltage	220V3 phase	380V 3 phase
Current	55.55A	32.23A
Working width	800mm
Grinding disc	256mm*4
Rotating speed	450-1950rpm
Frequency	50/60Hz
Motor power	15KW/20HP
Inverter power	15KW/20HP
Configuration	WEG motor+ Delta/Veichi inverter
Weight	556kg
Extra weight	30kg x 2
Water tank	39L
Packing size	14788132cm

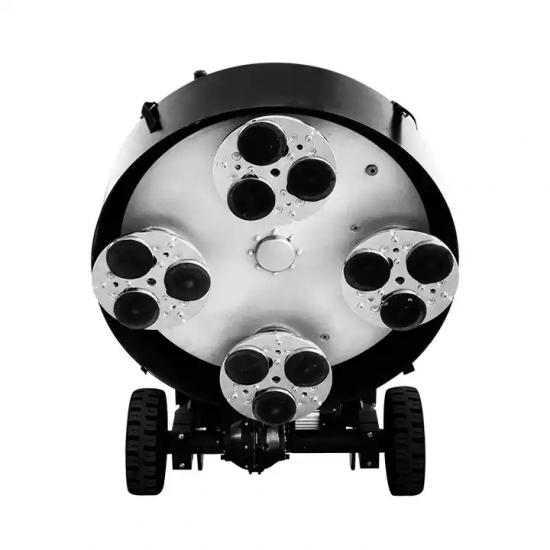

Product display

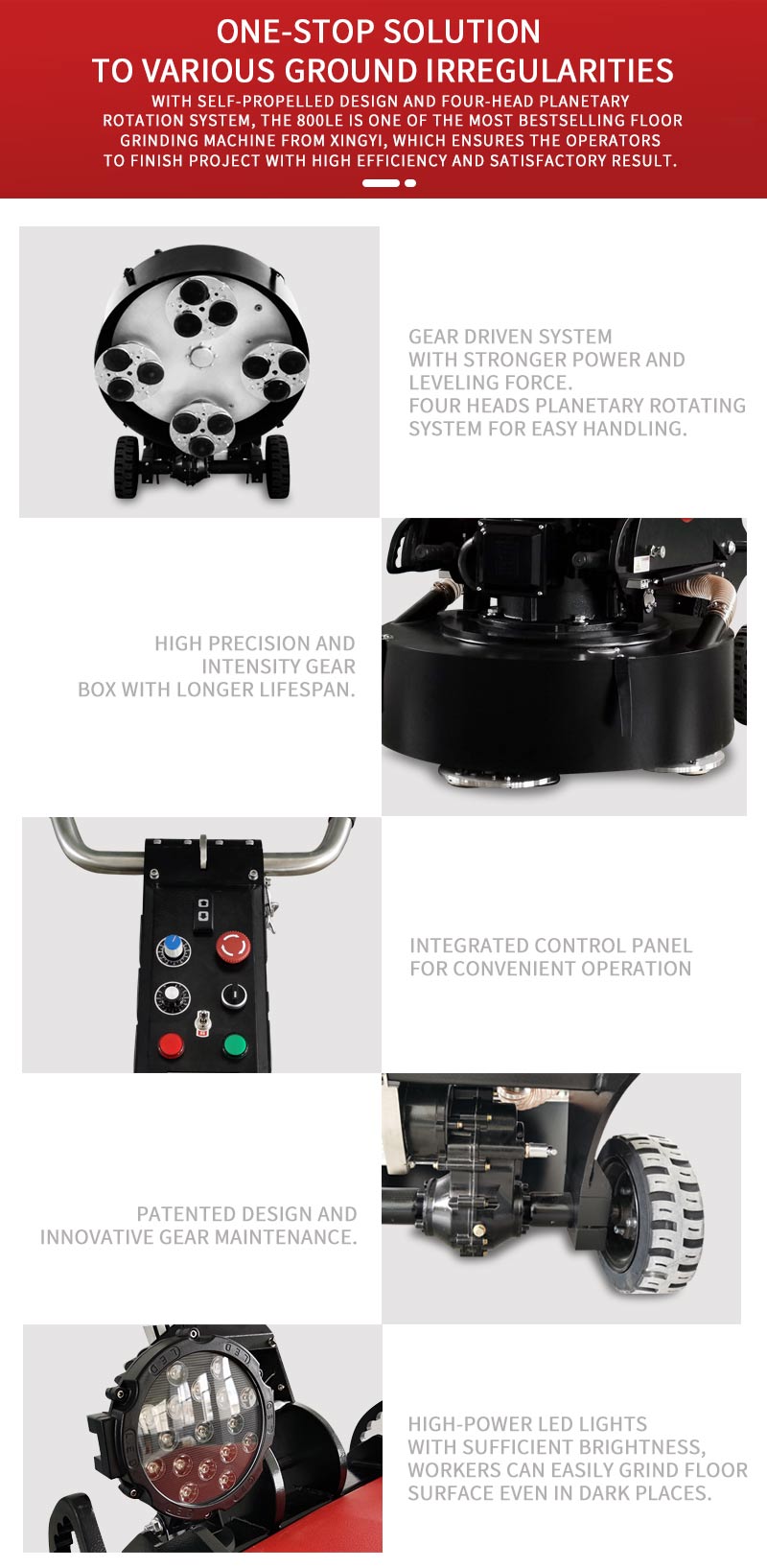

Floor grinding and resurfacing equipment

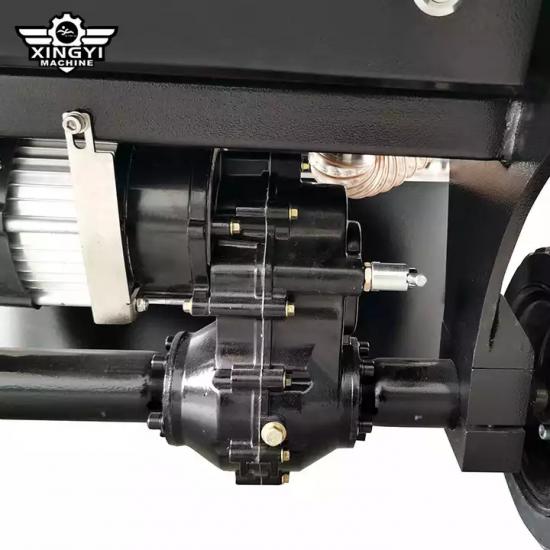

1. Gear-driven system with stronger force and leveling force.

2. High precision and intensity gearbox with a longer lifespan.

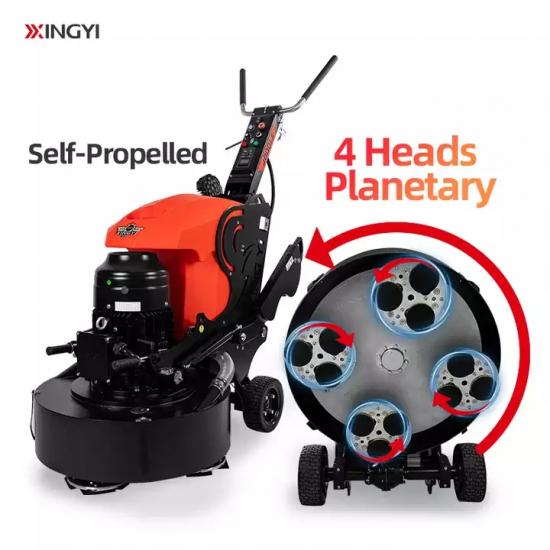

3. Four heads planetary rotating system for easy handling.

4. Patented design and innovative gear maintenance.

5. More stable performance and average scratch.

800 large floor grinder and polisher

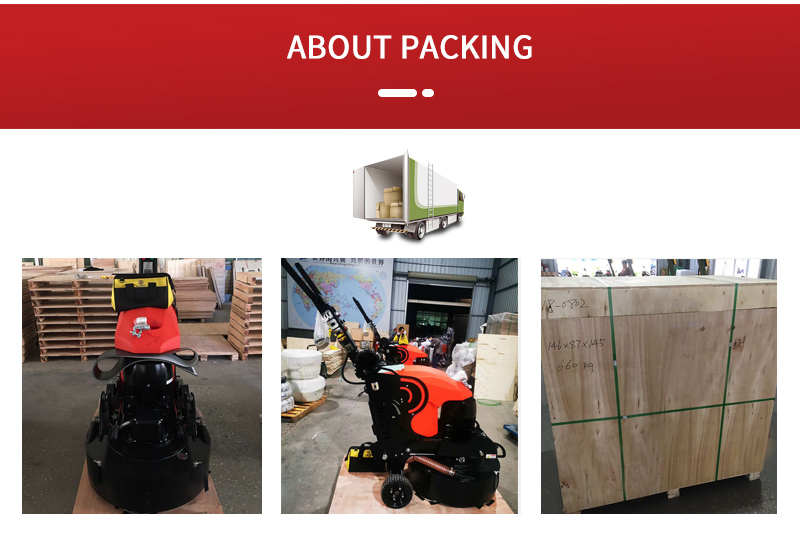

Package

XY Professional floor polishing machine

FAQ

Q1:How do you grind concrete floors yourself?

A1:

Step 1: Check the floor surface condition.

Step 2: Grinding with 800LE floor grinder and diamond pads HTG-2Y 30# 60#.

Step 3: Clean the floor surface.

Step 4: Repair the hole and cracks with HTG-EC-1008 and diamond pads 120#.

Step 5: Polish with resin pads HTG-C310-50# 100#.

Step 6: Harden the floor with densifier HTG-EC-L01.

Step 7: Polish with resin pads C310-200# 400# 800# 1500#.

Step 8: Apply sealer HTG-EC-S01 on the floor.

Step 9: Buff with high speed burnisher and buffing pads

Q2：Why do we recommend you to buy the 800LE self-propelled concrete terrazzo floor grinder?

A2:

1. The 800LE is equipped with hard gear tooth surface, which has a gear transmission efficiency as high as 97%.

2. Equipped with a well-known brand WEG motor, which can withstand high temperature and large loads.

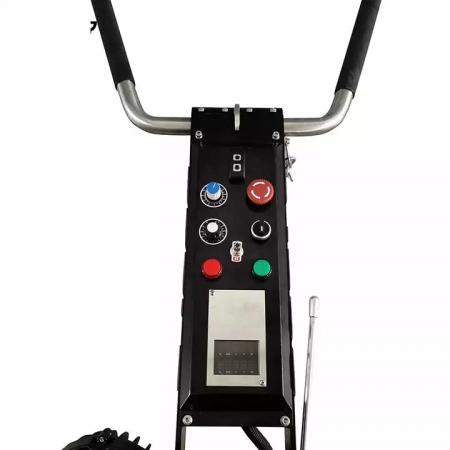

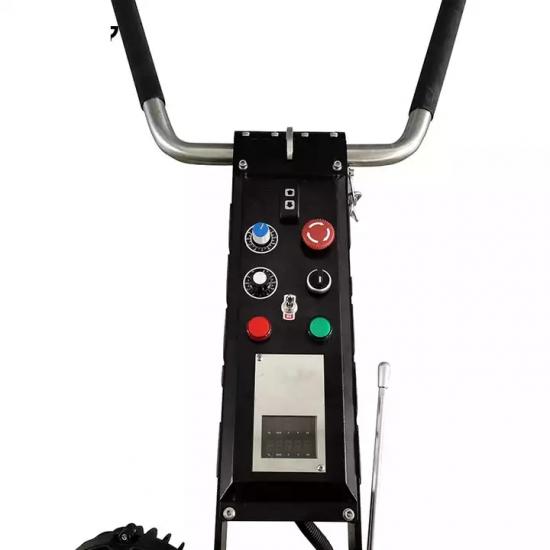

3. Equipped with Delta inverter and an excellent parameter adjustment device, which can intelligently alarm and protect the machine to facilitate customer troubleshooting.

4. There is a 800mm large working width in the 800LE floor grinding machine. Under the same working area, its working efficiency is equivalent to that of 5 floor grinder with a working width of 550mm.
