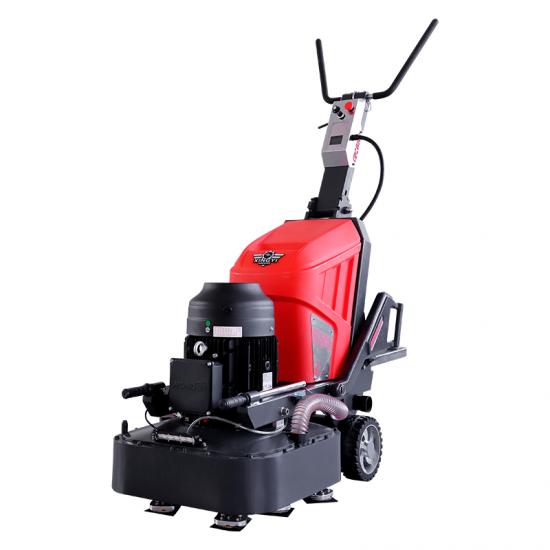

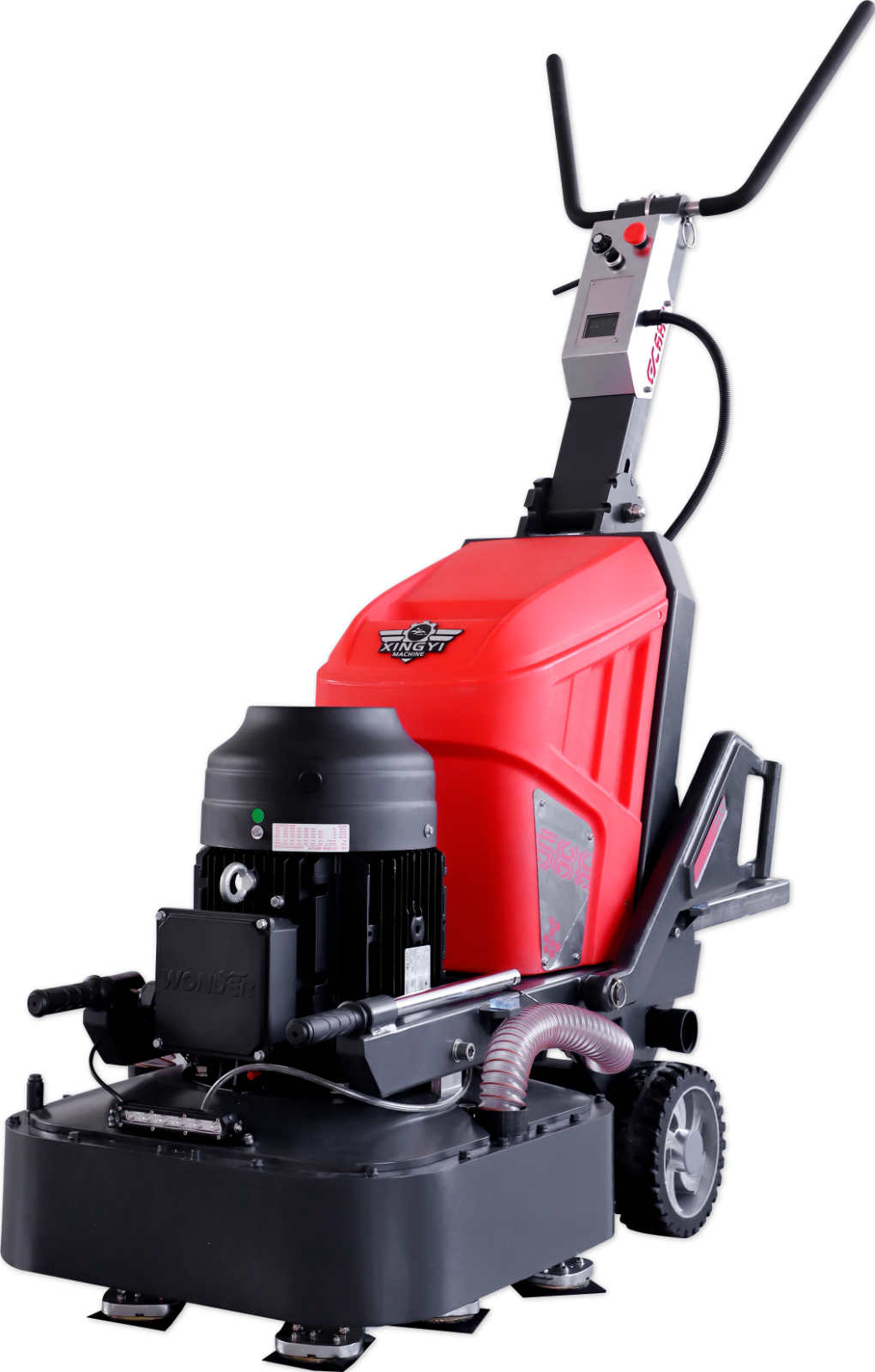

GX688 is the world’s first, Xingyi’s exclusive technology, a planetary contra-rotating grinder based on 5-gear transmission technology. Compared with other types of machines, this grinder has high-tech grinding levels that are more efficient and more effective.
Brand:
High Tech GrindingItem NO.:
GX688Product Origin:
Fujian, ChinaColor:
Black and redShipping Port:
XiamenLead Time:
7-20 DaysDiamond floor grinding machine terrazzo cup wheel polisher grinders
GX688 is the world’s first, Xingyi’s exclusive technology, a planetary contra-rotating grinder based on 5-gear transmission technology. Compared with other types of machines, this grinder has high-tech grinding levels that are more efficient and more effective.
Model Name |
XY-GX688 granite polishing machine stone polishing pads |
Working Width |
650MM |
Voltage |
380V |
Motor HP |
15HP |
Rotating Speed |
350-1500RPM |
Grinding disc |
348MM*4 |
Packing size |
124*74*132CM |
Weight |
410KG |
Product advantages
1. The world's first "aluminum inlaid steel" box technology improves the overall accuracy of the gear box. In order to prolong the service life of the gearbox, the steel sleeve has higher wear resistance than aluminum alloy, thus eliminating the problem of bearing wear.
2.5 Gear transmission technology reduces the loss of gear transmission. Increase energy consumption by 5% to 8%, eliminate "tooth skipping" phenomenon, and reduce gearbox failure rate by more than 60%
3. The GX series cabinet is equipped with a two-way vent valve, and Xingyi has obtained a national patent. In high and low temperature environments, the internal air pressure is self-adjusted to keep it consistent with the surrounding air pressure to prevent oil leakage due to air pressure problems.
4. Double oil seal + iron oil seal cover effectively prevent chemical products from corroding the oil seal. The frequency of oil spills is reduced by more than 500%.

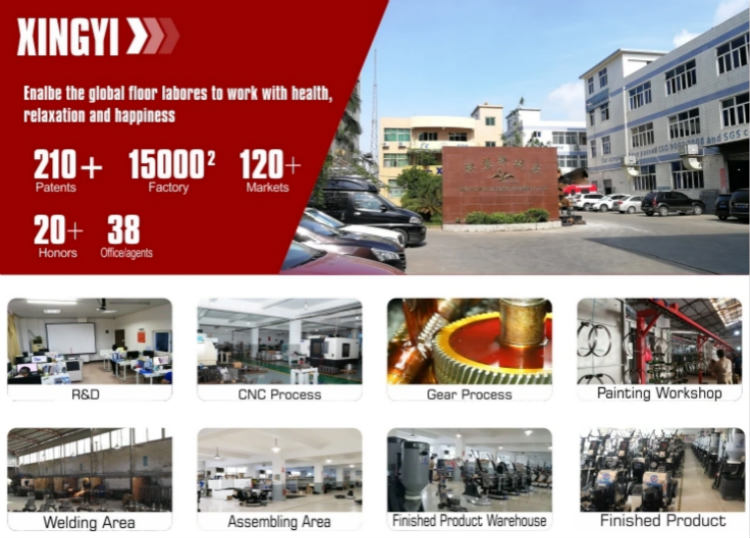

Company Profile
Xingyi started as a project company in 1999 and has become one of the top talents in the industry who provide services and manufacture high-quality floor grinders, industrial vacuum cleaners and floor polishers worldwide. Our professionals continue to create ergonomic machine design, manufacture and sell high-tech grinding brand products. Relying on the promise of producing high-quality standard equipment, Xingyi has entered the market, and has sold its products and services to more than 124 countries around the world, and has obtained 200 design patents and 17 national patents. It is open to OEM and ODM production from customers, and has obtained CE and SGS certification.
Certification
FAQ
1.Q: Does your factory accept customization?
Answer: Yes, we can provide customers with OEM and ODM services. We are STI OEM factory for 4 years.
2. Q: How do we know the quality of your machine before ordering products?
Answer: First of all, we have our own factory, and the CNC workshop is controlled by our own core technology.
Secondly, our products have been sold to 120 countries/regions, and we have offices/agents in 38 countries/regions.
Third, Xingyi is a national high-tech enterprise.
Fourth, the quality guarantee period of motors and frequency converters is one year, and gears are two years.
3. Q: What should I do to start concrete floor polishing?
Answer: We recommend using a complete surface treatment system, including: concrete grinder equipment, vacuum system, suitable diamond tools, chemicals (densifiers and sealants) and dyes (optional).
4.Q: Are you a real manufacturer? How can I visit your factory?
Answer: Yes, of course we are the manufacturer! We warmly welcome customers to visit our factory at any time to check our production process. Our factory is located in Jinjiang City, China (Xiamen Airport, Xingyi will pick you up).
Email: xingyi15@polishingmachine.cc
Skype: xingyistone15
Whatsapp: 008615960788815
