800LE+ Self-propelled Concrete Floor Grinder With Gear-driven 800LE+ Self-propelled floor grinder and versatile polisher are used to grind (rough grind, fine grind, and polish) concrete, natural stone and terrazzo floors or other materials. With a self-propelled function, it realizes higher grinding efficiency with lower labor costs. The design of the planetary rotating system makes the grinding effect uniform and stable. More
GX550 Concrete Floor Grinder GX550 Concrete Planetary Grinding machine has 3 planetary heads with very low maintenance. The stronger welded machine body with friendly operation handle and 2 positions weight iron to adjust the pressure when you are working. All motor and inverter are from the newest technology special for XINGYI grinding machine. More
Heavy-Duty Remote Control Planetary Concrete Grinding Machine XINGYI GX858 GX858 Concrete Grinder is a remote control heavy-duty equipment for your polishing project, the machine has 4 planetary heads with very low maintenance. The stronger welded machine body with friendly operation handle and 2 positions weight iron to adjust the pressure when you are working. All motor and inverter are from the newest technology special for XINGYI grinding machine. More
Ride on floor grinder Tank1500 is a very suitable for industrial applications, low-maintenance, smooth-running on-board grinding and polishing machine, gearbox, completely sealed and dustproof. More
GX750 Heavy-Duty Concrete Grinding Machine GX 750 Planetary Concrete GRINDING MACHINE GX750 is a heavy-duty equipment for your polishing project, Thanks to XINGYI dual Alloy gearbox casting technology, the machine has 3 planetary heads with very low maintenance. The stronger welded machine body with friendly operation handle and 2 positions weight iron to adjust the pressure when you are working. All motor and inverter are from the newest technology special for XINGYI grinding machine. More
GX650 Concrete Grinding and Polish machine GX 650 / GX 65 ROTARY Concrete GRINDING MACHINE The GX650 has 4-heads which works in counter rotary direction and provide smooth of operation and handling. Collapsible hand grip for easier transport and adjustable to your perfect working position. Dual-purpose additional weight makes your construction easier.Its versatile function from floor preparation to fine polishing, suitable for concrete, stone, epoxy coating, terrazzo and other floors. The 17 years of classic design with worry-free quality.*GX65 is equipped with fixed handle. More
GX550 Concrete Floor Grinder GX550 Planetary concrete grinder,Same with other GX series machine, the machine has 3 planetary heads with very low maintenance. The stronger welded machine body with friendly operation handle and 2 positions weight iron to adjust the pressure when you are working. All motor and inverter are from the newest technology special for XINGYI grinding machine. More
955LE large polishing floor grinding machine Features and Advantages 1.Intelligent remote control, millisecond response. 2. S-type grinding greatly improves the grinding force. 3. The equipment comes with a spray system:The spray system can quickly reduce the temperature of the abrasive to improve the grinding efficiency. Using the spray function can also reduce dust. 4. Dual clutch design:The drive system is firmer and more suitable for rotten ground. More
This 550-3DP productive concrete floor grinder and polisher can be used for a wide range of flooring applications, such as renovating, polishing, and grinding. With excellent performance and easy operation, it is the best choice for all floor labors.
Brand:
XingyiItem NO.:
550-3DPProduct Origin:
Fujian, ChinaColor:
Black And WhiteShipping Port:
XiamenLead Time:
7-20 DaysEfficient Floor Grinder polishing machine

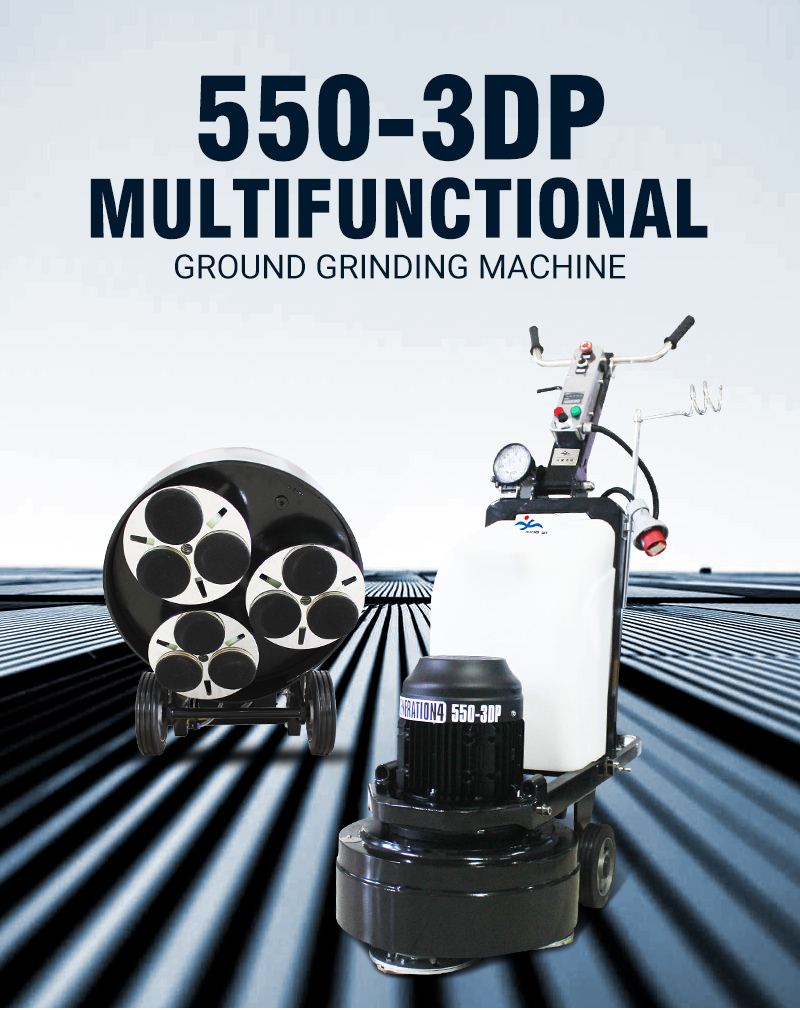

HTG 550-3DP white grinding and polishing machine is a medium-sized concrete floor grinding machine with 5.5 HP, 200 kg, suitable for small and large floor work areas.
Specifications
Model |
550-3DP Hand push floor grinding machinery |
||
Operating width |
550mm |
||
Grinding disc |
230mm*3 (3heads) |
||
Rotating speed |
360-1680rpm |
||
Motor HP |
5.5KW/7.5HP |
||
Inverter HP |
7.5KW/10HP |
||
Amperage |
11.5A |
19.8A |
19.9A |
Voltage |
380-440V three phase |
220-240V three phase |
220-240V 1 phase |
Weight |
183kg |
||
Extra weight |
30kg*1 |
||
Water tank |
28L |
||
Packing size |
105*64*121cm |
||
Configuration |
WEG motor + Delta inverter |
Package
Company Profile
Company Certificate
FAQ
Q1: How do you use a floor grinder to repair holes and fractures in the floor?
A1:Grinding mending is appropriate for holes smaller than 10mm in diameter and cracks less than 1mm in width.
1. Tools include a 550-3DP floor grinder, a dustless cutting machine, diamond pads, EC-1008, quick-drying cement, and a bucket watering can.
2. Use an acuum cleaner to clean all of the sundries on the floor.
3. If there is no visible water logging, use an appropriate amount of EC-1008 repair agent.
4. Grind directly with the diamond pad (120#) on a 550-3DP planetary grinding machine until all holes and cracks are filled (speed should be 800-1000rpm)
5. After checking that the repair is complete, water the ground 3-5 times to protect it.
Q2: How long can the machine use per day?
A2:
1. A regular working period of 8-10 hours is advised, however if your project is urgent, it may be run for 24 hours.
2. The machine is identical to the automobile. Every month, every week, we must maintain it in accordance with the maintenance standards in order for the equipment to survive longer.
3. It is advised that you have a proper construction environment, that the machine is completely equipped, that you examine the machine's functioning condition in real time, that you pay attention to maintenance, and that you change the maintenance of gear oil every six months.
4. If construction employees receive regular training and maintain the machine, the machine's service life and construction impact will be greatly improved.
