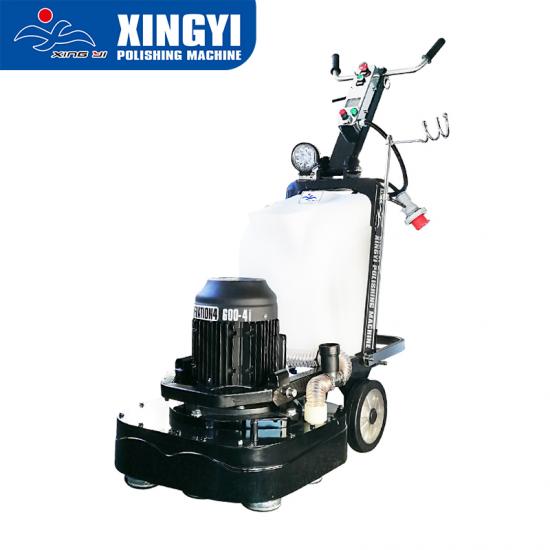

Four head planetary self-propelled concrete floor grinder

The 600-4i terrazzo polishing machine is mainly used for sanding large or medium floors. It can effectively sand the surface of concrete, epoxy mortar and old epoxy floors.

  • Brand:

    Xingyi
  • Item NO.:

    600-4i
  • Product Origin:

    Fujian, China
  • Color:

    Black and white
  • Shipping Port:

    Xiamen
  • Lead Time:

    7-20 Days
Product Detail

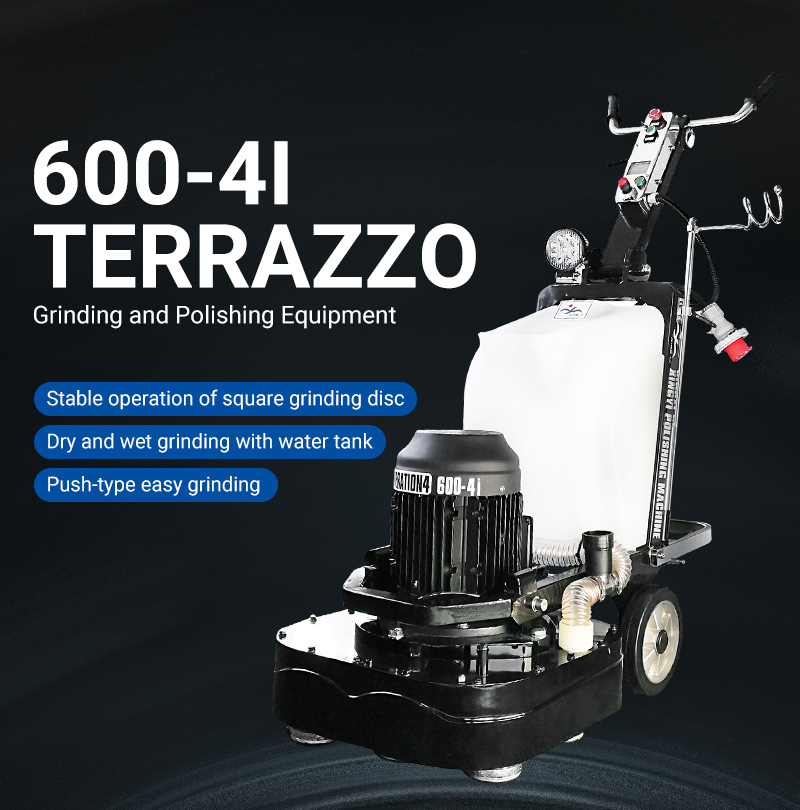

Four head planetary self-propelled concrete floor grinder

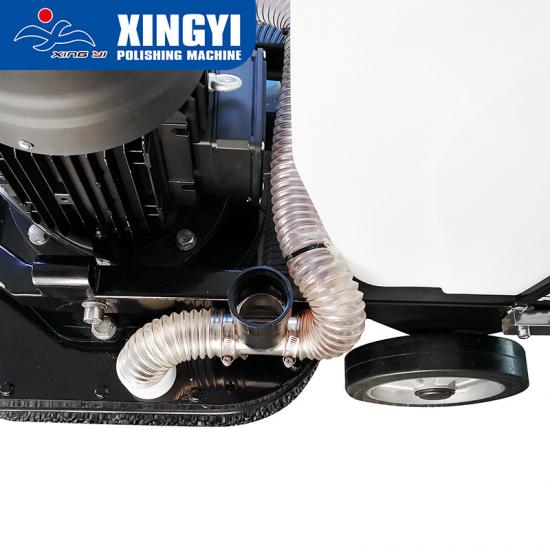

The 600-4i terrazzo polishing machine is mainly used for sanding large or medium floors. It can effectively sand the surface of concrete, epoxy mortar and old epoxy floors. With a vacuum power outlet, the vacuum power cord can be connected directly to the grinder, avoiding the problem of requiring 2 power cords when working. Equipped with special grinding discs, it can also be used for floor renovation and polishing. The true multifunctional machine is an ideal equipment for the treatment of engineering floors.


Specifications

Model

600-4i floor commercialsurface grind machine

Operating width

600mm

Grinding disc

320mm*4 (4heads)

Rotating speed

350-1680rpm

Motor HP

7.5KW/10HP

Inverter HP

7.5KW/10HP

Voltage

380V-440V three phase

220V-240V three phase

Current

17.05A

29.3A

Weight

235kg

Water tank

28L

Packing size

112*64*120cm

Configuration

WEG motor + Veichi inverter

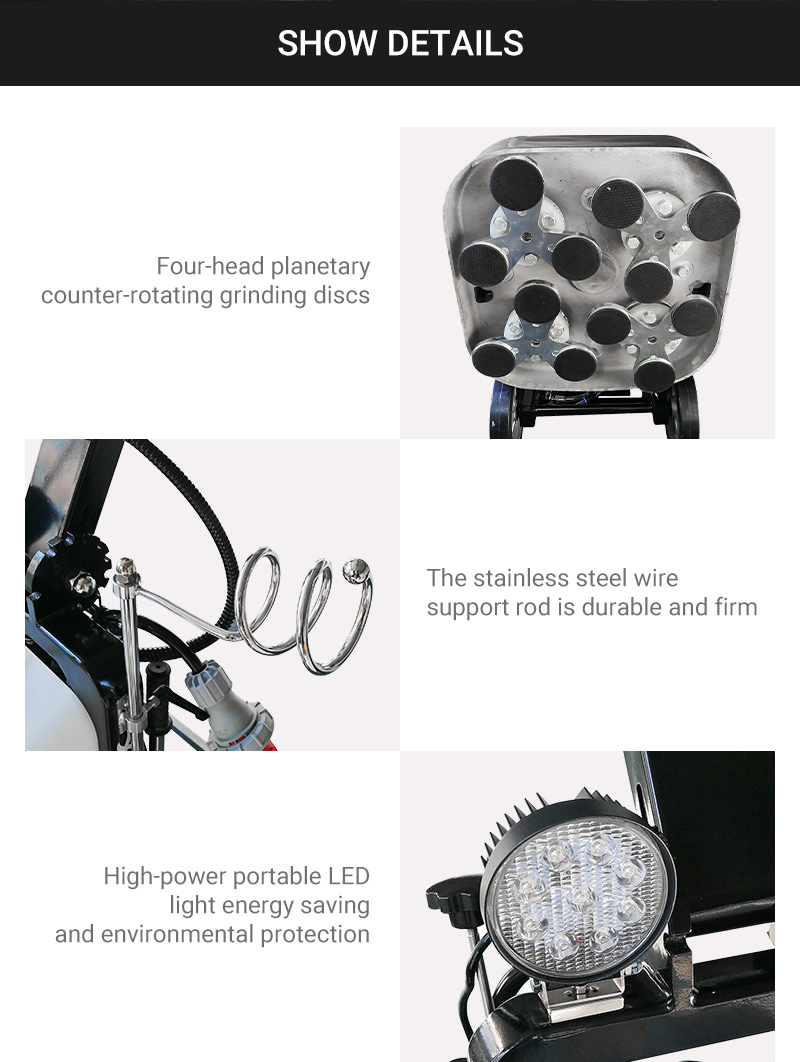

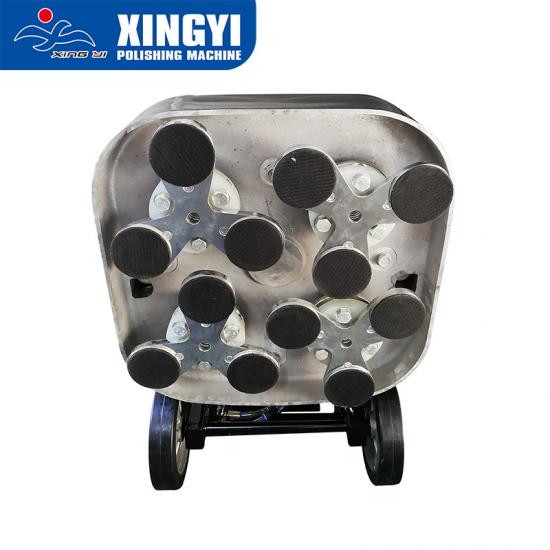

☛Square gearbox and counter-rotating plate for stable performance
☛Dismountable design for machine frame and gearbox

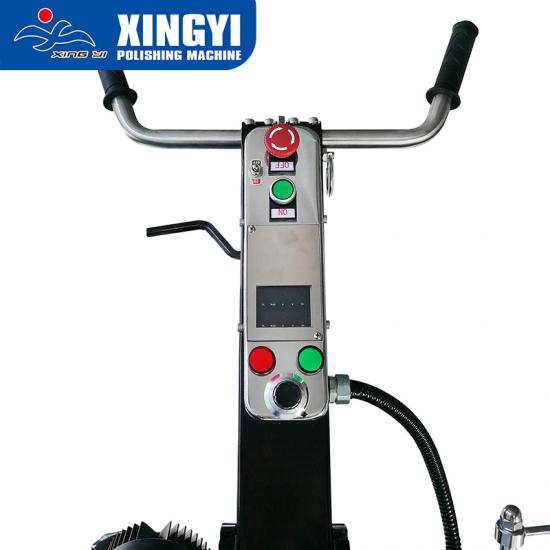

☛Foldable handle and adjustable operating lever with ergonomic design
☛28L PE water tank for wet grinding
☛World-renowned WEG motor with strong power

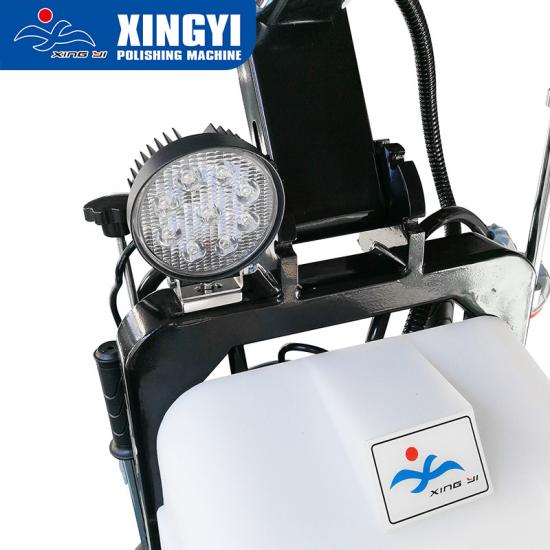

☛High power LED light for dark job sites

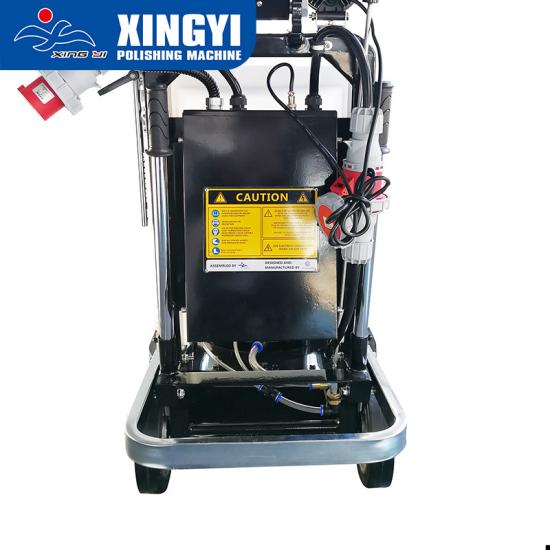

☛Single design of electric cabinet convenient for easier maintenance.

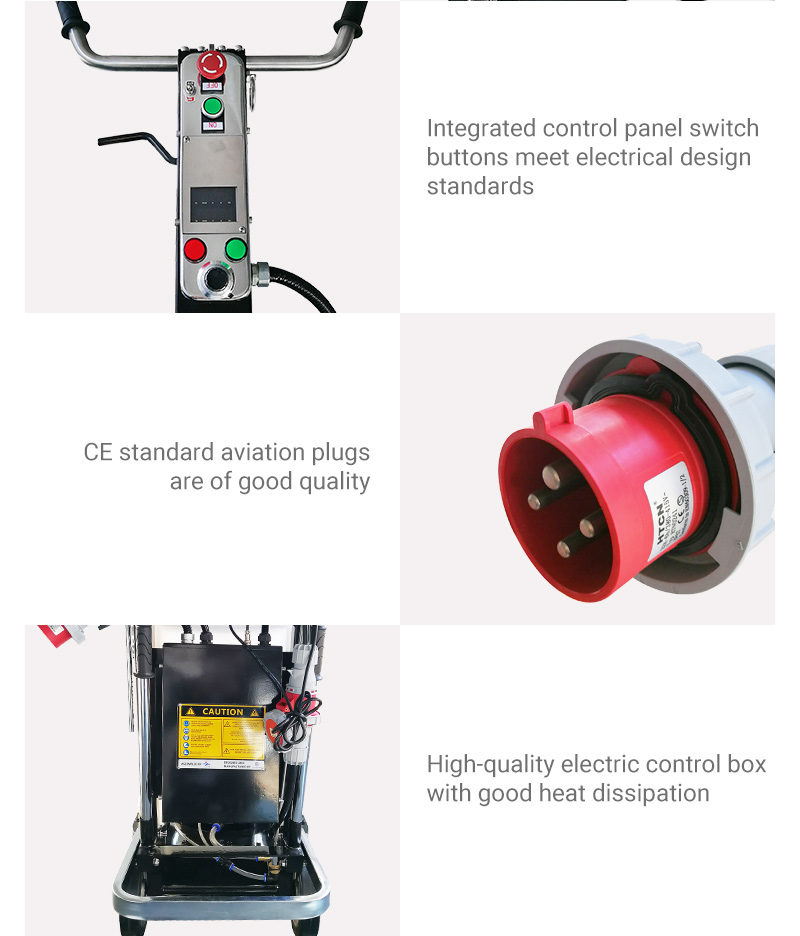

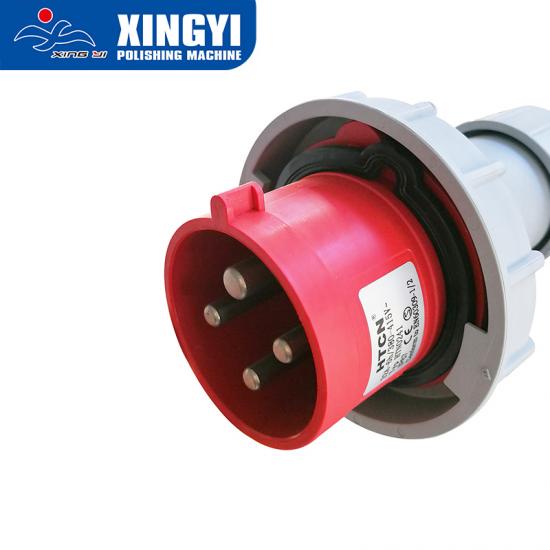

☛CE standard aviation plug with longer service life



our company

Big Area Epoxy Coating Removing Polishing Grinding Machine

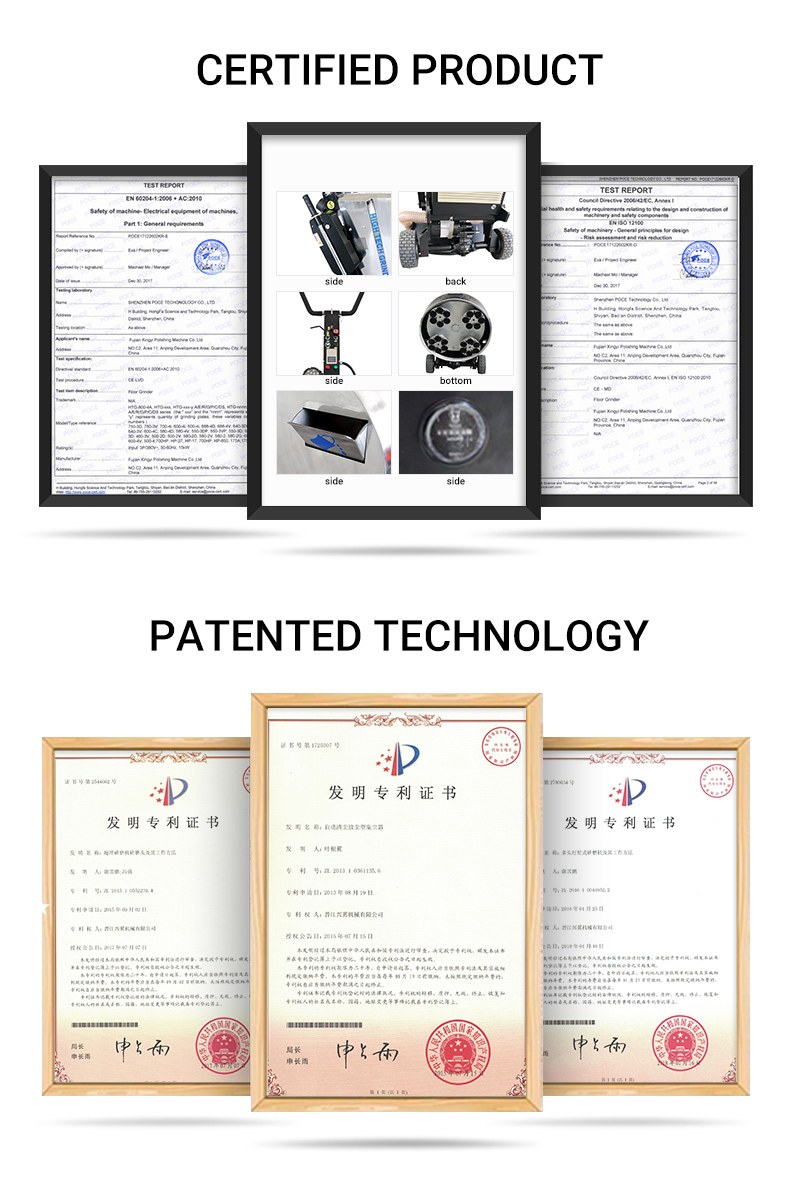

Our certificate

concrete floor grinding machine


Packaging & Delivery

Concrete Diamond Epoxy Floor Grinder


FAQ

Q1: Is your company ISO registered and approved?
A1: Yes, we have got ISO, CE and SGS certificates.


Q2: Does your gear quality better than those from other company?

A2: Yes, we make the gear our own. Our gear is skewed tooth and being heat treatment processed which guarantee stable performance and long life time. But many company don’t use such gear because this gear need high-precision process. We make the gears with CNC machine.


Q3: What parts are usually needed for replacements?
A3:Resin grinding disc, alloy cutter head, dust belt and conversion head.

Contact us

Email: xingyi19@polishingmachine.cc

Whatsapp: 008615960731060


A free consultation

Enable the global floor labors to work with health, Easy and happiness
