Metal Grinding Pads For Concrete Grinder

Metal Grinding Pads For Concrete Grinder .Design for floor grinding (leveling uneven spots or joints) andremoving thin epoxy coatings and other material on floor surface.And easy to deal with various rough surface.Smooth and unbroken edges, low grinding resistance, high efficiency grinding.

  • Brand:

    High Tech Grinding
  • Item NO.:

    HTG-2T
  • Payment:

    T/T 100% in advance, Western Union
  • Product Origin:

    Fujian Province, China
  • Color:

    Gold
  • Shipping Port:

    Xiamen
  • Lead Time:

    About 7-15 days for small order.
Product Detail

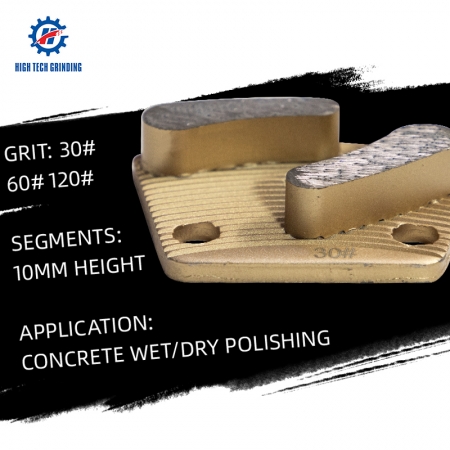

Trapezoid Diamond Grinding Pads For Concrete Floor


Diamond grinding pads also called diamond grinding discs, which is one of the floor preparation tools used on floor grinders.


Feature of Trapezoid Diamond Metal Grinding Pads:
◆ Trapezoid shaped can easily attache to the segment plate;
◆ Double square segments with extra coarse grit;
◆ Connection of 3 holes, fit most floor grinding surfacing machines on the market;
◆ Wet or dry use.


Usage

Suitable for general grinding use while used for thin epoxy coatings, glue and other material removal, and leveling uneven spots or joints. Also ideal for coarse grinding of concrete polishing procedures.

Application Concrete,Terrazzo Grinding and Renovating
Segment Size 10mm height
Grit Size 30# 60# 120#
Category
Diamond Tools For Surface Preparation





Choosing the right bond:
The bond is basically the mix of metals,or resins that surrounds and exposes the diamonds as you're cutting.Generally the harder of the bond, the longer lifespan of the concrete grinding tools.


Soft Bond (Gold) : The matrix segment wears away quickly releasing dull diamonds and exposing new sharp diamonds. Best for hard surfaces.


Medium Bond (Red): A metal bond strength between that of soft and hard bonds.


Hard Bond (Black): The bond martrix in the segment wears away slowly and prevents premature wear against soft, abrasive surfaces.


Packing of Trapezoid Diamond Grinding Shoes:

Trapezoid Diamond Metal Grinding Disc
