Multifunctional floor grinding machine

Coming with 220V or 380V three phase, the 750-3D floor grinding polishing machine is a productive and versatile floor surfacae prep equipment, specially designed for various kind of floor conditions for concrete, cement, epoxy, terrazzo, marble, and stone and etc.

  • Brand:

    Xingyi
  • Item NO.:

    750-3D
  • Product Origin:

    Fujian, China
  • Color:

    Black And White
  • Shipping Port:

    Xiamen
  • Lead Time:

    7-20 Days
Product Detail

Multifunctional floor grinding machine

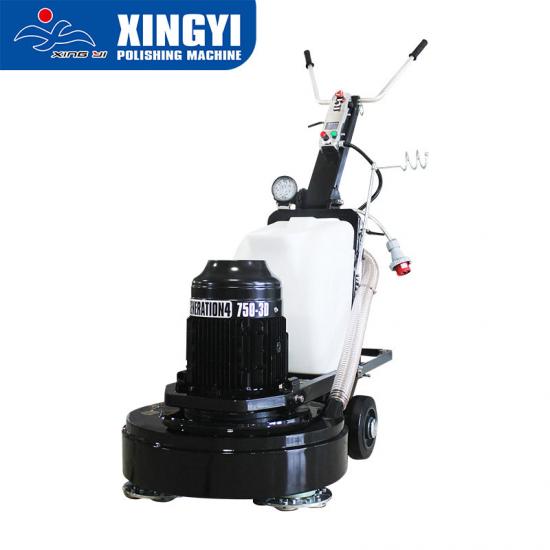

The 750-3D is a popular and flexible floor grinding machine manufactured by XINGYI. It is primarily intended for various types of floor conditions such as concrete, cement, epoxy, terrazzo, marble, and stone, among others. It is designed for large and medium-sized projects, with a 750mm grinding width and a rotating speed of 450-1950rpm. It is one of the most efficient and professional floor surface preparation equipment in the flooring industry, featuring a 15HP powerful WEG motor and a 20HP Delta inverter.


Specifications

Model

750-3D Floor repairing and removal machine

Operating width

750mm

Grinding disc

256mm*3 (3heads)

Rotating speed

450-1950rpm

Motor HP

11KW/15HP

Inverter HP

15KW/20HP

Amperage

24.09A

41.55A

Voltage

380-440V three phase

220-240V three phase

Weight

340kg

Extra weight

40kg*1

Water tank

32L

Packing size

132*82*133cm

Configuration

WEG motor + Delta inverter



Versatile floor surface prep machines

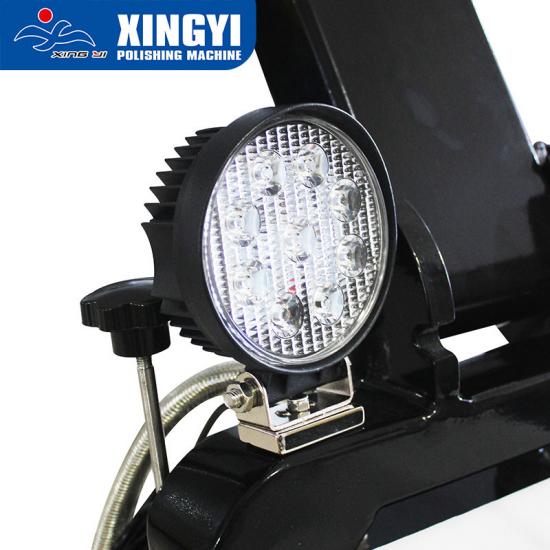

A high-powered LED bulb for nighttime work

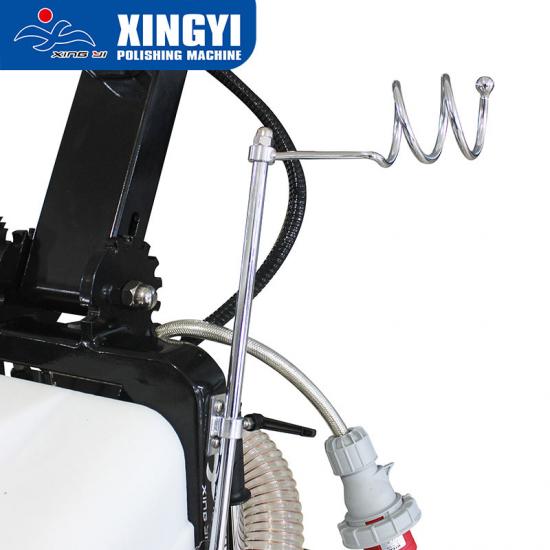

Wire rack that rotates 360 degrees

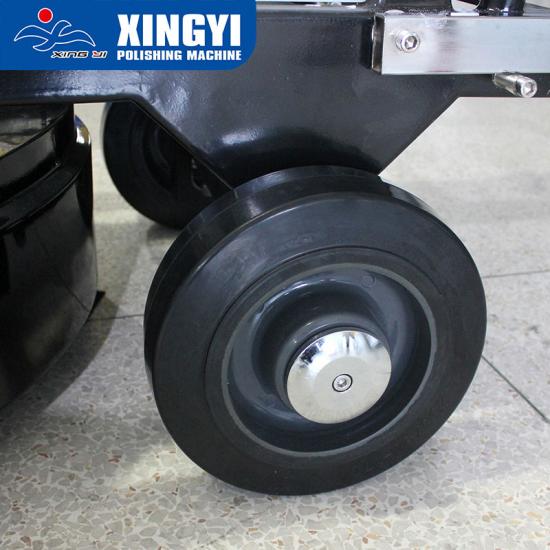

Rubber rim with a high-quality aluminum alloy hub

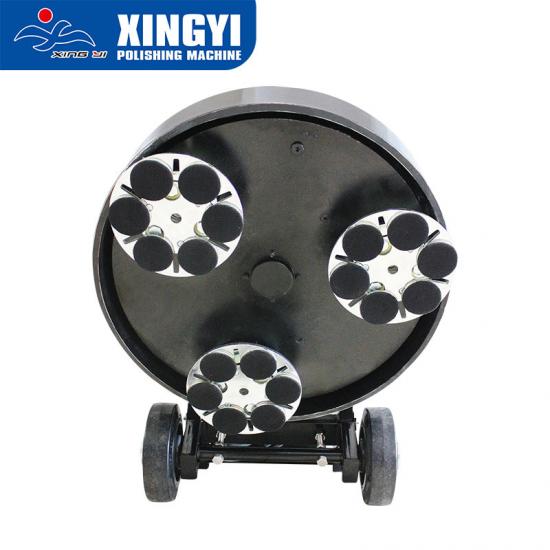

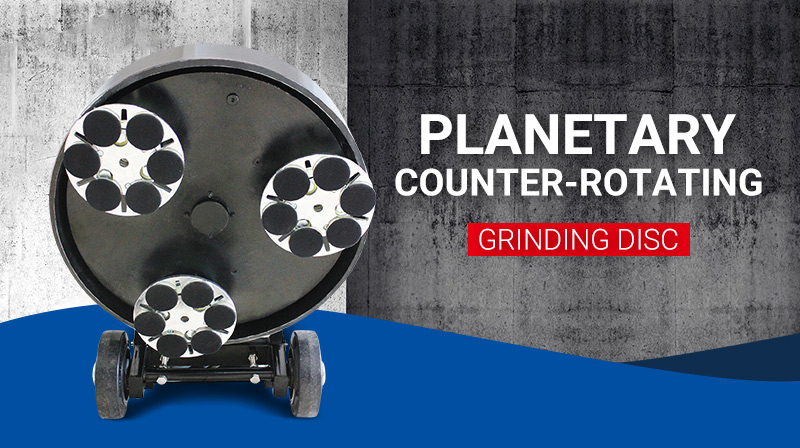

Planetary revolving grinding disc with 3 heads
USB port for charging cell phones

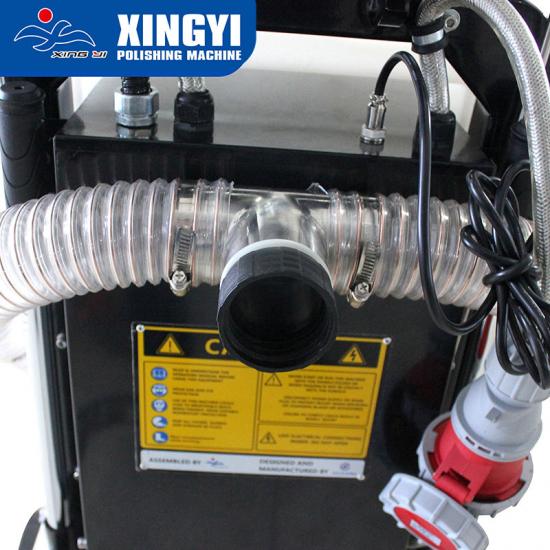

CE-certified aircraft plug of excellent quality

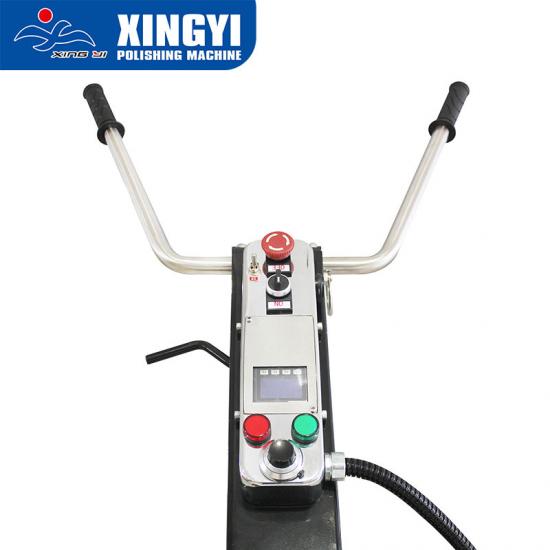

Easy-to-operate integrated control panel
Collapsible handle for easy storage and transportation
Stable performance from a high-precision gearbox



220v and 380v floor grinding machine

FAQ

Q1: How do you keep a floor grinder in good working order?
A1:
1. After each day's work, clean the grinder, paying specific attention to the dust on the dust skirt and grinding plates.
2. Clean the water tank once a week to avoid dust from clogging the filter.
3. All bolts and grinding plates must be verified and fastened after each job site is completed.
4. If the machine is often used for dry grinding, the inverter cooling fan should be cleansed every 20-30 days.
5. Replace the gear oil on a regular basis. After six months of operation, a new floor grinder's gear oil should be replaced. Once a year, the gear oil has to be replenished.
6. Hire a skilled technician to do equipment maintenance and keep track of what was done.


Q2:

Who makes the best concrete floor polishing machine?
