Ride On Concrete Power Trowel

Model:XY-N836

Power:16.5kw

Advantage:1.Reduce labor intensity and improve work efficiency;
2. It is heavier, has better compaction effect on the ground.

  • Brand:

    Xingyi
  • Item NO.:

    XY-N836
  • Product Origin:

    Jinjiang,China
  • Color:

    Orange and Black
  • Shipping Port:

    Xiamen
  • Lead Time:

    7-20 Days
Product Detail

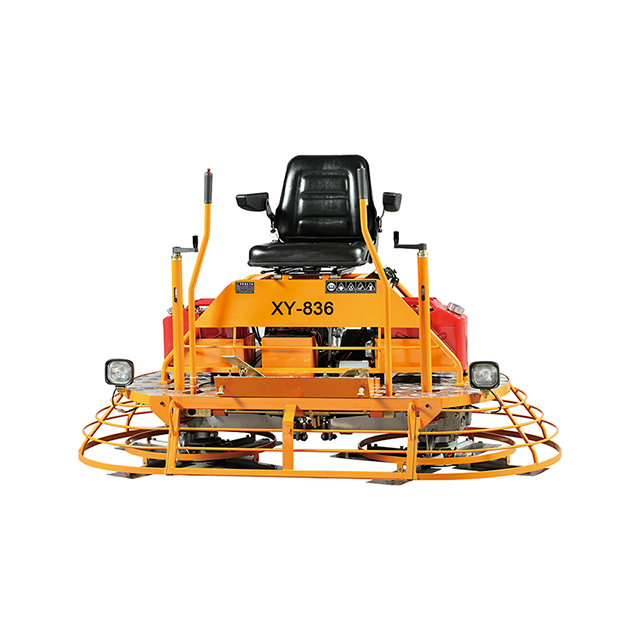

Ride On Concrete Power Trowel

Product Introduction

The ride-on trowel is suitable for lifting and troweling the surface of concrete.  Concrete troweling equipment is widely used in large-area floor construction of standard factory buildings, warehouses, parking lots, squares, frame buildings, etc.



concrete trowel machine for sale


Technical Parameters

Model

XY-N836

Engine   type

Honda GX690

Power kw(hp)

16.5kw(22)

Weight kg(lbs)

340(750)

Blade speed rpm

75-150 rpm

Working Dia.mm

1910

Overlapping

NO


Features and Advantages

1. The use of a driving trowel can greatly reduce labor intensity and improve work efficiency;

2. This machine has double cutter heads, is heavier, has better compaction effect on the ground, and is more efficient than hand-held trowels;

3. The machine's low center of gravity design makes the operation more stable and comfortable;

4. Self-equipped walking wheels and integrated mobile device provide great convenience for transportation;

5. Self-equipped lighting facilities, suitable for night work;

6. Mechanical steering operating system, with sensitive response and easy control.


Our Company

trowel machine


FAQ


Why should I buy from you?

1. Quality is guaranteed

2. Efficient service and responsible attitude.

3. Our engineering team has a rich construction experience and it is also a strong team for project consulting.

4. We hold international seminars every year, and you are always welcome to come to our company to study. Besides we are active in participating exhibitions and holding floor seminars in various countries.

5. We are offering a whole floor system, which can save your time and money, when your order reaches a certain amount(30000-50000usd) , we can even arrange our engineers to help you to do the projects.


How to Start ?

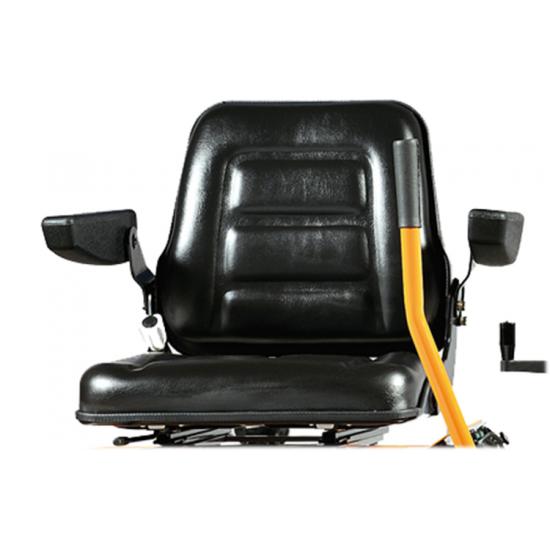

Before starting the operator must know the location and function of all controls. 1. Adjust the chair to the comfortable position for the operator. 2. Push down on the left safety stop pedal, turn the engine keyswitch, and hold it until the engine starts. NOTICE: If the engine is cold, pull out the choke control knob fully. The choke may need to be opened even when starting a warm engine. NOTICE: Cranking the engine for more than 5 seconds can cause starter damager. If the engine fails to start, release the keyswitch and wait 10 seconds before operating the starter again. 3. Allow the engine to warm up before operating the trowel. 4. Push down on the throttle foot pedal to start the trowel
