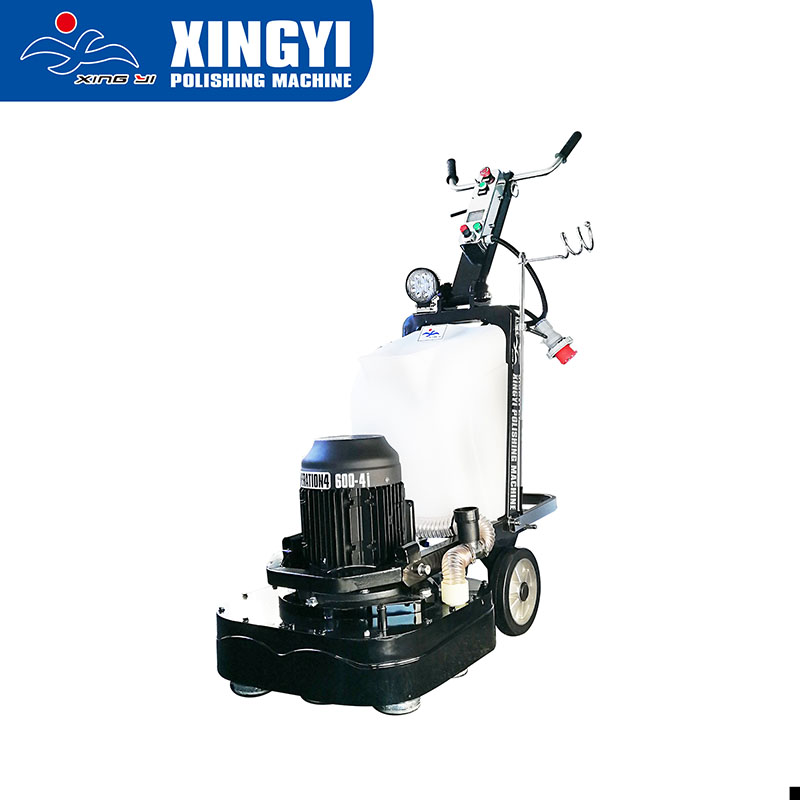

universal stainless steel concrete floor grinding equipment

universal stainless steel concrete floor grinding equipment is suitable for all series floor grinding, for example, hard floor grinding、concrete grinding、 epoxy floor grinding、hardening floor grinding、wear-resisting floor grinding、resin floor grinding etc

  • Brand:

    Xingyi
  • Item NO.:

    600-4I
  • Product Origin:

    China
  • Color:

    White and black
  • Shipping Port:

    Xiamen, China
  • Lead Time:

    14 days after getting payment from buyer
Product Detail

Products details





universal stainless steel concrete floor grinding equipment is suitable for all series floor grinding, for example, hard floor grinding, concrete grinding, epoxy floor grinding, hardening floor grinding, wear-resisting floor grinding, resin floor grinding etc










concrete floor grinding equipment standard equipment and accessories





Motor:Wonder 7.5KW  motor

Inverter Veichi 7.5KW
Water  tank capacity:18L
Motor rotating speed:350-1680rpm
Machine weight:235kg
Additional weight:30kh
Total weight:265kg

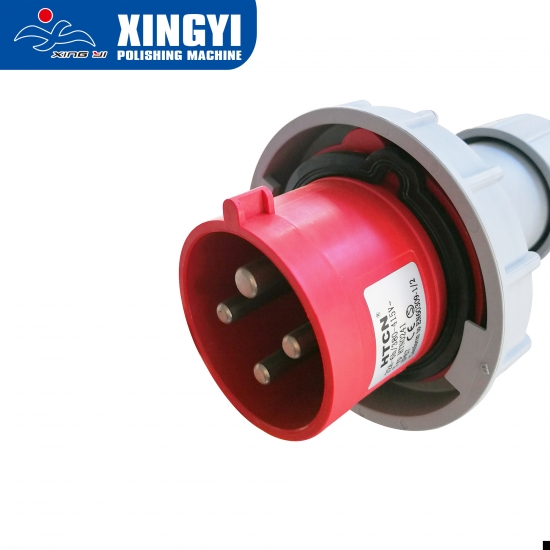

Voltage:220v/380v three phase

30kg additional weight*1pc

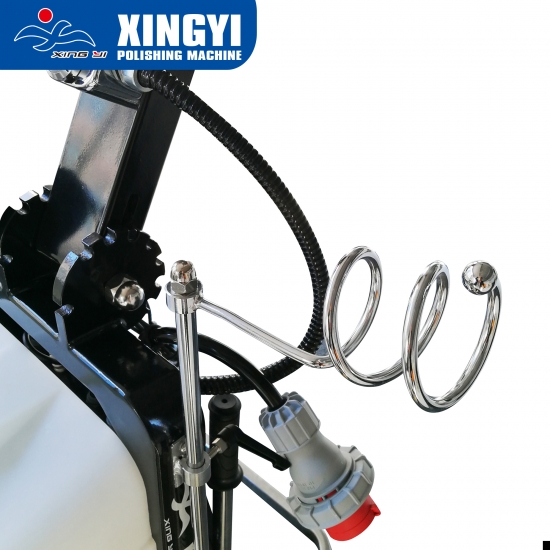

Carrying pole*2 pcs

Splash guard*1pc
4 inch convert blocks*12 pcs

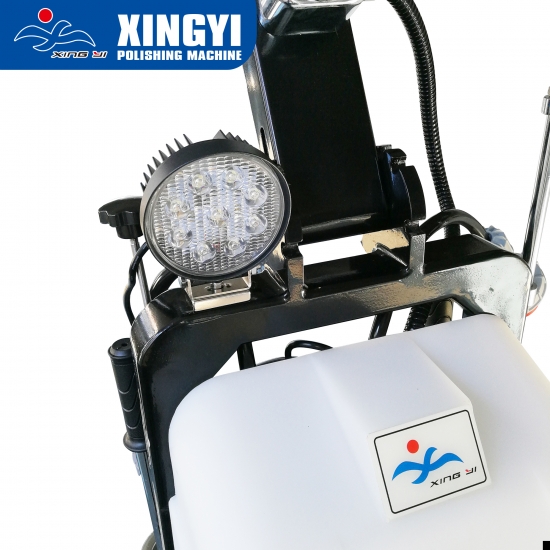

 LED light*1 pc








concrete floor grinding equipment part


Stable transmission device:in front of the frame installed the gear driven transmission
gearbox, to achieve motor power can 100% output, cooperate with inverter can make the device increase the rotation axis torque force at low speed, can be adapted to different needs of the polishing process and different surfaces so as to improve the grinding, force and higher efficiency;

Heavy Weight with large disc pressure: machine total weight is 265 kg, disc pressure will be sustained higher180 kg. Suitable for very hard floor  (such as granite, tiles, quartz sand
epoxy terrazzo, epoxy floor, cement floor) and very soft floor (such as marble, artificial

marble);


All-in-one gearbox design, increase the weight of the machine, to improve the efficiency of
levelling.Gearbox is made of aluminum alloy castings, well heat dissipation, not easy to
deformation.Do the precision processing in CNC machine processing center, reduced machining errors and extended the lifespan;

The direct connection of motor and gearbox can reduce the vibration of machine  so as to
reduce the noise caused by machine,  at the same time increase the floor flatness after
polishing;

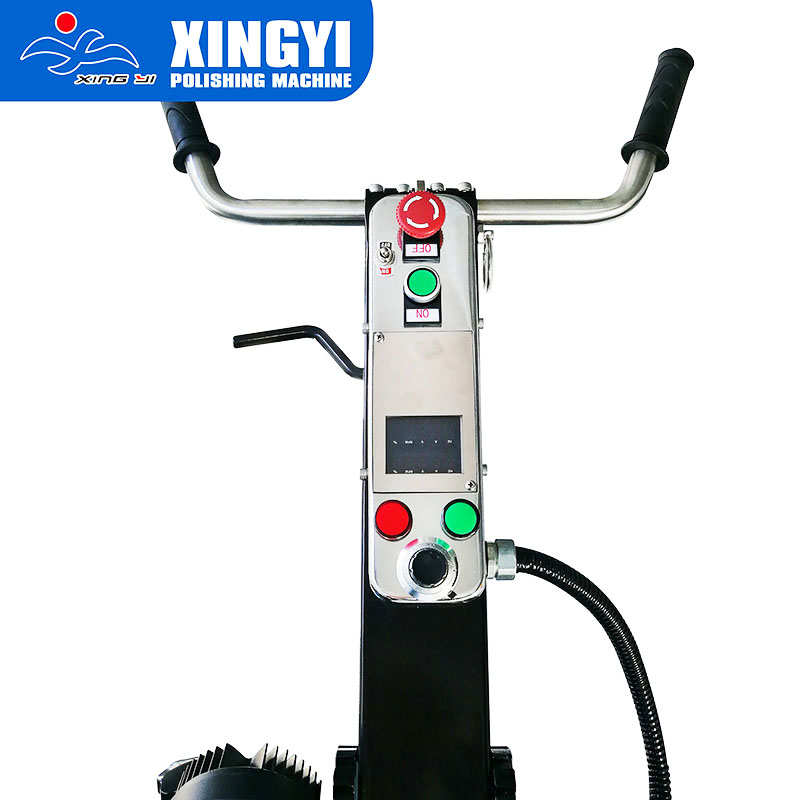

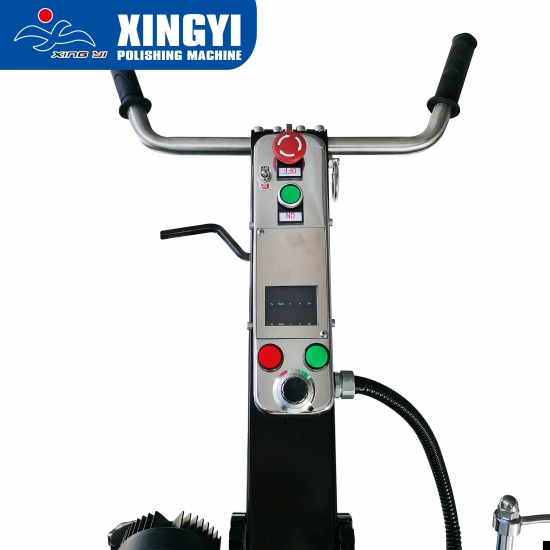

Concrete floor grinding equipment is easy operation, can also operated by women, which could reduce the labor cost. Lengthen handlebar can make a person quickly changed the consurables;

Adjustable rotation speed to satisfied different floor renovation, grinding requirements;

Original imported motor with low vibration, long working hours without heat-up, hard to
damage, the inverter is China's leading inverter manufacturers - Veichi;

Grinding disc highly tied with damping connection which is conducive to improve the grinding force and grinding efficiency;

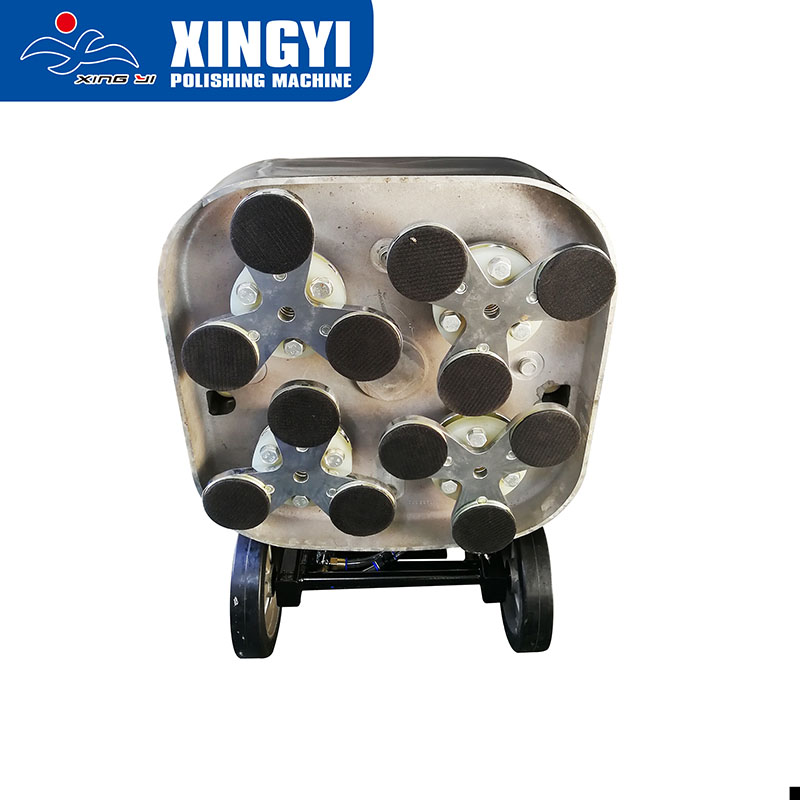

Four cross grinding disc with 12 grinding heads, grinding without leaving any gaps, which

can install various types of pads and reduce the construction costs;


High precise gear, a few more than normal processing, gear grinding teeth increased

hardness, precision (carburizing, straightening, vacuum heat treatment, nitriding, grinding
teeth); finishing mill occlusal degree increased, reducing high-speed operation of the mill
tooth damage and noise (intensive benchmark, finishing tooth).
