250D is a professional edge floor grinder, which is specially designed for small area job sites with various ground conditions (such as concrete, terrazzo, marble, cement, fiber, etc.).
Brand:
XingyiItem NO.:
250DProduct Origin:
Fujian, ChinaColor:
Black and silverShipping Port:
XiamenLead Time:

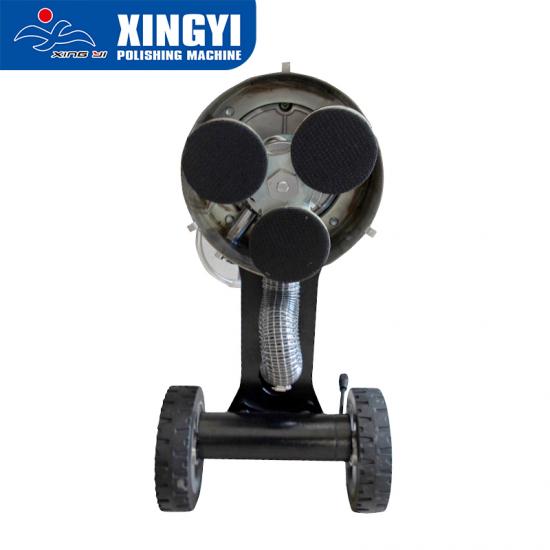

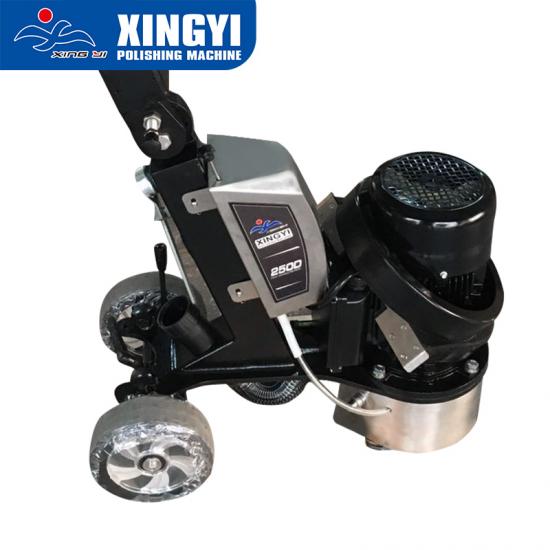

7-20 Days250D Small corner grinder and edge grinder

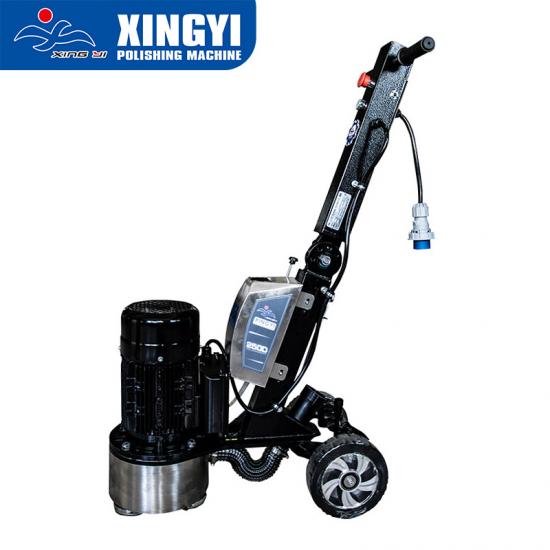

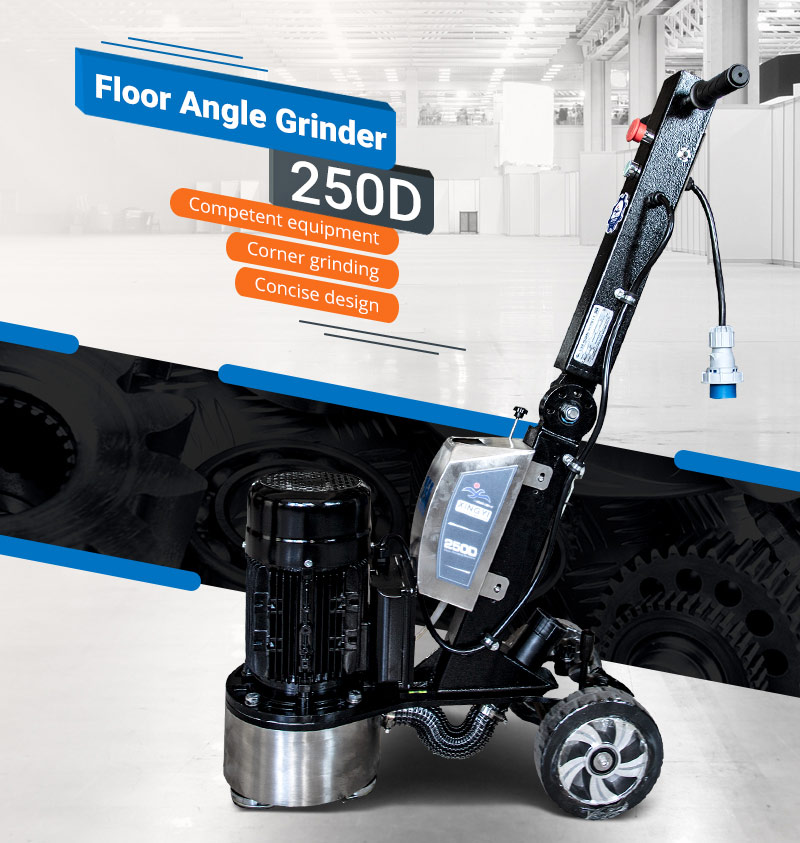

250D is a professional edge floor grinder, which is specially designed for small area job sites with various ground conditions (such as concrete, terrazzo, marble, cement, fiber, etc.). It can be used for small construction sites and their families. The grinder has a compact size of only 65 kg, and the small operating width of 250mm defines the range and characteristics of its grinding, and can be used for construction and household use. The concise design gives people an eye-catching experience. The good appearance makes it one of Xingyi's best-selling grinders.
Specifications
Model |
250D Small Concrete Polisher And Angle Floor Polisher |
|
Voltage |
110V 1 phase |
220V 1phase |
Current |
26.6A |
13.3A |
Operating width |
250mm |
|
Horse power |
2.2kw/3hp |
|
Rotating speed |
1460rpm |
|
Motor power |
ABLE motor |
|
Frequency |
50/60hz |
|
Packing size |
74*50*88cm |
|
Water tank |
8L |
|
Weight |
65KG |

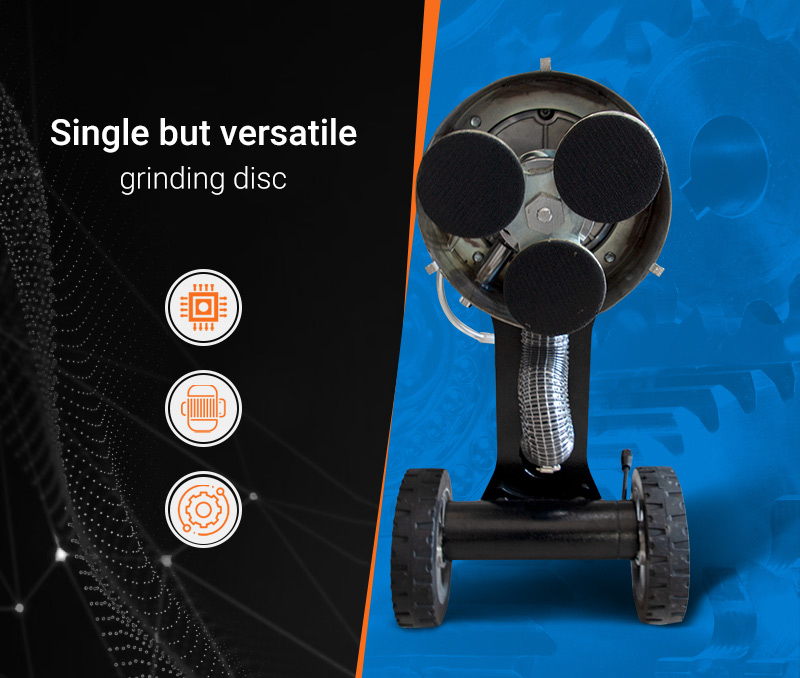

◆Single but universal grinding disc
◆Large starting torque of starting capacitor 400uf
◆Rugged and durable square tube welded frame
◆Equipped with thermal overload protector

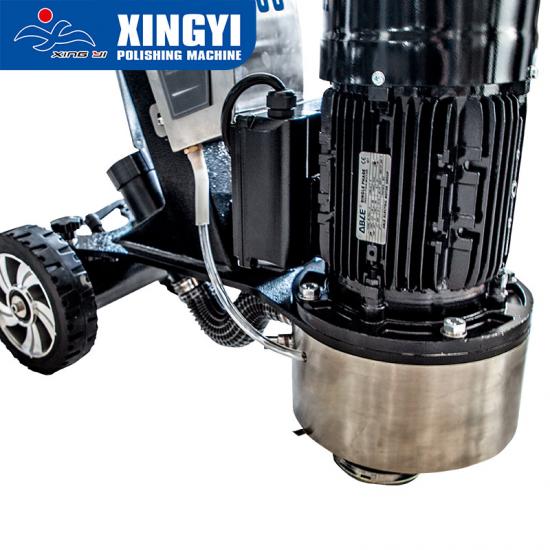

◆2.2KW high power well-known brand motor

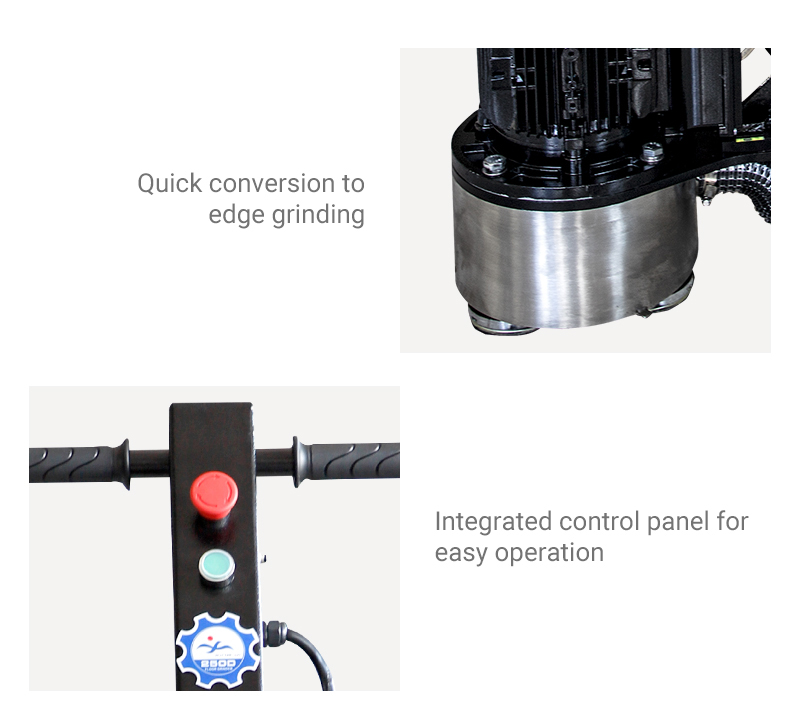

◆Integrated control panel, easy to operate

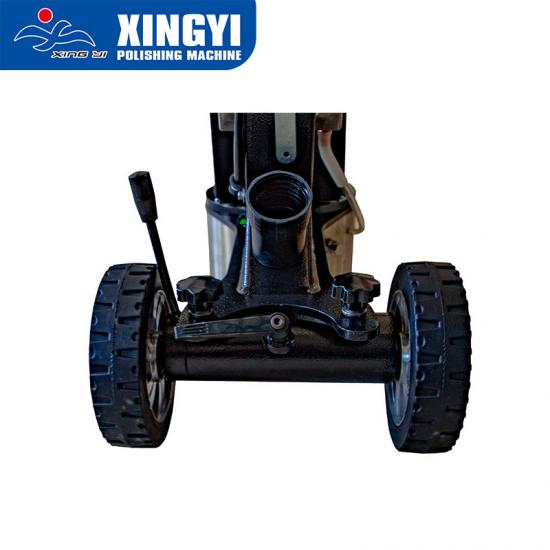

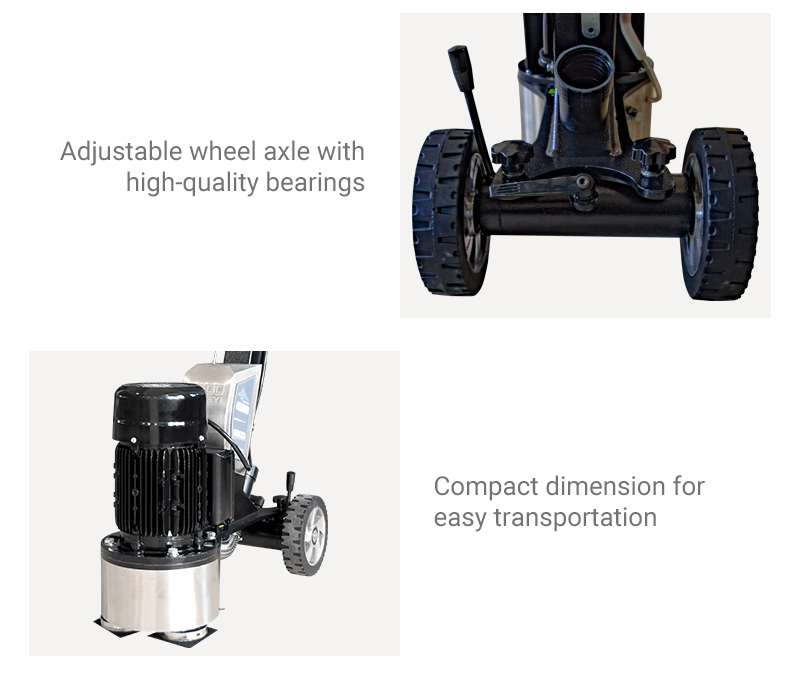

◆Adjustable axle with high-quality bearings
◆Compact size, easy to transport
Q1:
What is the grinding process?
A1:
Grinding is a machining process used to remove material from a workpiece with a grinding wheel. When the grinding wheel rotates, it cuts the material from the workpiece and at the same time produces a smooth surface texture during processing.
Q2:
How to polish the terrazzo?
A2:
1. Polishing equipment: floor grinder, vacuum cleaner, hand planer, angle grinder, air dryer (spare)
2. Polishing materials: label polishing pads, steel wool, white pads, animal hair pads
3. Polishing steps:
★ trial grinding
★Coarse grinding, the function of rough grinding is to smooth the ground and evenly, so that all the grinding stones and grid strips are exposed
★ Fine grinding, the function of fine grinding is to grind away the wear marks left by the rough grinding, and the surface is polished. For local pitted surfaces and small flaws, use the same method again to fill in the slurry and cure for 2-3 days.
★Polishing, compared with the previous two polishing, the role of polishing should be collected, instead of finer grinding discs, the polishing method is the same as before
★ Corner treatment, because large equipment can not be polished to the edge, so use a 250D angle grinder or hand planer to polish the corners, the steps are the same as the ground.
