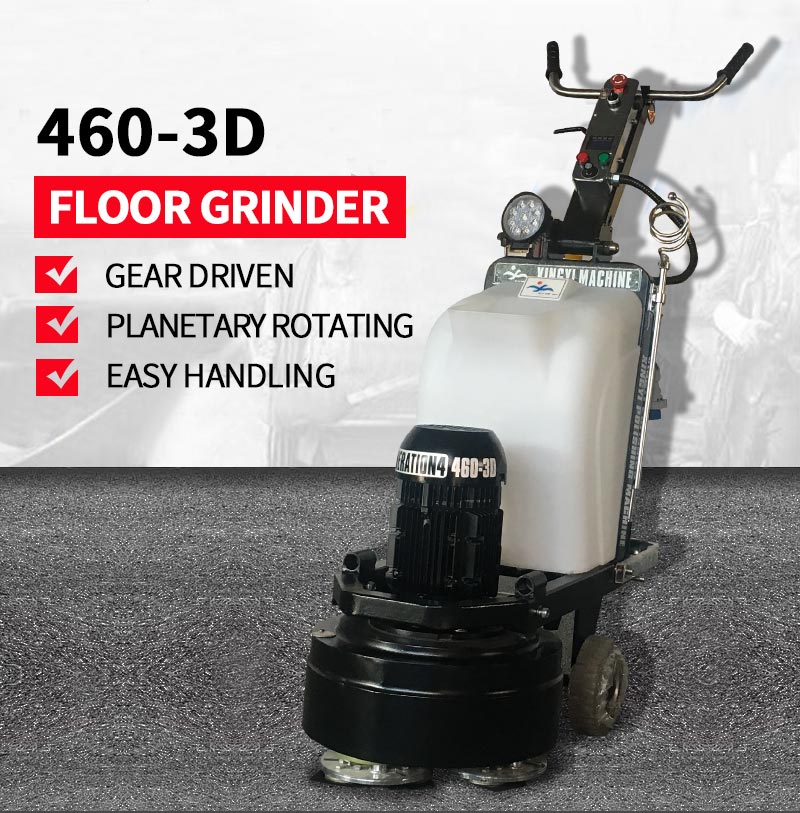

460-3D Best Floor grinding and polishing machine With Planetary Rotating

The 460-3D is a walk-behind floor grinder and polisher, which can be used for not only dry grinding but also water grinding. For wet grinding, after rotating the water switch, it can sprinkle water on the grinding plate, cooling abrasive to make higher working efficiency.

  • Brand:

    Xingyi
  • Item NO.:

    460-3D
  • Product Origin:

    Fujian, China
  • Color:

    Black And White
  • Shipping Port:

    Xiamen
  • Lead Time:

    7-20 Days
Product Detail

460-3D Best Floor grinding and polishing machine With Planetary Rotating

The 460-3D is a walk-behind floor grinder and polisher, which can be used for not only dry grinding but also water grinding. For wet grinding, after rotating the water switch, it can sprinkle water on the grinding plate, cooling abrasive to make higher working efficiency. Equipped with a 4 HP famous brand WEG motor and high-quality inverter, planetary rotating system, it is of high grinding efficiency and stable performance. It is productive for various flooring work such as concrete, terrazzo, cement, etc. With a compact dimension and 460mm working width, it is easy to operate and transport in daily work.

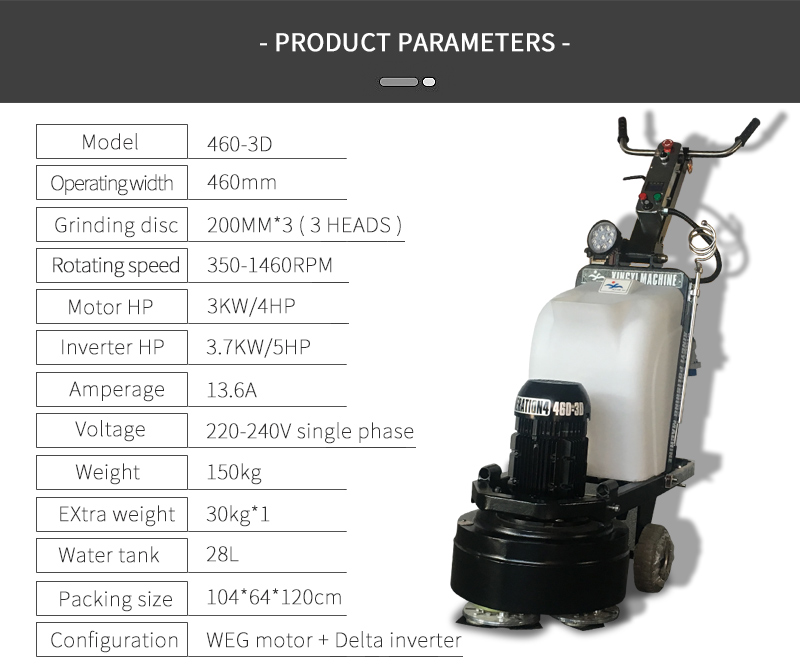

Specification

Model

460-3D Planetary floor grinder and concrete polisher

Operating width

460mm

Grinding disc

200mm*3 ( 3 heads )

Rotating speed

360-1260rpm

Motor HP

3KW/4HP

Inverter HP

3.7KW/5HP

Amperage

10.8A

Voltage

220-240V single phase

Weight

150kg

EXtra weight

30kg*1

Water tank

28L

Packing size

104*63*120cm

Configuration

WEG motor + Delta inverter

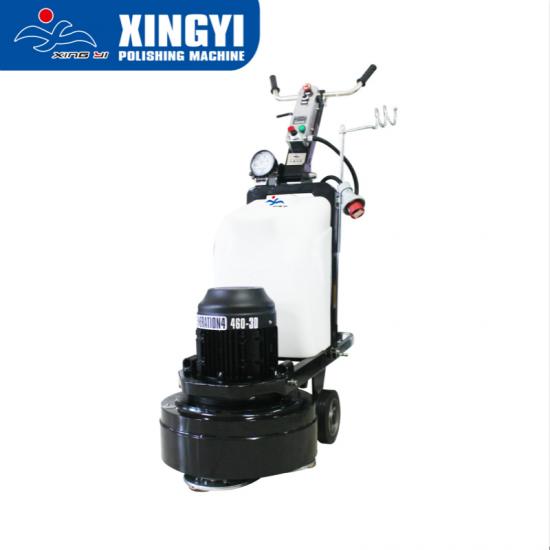

Super floor grinder with WEG motor


Product display

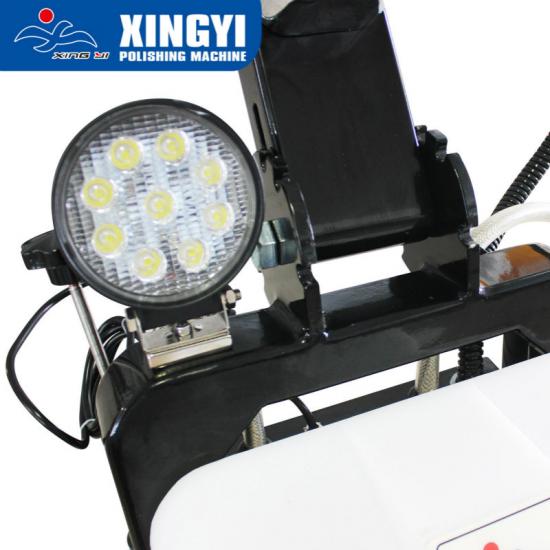

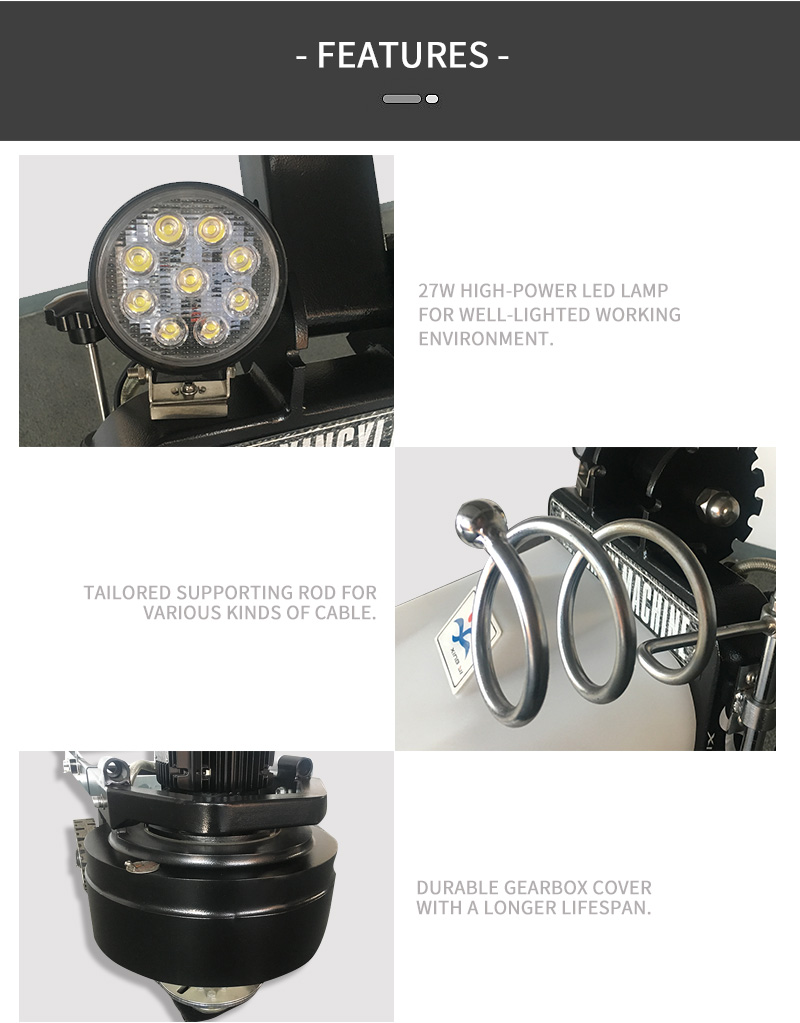

▶27W high-power LED lamp for well-lighted working environment.

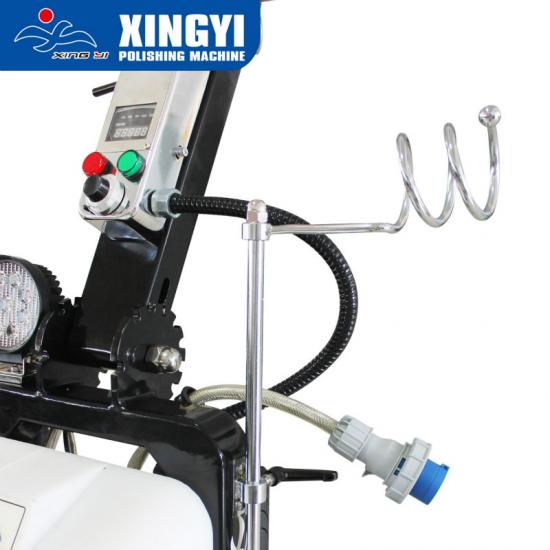

▶Tailored supporting rod for various kinds of cable.

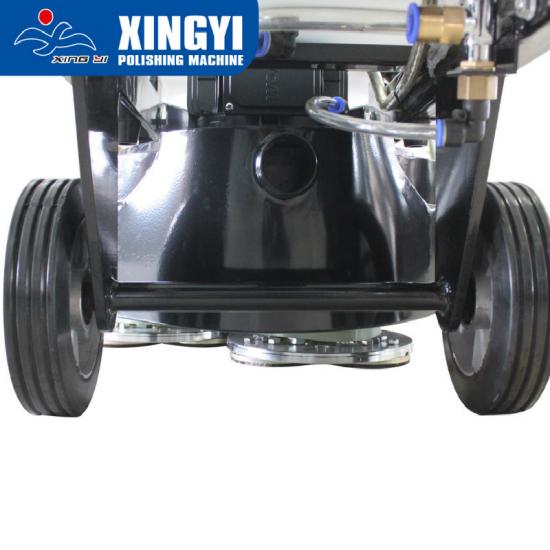

▶Durable gearbox cover with a longer lifespan.

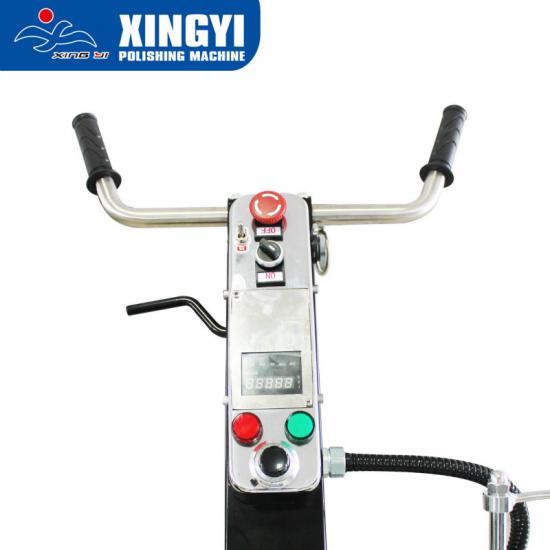

▶Separable electric cabinet for convenient disassembly and maintenance.

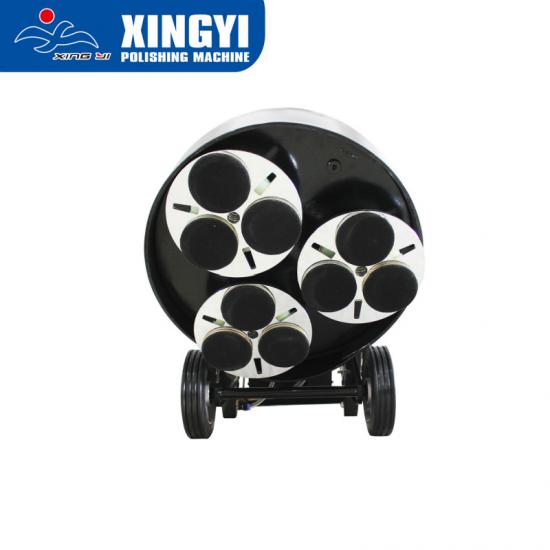

▶Versatile grinding plate for all kinds of abrasives.


Hand push concrete floor grinder polisher

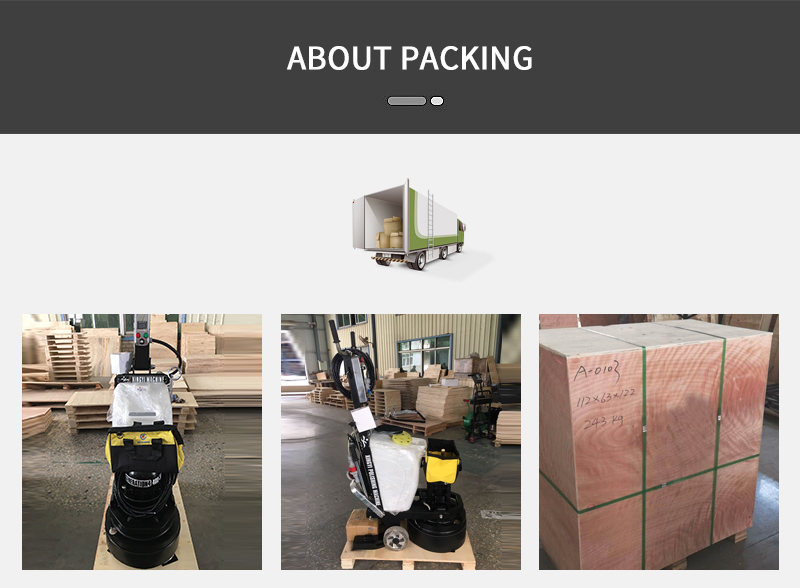

Package



FAQ

Q1:How do you fix holes and cracks on the floor with a grinding machine?
A1:Grinding repairing is suitable for the hole less than 10mm and cracks less than 1mm.
①Tools: The 460-3D floor surface grinder, a dustless cutting machine, metal pads, EC-1008, fast-drying cement, bucket watering can.
②Clean all the sundries on the floor with a vacuum cleaner.
③Apply a sufficient EC-1008 repair agent when there is no obvious waterlogging.
④Grind directly with the 460-3D floor grinding equipment with the diamond pad(120#) until all holes and cracks are filled(speed should be 800-1000rpm)
⑤Check whether the repair is completed, protect the ground with water 3-5 times.


Q2: What are the main products of Xingyi?
A2:
① The XY and High Tech Grinding Brand Polishing Machines which enable the Planetary or Rotatory direction.
② The High Tech Grinding Diamond abrasives from metal to resin for polishing.
③ The High Tech Grinding Chemicals for repairing, hardening, sealing and stone crystallization.


Contact us

Email: xingyi19@polishingmachine.cc

Whatsapp: 008615960731060


A free consultation

Enable the global floor labors to work with health, Easy and happiness
