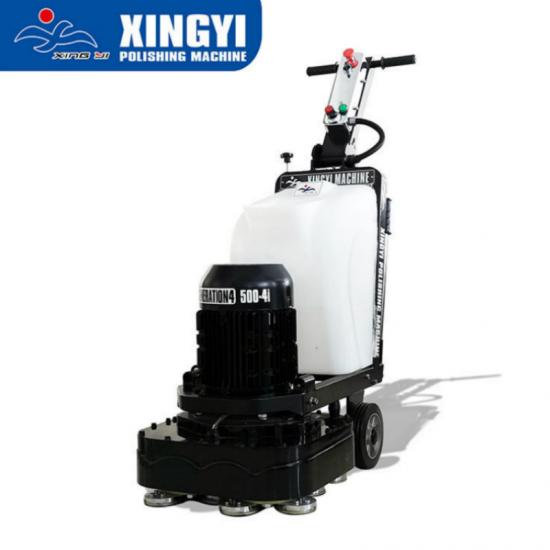

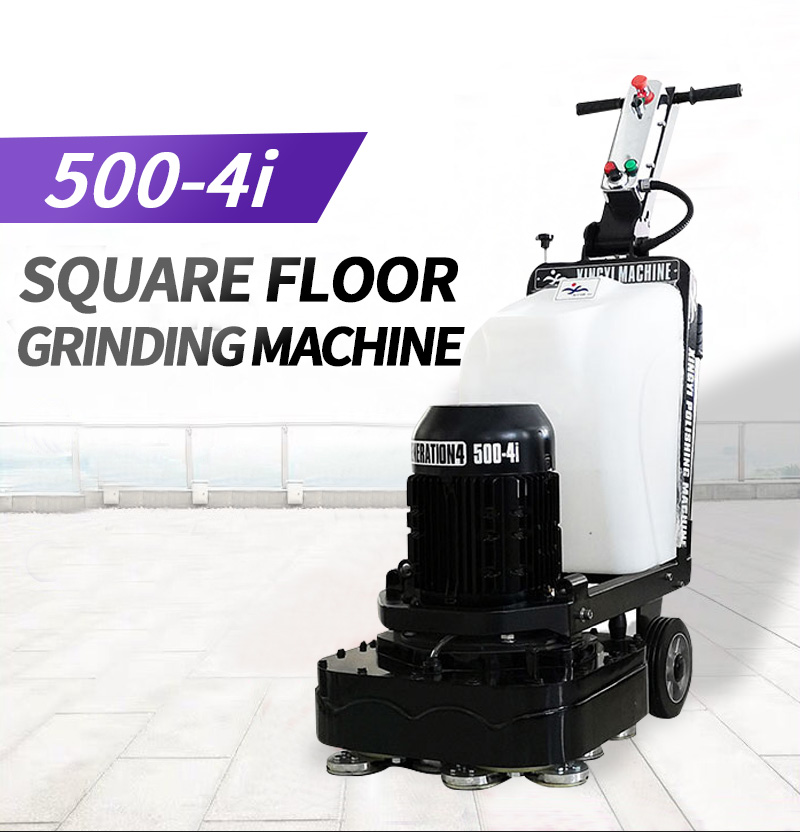

The 500-4i concrete floor surface preparation machine is a classcial square floor grinder. Equipped with 4 heads contra-rotating gearbox and 500mm working width, it is designed for medium-sized commercial or industrial projects.
Brand:
XingyiItem NO.:
500-4iProduct Origin:
Fujian, ChinaColor:
Black And WhiteShipping Port:
XiamenLead Time:
7-20 Days500-4i Professional And Classical Square Floor Grinding Polishing Machine
Specifications
The 500-4i concrete floor surface preparation machine is a square floor grinder. Equipped with 4 heads contra-rotating gearbox and 500mm working width, it is designed for medium-sized commercial or industrial projects. Equipped with a high-grade WEG motor, it ensure superior work efficiency in floor grinding and polishing.The screws installed in this machine are 304 stainless steel screws, which are not easy to get rusty.
Model |
500-4i Floor surface grinding polishing machine |
|
Voltage |
380-440V 3P |
220-240V 3P/1P |
Operating width |
500mm |
|
Grinding disc |
270mm*4 |
|
Rotating speed |
350-1460rpm |
|
Motor HP |
5.5KW/7.5HP |
|
Inverter HP |
7.5KW/10HP |
|
Weight |
175kg |
|
Water tank |
28L |
|
Packing size |
140*88*120cm |
|
Configuration |
WEG motor + Veichi inverter |
WEG motor + Delta inverter |
Product display

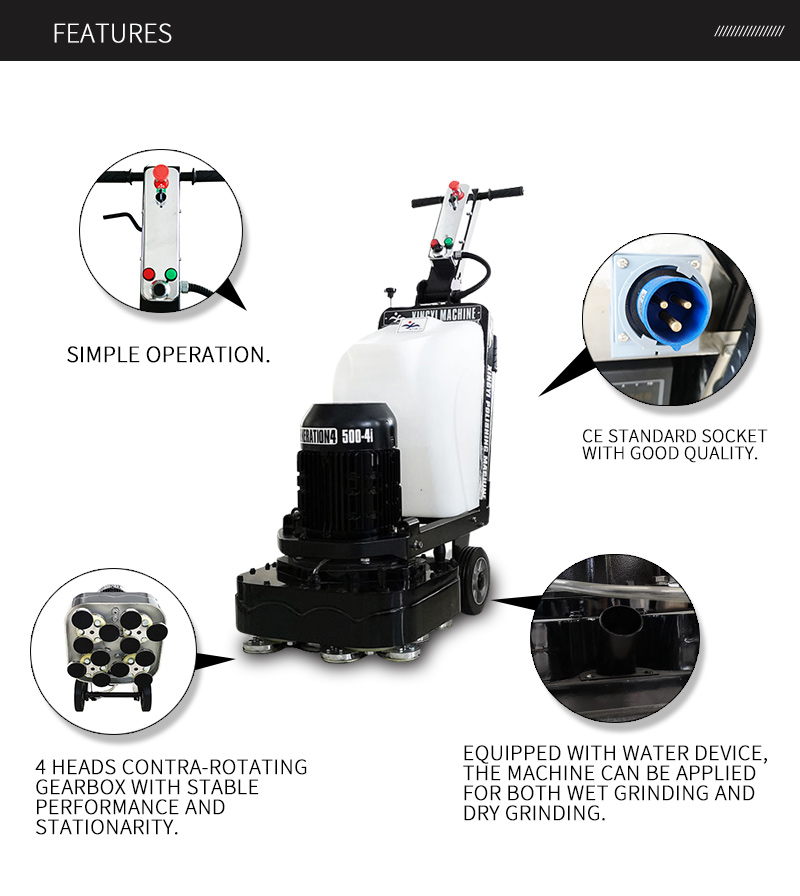

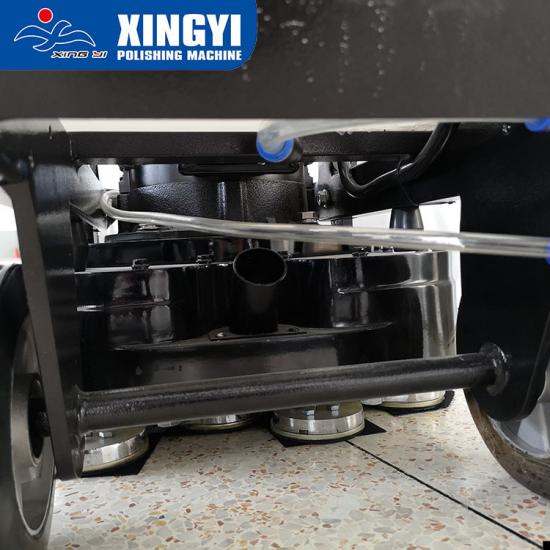

★Equipped with water device, the machine can be applied for both wet grinding and dry grinding.

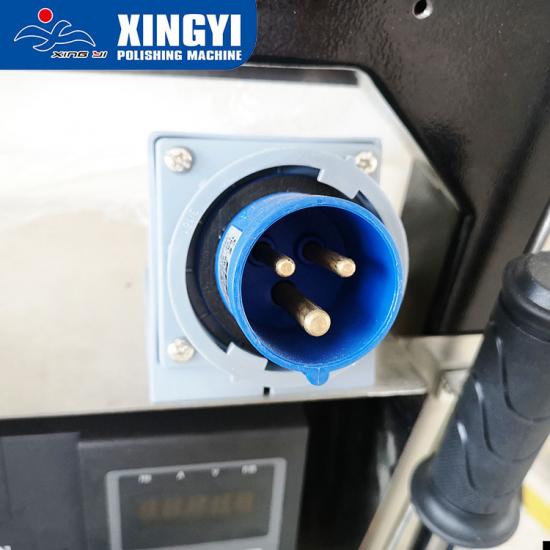

★CE standard socket with good quality.

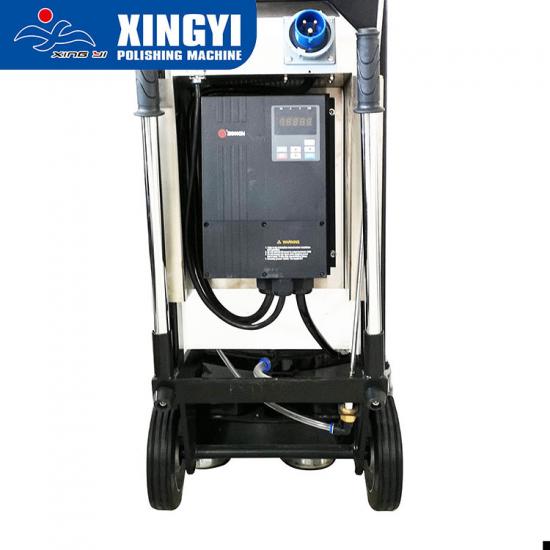

★Independent design of electric cabinet convenient for assembly, disassembly and maintenance.

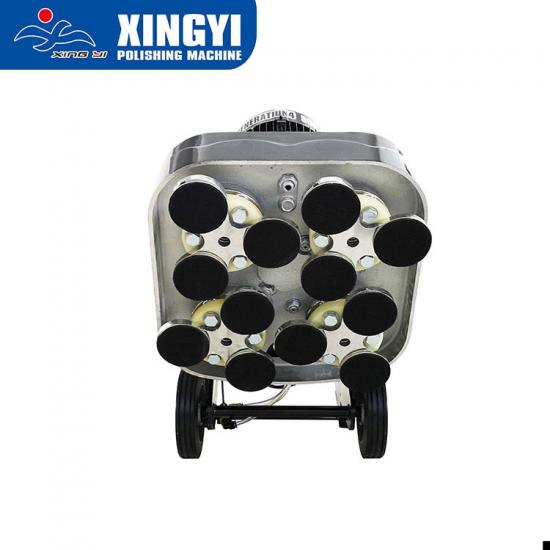

★4 Heads contra-rotating gearbox with stable performance and stationarity.
★High-power LED lamps to illuminate dark areas.

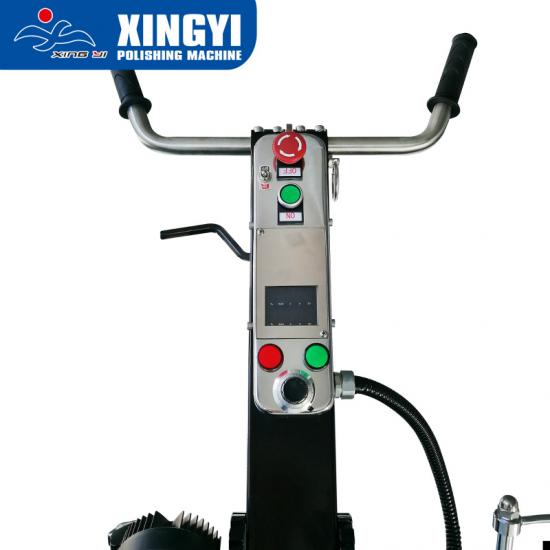

★ Integrated control panel for easy operation.
FAQ
Q1:How do you use a diamond floor grinder?
A1:
Q2:How is the quality of your gearbox assembly?
A2:
Xingyi's gearboxes are made of aluminum alloy, casted with high-precision aluminum abrasives, with thick walls and excellent heat dissipation. The flange seat made of thick steel is built-in to ensure excellent heat dissipation and sufficient rigidity. It is processed by imported CNC machine tools with a machining accuracy of 0.005mm, and the machine's repeated positioning accuracy is 0.001mm.
