Home Global Xingyi Floor Grinder 460-3D Professional Stone And Concrete Floor Grinding Machine Equipment

New Products

460-3D Professional Stone And Concrete Floor Grinding Machine Equipment

The 460-3D floor repairing and removal machine is a productive floor surface preparation equipment. Equipped with a 28L large capacity of PE water tank, it can be applied for both dry grinding and wet grinding.

  • Brand:

    Xingyi
  • Item NO.:

    460-3D
  • Product Origin:

    Fujian, China
  • Color:

    Black and white
  • Shipping Port:

    Xiamen
  • Lead Time:

    7-20 Days
Product Detail

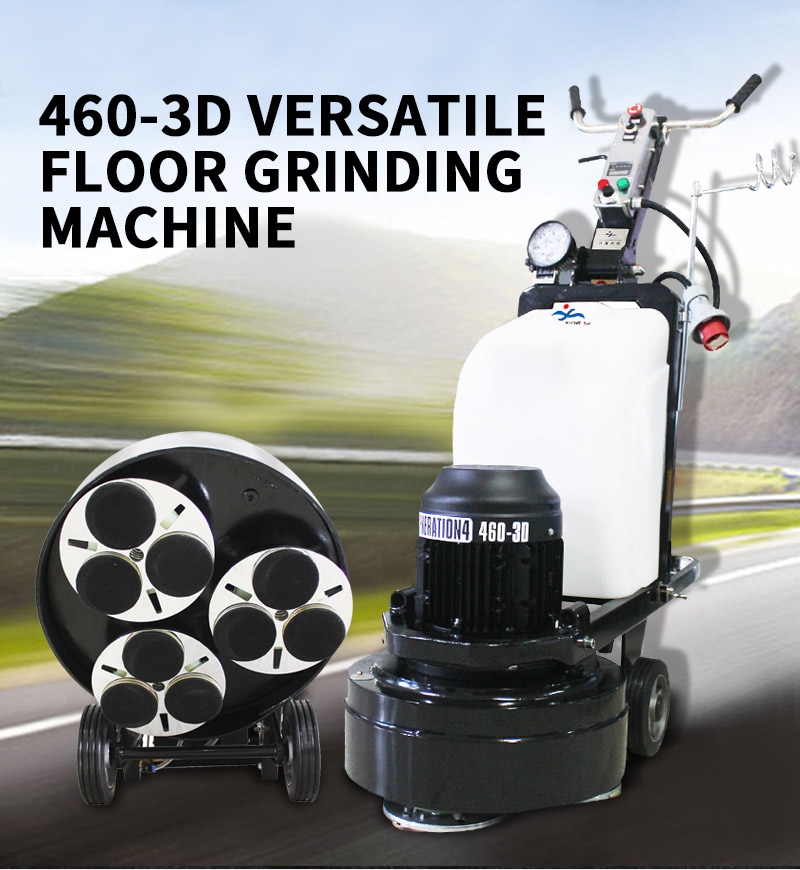

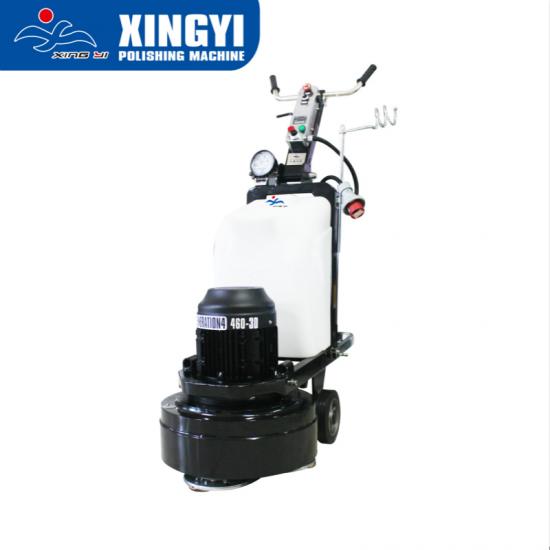

460-3D Professional Stone And Concrete Floor Grinding Machine Equipment

The 460-3D floor repairing and removal machine is a productive floor surface preparation equipment. Equipped with a 28L large capacity of PE water tank, it can be applied for both dry grinding and wet grinding. When in the wet grinding, rotating the water switch, it can sprinkle water on grinding plates, cooling abrasives to make grinding work more efficient and reduce raising dust. Its 4HP world-renowned WEG motor and 3 heads planetary rotating disc make high working efficiency and stable performance. The assembled three 200mm planetary grinding discs are electroplated in multiple processes, which are not easy to rust and have good grinding effects. Large diameter wheels for excellent mobility and stability. Comes with 220-240v single phase power, it can be applied for both construction site and home use.


Specifications

Model

460-3D Planetary concrete floor grinder and polisher

Operating width

460mm

Grinding disc

200mm*3 ( 3 heads )

Rotating speed

350-1460rpm

Motor HP

3KW/4HP

Inverter HP

3.7KW/5HP

Amperage

13.6A

Voltage

220-240V single phase

Weight

150kg

EXtra weight

30kg*1

Water tank

28L

Packing size

104*64*120cm

Configuration

WEG motor + Delta inverter

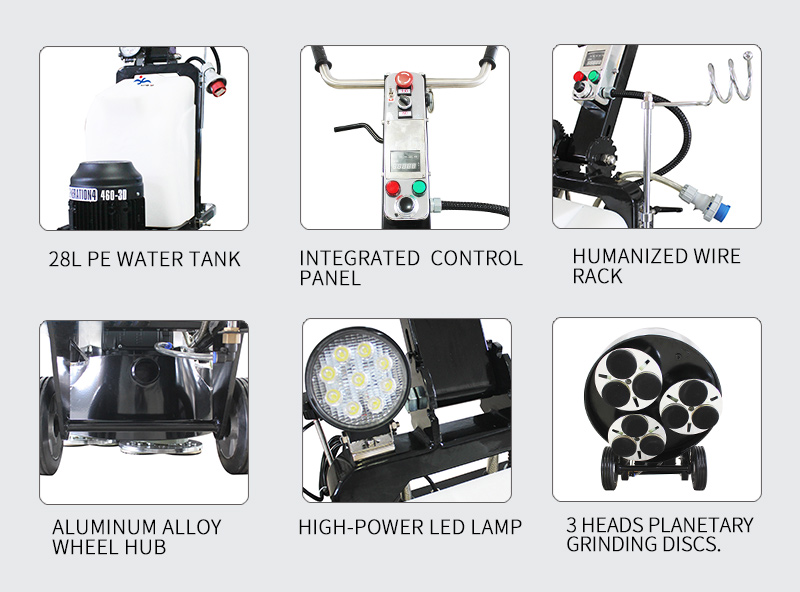

Product display

Walk-behind floor polisher grinder

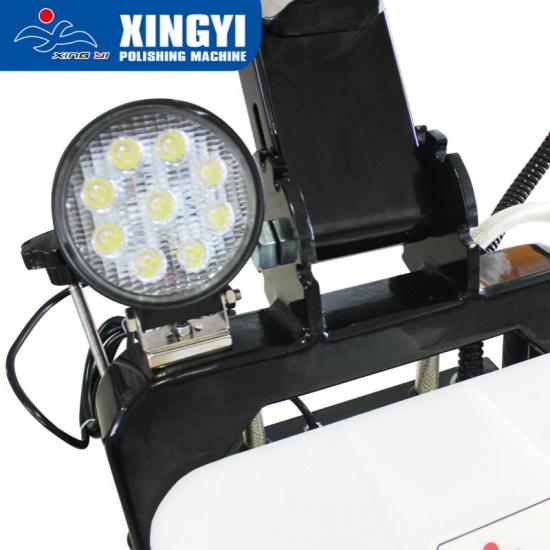

☞27W high-power LED lamp for well-lighted working environment

CE standard aviation plug with high quality

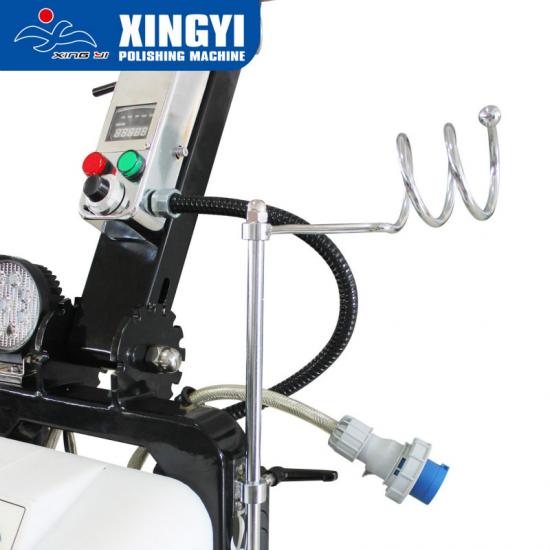

Tailored supporting rod for various kinds of cable

28L PE water tank for wet grinding work

Durable gearbox cover with a longer lifespan.

Separable electric cabinet for convenient disassembly and maintenance

High-precision gearbox with stable performance

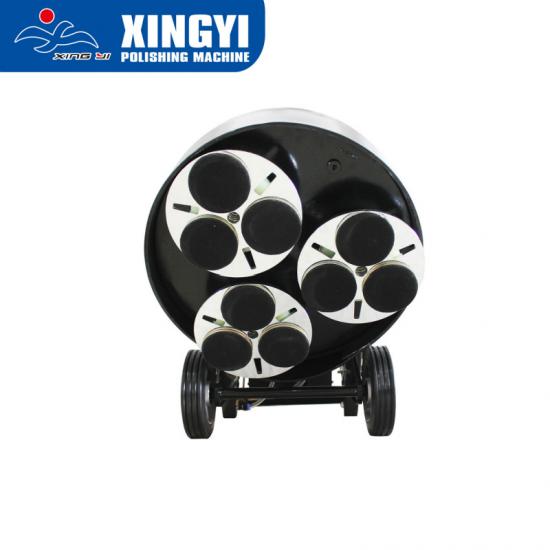

Versatile grinding plate for all kinds of abrasives



FAQ

Q1:how do you maintain a floor grinder?

A1

1. Clean the grinder every day after work, especially the dust on dust skirt and grinding plates.

2. Clean the water tank every week to prevent the dust blocks the filter.

3. After finishing each job site, all bolts and grinding plates need to be checked and fasten.

4. If the machine is often used in dry grinding, then the cooling fan of inverter need to be cleared every 20-30days.

5. Replace the gear oil termly. Usually, a new floor grinder needs to replace the gear oil after six months of use. Later, the gear oil needs to be replaced once a year.

6. Ask professional technician to do the machine maintenance and record the content of maintenance.


Q2:What is the best concrete floor grinder?

A2:Generally speaking, you can distinguish a grinder by listening to the sound of the gearbox. And you can check machine main parts like the motor and inverter are what brand, world-famous or bad quality one. And how about machine work efficiency, when use it are you feel tired. Last but not least, machine warranty and factory service also very important.


Email: xingyi15@polishingmachine.cc
Skype: xingyistone15
Whatsapp: 008615960788815


A free consultation

Enable the global floor labors to work with health, Easy and happiness
