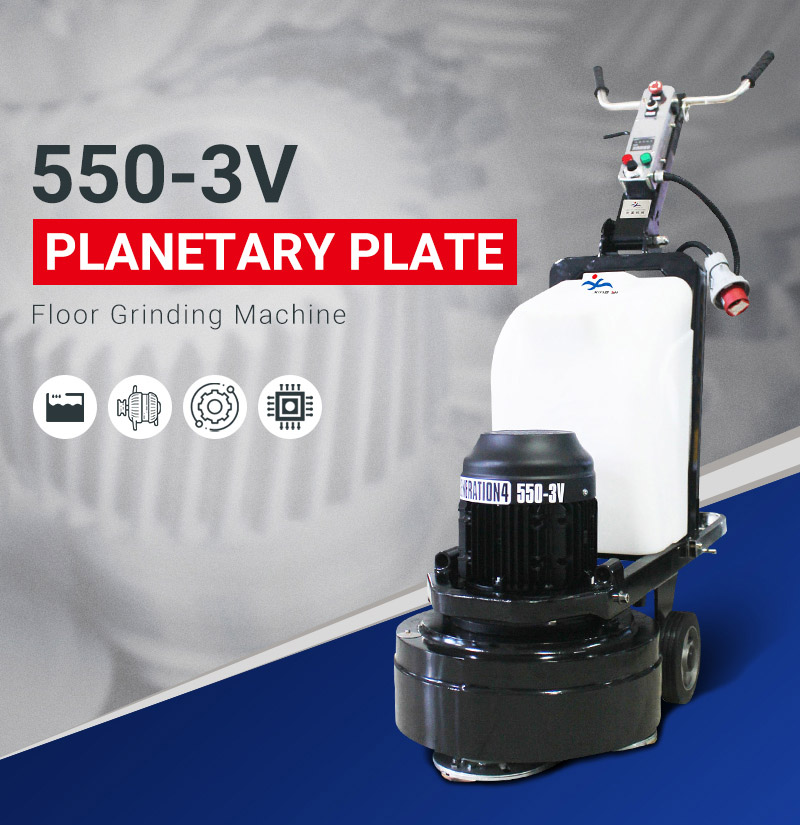

550-3V Multifunctional Planetary Plate Concrete Floor Grinding And Polishing Machine

The 550-3V concrete electric floor grinding and polishing machine is a multifunctional floor surface repair and removal equipment. Equipped with 28L PE large capacity water tank, it can be applied for both dry grinding and water grinding.

  • Brand:

    Xingyi
  • Item NO.:

    550-3V
  • Product Origin:

    Fujian, China
  • Color:

    Black and white
  • Shipping Port:

    Xiamen
  • Lead Time:

    7-20 Days
Product Detail

550-3V Multifunctional Planetary Plate Concrete Floor Grinding And Polishing Machine

The 550-3V concrete floor grinding and polishing machine is a multifunctional floor surface repair and removal equipment. Equipped with 28L PE large capacity water tank, it can be applied for both dry grinding and water grinding. During the water grinding, rotating the water switch, it can sprinkle water on grinding discs, cooling abrasives to make grinding work more efficient and reduce raising dust. Its 5.5HP high-quality WEG motor and 3 heads planetary rotating platesmake high grinding efficiency and stable performance. The 550-3V is an productive floor surface prep machine for polishing floor to a bright effect or restoring old slabs for newer architectural finishes.


Specifications

Model

550-3V Diamond floor surface grinder and polisher

Voltage

380-440V three phase

220-240V 1  phase

Amperage

8.3A

14.4A

Operating width

550mm

Grinding disc

230mm*3 (3heads)

Rotating speed

360-1680rpm

Motor HP

4KW/5.5HP

Inverter HP

5.5KW/7.5HP

Weight

165kg

Extra weight

30kg*1

Water tank

28L

Packing size

104*63*120cm

Configuration

WEG motor + Veichi inverter


Product display

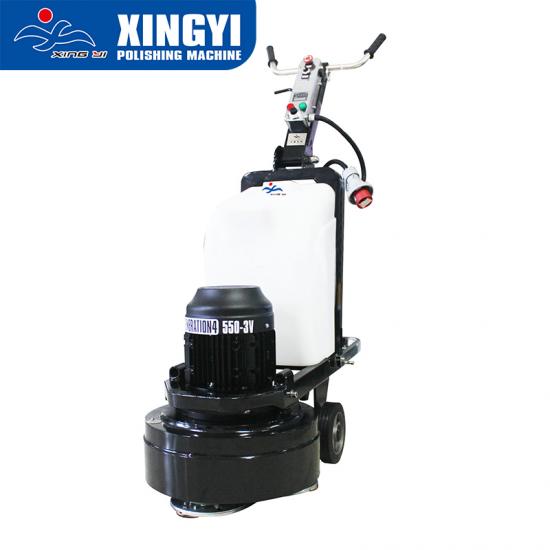

Walk-behind floor grinding machine equipment

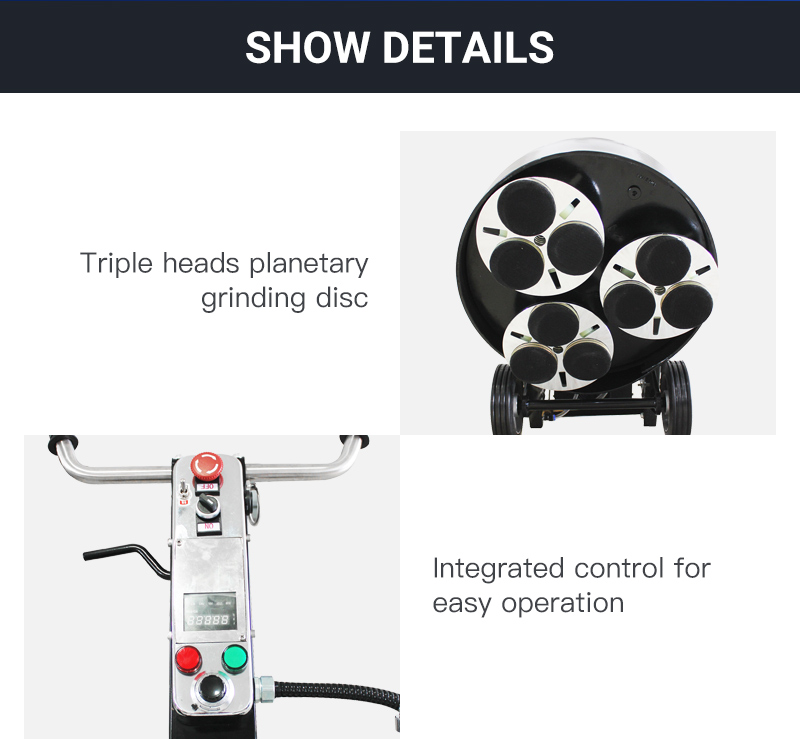

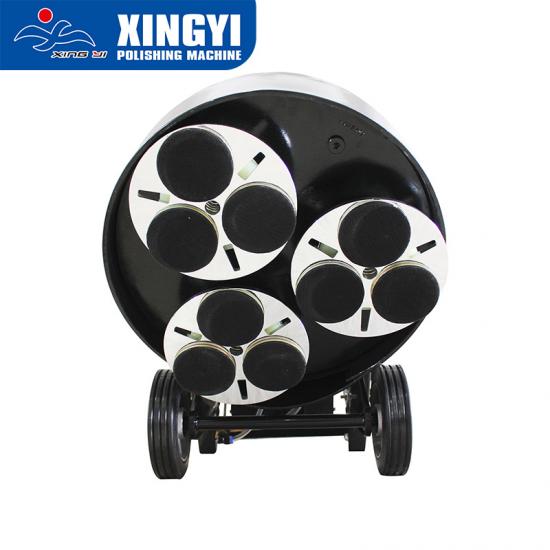

☛3-head planetary rotating grinding disc

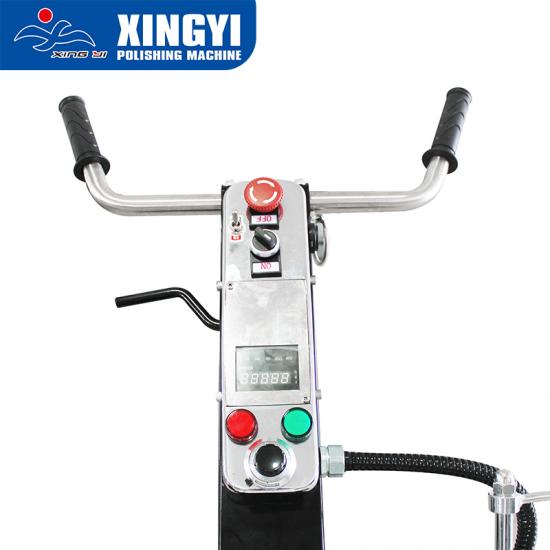

☛Integrated control panel for easy operation
☛50mm suction port for vacuum cleaner

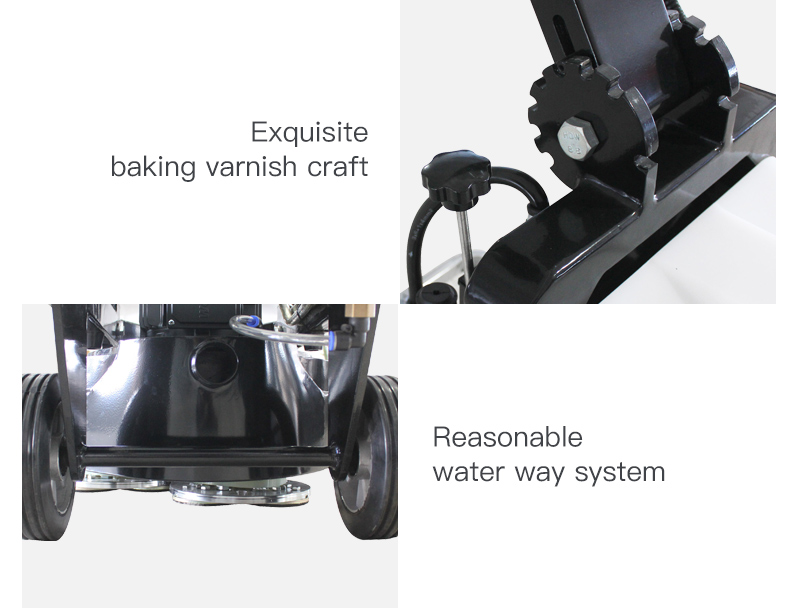

☛Exquisite baking varnish craft
☛CE Standard aviation plug

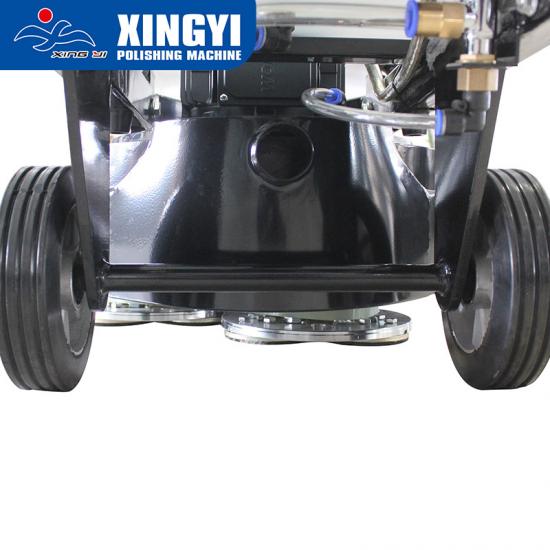

☛Logical water way system for wet grinding
☛Rubber wheel with superior aluminium alloy hub
☛The exterior screws are made of 304 stainless steel with long service life
☛The planetary gear transmission system with uniform grinding effect

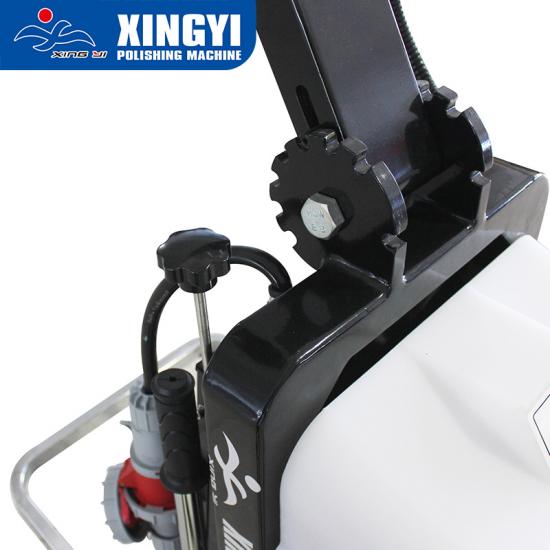

☛Convenient waterway switch position with convenient operation


Marble granite cement floor grinding machine


Professional floor surface prep machine


FAQ

Q1:how do you maintain a floor grinder?

A1

1. Clean the grinder every day after work, especially the dust on dust skirt and grinding plates.

2. Clean the water tank every week to prevent the dust blocks the filter.

3. After finishing each job site, all bolts and grinding plates need to be checked and fasten.

4. If the machine is often used in dry grinding, then the cooling fan of inverter need to be cleared every 20-30days.

5. Replace the gear oil termly. Usually, a new floor grinder needs to replace the gear oil after six months of use. Later, the gear oil needs to be replaced once a year.

6. Ask professional technician to do the machine maintenance and record the content of maintenance.
