460-3D Single Phase Floor Grinder And Industrial Concrete Polisher Wth Three Discs

The 460-3D floor grinder is equipped with planetary rotating system, which reduce the deviating force during grinding process and make the grinding flatness higher when comparing with similar grinding machine.

  • Brand:

    Xingyi
  • Item NO.:

    460-3D
  • Product Origin:

    Fujian, China
  • Color:

    Black And White
  • Shipping Port:

    Xiamen
  • Lead Time:

    7-20 Days
Product Detail

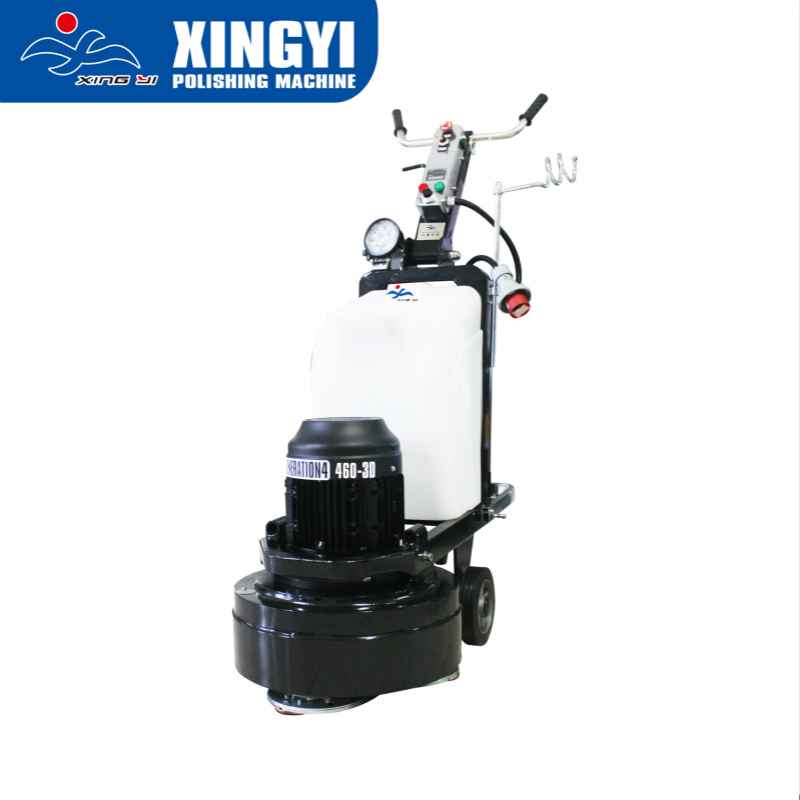

460-3D Single Phase  Floor Grinder And Industrial Concrete Polisher Wth Three Discs


Specifications

Model

460-3D Planetary floor grinder and concrete polisher

Operating width

460mm

Grinding disc

200mm*3 ( 3 heads )

Rotating speed

360-1260rpm

Motor HP

3KW/4HP

Inverter HP

3.7KW/5HP

Amperage

10.8A

Voltage

220-240V single phase

Weight

150kg

EXtra weight

30kg*1

Water tank

28L

Packing size

104*63*120cm

Configuration

WEG motor + Delta inverter

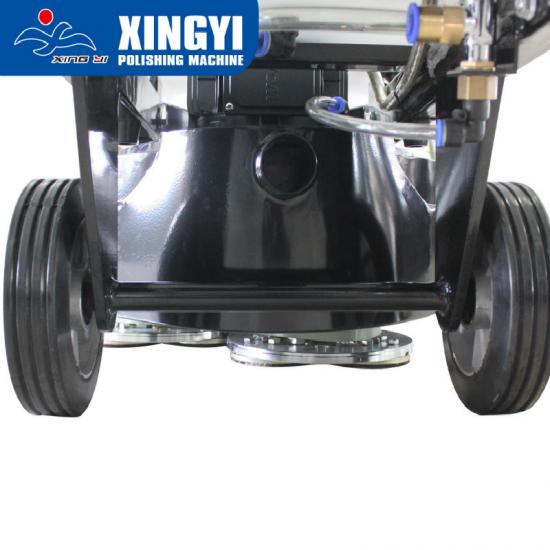

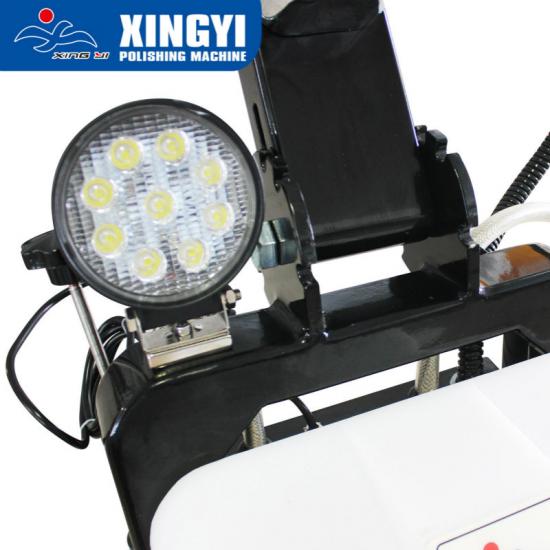

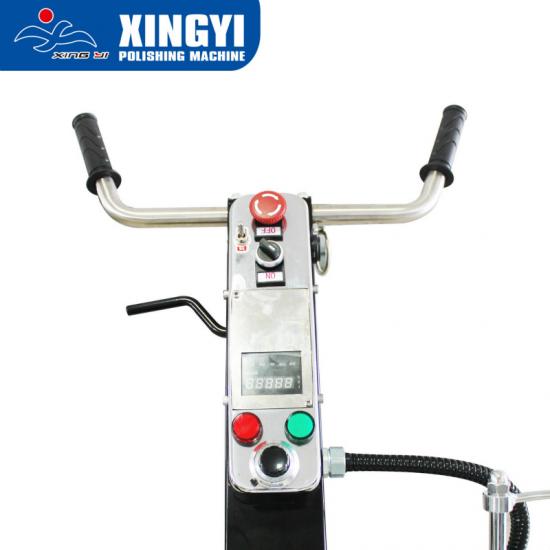

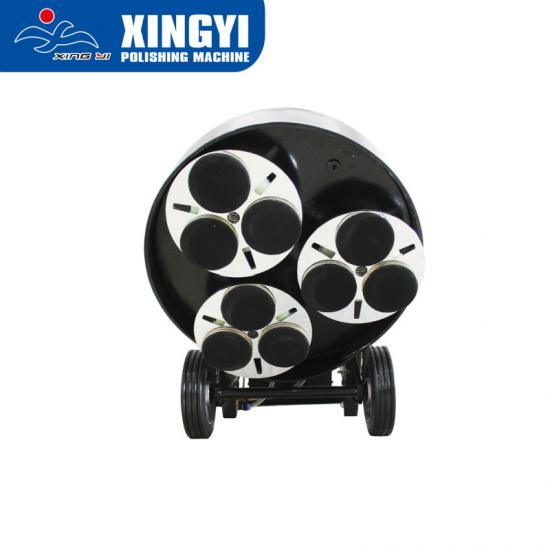

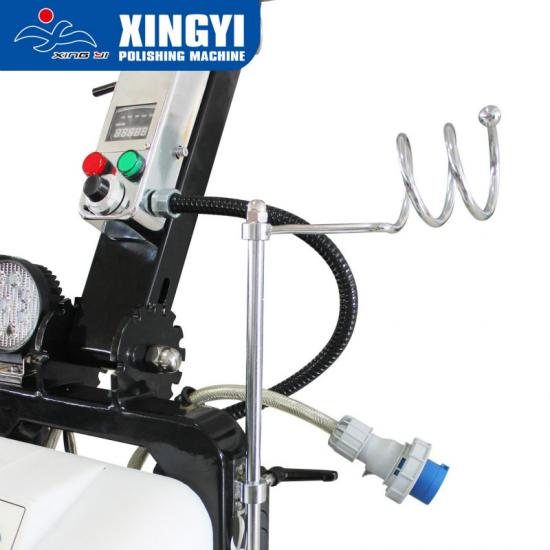

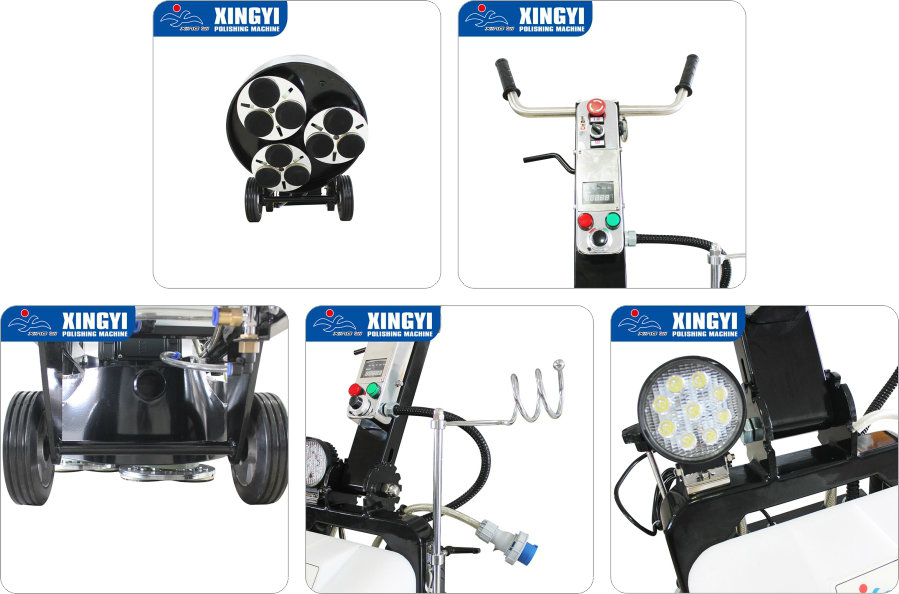

Product display


460mm working width floor polisher


If you need a 220V single phase floor grinder, with good effect and suitable for stone polishing, The 460-3D floor grinder is your first choice.

1.Ideal for polishing projects under 5,000 square feet;

2.Grout removal tool polisher for flooring;

3.Large rear wheel assembly for easier transport;

4.Easier to operate than counter-rotating machines.




Gear-driven floor concrete grind

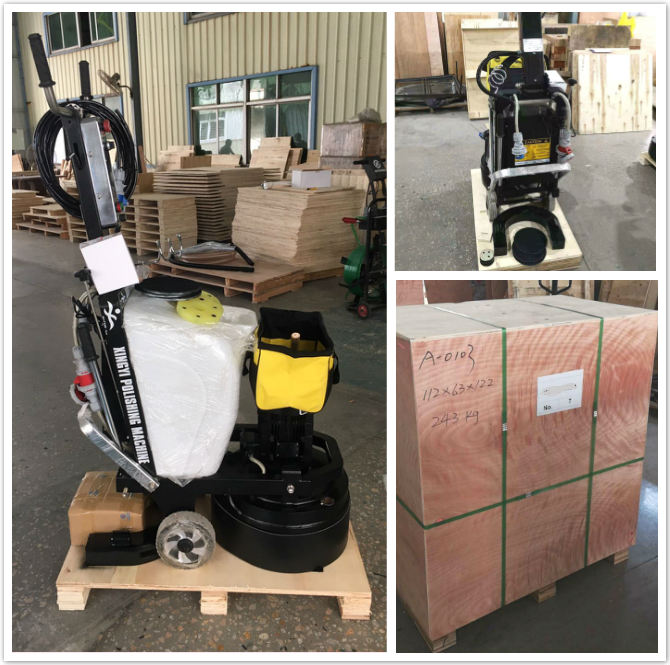

Package


Floor Grinder And Concrete Polisher



FAQ

Q1:How long can the 460-3D floor grinding machine be used per day?

A1:

①It is recommended that the normal working time is 8-10 hours, but it can also be operated for 24 hours if your project is urgent.

②The machine is the same as the car. We need to maintain it according to the maintenance regulations every month every week , so that the machine can last longer.

③During construction, it is recommended to have a good construction environment, the machine is fully equipped, check the working condition of the machine in real time, pay attention to maintenance, and replace the maintenance of gear oil for half a year.

④Construction workers regularly attend training and maintain the machine, the service life and construction effect of the machine will be much better.


Q2:How long is the guarantee period in the 460-3D floor grinder?

A1:The guarantee period of motor and inverter is one year, and gear two years.  If it is beyond the guaranteed period and the spare parts are broken due to a long time using, then the charge of the new parts and express will be paid by the customer, and we will send relevant steps or videos to help you to repair.


Contact us

Email: xingyi19@polishingmachine.cc

Whatsapp: 008615960731060

A free consultation

Enable the global floor labors to work with health, Easy and happiness
