460-3V Electric Floor surface polishing machine

460-3V Walk-behind Diamond Concrete Floor Surface Grinding Polishing Machine

The 460-3V concrete floor grinding machine is a versatile floor surface repair and removal equipment. Equipped with 28L large volume water tank, it can be applied for both dry grinding and wet grinding.

Brand:
Xingyi
Item NO.:
460-3V
Product Origin:
Fujian, China
Color:
Black And White
Shipping Port:
Xiamen
Lead Time：
7-20 Days

Product Detail

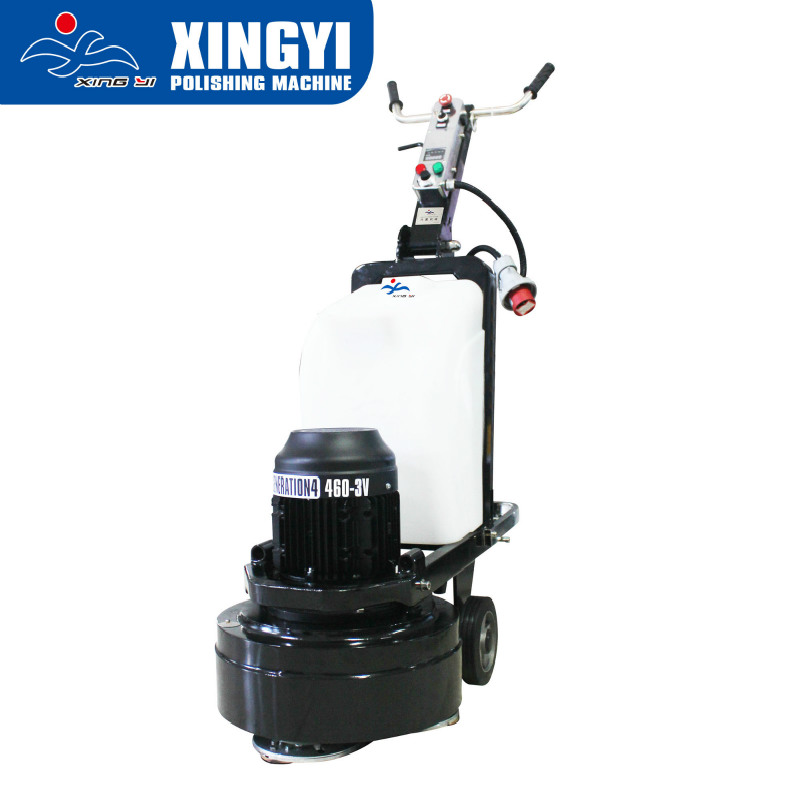

460-3V Walk-behind Diamond Concrete Floor Surface Grinding Polishing Machine

The 460-3V cement floor grinding and polishing machine is a versatile floor surface repair and removal equipment. Equipped with 28L PE large volume water tank, it can be applied for both dry grinding and wet grinding. When in the wet grinding, rotating the water switch, it can sprinkle water on grinding discs, cooling abrasives to make grinding work more efficient and reduce raising dust. Its 4HP powerful WEG motor and 3 heads planetary rotating disc make high grinding efficiency and stable grinding effect. Comes with 220-240v single, it can be applied for both construction site and domestic use. In general, the 460-3V is an ideal floor surface prep machine for polishing floor to a bright effect or restoring old slabs for newer architectural finishes.

Specifications

Model	460-3V Diamond floor grinding machine
Operating width	460mm
Grinding disc	200mm*3 ( 3 heads )
Rotating speed	360-1260rpm
Motor HP	3KW/4HP
Inverter HP	4KW
Amperage	10.8A
Voltage	220-240V single phase
Weight	150kg
EXtra weight	30kg*1
Water tank	28L
Packing size	10463120cm
Configuration	WEG motor + Veichi inverter

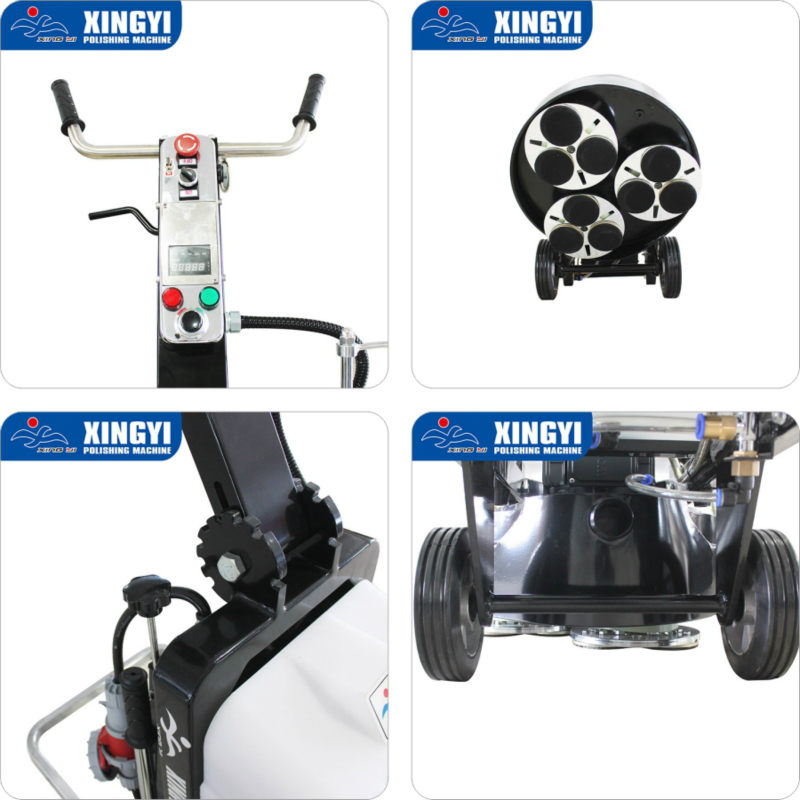

Product display

Planetary floor polishing and grinding machine

☞4HP, 150kg for both small and large sizes of floor working area.

☞High-precision gearbox with long service life and stable performance

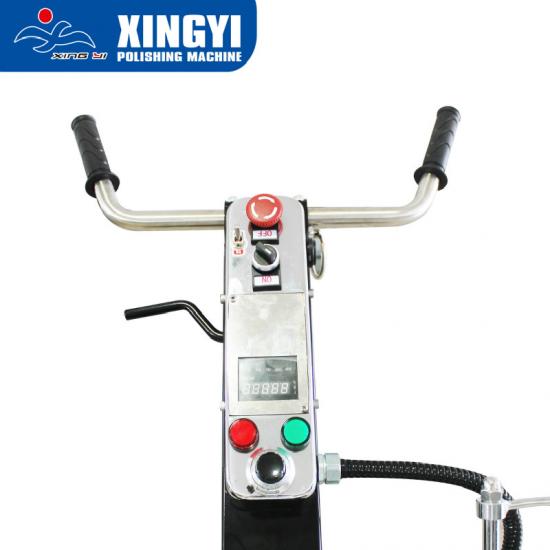

☞Integrated control panel for easy operation

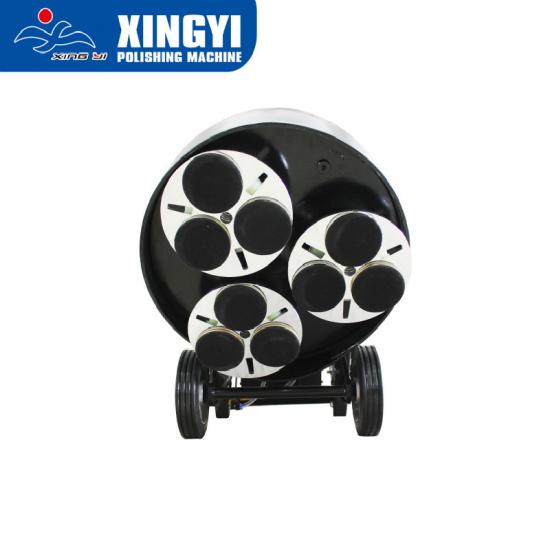

☞Polishing discs run with planetary direction to provide sharp grinding and uniform scratch

☞Polishing discs are available for different kinds of abrasives to meet different purposes.

☞WEG motor to ensure strong starting torque and high efficiency.

FAQ

Q1:how do you maintain a floor grinder?
A1：
1.Clean the grinder every day after work, especially the dust on dust skirt and grinding plates.
2.Clean the water tank every week to prevent the dust blocks the filter.
3.After finishing each job site, all bolts and grinding plates need to be checked and fasten.
4.If the machine is often used in dry grinding, then the cooling fan of inverter need to be cleared every 20-30days.
5.Replace the gear oil termly. Usually, a new floor grinder needs to replace the gear oil after six months of use. Later, the gear oil needs to be replaced once a year.
6.Ask professional technician to do the machine maintenance and record the content of maintenance.

Q2:What is the perfect concrete floor grinder?
A2:
In a general way, you can distinguish a grinder by listening to the sound of the gearbox assembly. Check the machine's main parts such as the brand of motor and inverter, if it is a world-famous or bad quality one. And check about machine work efficiency, when use it are you feel tired or not. Last but not least, machine warranty and factory service are also crucially important.
