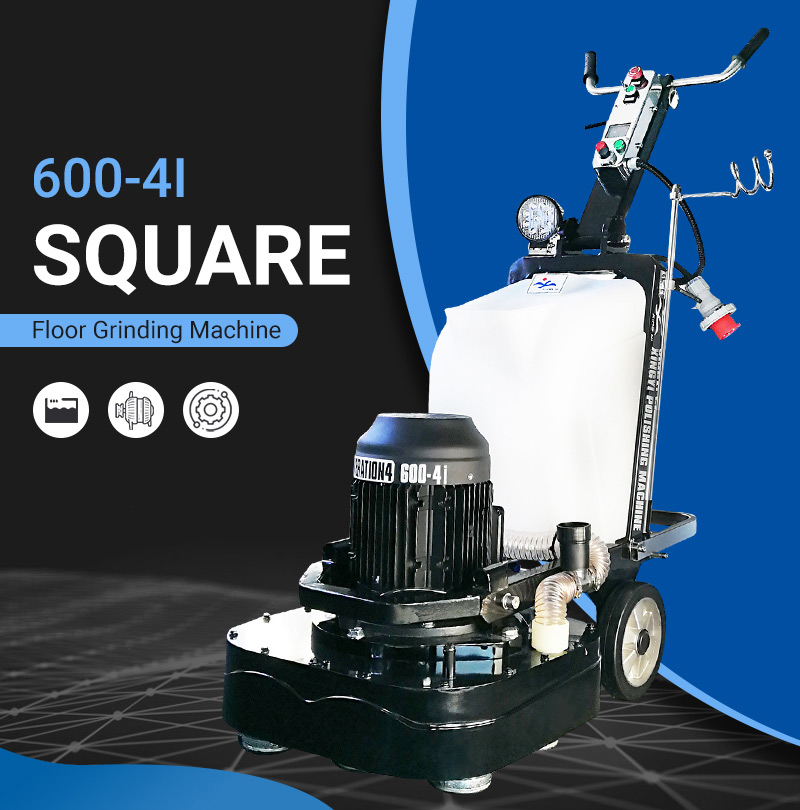

600-4i Square Plate ConcreteCement Floor Grinding Polishing Machine

The 600-4i concrete floor surface prep machine is classical square plate grinder manufactured by Xingyi. Equipped with a 10HP world-renowned motor, high-quality inverter, 4 heads counter rotating grinding plates and high-precision gearbox, it is of strong grinding performance and high working efficiency.

  • Brand:

    Xingyi
  • Item NO.:

    600-4i
  • Product Origin:

    Fujian, China
  • Color:

    Black And White
  • Shipping Port:

    Xiamen
  • Lead Time:

    7-20 Days
Product Detail

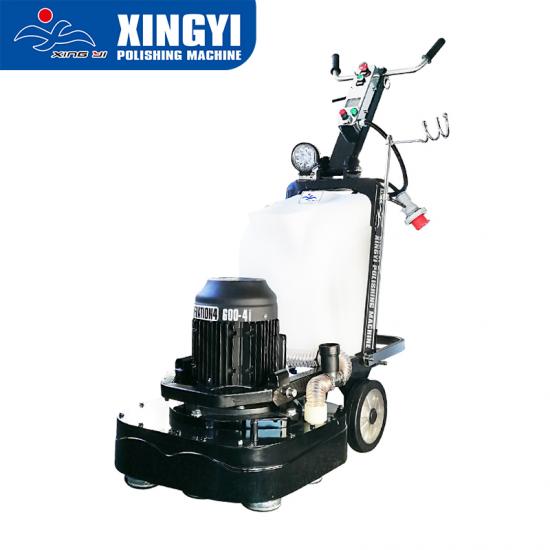

600-4i Square Plate Concrete Cement Floor Grinding Polishing Machine

The 600-4i concrete floor surface grinding machine is classical square plate grinder manufactured by Xingyi. Equipped with a 10HP world-renowned motor, high-quality inverter, 4 heads counter rotating grinding plates and high-precision gearbox, it is of strong grinding performance and high working efficiency. With 600mm large working width, 1680rpm, 28L large capacity of water tank, it is can be used in different polishing conditions like concrete, epoxy, terrazzo, marble, and stone applications in large-sized or medium-sized commercial or residential projects.


Specifications

Model

600-4i Floor surface grind machine

Operating width

600mm

Grinding disc

320mm*4 (4heads)

Rotating speed

350-1680rpm

Motor HP

7.5KW/10HP

Inverter HP

7.5KW/10HP

Voltage

380V-440V three phase

220V-240V three phase

Current

17.05A

29.3A

Weight

235kg

Water tank

28L

Packing size

112*64*120cm

Configuration

WEG motor + Veichi inverter


Product display

High quality floor surface grinding machine

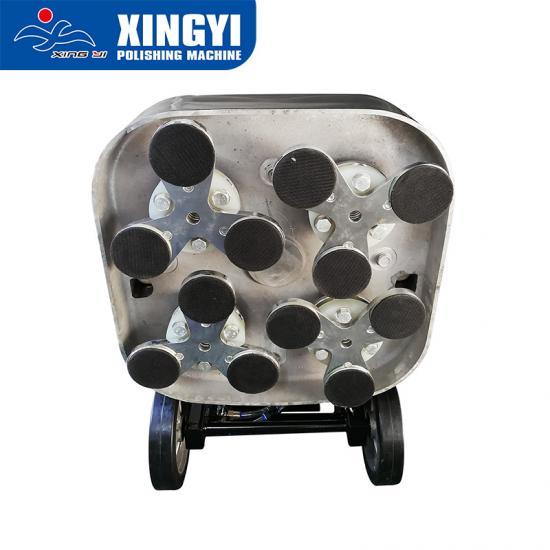

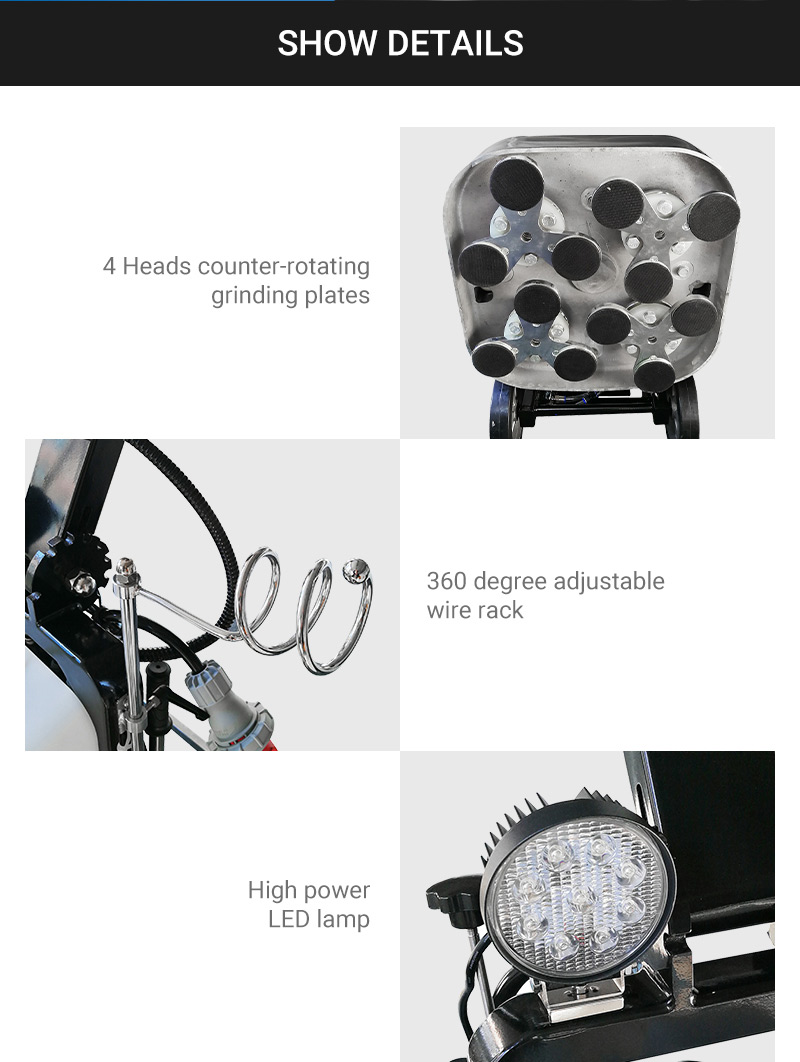

☛Square gearbox and counter-rotating plate for stable performance
☛Dismountable design for machine frame and gearbox

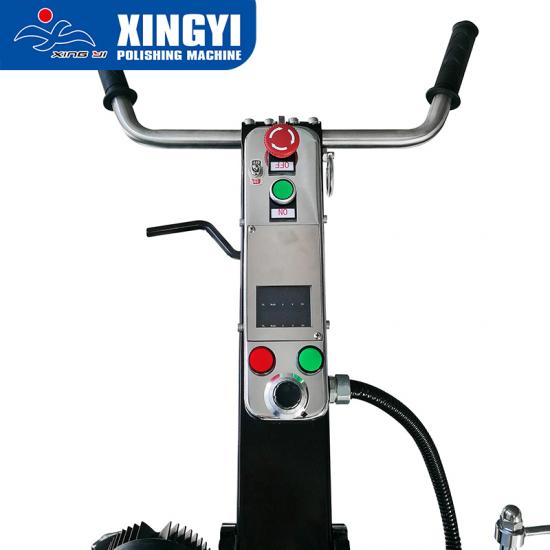

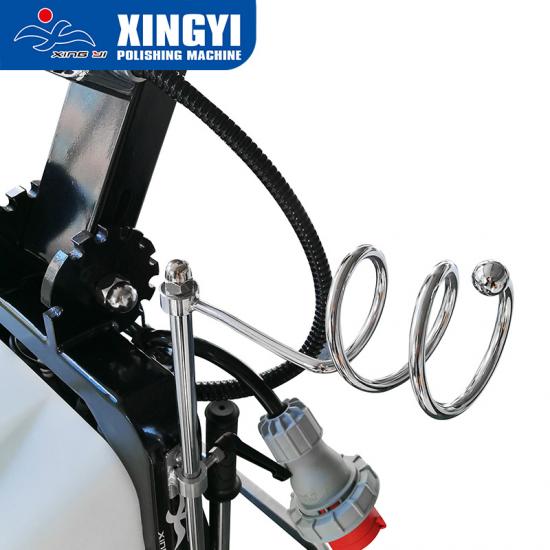

☛Foldable handle and adjustable operating lever with ergonomic design
☛28L PE water tank for wet grinding
☛World-renowned WEG motor with strong power

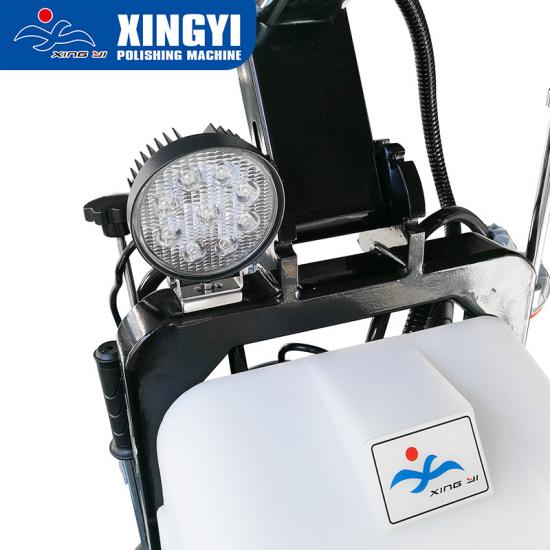

☛High power LED light for dark job sites

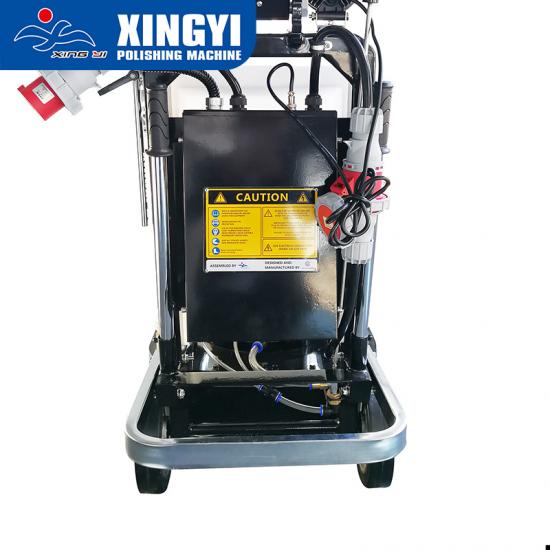

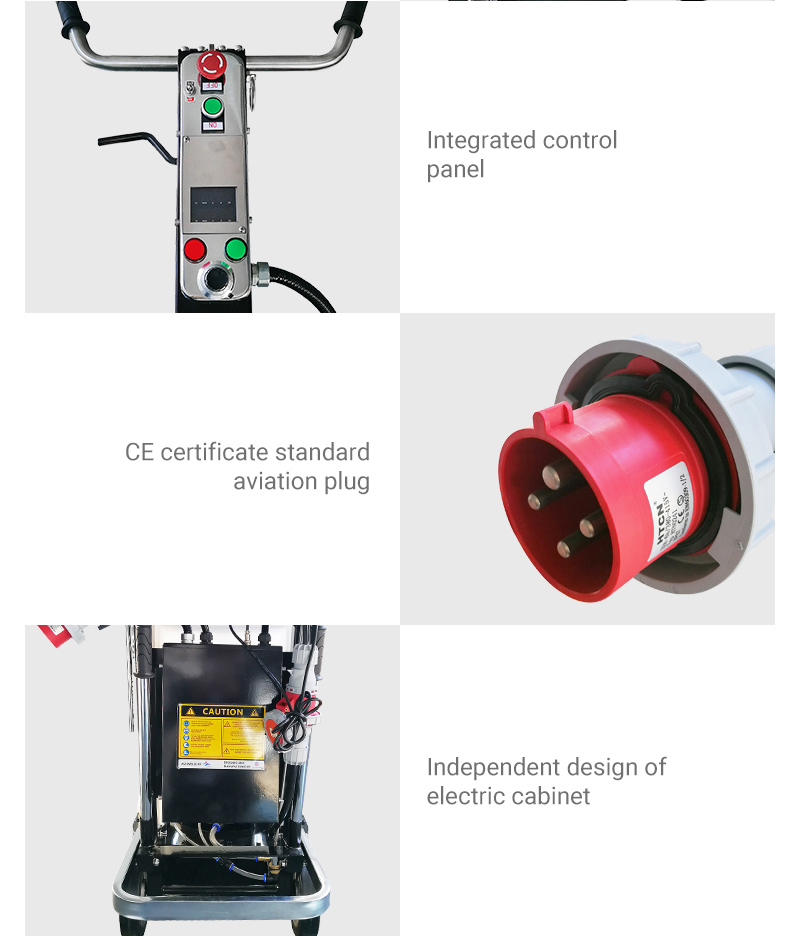

☛Single design of electric cabinet convenient for easier maintenance.

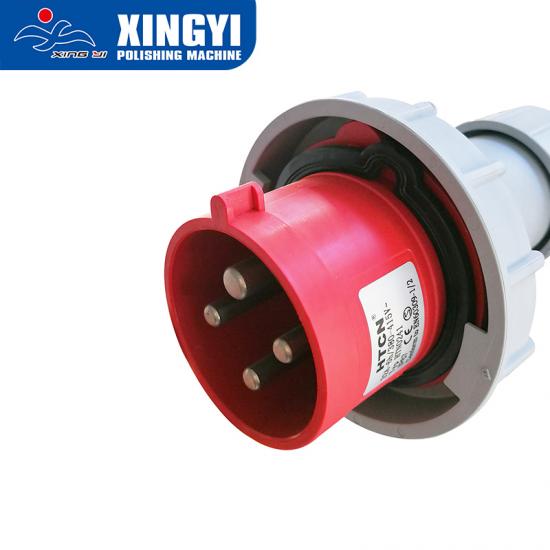

☛CE standard aviation plug with longer service life

Walk-behind concrete floor grinder machine

600mm Efficient concrete grinding machine


FAQ

Q1:What is the best concrete floor grinder?


A1:


Q1:What is tank stone system?

A1:The tank stone system is a integral floor which is consisting of a variety of materials(aggregates, resin and others). It is a kind of modern art floor with high stability, high practicability, no cracking, no deformation and other characteristics. Because of its personality, plasticity, diversification and other characteristics, the tank stone is widely popular in the airport, shopping malls, parks, exhibition halls, villas and other upscale places.
