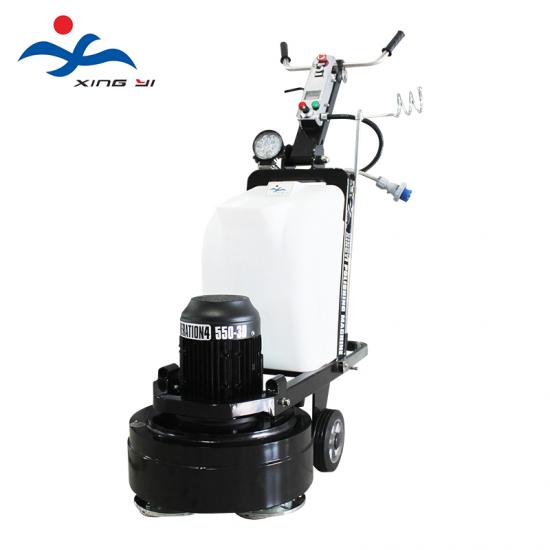

550-3D Planetary Plate Electric Concrete Floor Surface Grinding Polishing Machine System

With stable performance and high grinding efficiency, the 550-3D productive concrete floor grinder polisher manufactured by Xingyi is a ideal floor preparation equipment.

  • Brand:

    Xingyi
  • Item NO.:

    550-3D
  • Product Origin:

    Fujian, China
  • Color:

    Black And White
  • Shipping Port:

    Xiamen
Product Detail

550-3D Planetary Plate Electric Concrete Floor Surface Grinding Polishing Machine System

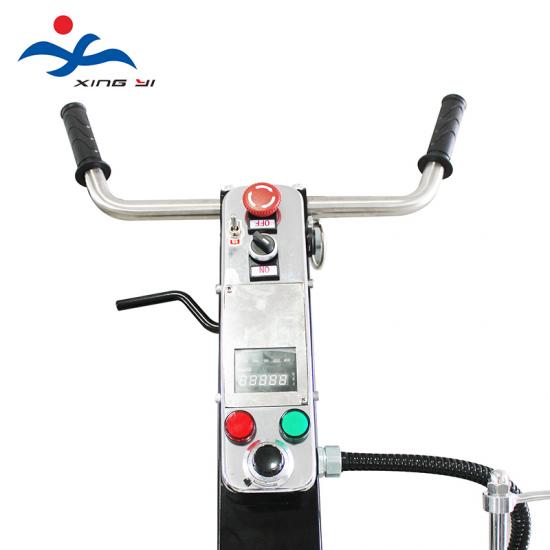

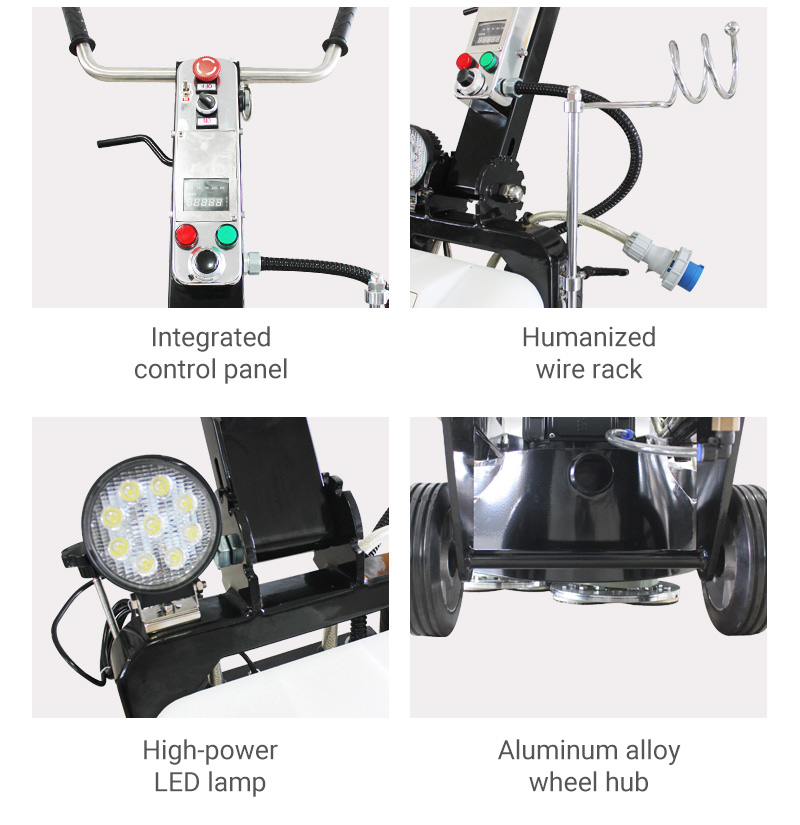

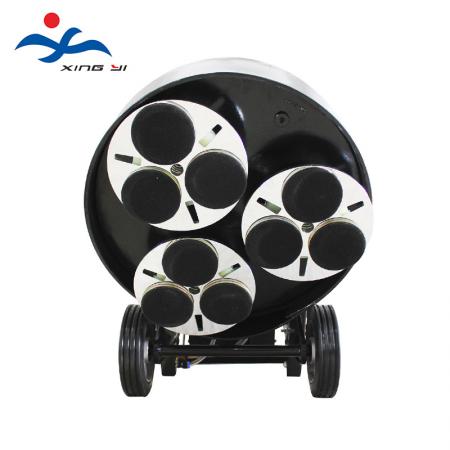

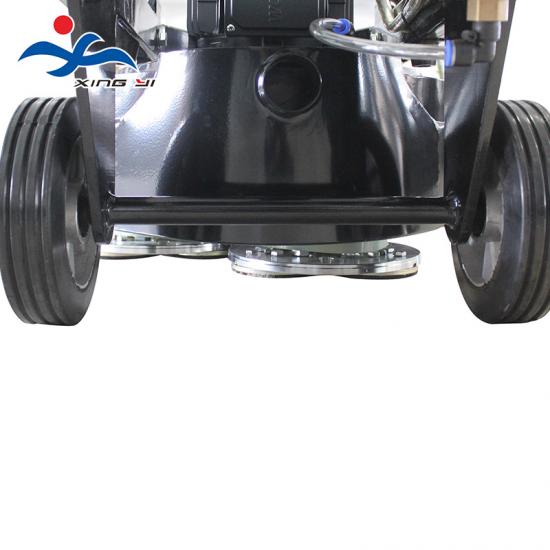

With stable performance and high grinding efficiency, the 550-3D ideal concrete floor grinder polisher manufactured by Xingyi is a ideal floor preparation equipment. With 550mm working width, 3 versatile planetary grinding discs, 350-1460rpm rotating speed and 5.5 HP world famous WEG motor, available for both 220V and 380V power supply, it is available for a variety of jobs such as adhesive removal, surface repairing,rough grinding for both industrial and home use. Equipped with an integrated control panel and detachable machine rack and main electric cabinet, it is of excellent flexibility to both operate, transport and maintain the machine. High precision manufacturing technique with CNC processing skills guarantees the functions of dust-proof and water-proof of gearbox.


Specifications

Model

550-3D Floor surface removal and repairing equipment

Operating width

550mm

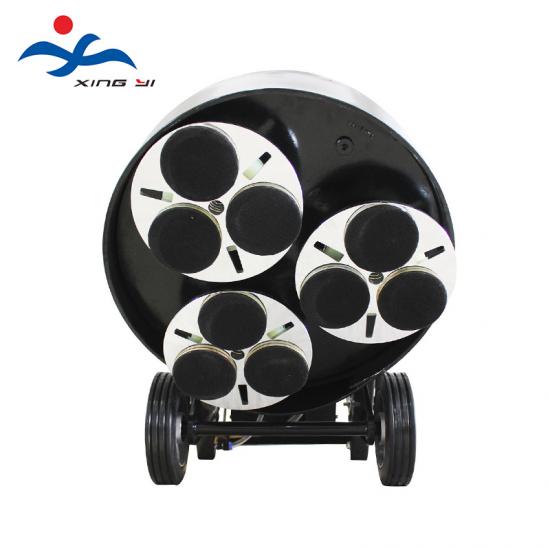

Grinding disc

230mm*3 (3heads)

Rotating speed

360-1680rpm

Motor HP

4KW/5.5HP

Inverter HP

5.5KW/7.5HP

Amperage

8.3A

14.4A

Voltage

380-440V 3P

220-240V 1 phase

Weight

165kg

Extra weight

30kg*1

Water tank

28L

Packing size

104*63*120cm

Configuration

WEG motor + Delta inverter


diamond floor grinder for medium area

220v and 380v floor grinding machine

Wet and dry floor polishing grinding machine

FAQ

Q1:

Why do we choose the gear driving system?

A1:

Xingyi engineers found that the efficiency of most grinders is not high because they use belt driving system. The tension between belts wastes a lot of power in practices. In addition, belt driving system cannot grind precisely because the belts tend to slip when the friction with the floor is too much, which causes the unstable speed of grinding heads or belt tension may slow down spinning of grinding heads significantly. The good news is that the gear driving system can solve this problem. The gear driving planetary rotating system in the High Tech Grinding machine has been through 13000 hours of testing successfully.


Q2:

How do you use a diamond floor grinder?

A2:
