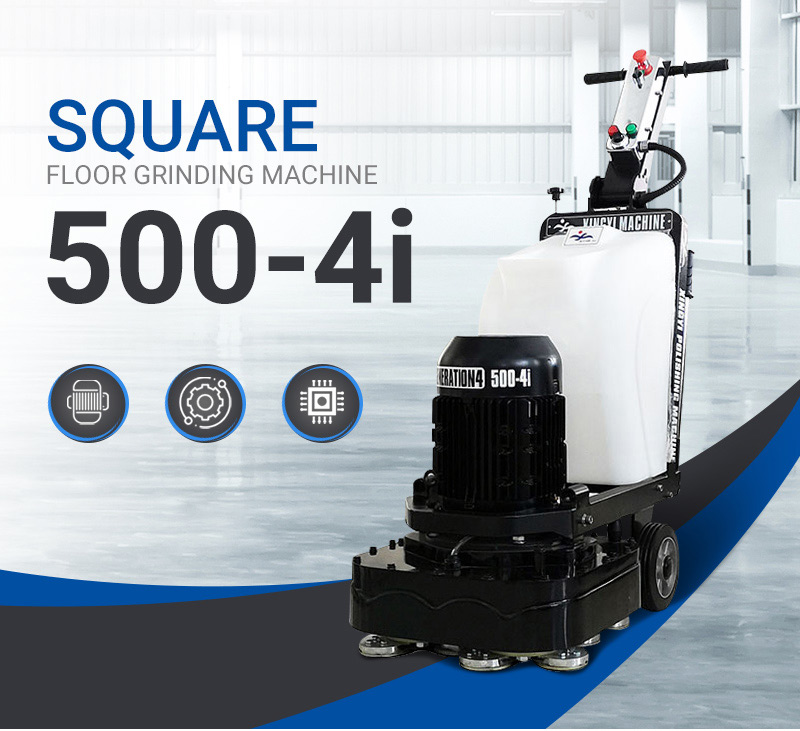

500-4i Concrete Surface Square Plate Floor Grinding And Polishing Machine System

The 500-4i walk-behind floor grinding machine is a classic square plate floor prep equipment manufactured by XINGYI company. With a 500mm large grinding width and 350-1460rpm of rotating speed, it is ideal for commercial and industrial applications for a wide range of floor conditions such as concrete, terrazzo, cement, epoxy natural stone and so on.

  • Brand:

    Xingyi
  • Item NO.:

    500-4i
  • Product Origin:

    Fujian, China
  • Color:

    Black And White
  • Shipping Port:

    Xiamen
  • Lead Time:

    7-20 Days
Product Detail

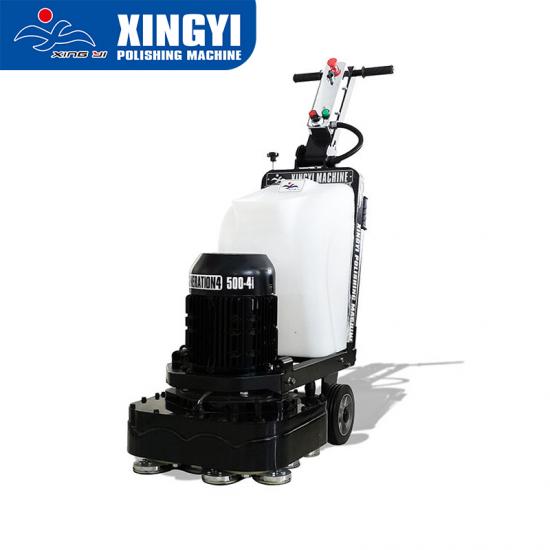

500-4i Concrete Surface Square Plate Floor Grinding And Polishing Machine System

The 500-4i walk-behind floor grinding machine is a classic square plate floor prep equipment manufactured by XINGYI company. With a 500mm large grinding width and 350-1460rpm of rotating speed, it is ideal for commercial and industrial applications for a wide range of floor conditions such as concrete, terrazzo, cement, epoxy natural stone and so on. Combining the productive grinding efficiency of a large grinder with the user-friendly feature of a small-sized grinder, the 500-4i is perfect for a wide range of floor conditions such as concrete, epoxy, terrazzo, cement and natural stone, etc. With a 7.5HP WEG motor and 10HP high-quality inverter, it is of strong torque and stable performance. 28L durable PE water tank makes it easy to switch from dry grinding to water grinding as needed.

Specifications

Model

500-4i  Square Floor Grinding And Polishing Machine

Voltage

380-440V 3P

220-240V 3P/1P

Operating width

500mm

Grinding disc

270mm*4

Rotating speed

350-1460rpm

Motor HP

5.5KW/7.5HP

Inverter HP

7.5KW/10HP

Weight

175kg

Water tank

28L

Packing size

140*88*120cm

Configuration

WEG motor + Veichi inverter

WEG motor + Delta inverter


Garage floor grinding and polishing equipment

Diamond concrete marble floor grinding machine

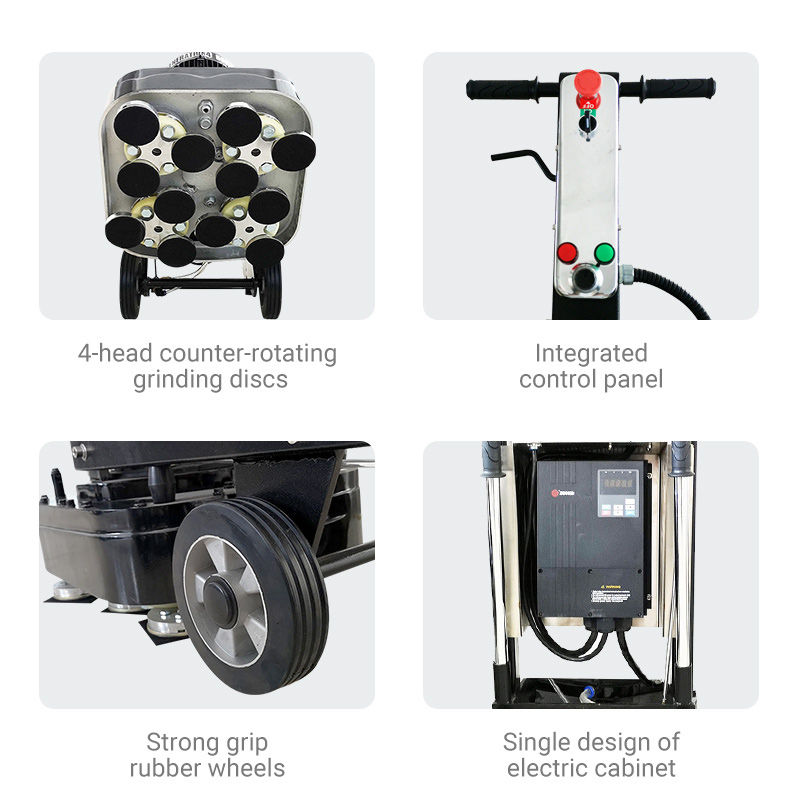

✔Flexible handlebar for easy operation

✔Durable PE 32L water tank for wet grinding

✔Low maintenance and high-precision operation

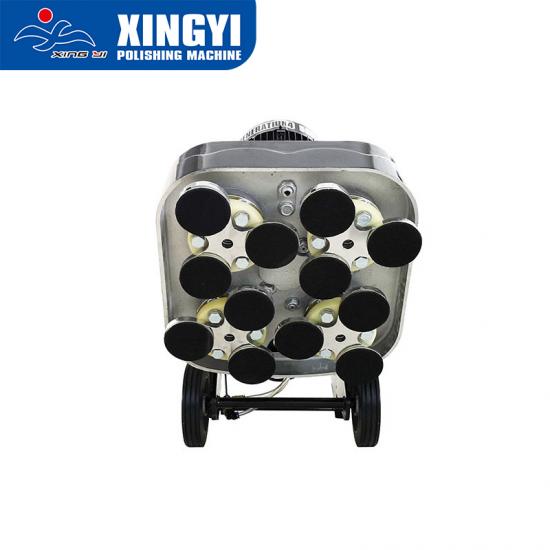

✔Four-head counter-rotating grinding disc

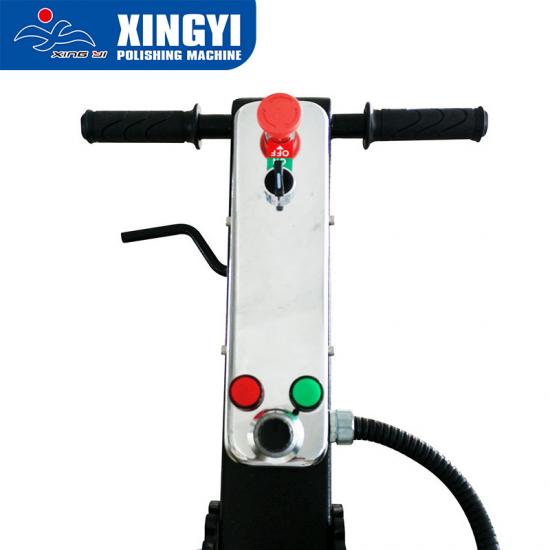

✔Metal control panel with the plating process

✔Detachable swing lever with baking varnish

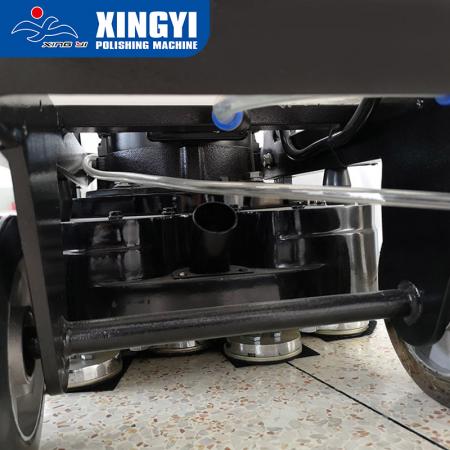

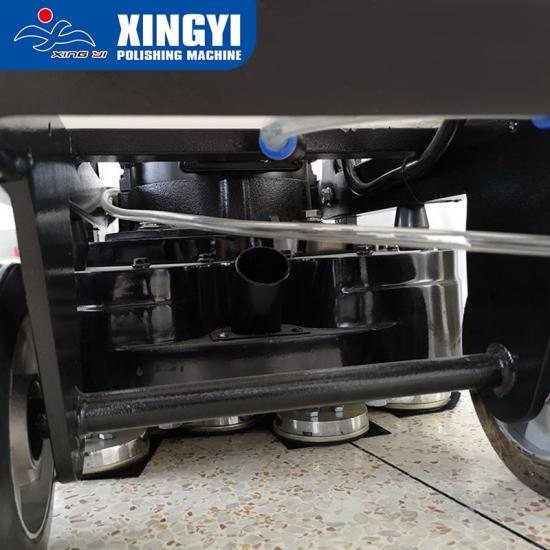

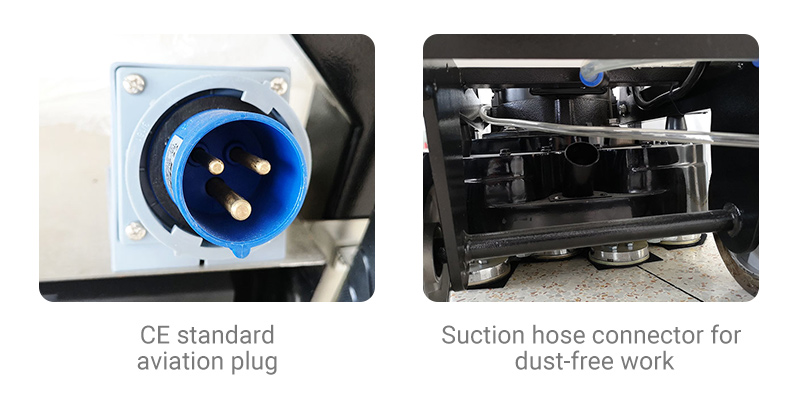

✔Dust suction port avoids raising dust

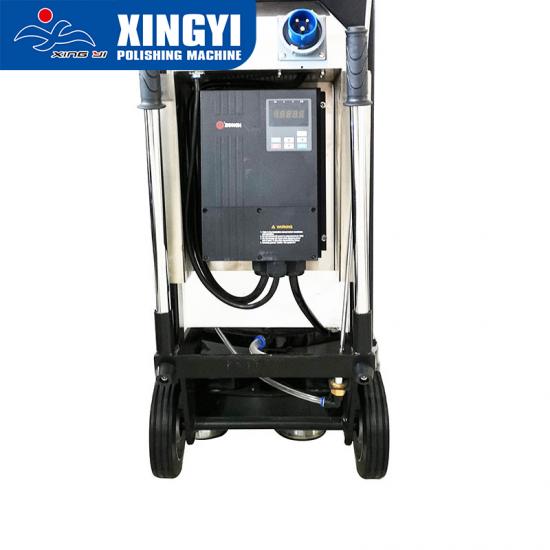

✔A single design of electric cabinet for easier assembly

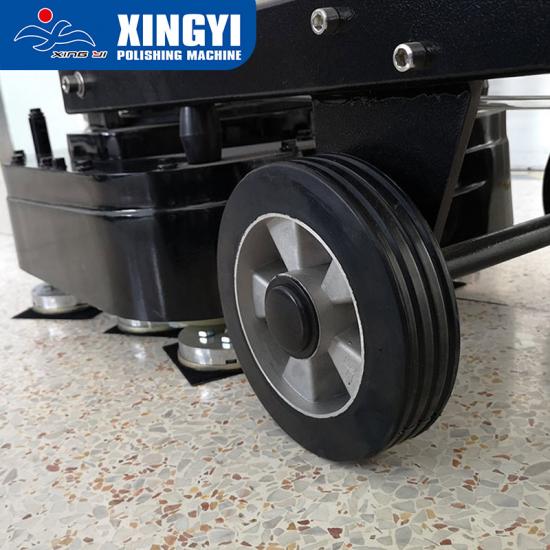

✔High-quality wheels with strong road holding

500-4i Powerful floor repairing machine equipment


Electric renewing and repairing floor polisher


FAQ

Q1:

How do you grind down a concrete floor?

A1:

Q2:

What are the main products of Xingyi?
A2:
① The XY and High Tech Grinding Brand Polishing Machines which enable the Planetary or Rotatory direction.
② The High Tech Grinding Diamond abrasives from metal to resin for polishing.
③ The High Tech Grinding Chemicals for repairing, hardening, sealing and stone crystallization.

Email: [email protected]
Skype: xingyistone15
Whatsapp: 008615960788815



A free consultation

Enable the global floor labors to work with health, Easy and happiness
