The 550-3DP is a professional floor surface prep equipment, which is applicable for removing adhesive and coating, repairing crack and hole, flatten the uneven ground and so on.
Brand:
XingyiItem NO.:
550-3DPProduct Origin:
Fujian, ChinaColor:
Black and whiteShipping Port:
XiamenLead Time：

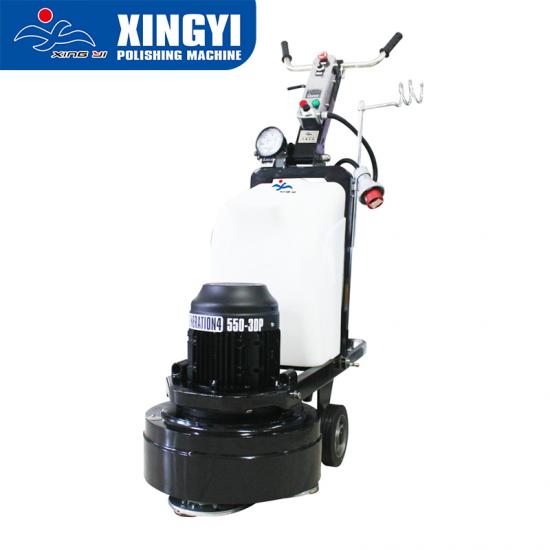

7-20 Days550-3DP Industrial Floor Grinder And Used Concrete Grinder For Sale

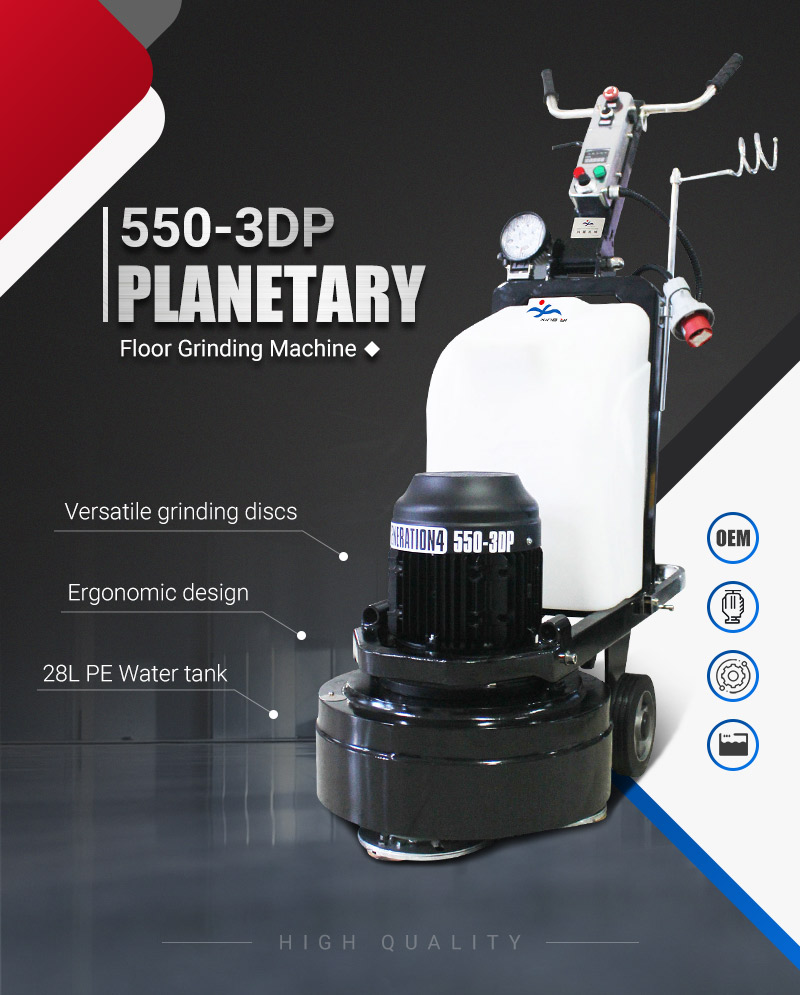

The 550-3DP is a professional floor surface prep equipment, which is applicable for removing adhesive and coating, repairing crack and hole, flatten the uneven ground and so on. Equipped with a 28L large capacity of the water tank, the 550-3DP can be easily used in both dry grinding and water grinding according to the actual floor condition. It is optional for three-phase and single-phase, which means it is suitable for industrial, commercial and domestic use. With 550mm grinding width, 350-1680rpm rotating speed and a 7.5HP powerful WEG motor, it is a productive and high-efficiency floor surface grinder and polisher.
Specifications
Model
550-3DP Versatile floor grinding machinery
Operating width
550mm
Grinding disc
230mm*3 (3heads)
Rotating speed
360-1680rpm
Motor HP
5.5KW/7.5HP
Inverter HP
7.5KW/10HP
Amperage
11.5A
19.8A
19.9A
Voltage
380-440V three phase
220-240V three phase
220-240V 1 phase
Weight
183kg
Extra weight
30kg*1
Water tank
28L
Packing size
105*64*121cm
Configuration
WEG motor + Delta inverter
Product display
▶5.5KW, 183kg for both small and large sizes of floor working area.
▶Voltage with three option: 380-440V three-phase, 220-240V three/single phase.

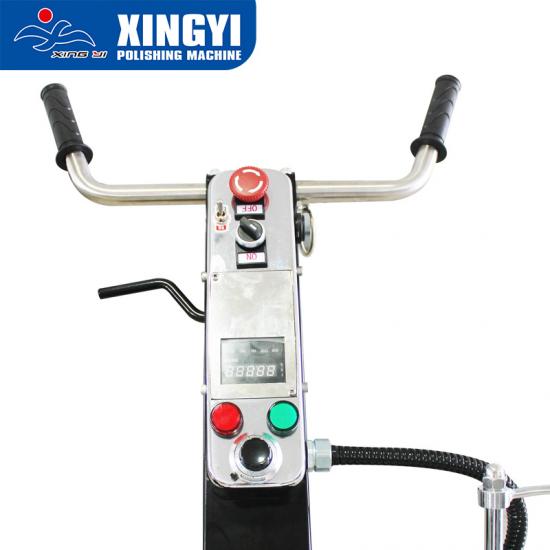

▶Easy to operate with a concentrate control panel.

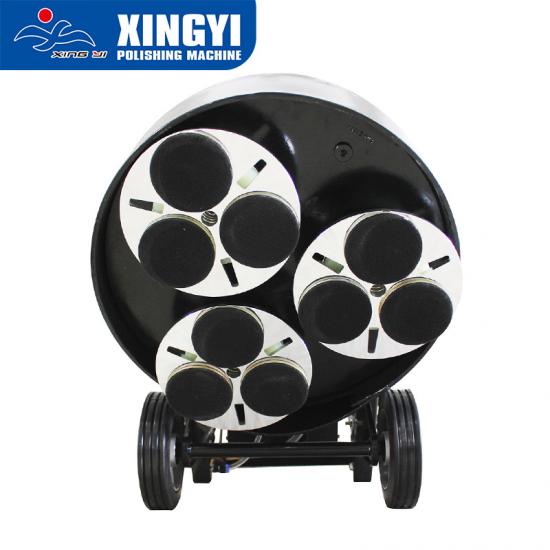

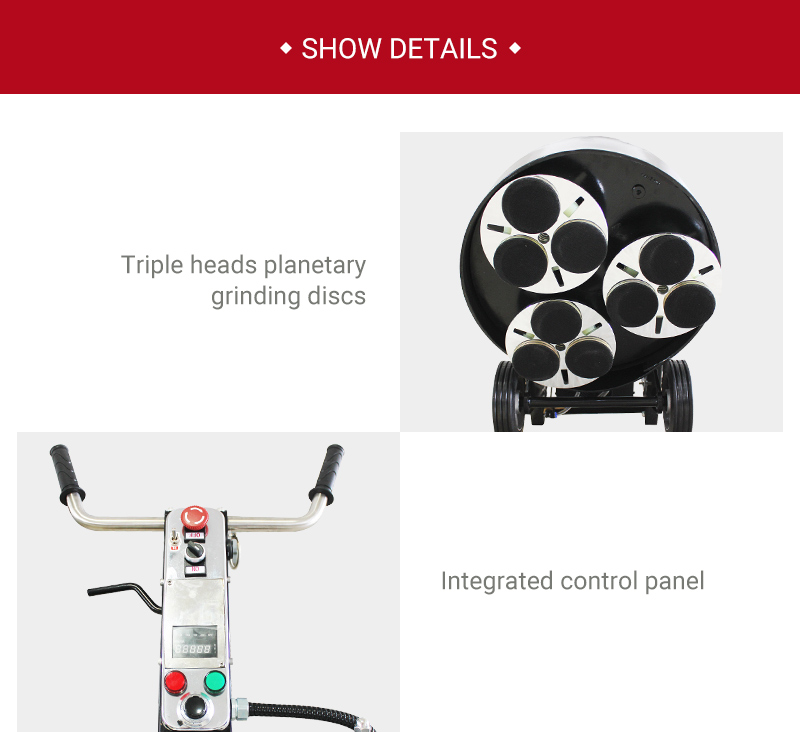

▶Polishing discs run with planetary direction to provide sharp grinding.
▶Polishing discs are available for different kinds of abrasives to meet different purposes.
▶Fast to change pads with help of a multi-function support frame.
▶Wonder motor to ensure good quality and high performance.
▶Imported NSK bearing is provided for this machine with high-quality motor.
FAQ
Q1:how do you maintain a floor grinder?
A1：
1. Clean the grinder every day after work, especially the dust on dust skirt and grinding plates.
2. Clean the water tank every week to prevent the dust blocks the filter.
3. After finishing each job site, all bolts and grinding plates need to be checked and fasten.
4. If the machine is often used in dry grinding, then the cooling fan of inverter need to be cleared every 20-30days.
5. Replace the gear oil termly. Usually, a new floor grinder needs to replace the gear oil after six months of use. Later, the gear oil needs to be replaced once a year.
6. Ask professional technician to do the machine maintenance and record the content of maintenance.
Q2:How do you use a diamond floor grinder?
A2:
