550-3V Planetary plate floor grinding machine

550-3V Professional Electric Polisher And Diamond Grinder For Concrete Floor

The 550-3V concrete floor grinding machine is a multifunctional floor surface repair and removal equipment. Equipped with 28L PE large capacity water tank, it can be applied for both dry grinding and water grinding. During the water grinding, rotating the water switch, it can sprinkle water on grinding discs, cooling abrasives to make grinding work more efficient and reduce raising dust.

Brand:
Xingyi
Item NO.:
550-3V
Product Origin:
Fujian, China
Color:
Black and white
Shipping Port:
Xiamen
Lead Time：
7-20 Days

Product Detail

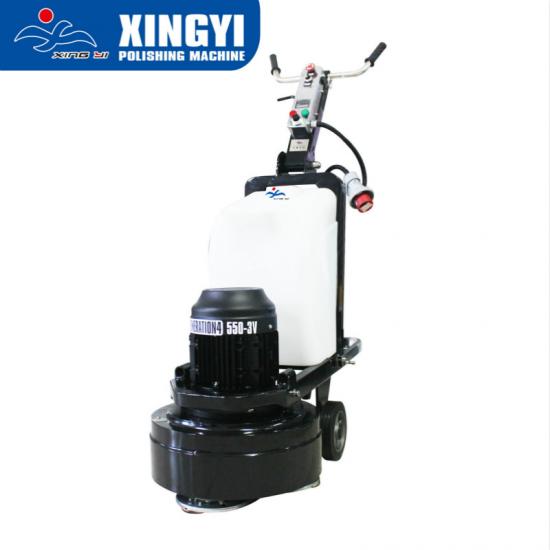

550-3V Professional Electric Polisher And Diamond Grinder For Concrete Floor

The 550-3V concrete floor grinding and polishing machine is a multifunctional floor surface repair and removal equipment. Equipped with 28L PE large capacity water tank, it can be applied for both dry grinding and water grinding. During the water grinding, rotating the water switch, it can sprinkle water on grinding discs, cooling abrasives to make grinding work more efficient and reduce raising dust. Its 5.5HP high-quality WEG motor and 3 heads planetary rotating platesmake high grinding efficiency and stable performance. The 550-3V is an productive floor surface prep machine for polishing floor to a bright effect or restoring old slabs for newer architectural finishes.

Specifications

Model	550-3V
Voltage	380-440V three phase	220-240V 3 phase
Amperage	8.3A	14.4A
Operating width	550mm
Grinding disc	230mm*3 (3heads)
Rotating speed	360-1680rpm
Motor HP	4KW/5.5HP
Inverter HP	5.5KW/7.5HP
Weight	165kg
Extra weight	30kg*1
Water tank	28L
Packing size	10463120cm
Configuration	WEG motor + Veichi inverter

Product display

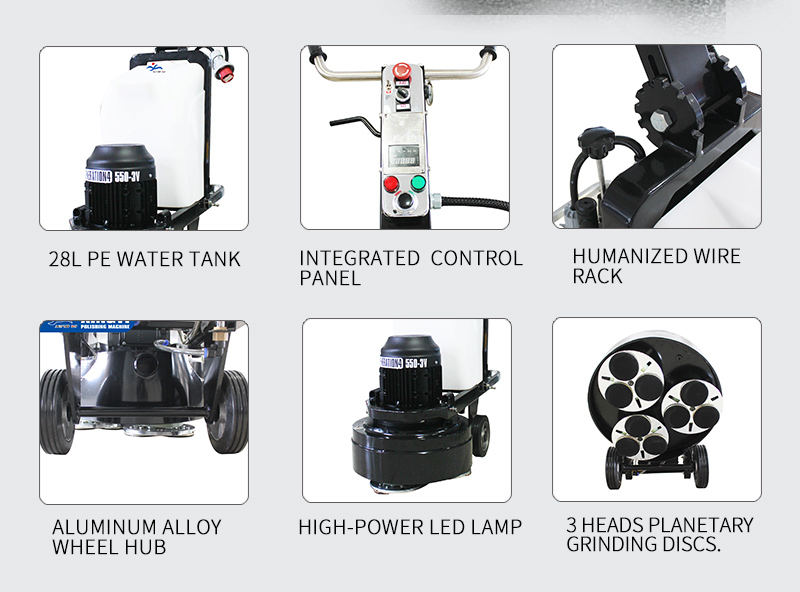

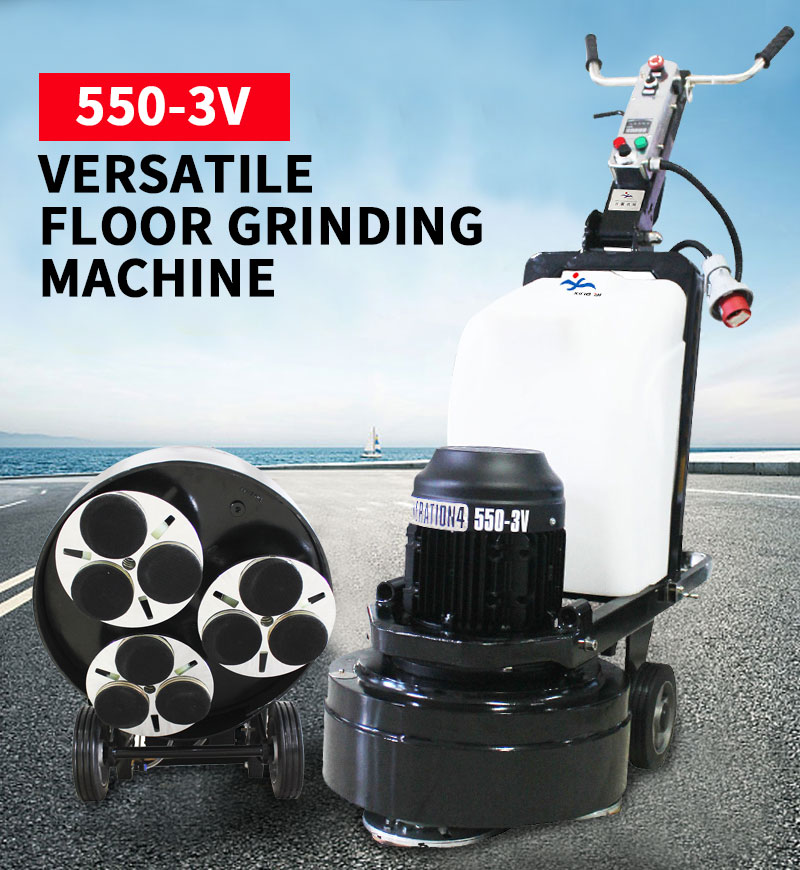

Versatile concrete floor surface grinder

☞5.5HP, 165kg for both small and large sizes of floor working area.

☞High-precision gearbox with long service life and stable performance

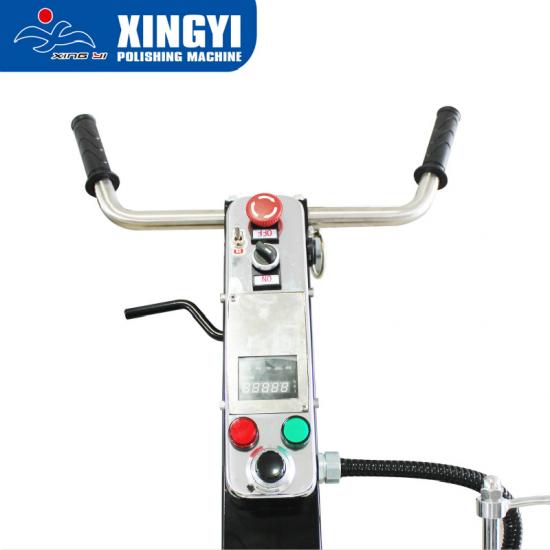

☞Integrated control panel for easy operation

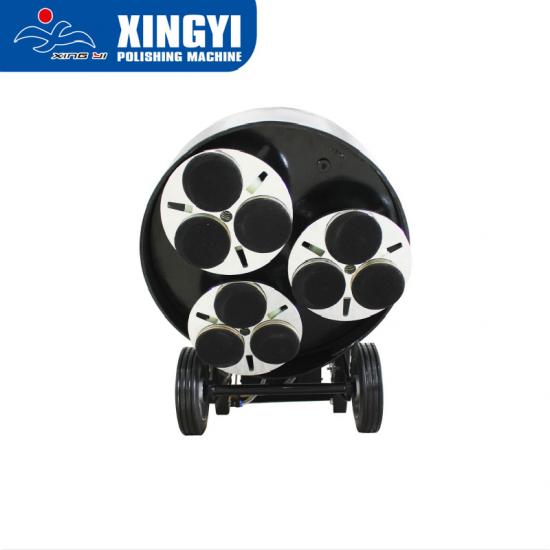

☞Polishing discs run with planetary direction to provide sharp grinding and uniform scratch

☞Polishing discs are available for different kinds of abrasives to meet different purposes.

☞WEG motor to ensure strong starting torque and high efficiency.

FAQ

Q1:how do you maintain a floor grinder?

A1：

1. Clean the grinder every day after work, especially the dust on dust skirt and grinding plates.

2. Clean the water tank every week to prevent the dust blocks the filter.

3. After finishing each job site, all bolts and grinding plates need to be checked and fasten.

4. If the machine is often used in dry grinding, then the cooling fan of inverter need to be cleared every 20-30days.

5. Replace the gear oil termly. Usually, a new floor grinder needs to replace the gear oil after six months of use. Later, the gear oil needs to be replaced once a year.

6. Ask professional technician to do the machine maintenance and record the content of maintenance.

Q2:Who makes the best concrete floor grinder?

A2:

Email: [email protected]
Skype: xingyistone15
Whatsapp: 008615960788815
