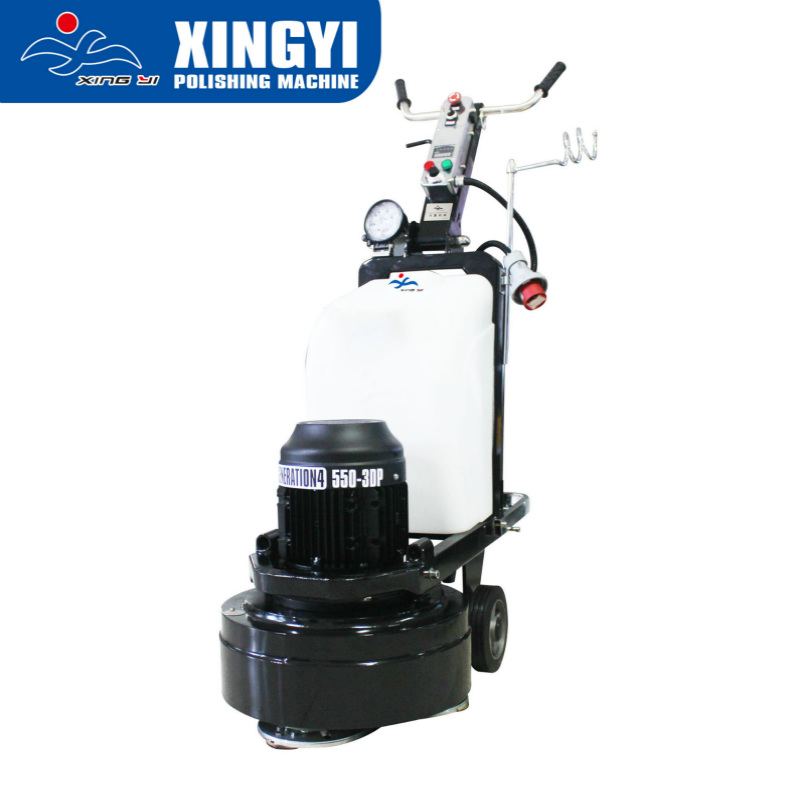

This 550-3DP productive concrete floor grinder and polisher can be used for a wide range of flooring applications, such as renovating, polishing, and grinding. With excellent performance and easy operation, it is the best choice for all floor labors.
Brand:
XingyiItem NO.:
550-3DPProduct Origin:
Fujian, ChinaColor:
Black And WhiteShipping Port:
XiamenLead Time:
7-20 Days550-3DP Versatile And Efficient Floor Grinding Machine Preparation Machinery
Specifications
Model |
550-3DP Hand push floor grinding machinery |
||
Operating width |
550mm |
||
Grinding disc |
230mm*3 (3heads) |
||
Rotating speed |
360-1680rpm |
||
Motor HP |
5.5KW/7.5HP |
||
Inverter HP |
7.5KW/10HP |
||
Amperage |
11.5A |
19.8A |
19.9A |
Voltage |
380-440V three phase |
220-240V three phase |
220-240V 1 phase |
Weight |
183kg |
||
Extra weight |
30kg*1 |
||
Water tank |
28L |
||
Packing size |
105*64*121cm |
||
Configuration |
WEG motor + Delta inverter |

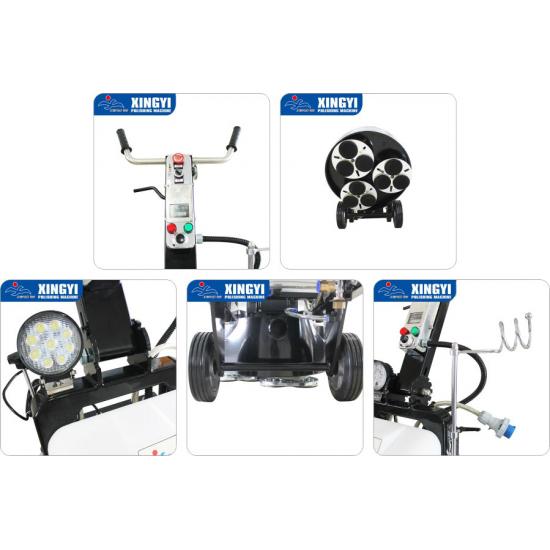

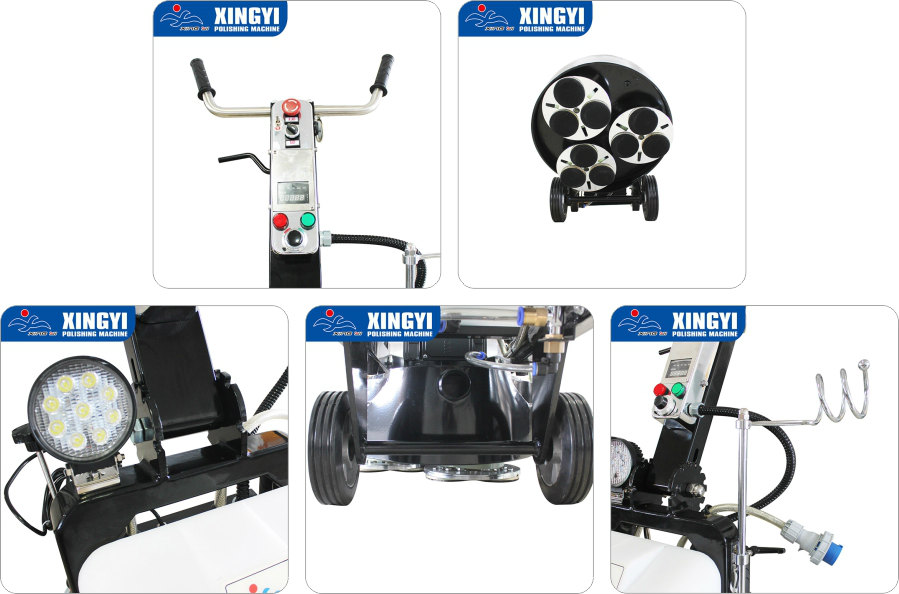

Product display
(1) 5.5HP, 200kg for both small and large sizes of floor working area.
(2) Voltage with three option: 380-440V three-phase, 220-240V three/single phase.

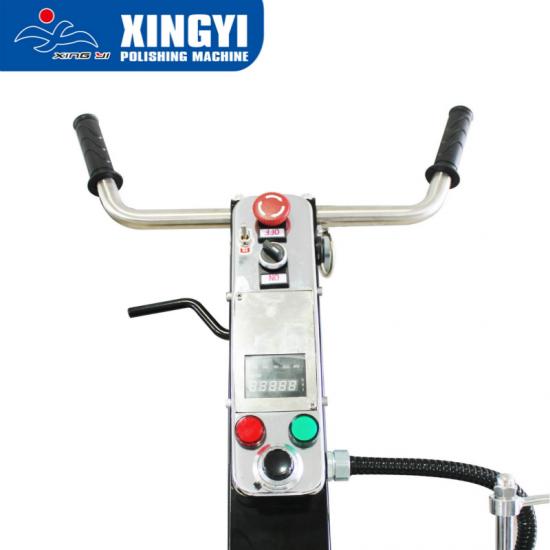

(3) Easy to operate with a concentrate control panel.

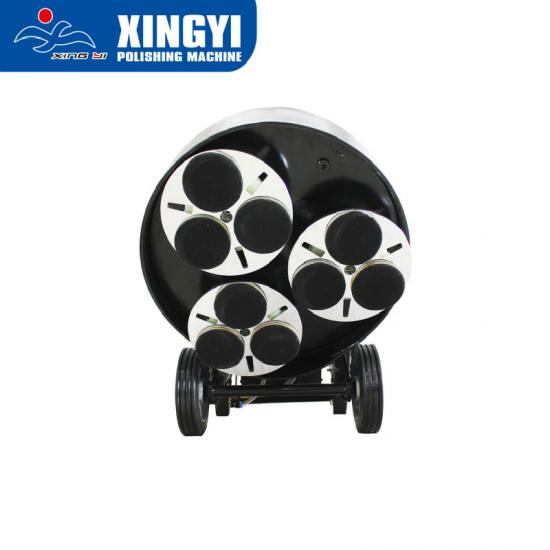

(4) Polishing discs run with planetary direction to provide sharp grinding.
(5) Polishing discs are available for different kinds of abrasives to meet different purposes.
(6) Fast to change pads with help of a multi-function support frame.
(7) Wonder motor to ensure good quality and high performance.
(8) Imported NSK bearing is provided for this machine with high-quality motor.

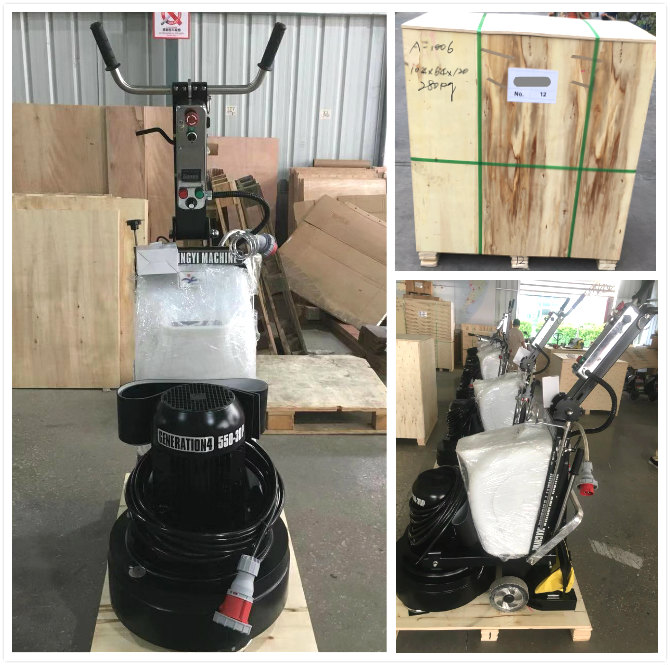

Package
FAQ
Q1: How do you fix holes and cracks on floor with floor grinder?
A1:Grinding repairing is suitable for the hole less than 10mm and cracks less than 1mm.
①Tools: 550-3DP floor grinder,dustless cutting machine, diamond pads, EC-1008, fast drying cement, bucket watering can.
②Clean all the sundries on floor with a acuum cleaner.
③Apply a sufficient EC-1008 repair agent when there is no obvious water logging.
④Grind directly with a 550-3DP planetary grinding machine with the diamond pad(120#) until all holes and cracks are filled(speed should be 800-1000rpm)
⑤Check whether the repair is completed, protect the ground with water 3-5 times.
Q2: How long can the machine use per day?
A2:
①It is recommended that the normal working time is 8-10 hours, but it can also be operated for 24 hours if your project is urgent.
②The machine is the same as the car. We need to maintain it according to the maintenance regulations every month every week , so that the machine can last longer.
③During construction, it is recommended to have a good construction environment, the machine is fully equipped, check the working condition of the machine in real time, pay attention to maintenance, and replace the maintenance of gear oil for half a year.
④Construction workers regularly attend training and maintain the machine, the service life and construction effect of the machine will be much better.
