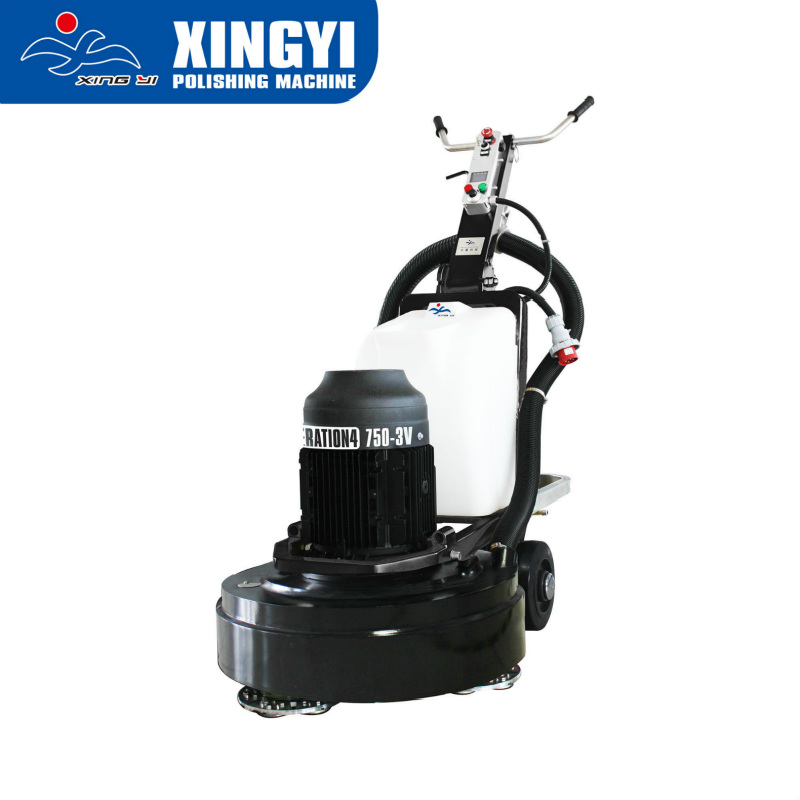

The 750-3V concrete floor surface preparation machine, which is can be used for a wide range of outdoor applications, such as coating removal, floor surface preparation, and floor renewing, etc.
Brand:
XingyiItem NO.:
750-3VProduct Origin:
Fujian, ChinaColor:
Black And WhiteShipping Port:
XiamenLead Time:
7-20 Days750-3V Versatile Floor Surface Grinding And 3 Phase Renewing Machine
Specifications
Model |
750-3V Walk-behind floor grinder and polisher |
|
Brand | XINGYI | |
Operating width |
750mm |
|
Grinding disc |
256mm*3 (3heads) |
|
Rotating speed |
350-1950rpm |
|
Motor HP |
11KW/15HP |
|
Inverter HP |
11KW/15HP |
|
Amperage |
24.09A |
41.55A |
Voltage |
380-440V three phase |
220-240V three phase |
Weight |
340kg |
|
Extra weight |
40kg*1 |
|
Water tank |
32L |
|
Packing size |
132*82*133cm |
|
Configuration |
WEG motor + Veichi inverter |

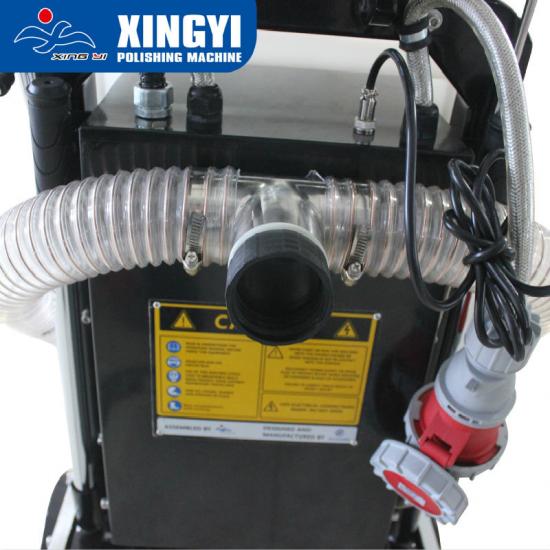

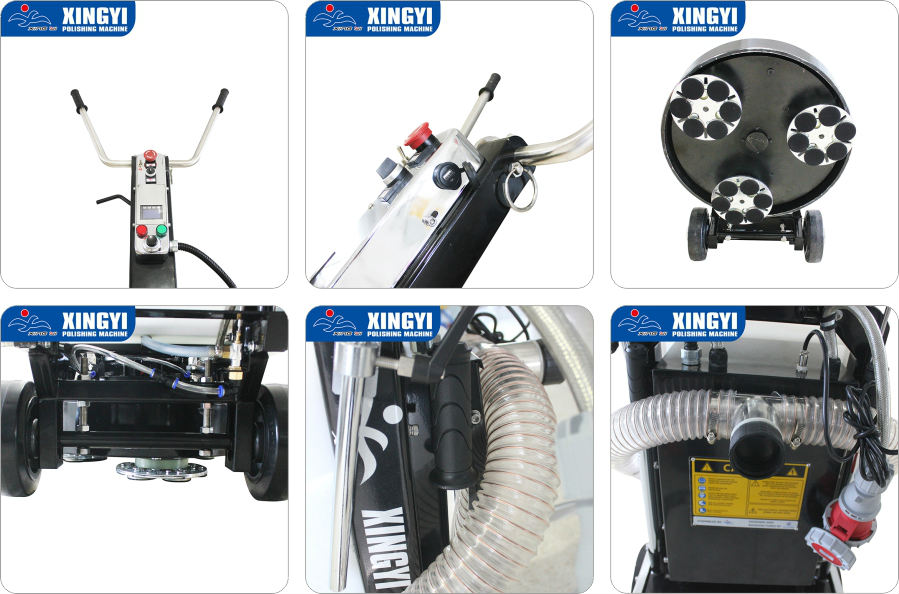

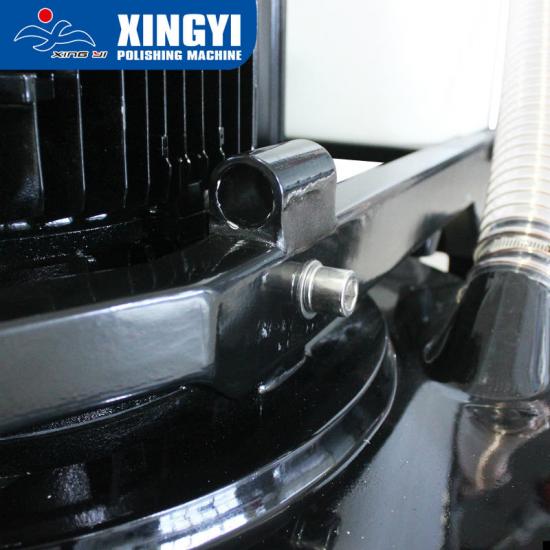

Product display
1. Versatile function from rough grinding to fine polishing.

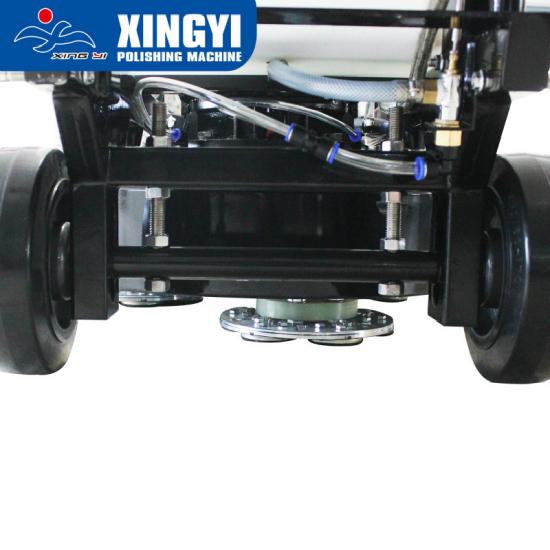

2. Gear-driven system for all machines with variable speed control ability

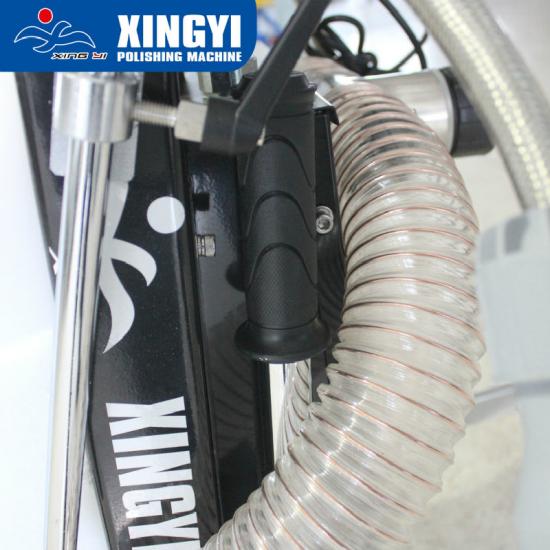

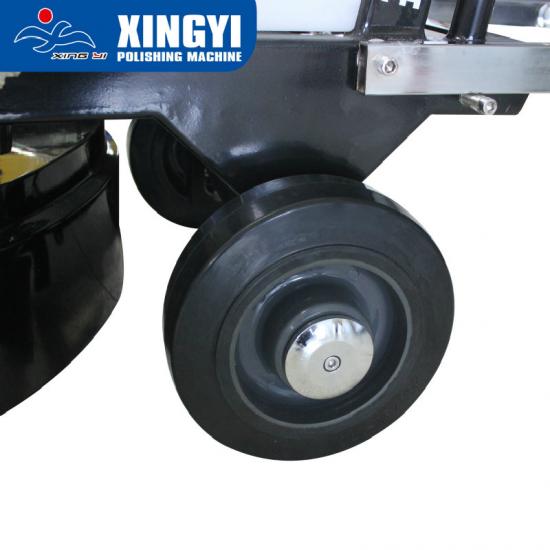

3. Adjustable handle for easy transport and suitable working position.

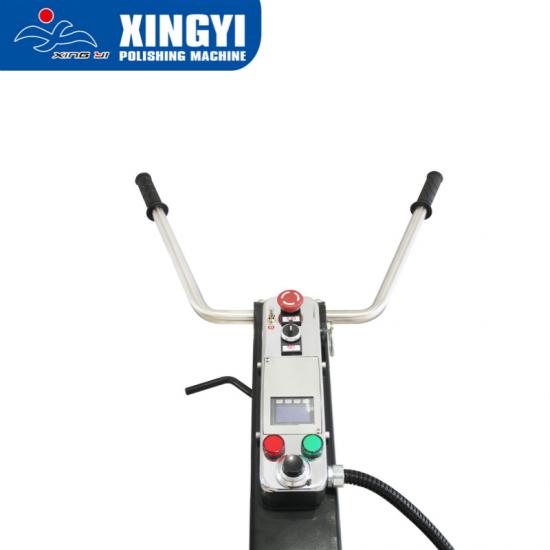

4. Stainless steel digital control board allow you to see clear technical parameter anytime
5. The thickness of the sheet metal is 20mm, and the thickness of the gearbox is twice that of the counterparts

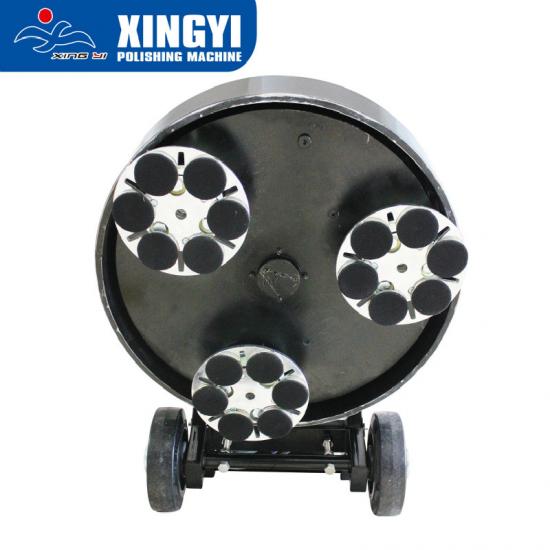

6. Multi-functional grinding plate can attach Redi-lock, Bolt-on and warious kinds of pads.

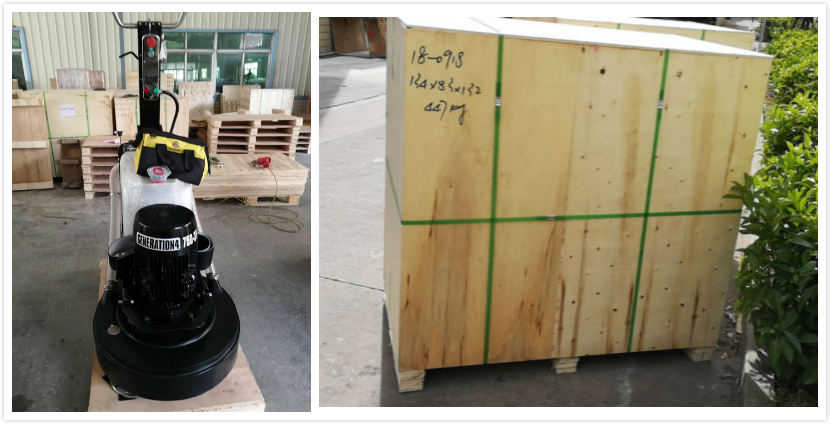

Package
FAQ
Q1:Do your company have any quality inspection system for machine?
A1:
We have 108 progress for quality inspection.Mainly 4 system:
1.Gear box system
2.Electric control system
3.Machine frame system
4.Overall testing system
Q2:How long is the guarantee period in the 750-3D floor grinder?
A2:The guarantee period of motor and inverter is one year, and gear two years. If it is beyond the guaranteed time, the spare parts are broken due to a long time using, then the charge of the new parts and express will be paid by the customer, and we will send you steps or videos to help you to repair.
