550-3VP Versatile Concrete Floor Grinder And Walk-behind Polisher Equipment

The 550-3VP is a professional floor grind and polishing machine. Equipped with a 7.5HP powerful motor and stable performance, it is doubtlessly a best grinding and polishing machine for concrete marble granite and terrazzo floor.

  • Brand:

    Xingyi
  • Item NO.:

    550-3VP
  • Product Origin:

    Fujian, China
  • Color:

    Black And White
  • Shipping Port:

    Xiamen
  • Lead Time:

    7-20 Days
Product Detail

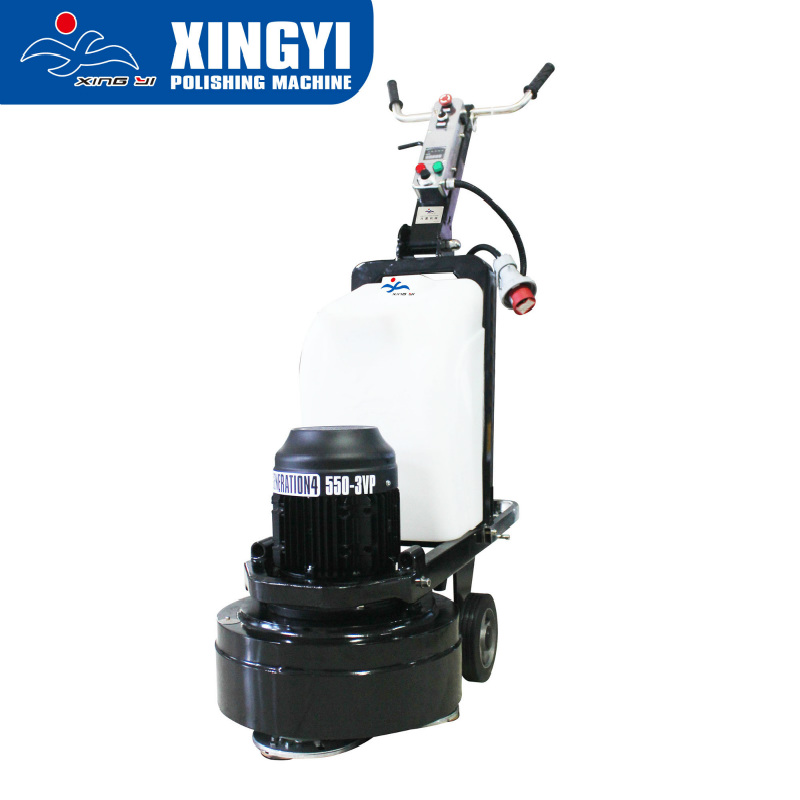

550-3VP Versatile Concrete Floor Grinder And Walk-behind Polisher Equipment

550-3VP Multifunctional floor grinder is used to grind (rough grind, fine grind and polish) concrete, natural stone and terrazzo floors or other materials. It can not only used for dry grinding, but also water grinding, when in the water grinding, after rotating the water switch, it can sprinkle water on disc, cooling abrasive to make grinding work more efficient, preventing dust to protect the user's personal safety.


Specifications

Model 550-3VP Walk-behind floor surface grindernding concrete floor with hand grinder
Operating width 550mm
Grinding disc 230mm*3 (3heads) floor grinding disc
Rotating speed 360-1680rpm
Motor HP 5.5KW/7.5HP
Inverter HP 5.5KW/7.5HP    7.5KW/7.5HP
Amperage 11.5A 19.8A
Voltage 380-440V three phase 220-240V three phase
Weight 183kg
Extra weight 30kg*1
Water tank 28L
Packing size 104*63*120cm
Configuration WEG motor + Veichi inverter

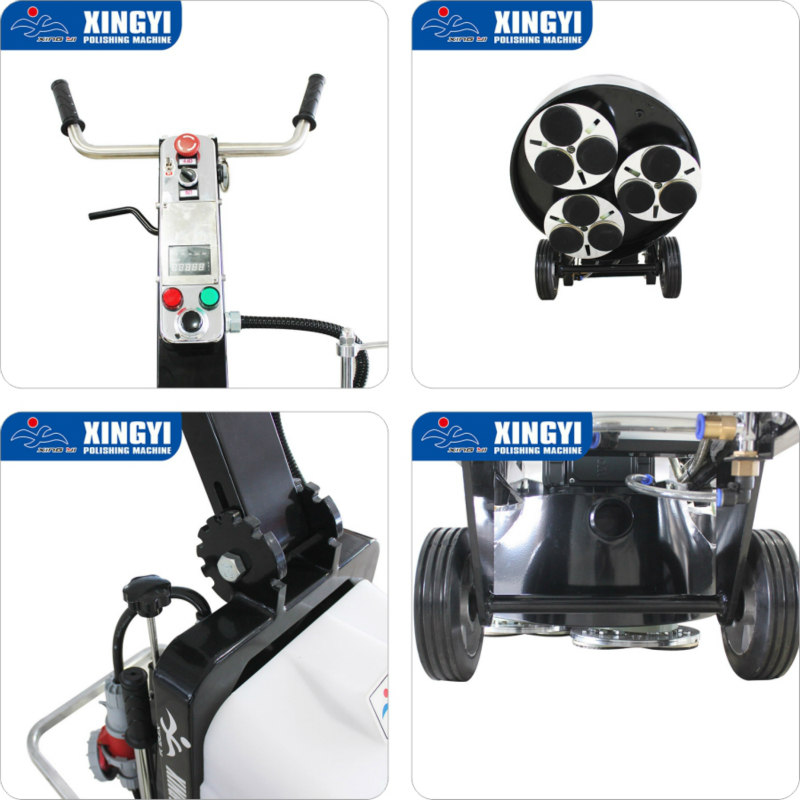

Product display

Multifunctional concrete floor grinder


(1) 7.5HP, 183kg for both small and large sizes of floor working area.

(2) Voltage with three option: 380-440V three-phase, 220-240V three phase.

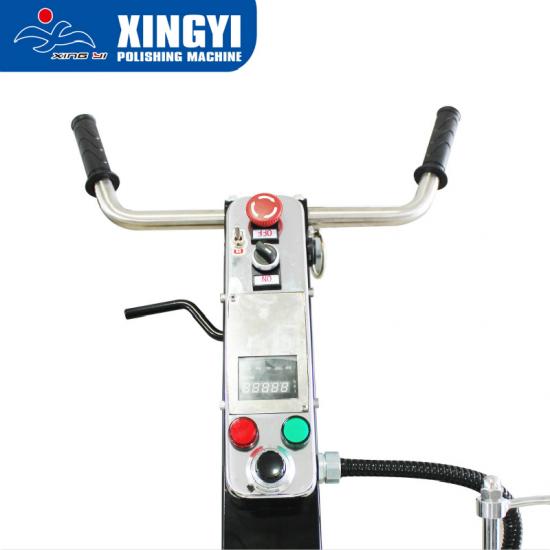

(3) Easy to operate with a concentrate control panel.

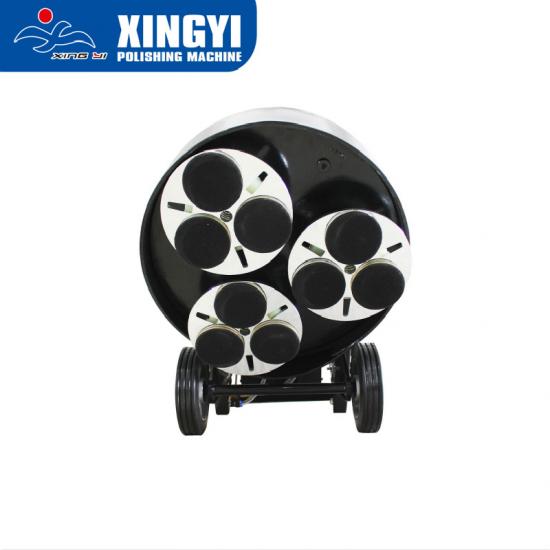

(4) Polishing discs run with planetary direction to provide sharp grinding.

(5) Polishing discs are available for different kinds of abrasives to meet different purposes.

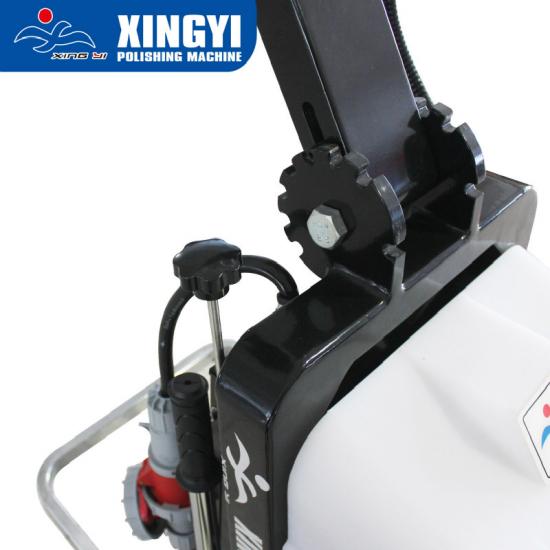

(6) Fast to change pads with help of a versatile support frame.

(7) WEG motor to ensure good quality and high performance.

(8) Imported NSK bearing is provided for this machine with high-quality motor.


550-3VP Industrial Floor Grinding Equipment

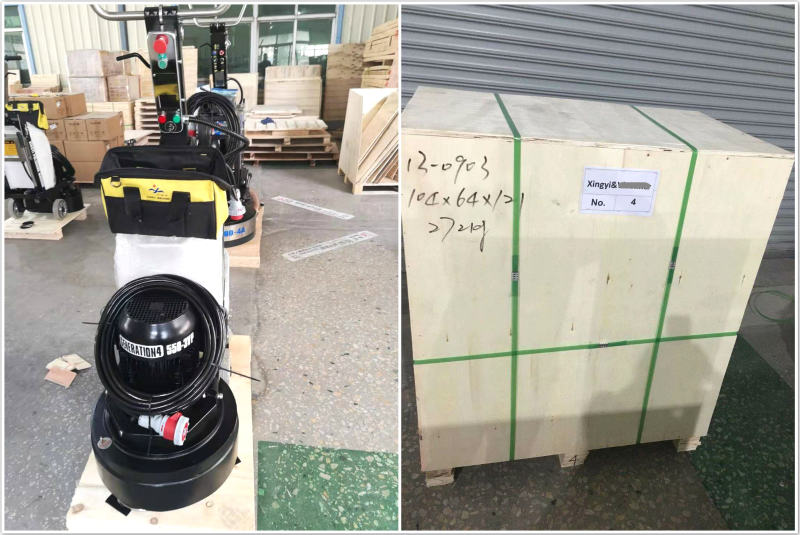

Package

High-efficiency floor polish and grind machine


FAQ

Q1: How do you fix holes and cracks on floor with grinding machine?

A1:Grinding repairing is suitable for the hole less than 10mm and cracks less than 1mm.

①Tools: 550-3VP floor grinder,dustless cutting machine, diamond pads, EC-1008, fast drying cement, bucket watering can.

②Clean all the sundries on floor with a acuum cleaner.

③Apply a sufficient EC-1008 repair agent when there is no obvious water logging.

④Grind directly with a 550-3VP planetary grinding machine with the diamond pad(120#) until all holes and cracks are filled(speed should be 800-1000rpm)

⑤Check whether the repair is completed, protect the ground with water 3-5 times.


Q2:How long can the machine use per day?

A2:

① It is recommended that the normal working time is 8-10 hours, but it can also be operated for 24 hours if your project is urgent.

② The machine is the same as the car. We need to maintain it according to the maintenance regulations every month every week , so that the machine can last longer.

③ During construction, it is recommended to have a good construction environment, the machine is fully equipped, check the working condition of the machine in real time, pay attention to maintenance, and replace the maintenance of gear oil for half a year.

④ Construction workers regularly attend training and maintain the machine, the service life and construction effect of the machine will be much better.
